Ace Backstage 122M2BK-FF

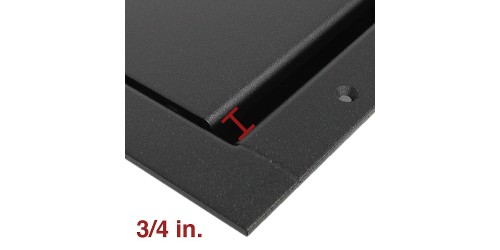

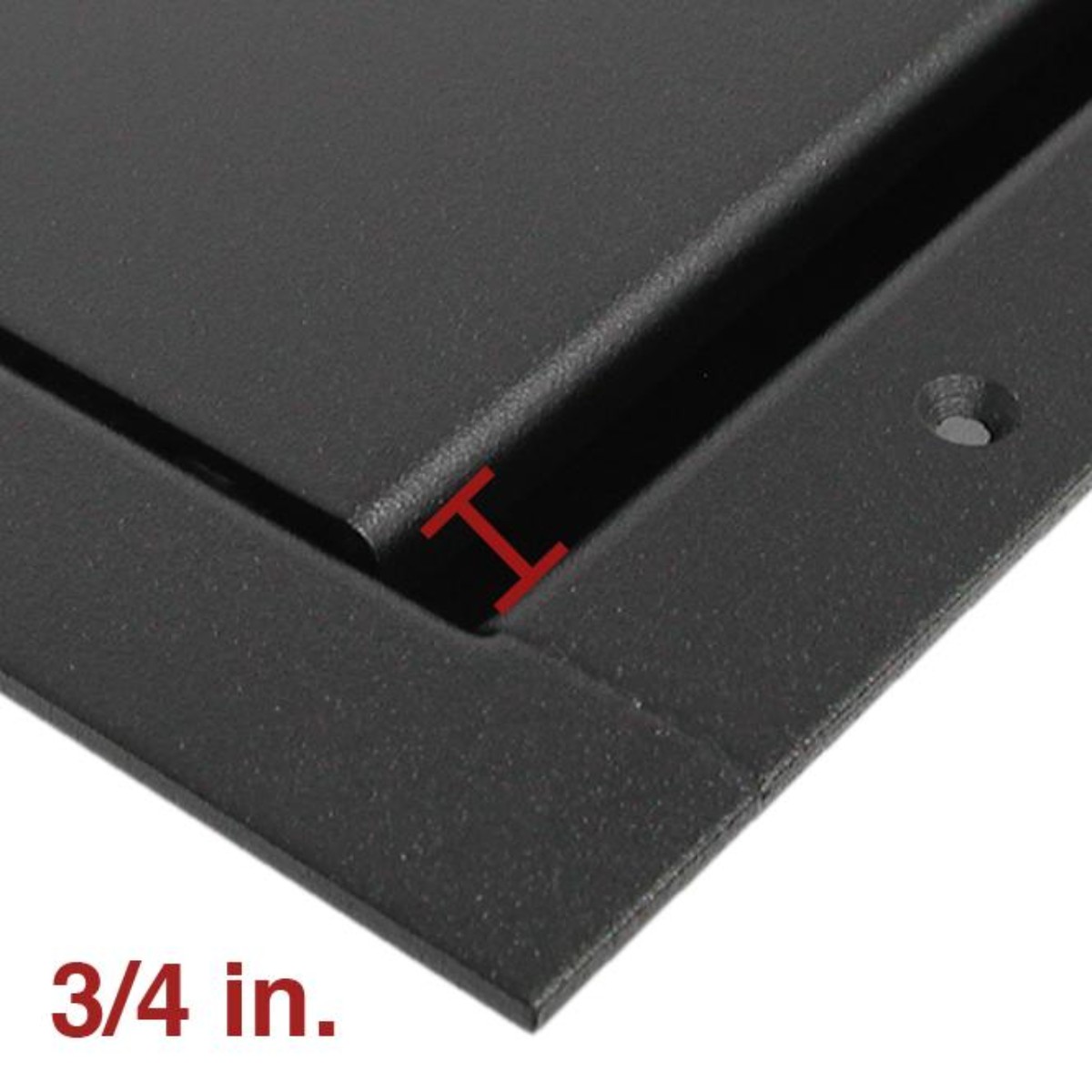

Full Pocket with Flush Flange/Standard Modified Lid 3/4" - Black
Part #: 122M2BK-FF
Satisfaction Guaranteed!
MSRP: $401.85
Our Price:
$288.90
Top 122M2BK-FF Specifications
- Capacity: Up To (12) Connectors or (1-6) Connectors and (1) AC Duplex
- Floor Cut Out Dimensions: 8.5" x 8.5"
- Above Floor Dimensions: 10.5" Square
- Under Floor Dimensions: 4.5" Deep
"Customer Service was knowledgeable and answered all questions quickly. Great Service!"
-Gregory W.
-Gregory W.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

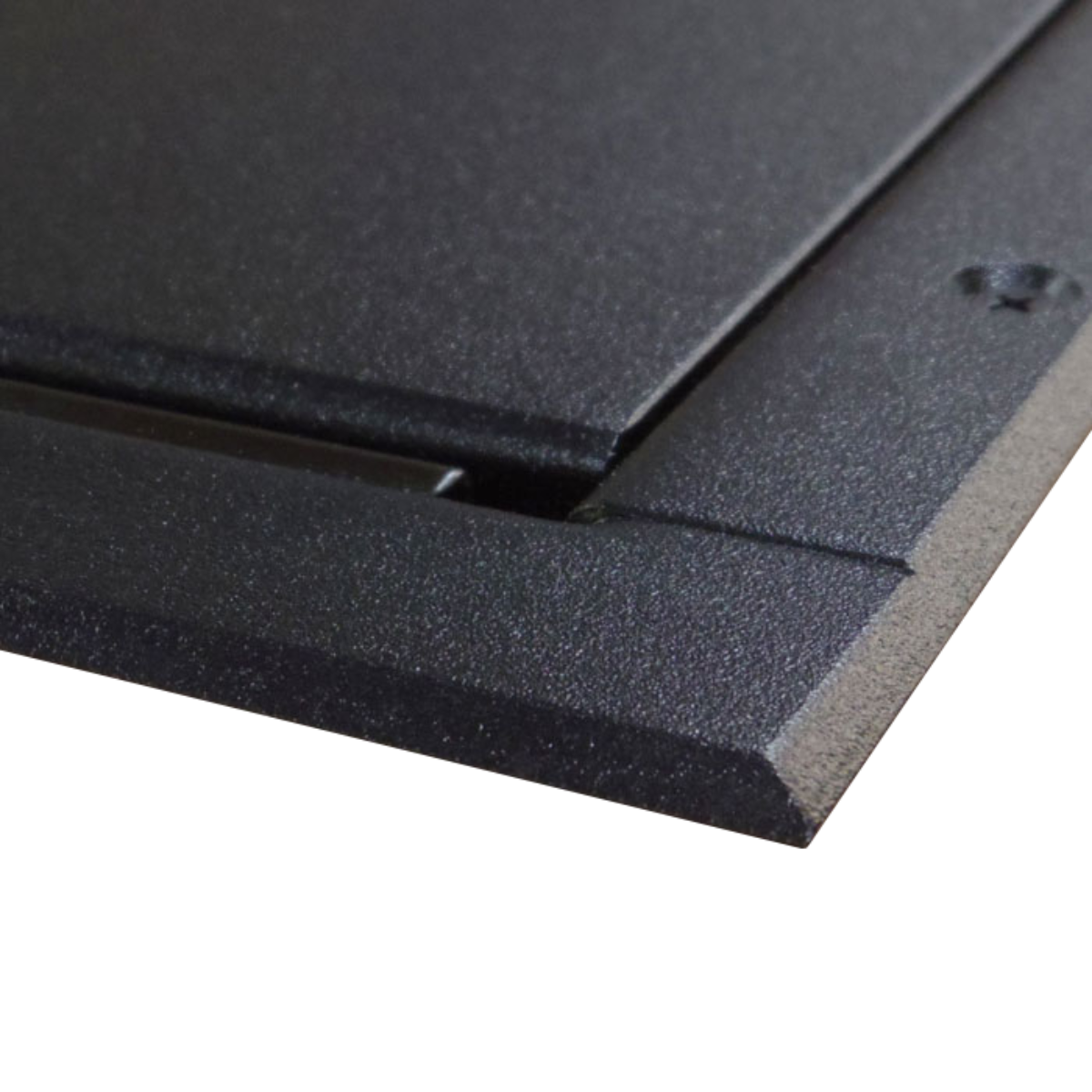

This Full Stage Pocket is made of heavy duty steel and is used to conceal high voltage and low voltage connections in this one dual application floor box. The slant panel configuration protects connectivity from damage and dust by placing connections upright, below the floor surface and under the modified lid configuration allowing more cable exit room then with a standard lid. The Flush Flange modification allows the pocket to sit virtually flush on solid surface floors, and the large open access panel area allows terminated panels to be installed before or after pocket installation to support multi-phase construction applications.
Reviews
There are currently no reviews for this product.
