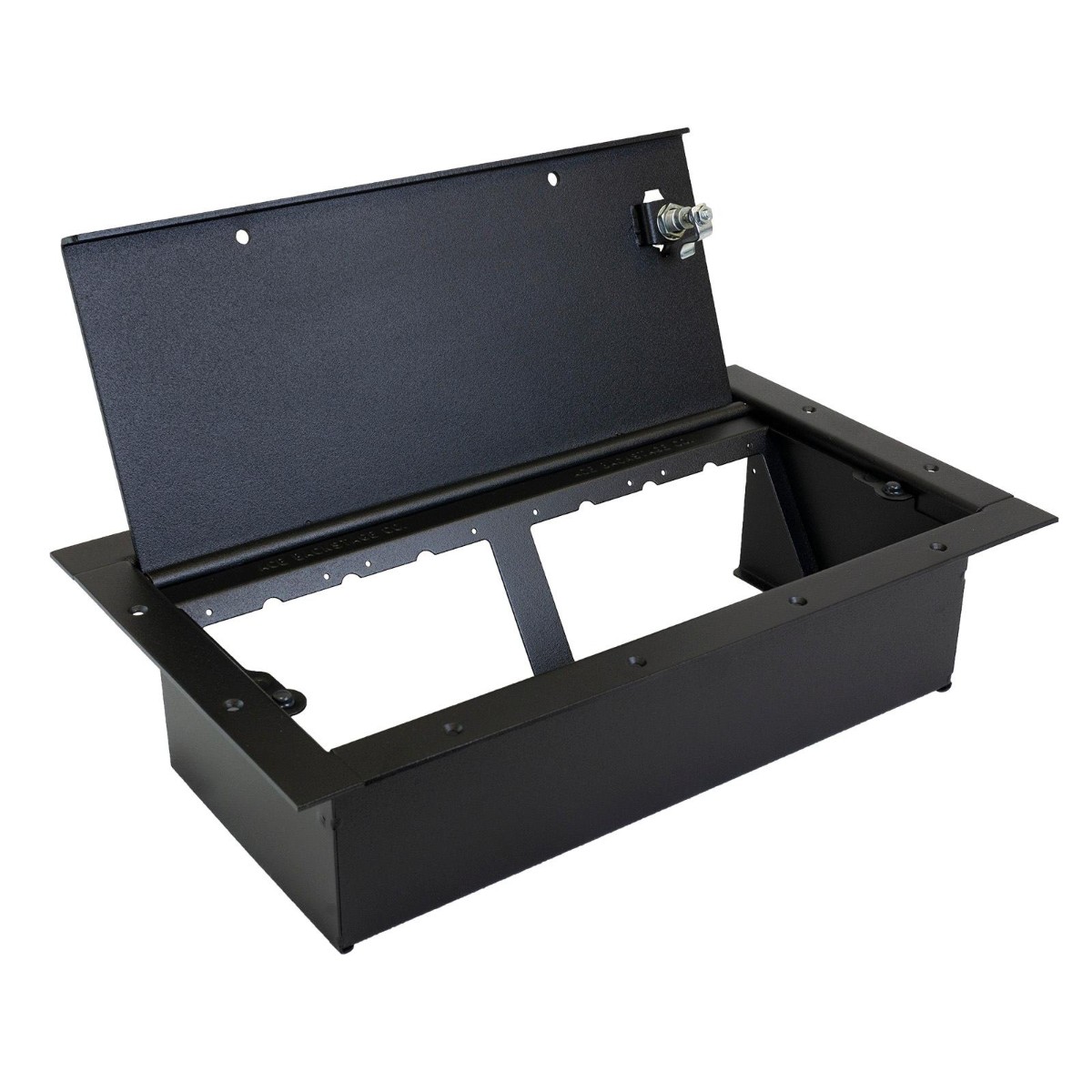

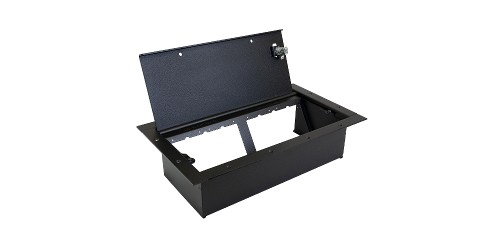

Ace Backstage 124L3BK-FF

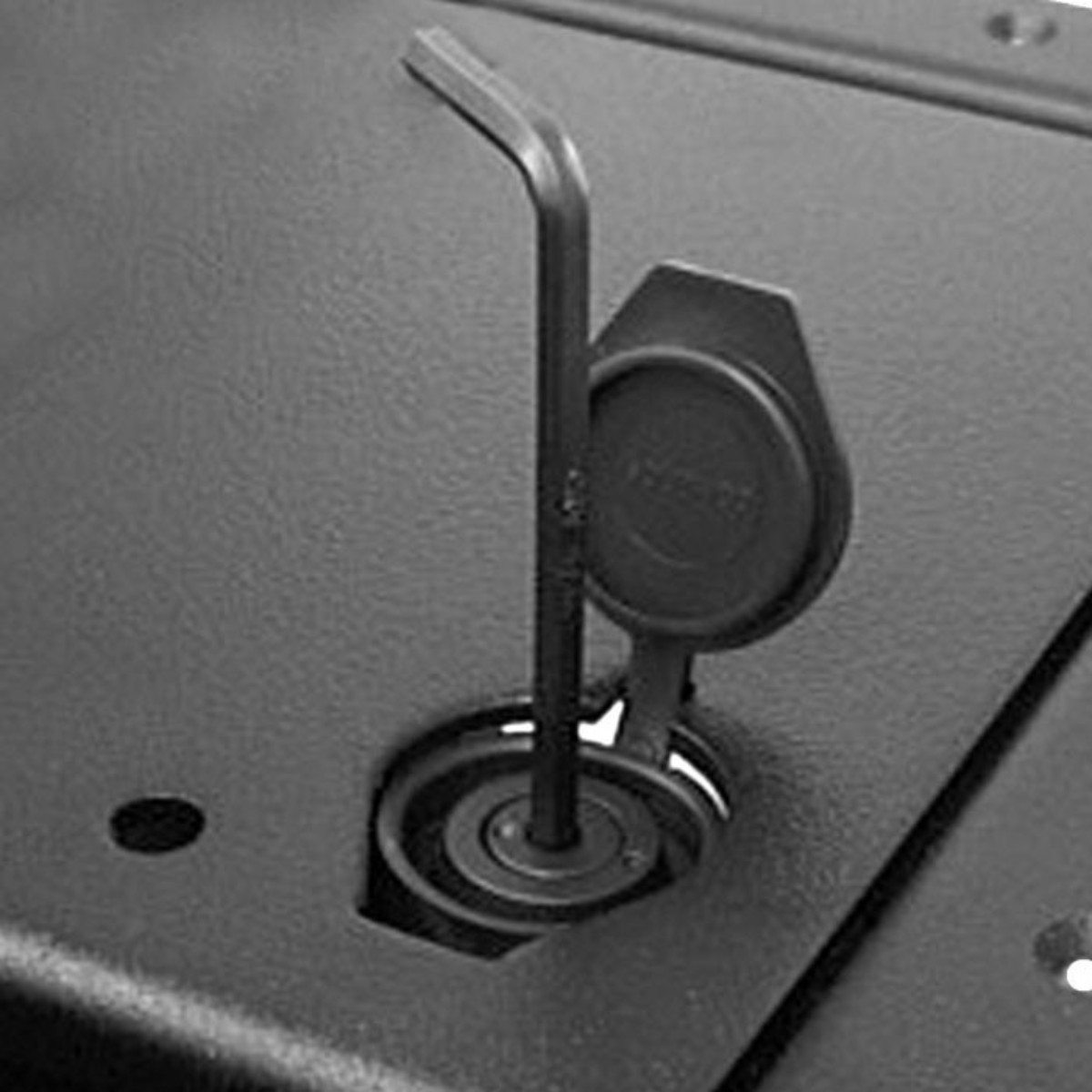

Double Wide Pocket Flush Flange/Locking Lid with Hex Lock - Black
Part #: 124L3BK-FF
Satisfaction Guaranteed!
MSRP: $855.26
Our Price:
$625.05
Top 124L3BK-FF Specifications
- Capacity: Up To (24) Connectors or (1-18) Connectors and (1) AC Duplex
- Floor Cut Out Dimensions: 16.5" x 8.5"
- Above Floor Dimensions: 18.5" X 10.50"
- Under Floor Dimensions: 4.5" Deep
"Very convenient and great customer support."
-Lynn Y.
-Lynn Y.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
This Double Wide Stage Pocket is double the size of the standard Full Pocket and is made of heavy duty steel to conceal and protect high voltage and low voltage connections in this one dual application floor box. The slant panel configuration protects connectivity from damage and dust by placing connections upright, below the floor surface and under the locking lid to keep connections secure. The Flush Flange modification allows the pocket to sit virtually flush on solid surface floors, and the large open access panel area allows terminated panels to be installed before or after pocket installation to support multi-phase construction applications.
