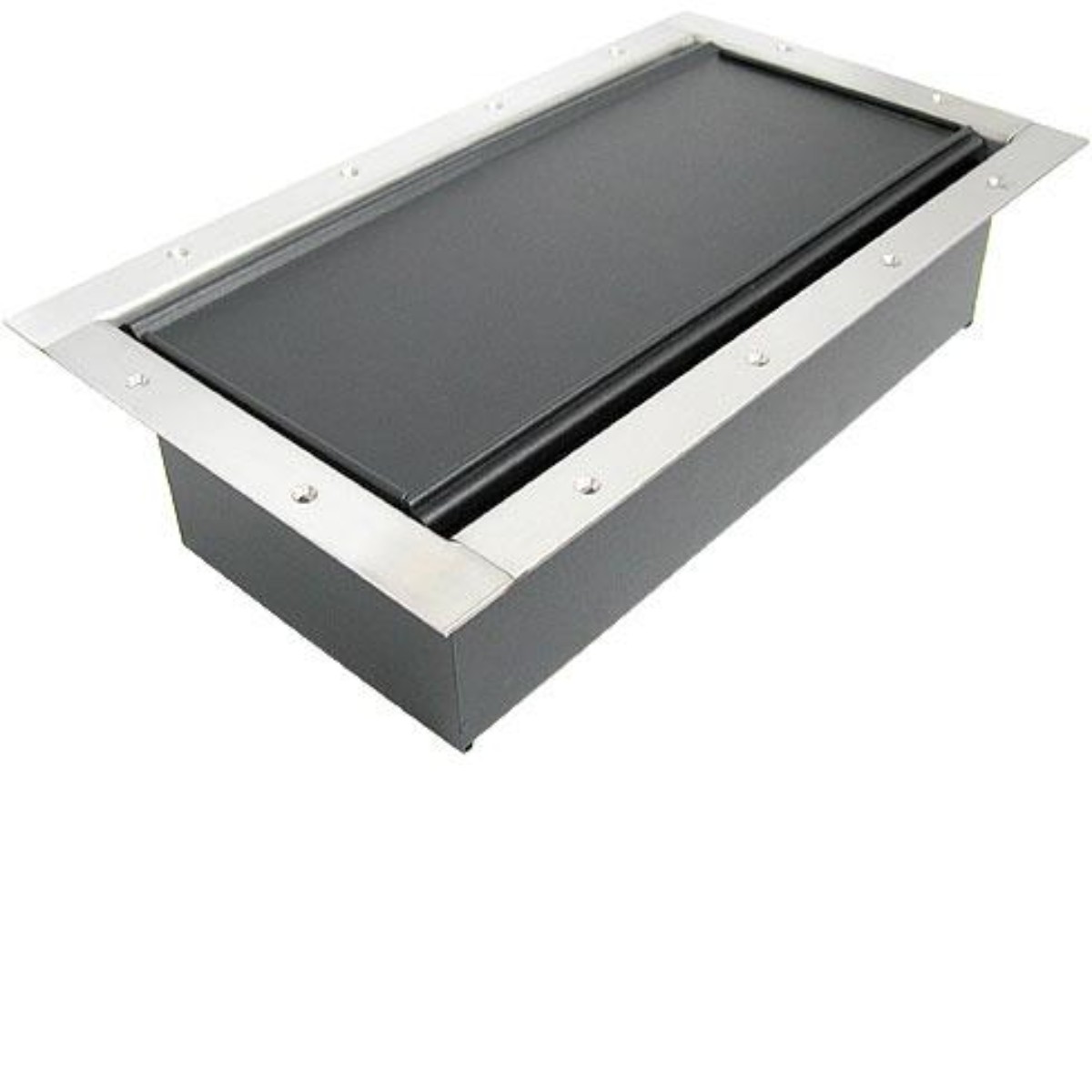

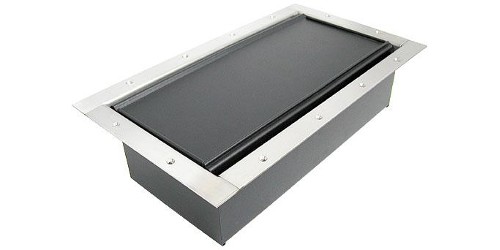

Ace Backstage 324CLSS
Double Wide Pocket/Carpet Lid - SS Bezel
- Capacity: Up To (24) Connectors or (1-18) Connectors and (1) AC Duplex
- Floor Cut Out Dimensions: 16.5" x 8.5"
- Above Floor Dimensions: 18.5" X 10.50"
- Under Floor Dimensions: 4.5" Deep
Description
The Double Wide Stage Pocket is double the size of the standard Full Pocket and is made of heavy duty steel to conceal and protect high voltage and low voltage connections in this one dual application floor box. The slant panel configuration protects connectivity from damage and dust by placing connections upright, below the floor surface and under the recessed carpet lid. This lid option sits recessed in the pocket so when flooring is glued inside the rimmed lid edge, the covered black lid, stainless steel pocket flange, and surrounding floor are visually flush and esthetically consistent. The Double Wide Pocket is designed so terminated panels can be installed before or after pocket installation to support multi-phase construction applications.
Fabrication lead time and deposit may be required.
