Kramer AV WP-3H2
HDMI Wall-Plater Extender Transmitter - 4K HDR

Description

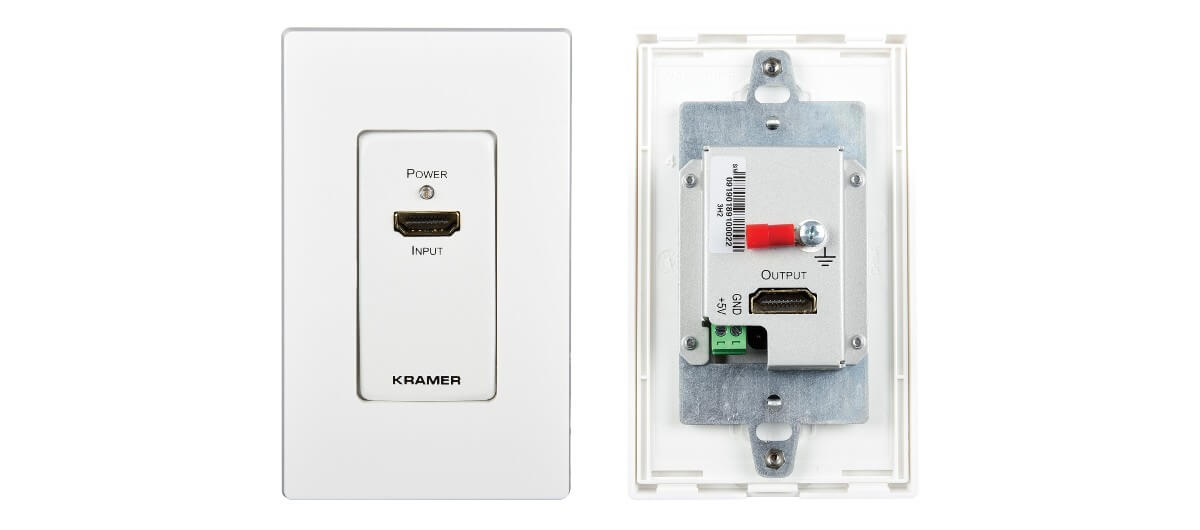

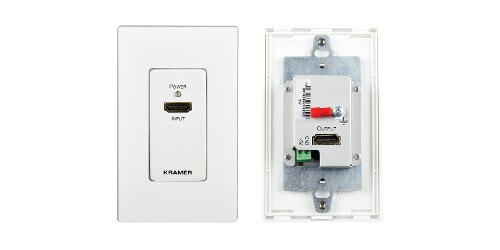

The  WP-3H2 Wall Plate Extender by Kramer Electronics is a 4K High Dynamic Range (HDR) transmitter that allows HDMI signal extension between a sender and a display. The WP-3H2 features a max range of 150' at 1080p resolutions or 65' at 4K60 (4:4:4) resolutions with HDR and HDCP 2.2 support. Rather than using a simple grommet or passive wall plate, by utilizing the Kramer WP-3H2 in the transmission path you will remove dropout and digital noise (sparkles) in your picture that may result from using long HDMI cables.

Primary Features of the WP-3H2:

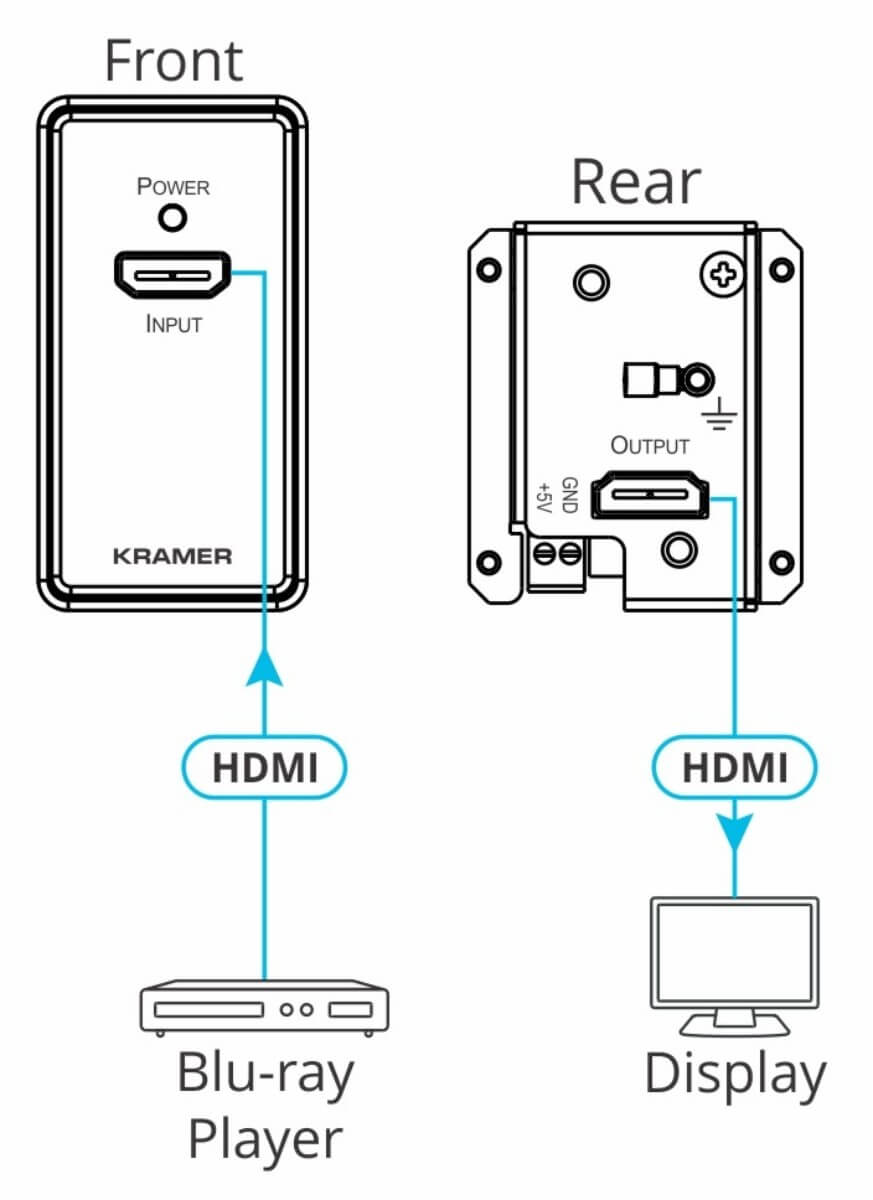

• Extends HDMI Transmission Distance - Extends 4K@60Hz (4:4:4) signals up to 20m from the source (10m from the source to the HDMI Extender, and 10m from the HDMI extender to the display).
• Supports the DDWG standard for HDMI compliant displays.
• HDMI Support - Supports HDR10, ARC, CEC, deep color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, Dolby atmos DTS-HD, 2K, 4K, and 3D Dolby Vision as specified in HDMI 2.0.
• Supports the DDWG standard for HDMI compliant displays.
• Content Protection - HDCP 1.4 and HDCP 2.2 compliant.

Specifications

• Supports HDR10, ARC, CEC
• Max Range: 4K@60 4:4:4 Resolution: 20m/65ft (10m/33ft from source to extender, 10m/33ft from extender to display) further distances achievable at 1080p resolutions
• HDMI Support: HDR10, ARC, CEC, deep color, x.v.Color , Lip Sync, 7.1 PCM, Dolby TrueHD, Dolby atmos DTS HD, 2K, 4K, and 3D Dolby Vision as specified in HDMI 2.0
• Power: Consumption: 5V DC, 150mA
• Accessories: Power supply
• Warranty: 7 Years

Downloads

• Kramer AV WP-3H2 Specifications (PDF)
• Kramer AV WP-3H2 Manual (PDF)
