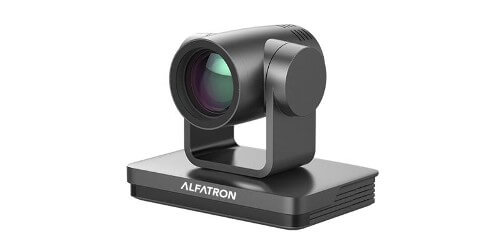

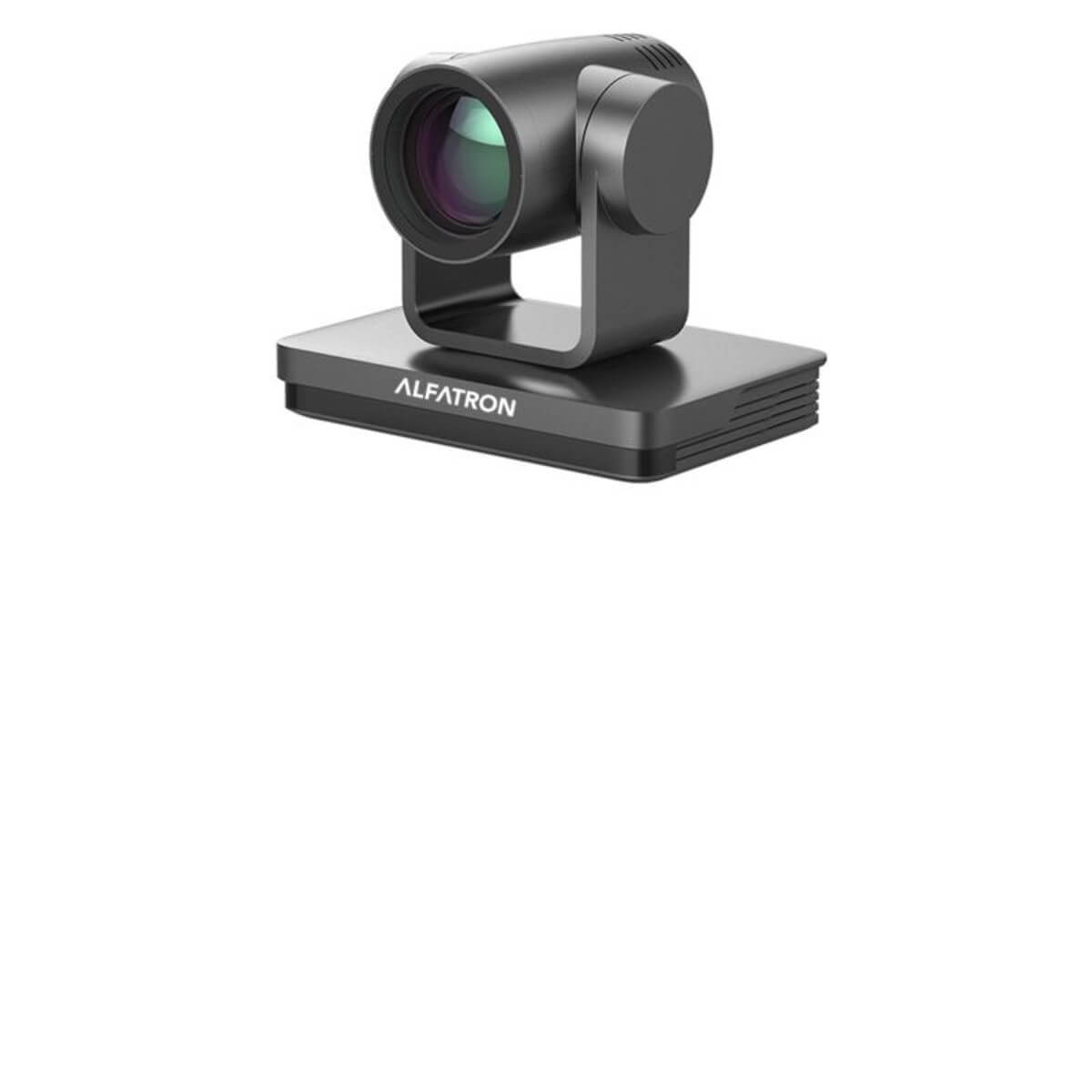

ALFAtron ALF-12X-SDIC
12x PTZ Conference Camera with USB 3.0, HDMI, Visca

Description

The Alfatron ALF-12X-SDIC is an HD PTZ camera equipped with 1080p with a 12x Zoom Lens. This PTZ camera is suitable for medium to large-sized meeting rooms, boardrooms, conference venues and houses of worship. Alfatron ALF-12X-SDIC is compatible with video meeting software, such as Skype and Zoom. The Full HD 1080P camera is equipped for a high-quality video stream and high definition real-time synchronization.

Product Features:
1080P video with a Frame rate up to 60fps 12x Zoom Lens which gives you clear and a fluent image Leading Auto Focus Technology Low Noise and High SNR Quiet PTZ 255 Presets, Multiple Network Protocols for online streaming.

Tele Education, Lecture Capture, Webcasting, Video Conferencing, Tele Training, Tele Medicine, Interrogation and Emergency command systems. Field of view 6.3°(Tele) – 72.5°(Wide). USB3.0, HDMI, SDI, CVBS, LAN, RS-232, Audio input and it is supplied with an IR remote control. PC control using Sony Visca or Pelco-D/P commands. 12V DC or POE Powered.

Specifications

• Video Compression Format: LAN Interface: H.265, H.264, Dual stream output, USB2.0 Interface: H.265, H.264, MJPEG, USB3.0 Interface: YUV
• Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, Support network VISCA control protocol
• Support remote upgrade, remote restart, remote reset
• Control Interface: RS232, RS485
• Control Protocol: VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/9600/4800/2400bps
• Pan/Tilt Rotation: 170 , -30 +90
• Pan Control Speed: 0.1 -60 /sec
• Tilt Control Speed: 0.1-30 /sec
• Preset Speed Pan: 60 /sec, Tilt: 30 /sec
• Preset Number: 255 presets (10 presets by the remote controller)
• Included Accessories: 12V/1.5A Power supply, RS232 control cable, USB3.0 connection cable (U3 model), USB2.0 connection cable (U2 model), Remote Controller, Manual, Warranty Card

Downloads

• ALFAtron ALF-12X-SDIC Manual (PDF)
