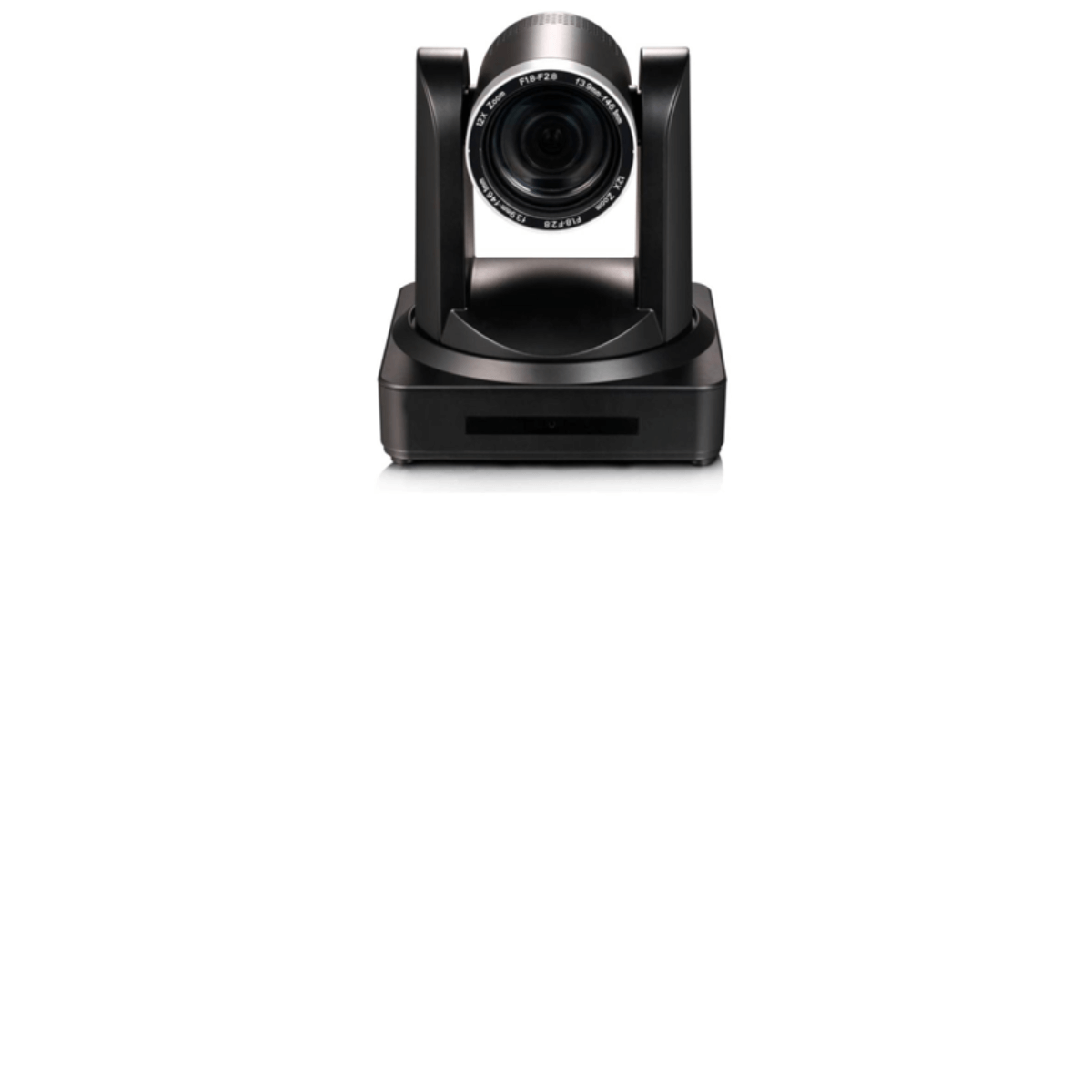

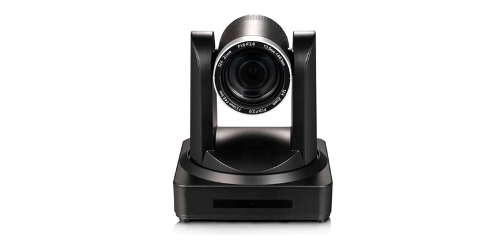

ALFAtron ALF-20X-NDIC
HD 1080P PTZ Camera with NDI - 20x Zoom

Description

Alfatron ALF 20X-NDIC is an HD PTZ camera equipped with 1080p with a 20x Zoom Lens. This PTZ camera is suitable for medium to large size meeting rooms, boardrooms, houses of worship, and conference venues.

Alfatron ALF 20X-NDIC is compatible with video meeting software, such as Skype and Zoom. The 1080P HD camera is equipped for a high-quality video stream and high definition real-time synchronization.

Product Features:

• 1080P video with a Frame rate up to 60fps.
• 20x Zoom Lens which gives you clear and a fluent image.
• Leading Auto Focus Technology.
• Low Noise and High SNR.
• Quiet PTZ.
• 255 Presets.
• Multiple Network Protocol – Supports ONVIF, RTSP & RTMP.
• SDI, HDMI, RS232, Network, NDI Connectivity with audio input.
• PC control using Sony Visca, Pelco D/P commands.

Wide Application – Tele-Education, Lecture Capture, Webcasting, Video Conferencing, Tele-Training, Tele-Medicine, Interrogation, and Emergency command systems.

Specifications

• Video Compression: H.264, H.265, Dual stream output
• Pan/Tilt Rotation: 170 , -30 +90
• Pan Control Speed: 0.1 -60 /sec
• Tilt Control Speed: 0.1-30 /sec
• Preset Speed Pan: 60 /sec, Tilt: 30 /sec
• Preset Number: 255 presets (10 presets by the remote controller) Control Protocol: VISCA/Pelco-D/Pelco-P
• Baud Rate:115200/9600/4800/2400bps
• Audio Input Interface: A-IN: Double track 3.5mm linear input
• Audio Compression AAC/MP3/G.711A Audio compression
• Accessories: 12V/1.5A power supply, RS232 cable, remote control, manual, warranty card
• Included accessories: Wall mount

Downloads

• ALFAtron ALF-20X-NDIC Manual (PDF)
