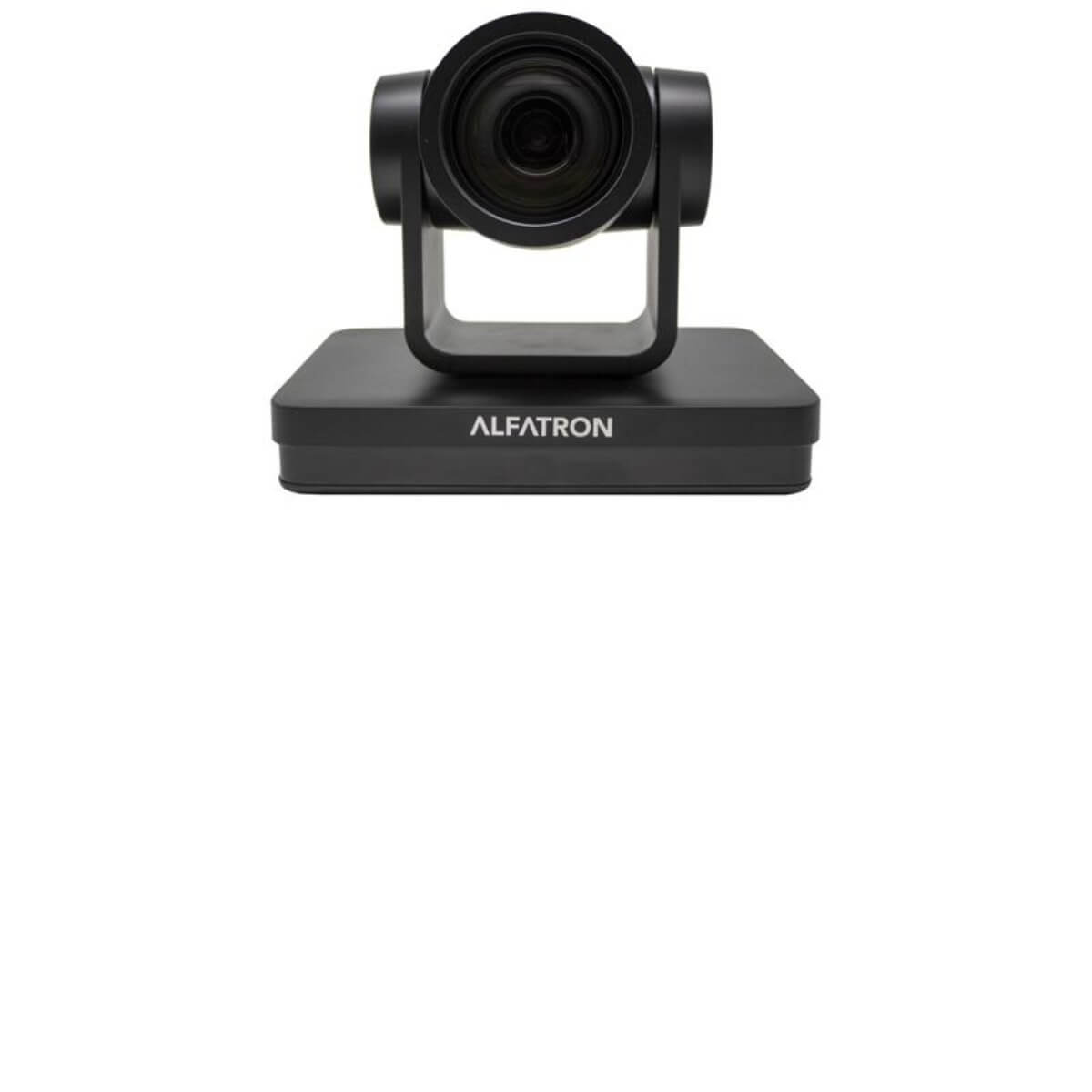

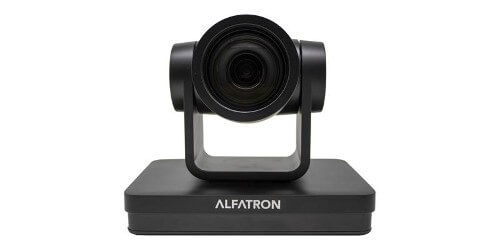

ALFAtron ALF-30X-SDIC
30x Zoom PTZ Camera with SDI, USB, HDMI and Visca - 1080p

Description

The Alfatron ALF-30X-SDIC is an HD PTZ camera equipped with 1080p with a 30x Zoom Lens. This PTZ camera is suitable for medium to large-sized meeting rooms, boardrooms, conference venues, and houses of worship. Alfatron ALF-30X-SDIC is compatible with video meeting software, such as Skype and Zoom. The Full HD 1080P camera is equipped for a high-quality video stream and high definition real-time synchronization.

Product Features:

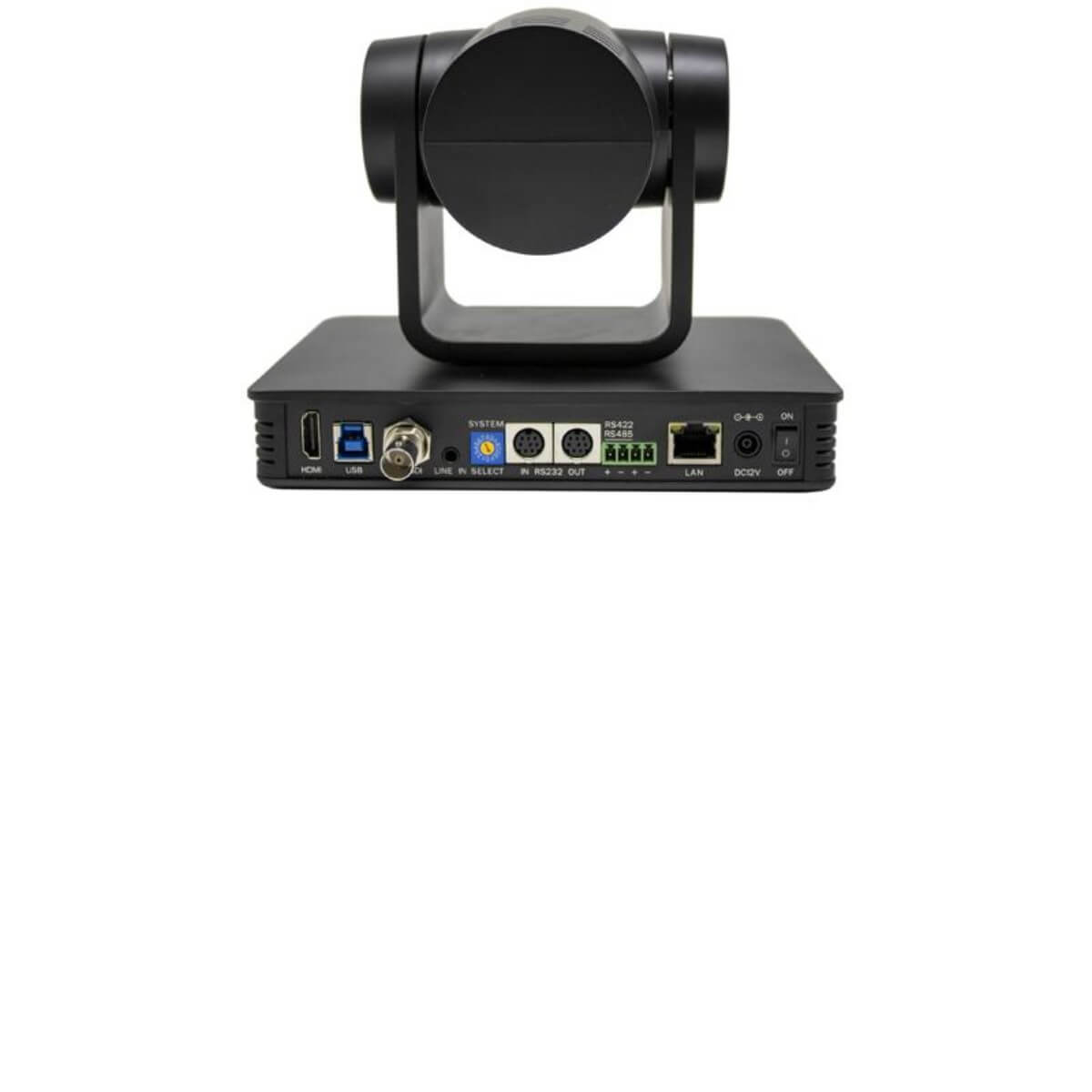

1080P video with a Frame rate up to 60fps 30x Zoom Lens which gives you clear and a fluent image Leading Auto Focus Technology Low Noise and High SNR Quiet PTZ 255 Presets, Multiple Network Protocols for online streaming – Tele Education, Lecture Capture, Webcasting, Video Conferencing, Tele Training, Tele Medicine, Interrogation and Emergency command systems. Field of view 2.34°(Tele) – 65.1°(Wide). USB3.0, HDMI, SDI, CVBS, LAN, RS-232, audio input and is supplied with an IR remote control. PC control using Sony Visca or Pelco-D/P commands. 12V DC or POE Powered

Specifications

• CVBS output: 570i 480i
• USB3.0 interface video format: 1920X1080@60fps Max
• USB2.0 interface video format: 1080P@30fps Max
• View Angle: 2.34 tele / 65.1 wide
• Digital Zoom: 10X
• Minimum Illumination: 0.5Lux (F1.8, AGC ON)
• DNR: 2D & 3D DNR
• White Balance Auto / Manual/ One Push/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
• Focus/Aperture/Electronic Shutter
• Auto/Manual/One Push Focus
• Iris: Auto/Manual
• Shutter: Auto/Manual
• BLC: ON/OFF
• Video Compression Formats: LAN Interface: H.265, H.264, Dual stream output
• USB2.0 Interface: H.265, H.264, MJPEG
• USB3.0 Interface: YUV
• Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, Support network VISCA control protocol
• Support remote upgrade, remote restart, remote reset
• Control Interface: RS232, RS485
• Control Protocol: VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/9600/4800/2400bps

Downloads

• ALFAtron ALF-30X-SDIC Manual (PDF)
