Altinex CNK210
Cable Nook w/ Power, USB Charging, HDMI, VGA, Cat6, Black or Silver

Description

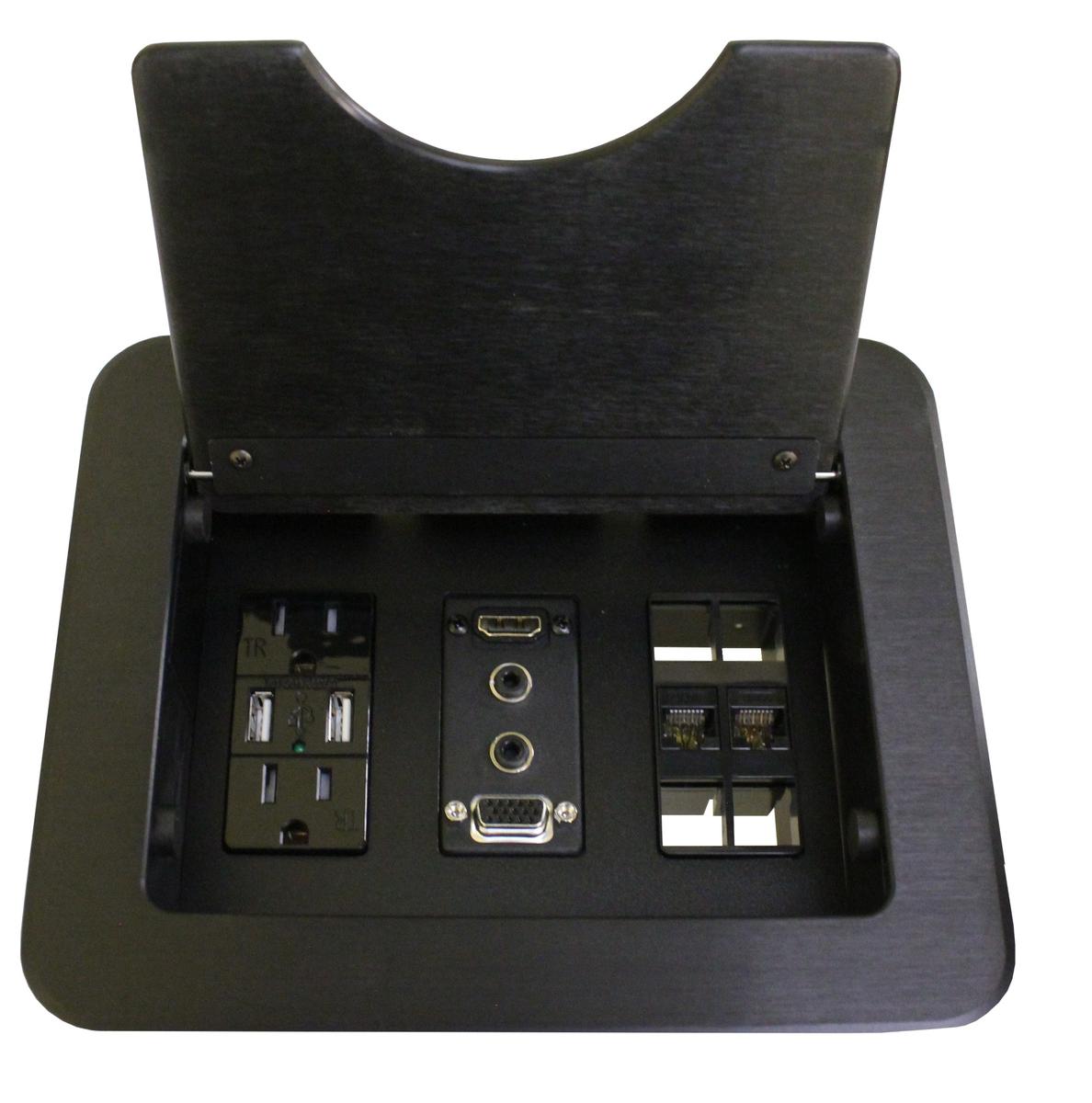

The Altinex CNK210 is a cable well designed to sit flush in your table, when you lift the lid it exposes your power, audio, video, and data connections.  There is a gap in the lid that allows cables to remain plugged in with the lid closed.  Inside the unit you will find 2 power, 2 USB charging (3A total), 1 HDMI, 1 VGA, 2 audio, 2 Cat6, and 4 keystone openings (6 blanks are included if needed).  You can use these openings to purchase additional snap-in connectors now or for future expansion.    All connections are female to female couplers while the power is a 9' three prong cord.

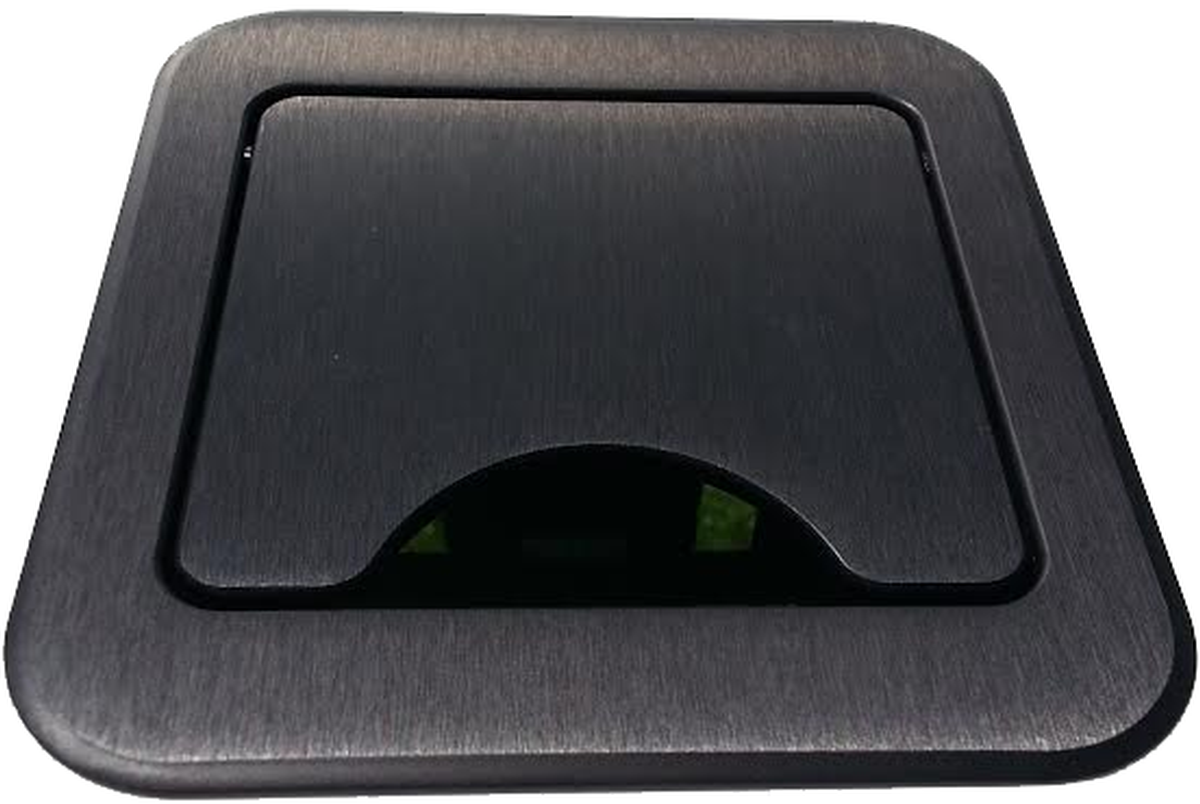

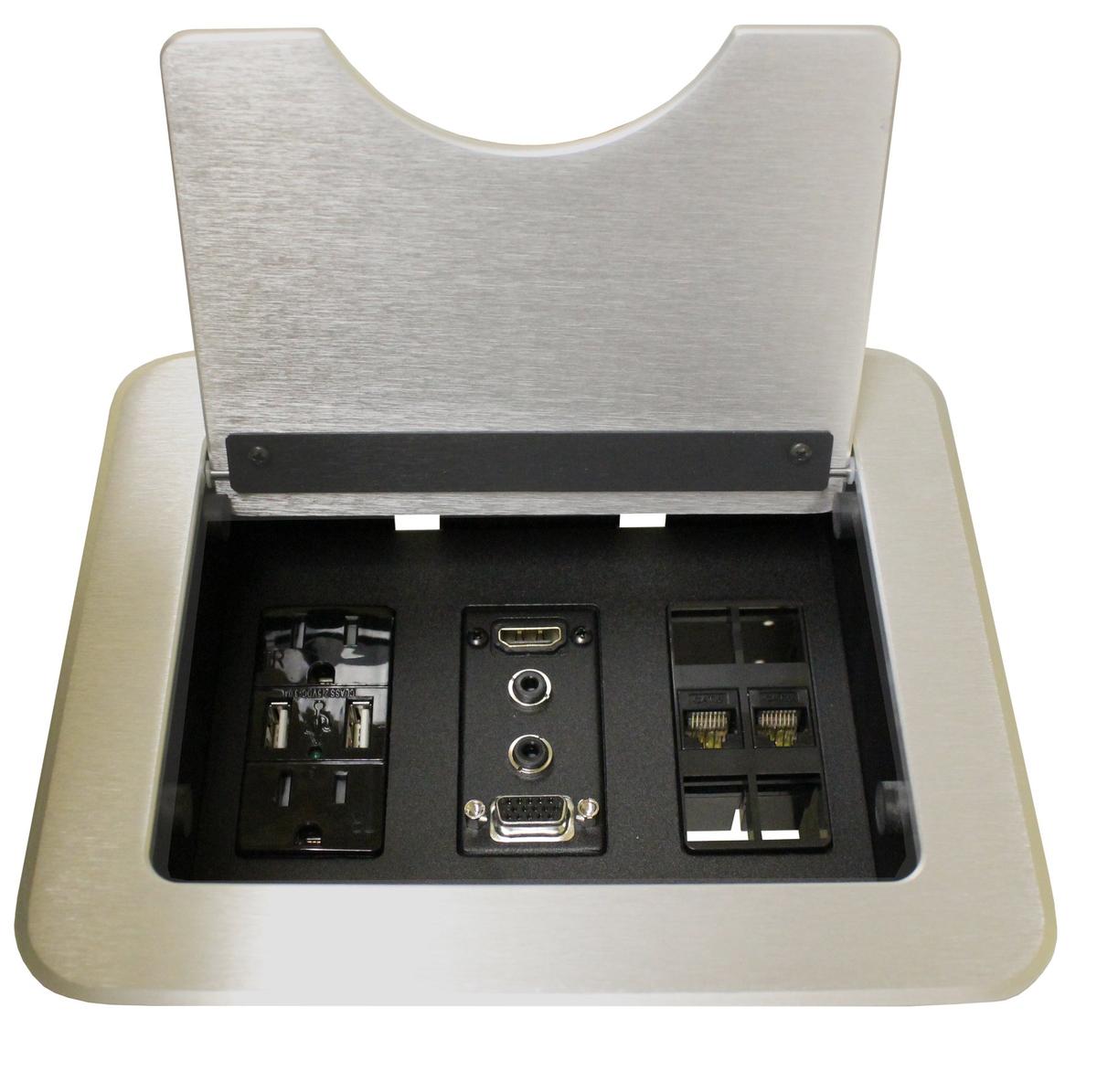

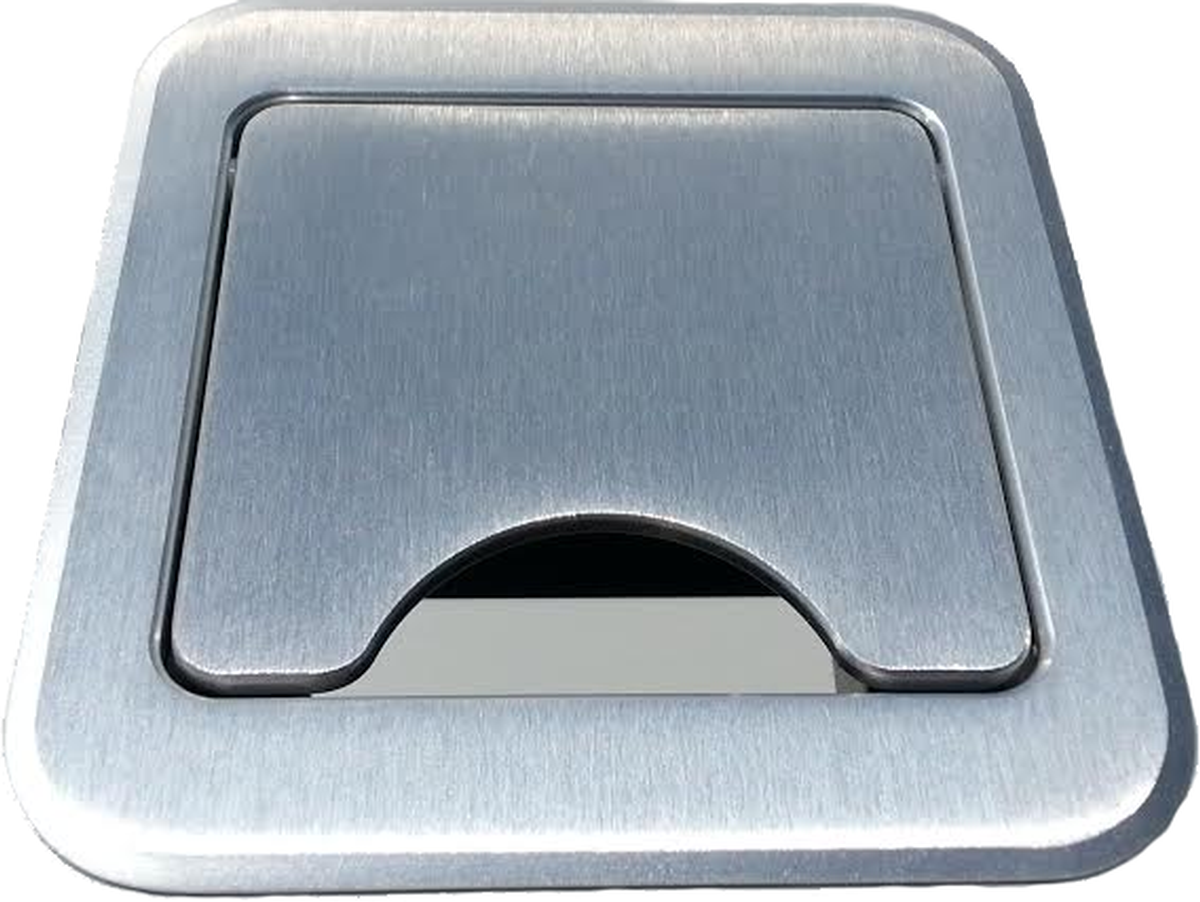

To compliment the look of any room you can choose from a black anodized aluminum finish, or a silver anodized aluminum finish.  The entire box and all the contents have a long 10 year warranty for peace of mind.

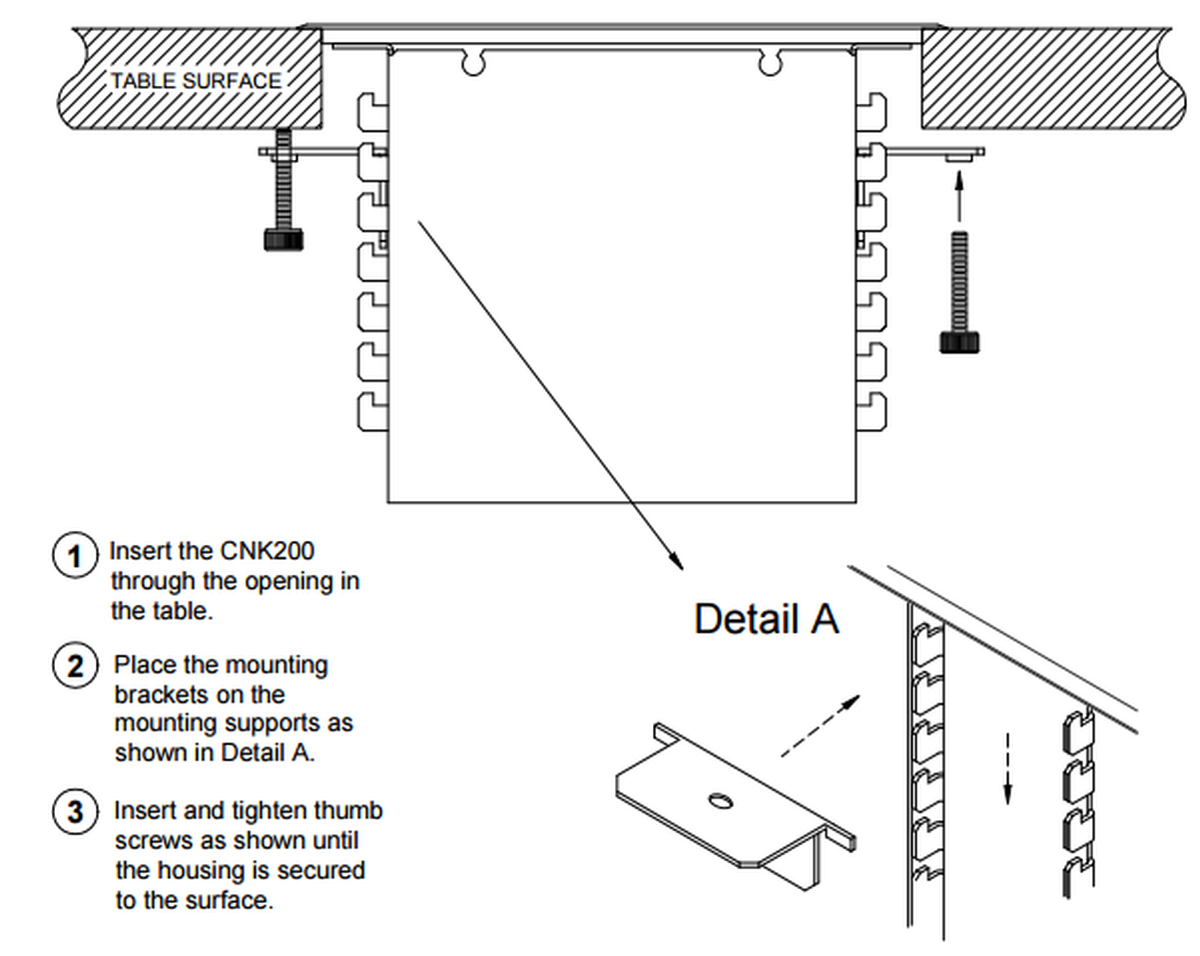

To install your Cable Nook cut your hole with the cutout template and drop it in the hole, then secure to the under side of the table with the included mounting hardware.  The box will install in a wide range of table thicknesses from .5" to 3.5".  The connectors can be installed high or low in the box, install them low if you want to store cables in the box.  You can leave them attached and close the lid, this will ensure that you always have the cable ready to use.

Specifications

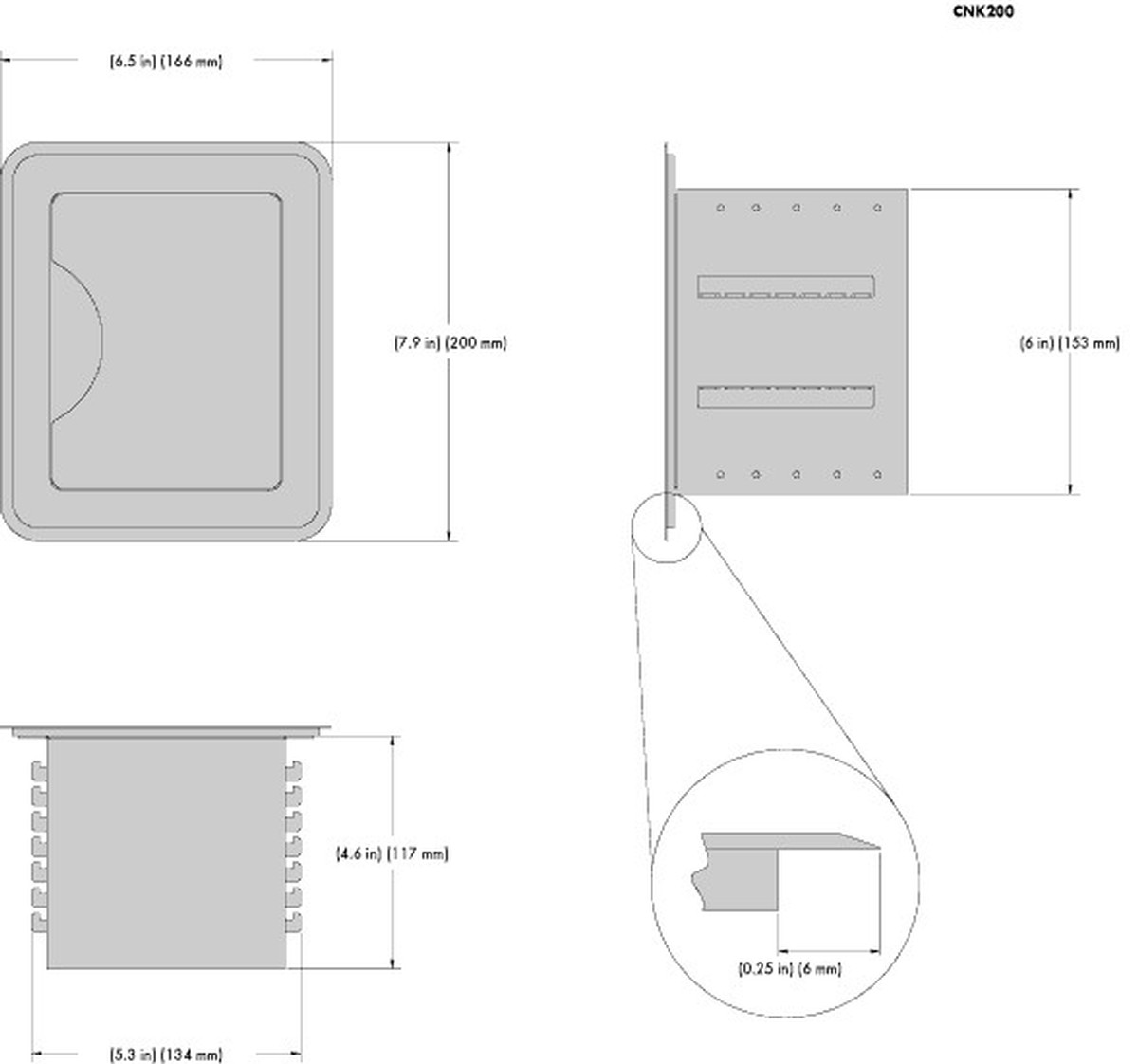

• Bezel dimensions: 7.9" x 6.5"
• Cutout dimensions: 7.46" x 6.13"
• Table thickness: .5" to 3.5"
• Depth below table: 6.5"
• Includes: Everything pictured plus mounting hardware and 6 snap-in blanks
• Warranty: 10 years

Downloads

• Altinex CNK210 Manual (PDF)
• Altinex CNK210 Cutout Template (PDF)
