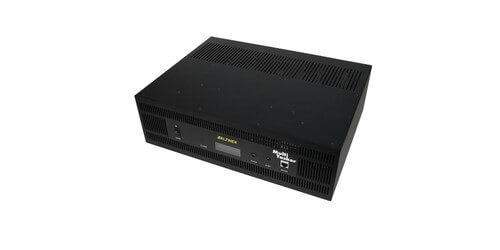

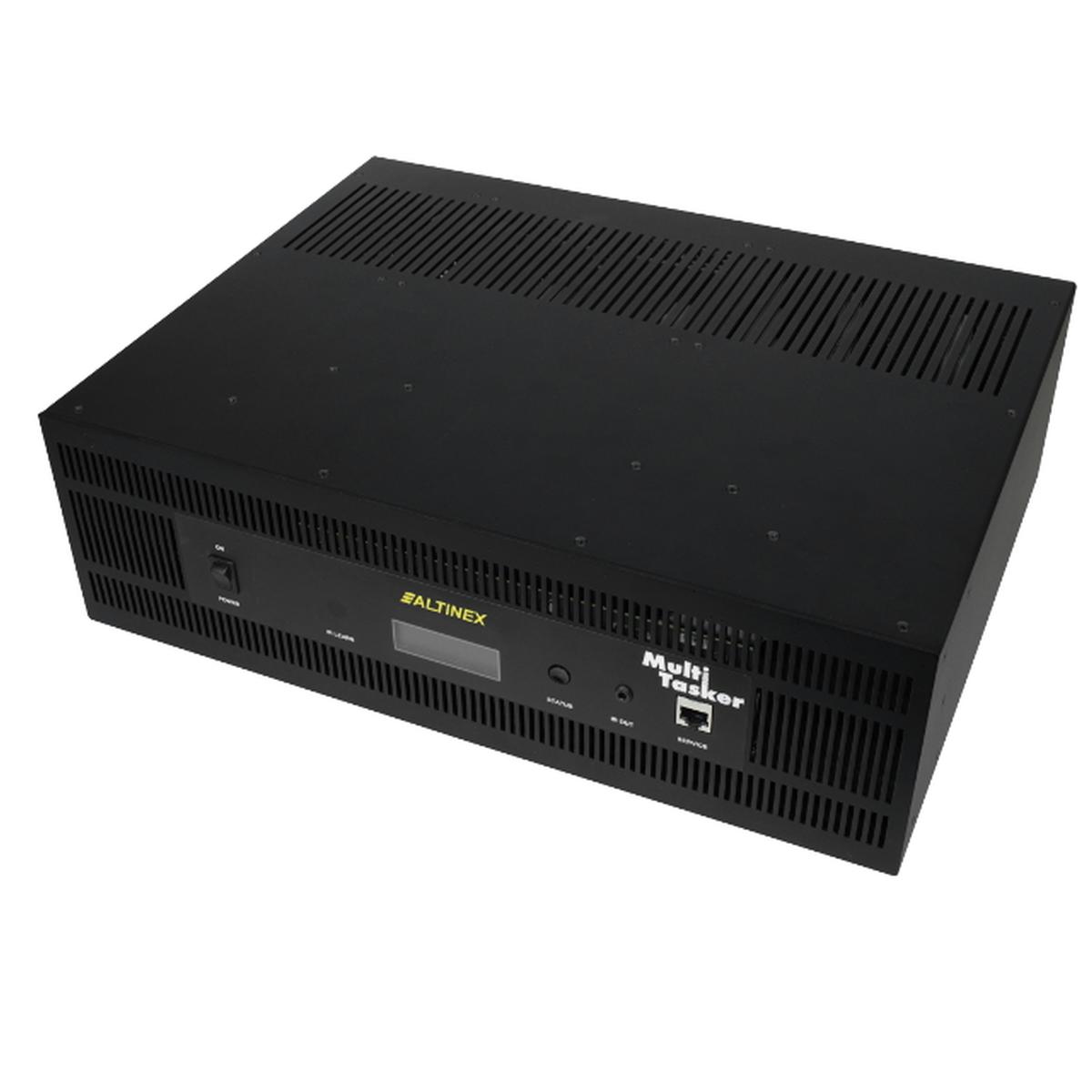

Altinex MT302-121
3U 12 Slot Digital Multitasker Enclosure w/ RS-232, Ethernet

Description

The Altinex MT302-121 comes as a blank/empty enclosure which allows users the flexibility and options to outfit this device with up to 12 different (purchased separately) Multitasker cards. These cards can perform a wide range of functions depending on your needs to enable a virtually unlimited exapandability and control of AV system with unlimited capacity.

The Multitasker Card options that are available to be used with the MT302-121 include:

MT322-105: 1-In, 3-Out Multitasker Power Distribution w/ Current Sense
MT322-107: 1-In, 3-Out Power Distribution w/ Current Sense (International)
MT310-104: 16 x 16 Stereo Audio Matrix Switcher (TB In/Out)
MT305-804: 8 x 4 HDMI Matrix Switcher
MT315-101: HDMI over Any Wire, Tx Card
MT315-102: HDMI over Any Wire, Rx Card
MT317-101: HDMI over Fiber Optic, Tx Card
MT317-102: HDMI over Fiber Optic, Rx Card
MT312-104: Control Card
MT399-105: Package of 5 PC. Black Multitasker Card Slot Blanks

Specifications

• Available Slots: 12
• TCP/IP control
• LCD display
• On/Off button
• IR receiver/IR blaster
• Ethernet control (2 ports)
• Dimensions (WxDxH): 17.4 x 13 x 5.2"
• Rack Size: 3U high, full rack wide
• Warranty: Lifetime

Downloads

• Altinex MT302-121 Specifications (PDF)
