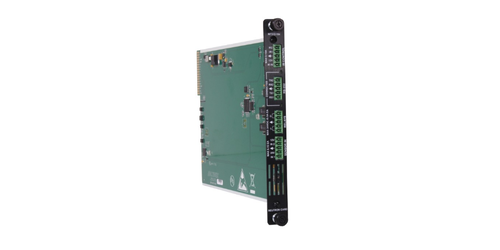

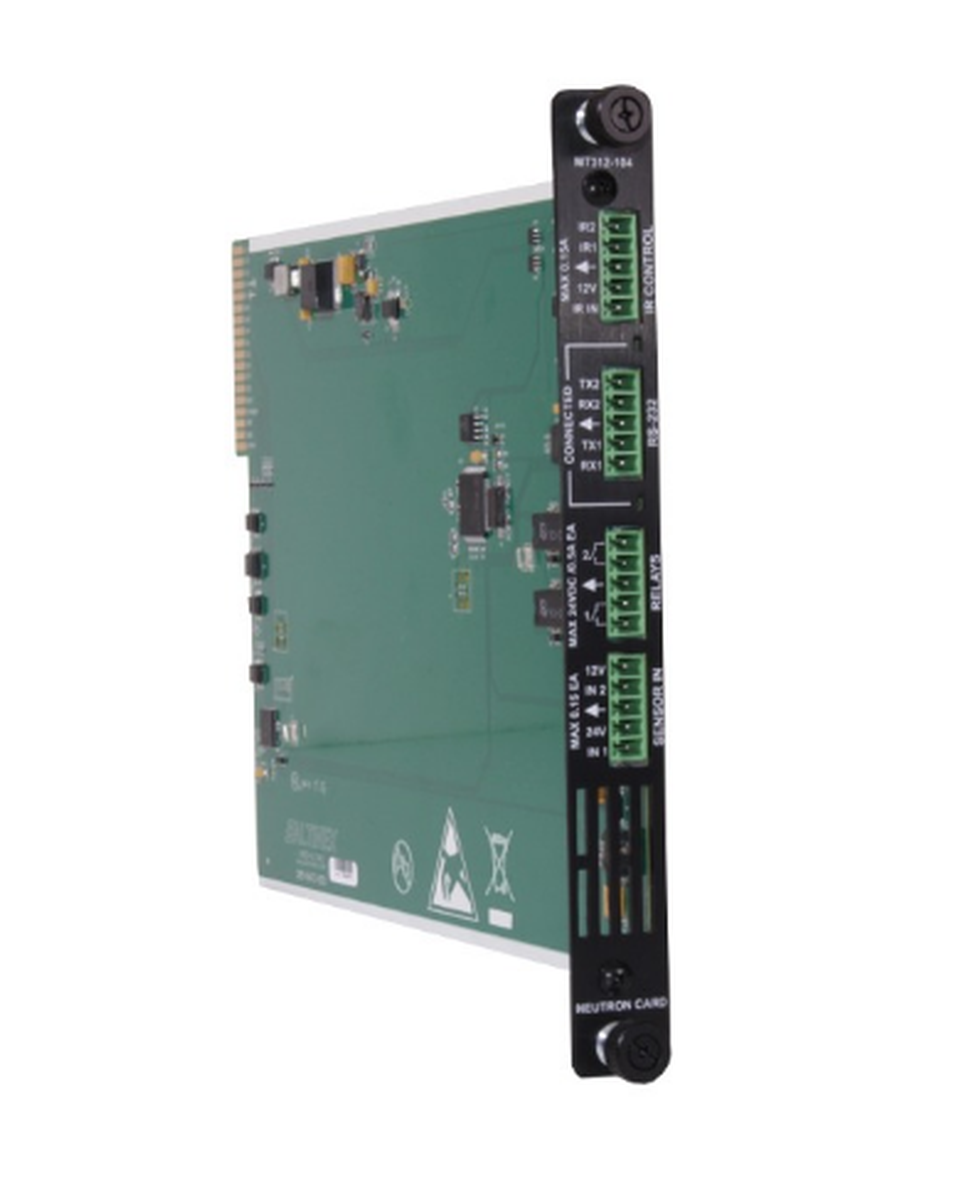

Altinex MT312-104
Neutron Controller MultiTasker Card w/ RS-232, IR, Relay, Sensor

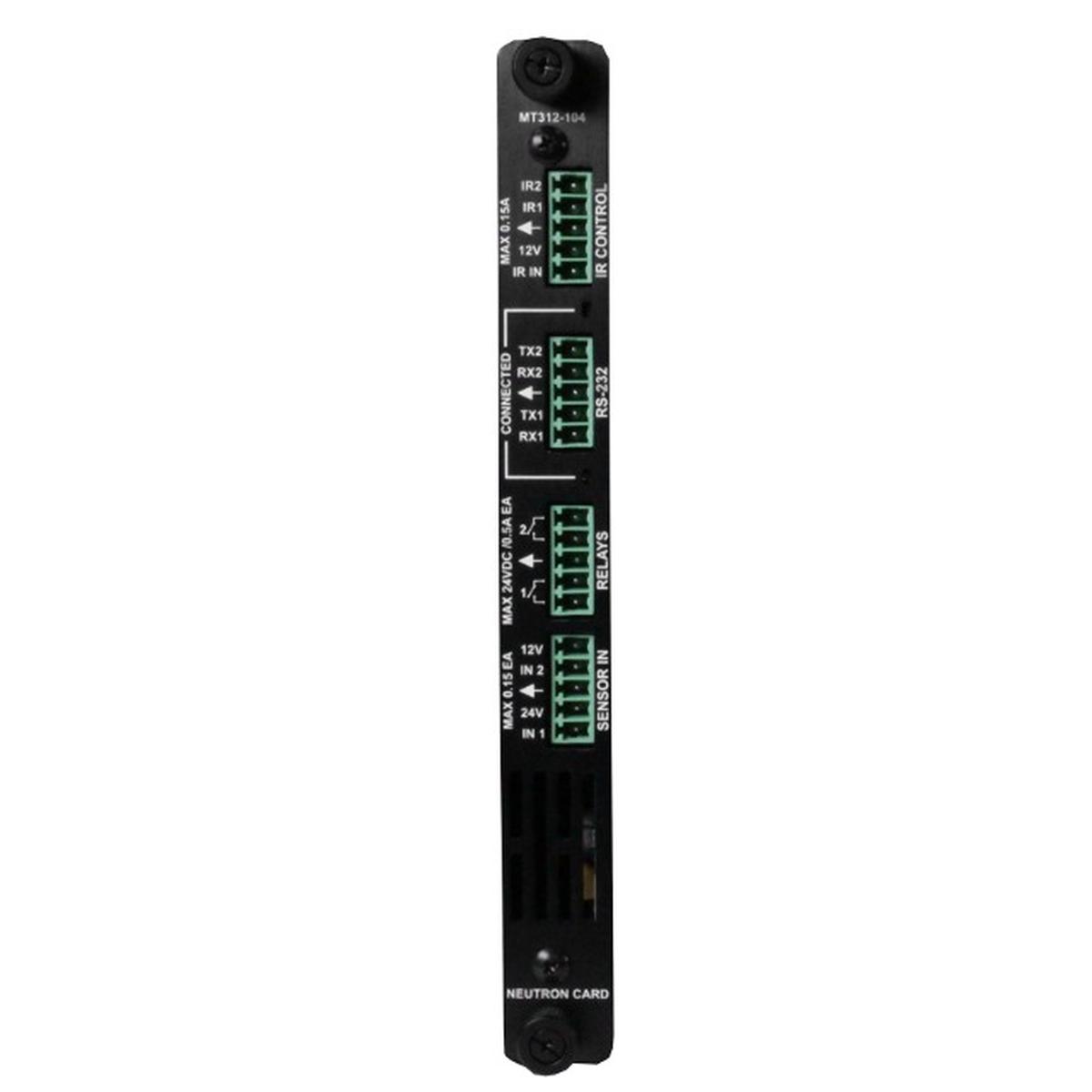

- 2 Bi-directional RS-232 ports
- 2 IR ports
- 2 relay ports
- 2 sensor ports
Description
The Altinex Neutron MT312-104 MultiTasker Control Card with 2 Bi-directional RS-232, 2 IR, 2 Relay, and 2 Sensor ports. This card had been designed for use with Altinex's MultiTouch family of Multitasker Enclosure systems and allows for great flexibility and control of a wide range of connected devices.
The Neutron allows control of serial (RS-232) and IR devices, additionally there are two relays and two sensor inputs. The relays can be used to control or power external equipment independently while the sensor inputs trigger events based on voltages levels supplied by motion, heat, light or RF sensors etc. The sensor connector also provides two voltages for powering external sensors; +12VDC and +24VDC.
Additionally the Neutron is capable of supplying information to MultiTouch panels (or other third party controllers) over Ethernet. Users can simply connect to the MultiTasker enclosure's IP address in order to check the status of relays (opened or closed), the input status of the sensor inputs (high or low) based on trigger level, or request RS-232 data from devices connected to the RS-232 ports. Furthermore, the controller card can store IR codes in its internal memory for direct control of external IR devices, or an IR room receiver like the Altinex AC301-103 (not included) can be used to pass-through IR signals from remote controls to devices connected to one or both of the controller's IR outputs. The MT312-104 comes backed by a lifetime warranty from Altinex.
Specifications
- Sensor Connector Voltage Power for External Sensors: +12VDC and +24VDC
- Ability to Store IR Codes
- Card Size: 1-Slot Space
- Warranty: Lifetime
