Altinex PNP402
Dual Sided Pop Pop Up Table Box - Audio, Video, and Power
- Connections: (Each side) Two AC Power, a VGA Computer Video on 15pin HD, a RS-232 COM Port on 9pin, a Composite Video on RCA, a S-video on4pin mini-Din, Audio on Left/Right RCA, Computer Audio on 3.5mm, a Telephone on RJ11, and a Network on RJ45 input connectors

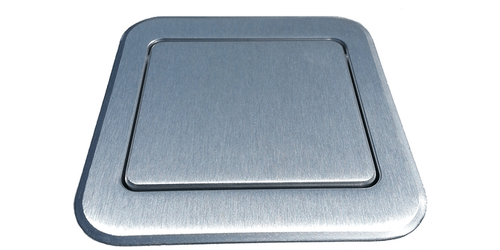

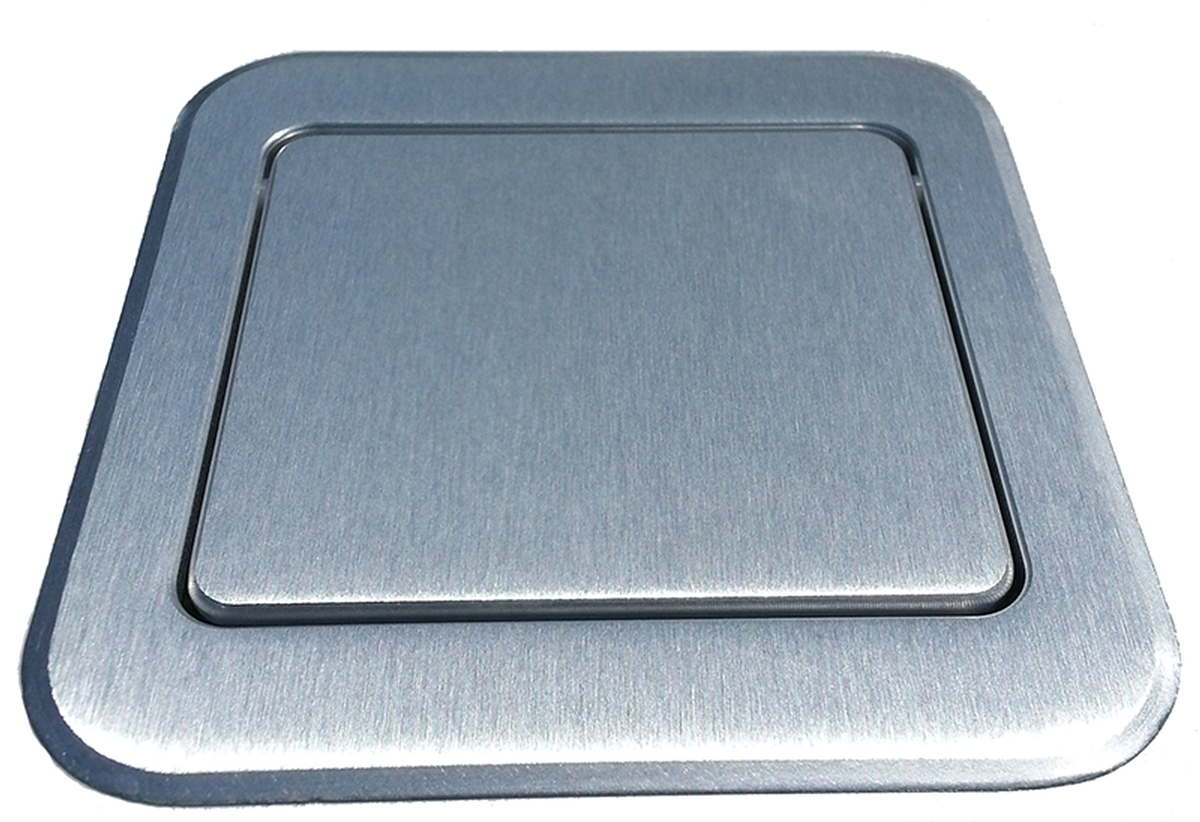

- Color: Black brushed aluminum or silver brushed aluminum

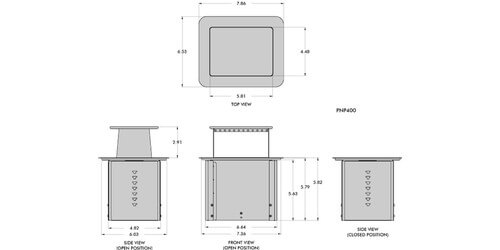

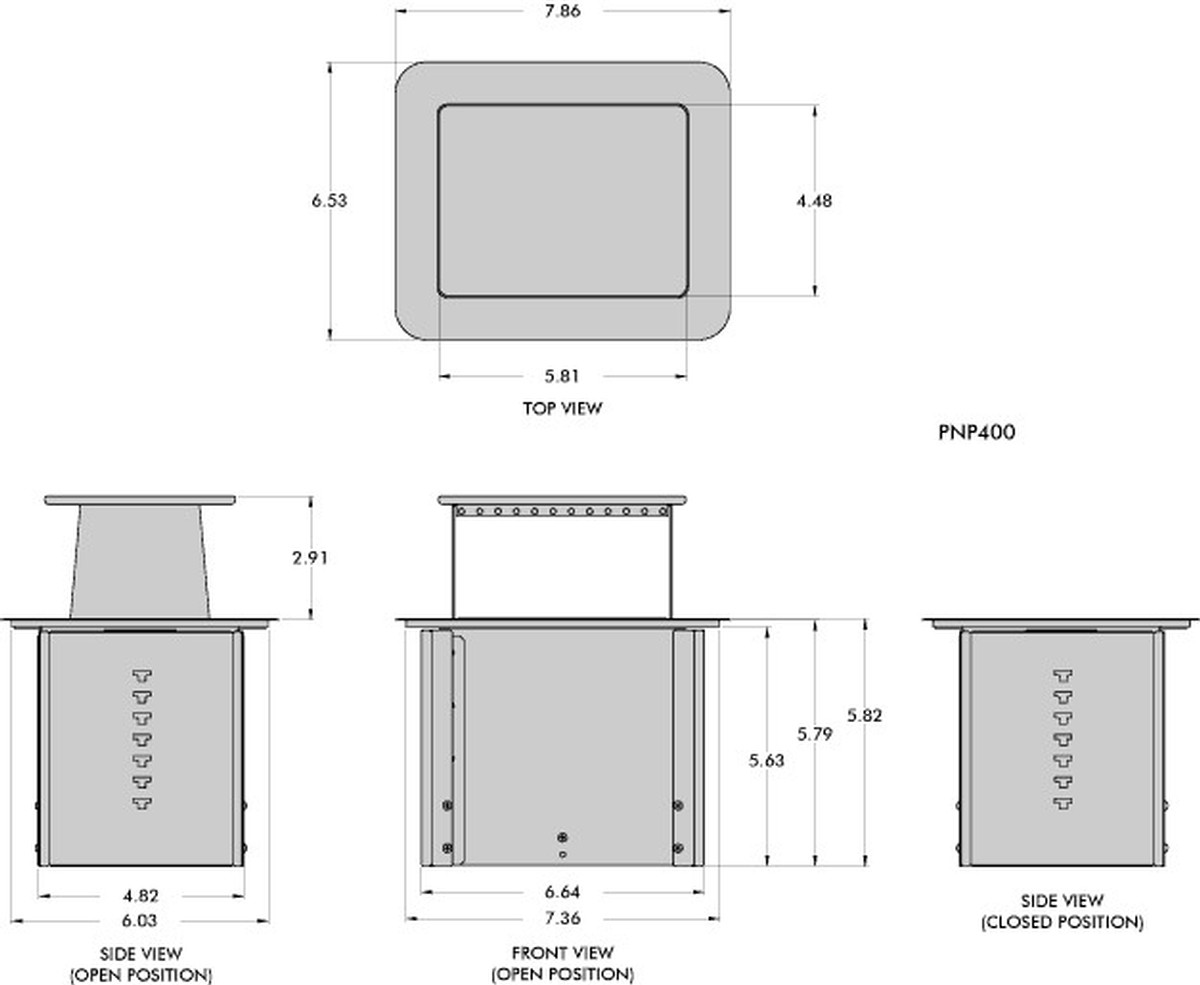

- Bezel dimensions: 7.86" x 6.53"
- Cutout size: 7.46" x 6.13"
-Maciej Z.
Description

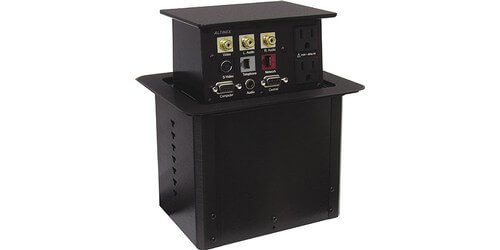

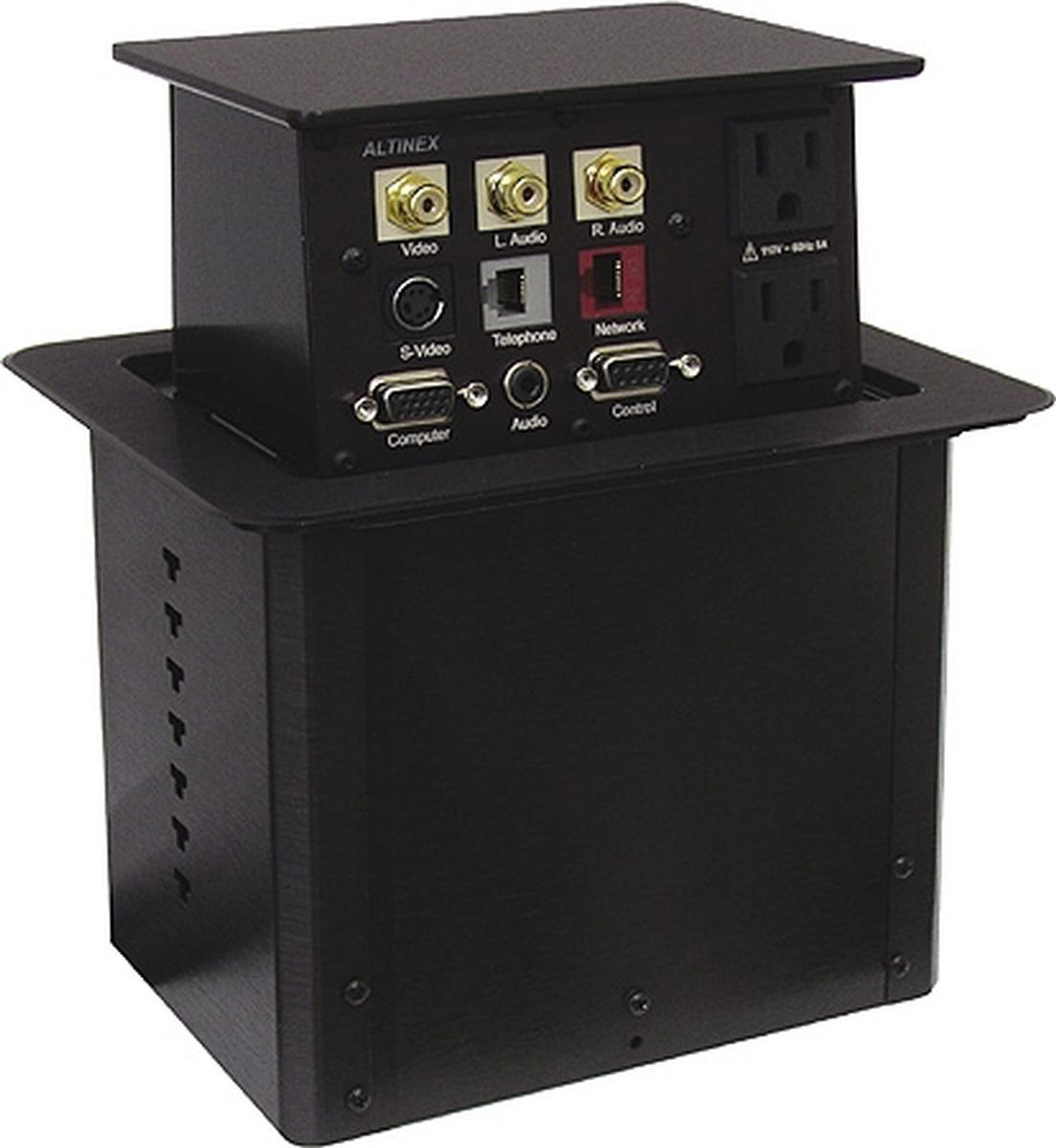

The Altinex PNP402 Pop’ N Plug interconnect box "Pops Up" from the conference table providing access to connectors and when pressed back down is concealed flush with the tabletop surface. The unit is dual sided so both sides of the table will always have access to their table box connections. Choose from black anodized aluminum or silver anodized aluminum, both come in a brushed finish.
The PNP402 is completely assembled at the factory with the following on each side: two AC Power, a VGA Computer Video on 15pin HD, a RS-232 COM Port on 9pin, a Composite Video on RCA, a S-video on 4pin mini-Din, Audio on Left/Right RCA, Computer Audio on 3.5mm, a Telephone on RJ11, and a Network on RJ45 input connectors.
The Altinex PNP402 gives you the most options for your Pop Up. Click the customize this button to choose connections that best fit your needs.
Connections on this unit can be customized. Our factory trained technicians build the unit to your exact requirements and ship it out assembled and ready to install. Customization and testing typically takes 2-3 days before shipping.
Specifications
- Depth under table: 5.76"
- Table thickness: .25" to 4"
- Simple open/close pneumatic lift design by just pressing the top
- Signals pass through underneath the table

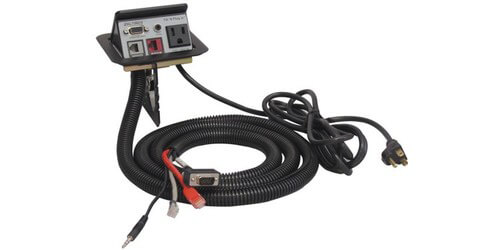

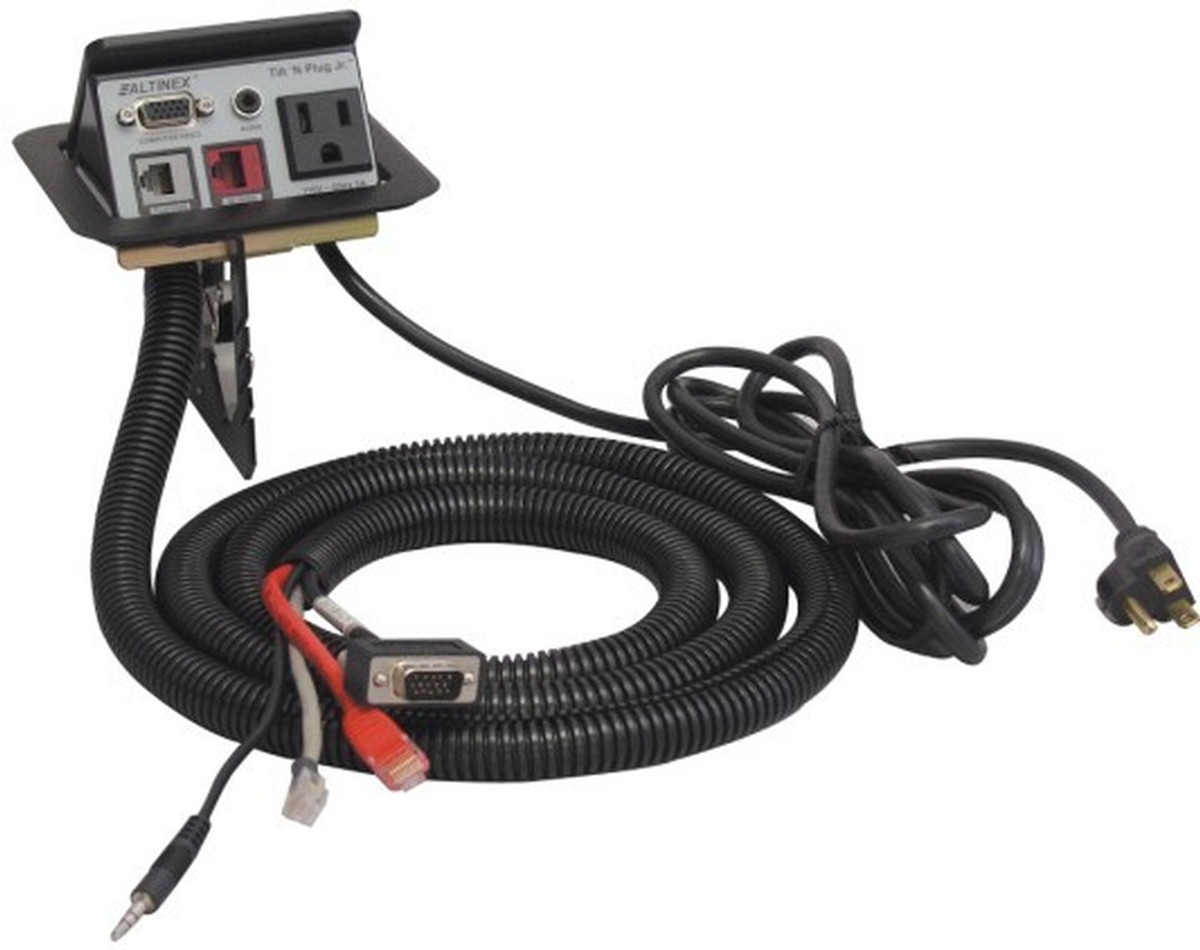

- Cables included: 6' inputs with male terminations and dual 10' for AC power
- Perfect for boardrooms and conference rooms

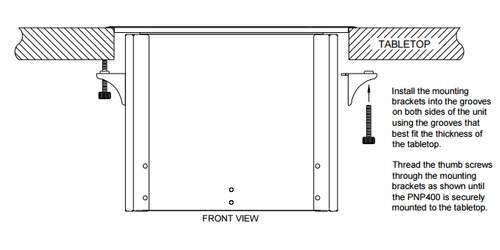

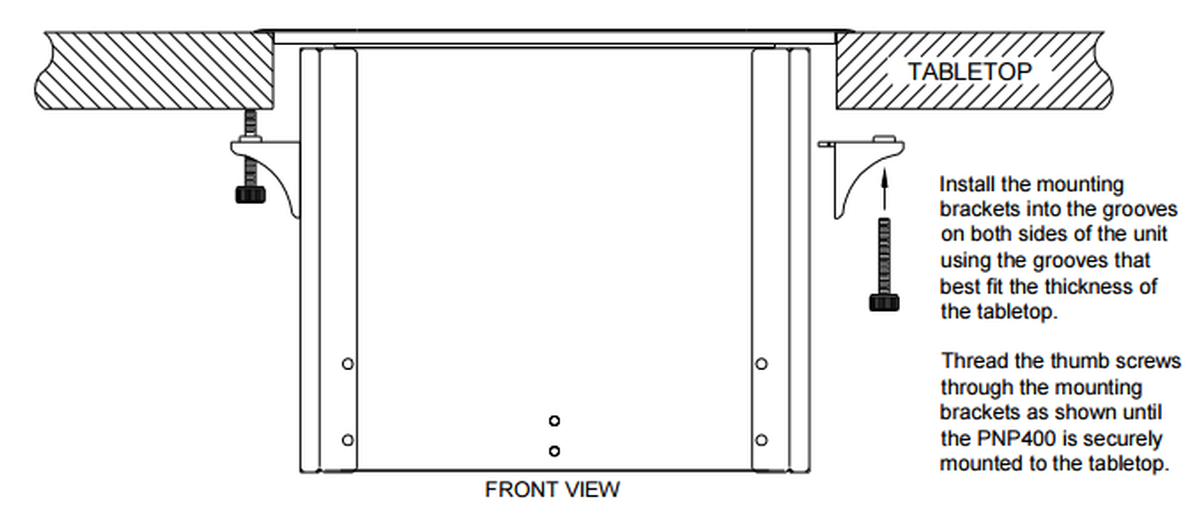

- Includes mounting hardware
- Warranty: 10 years, 1 year on gas spring
