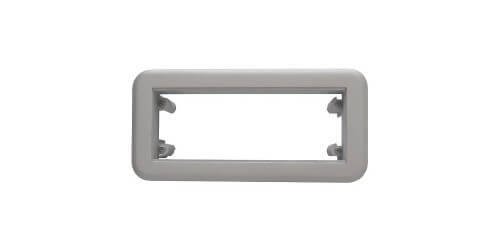

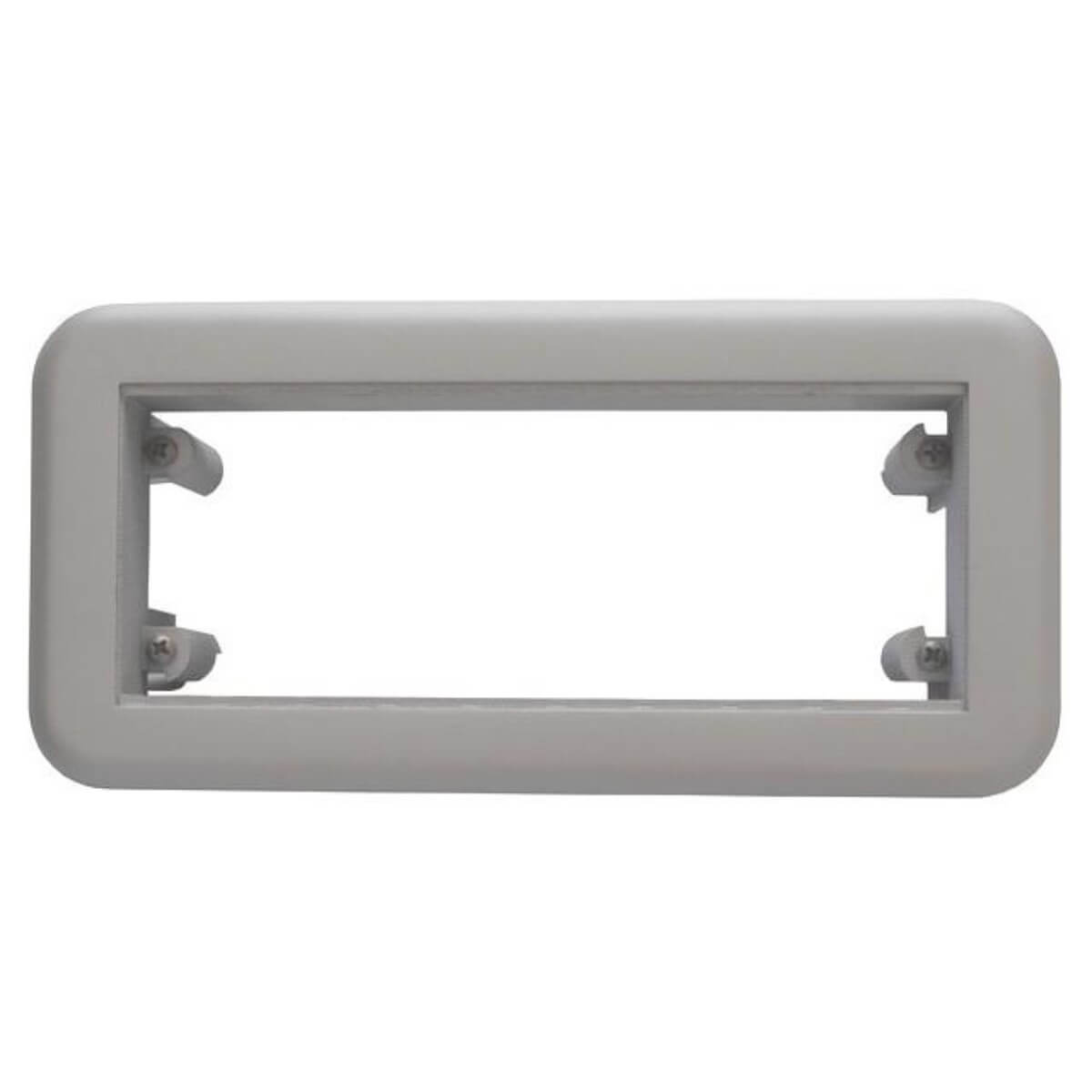

Altinex TB100-002
Modular Frame for Altinex Table Buddy Surface Mount Boxes - Silver

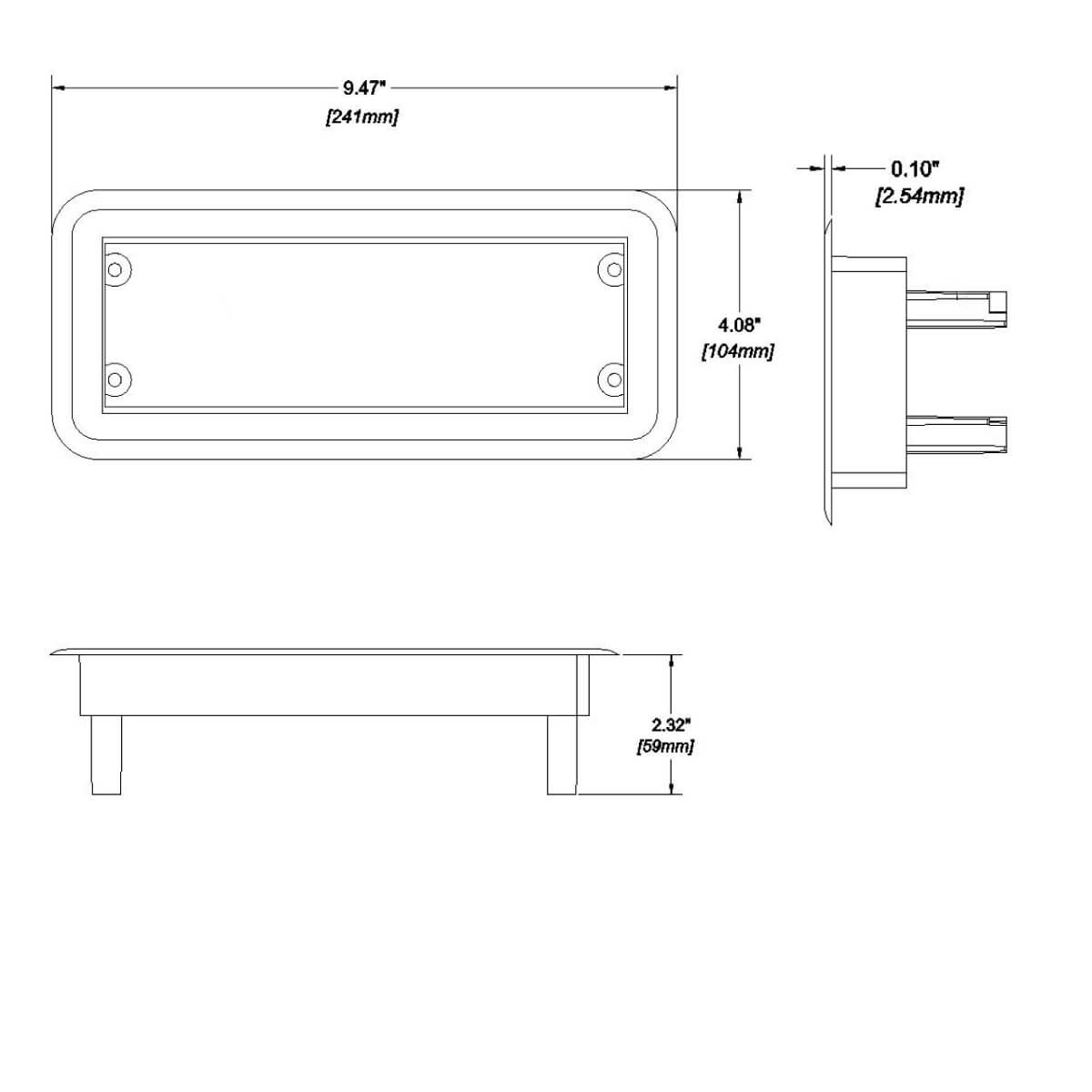

- Dimensions (LxW): 9.5" x 4.1"
- Depth Below Table: 2.3"
- Max Table Thickness: 2"
- Color: Silver
-Chad R.
Description
The Altinex TB100-002 is a modular unit frame that is configurable with various Table Buddy snap-in modules and connectors. Cables for a presentation system are connected to the connectors on the snap-in modules, enabling the user easy access for connections of AC power, video, audio, and the other media sources from the top of the table.
The snap-in module options for the TB100-002 allow diverse connector configurations. These modules include combinations of audio, video, computer, and AC power connectors that provide extensive flexibility in a convenient package. The snap-in modules are flush with the surface of the unit coupler connectors, allowing cables to connect to the presentation system underneath the surface and have easy user access to connectors on the table’s surface.
Specifications
- Configurable with any Table Buddy snap-in modules and connectors
- Simple, cost-effective interconnect solution
- Installs into tabletop
- Designed with dual locks that easily secures the unit to the surface without any tooling
- Convenient access to connect cables via snap-in modules
- Pre-configured unit available as TB100-201
- Also available in White and Black
- Downloadable cutout template available
