Altinex TBL102C
*Customizable* Table Buddy AV Table Edge Dual Clamp Box

• Customizable connections
• Connects to edge of table
• Dual clamps used for fixed or temporary installations
• Remove clamps for permanent installations
• Cables: 6' with male terminated ends, power 10'
• Integrated cable tie-wrap bar
• Perfect for impermanent furniture applications
• Dimensions: 7.9"W x 6.5"D
• Height below surface: 4"
• Height above surface: 3.5"
• Max table thickness: 2.5"
• Weight: 4lbs
• Includes clamps and mounting hardware
• Warranty: 10 years

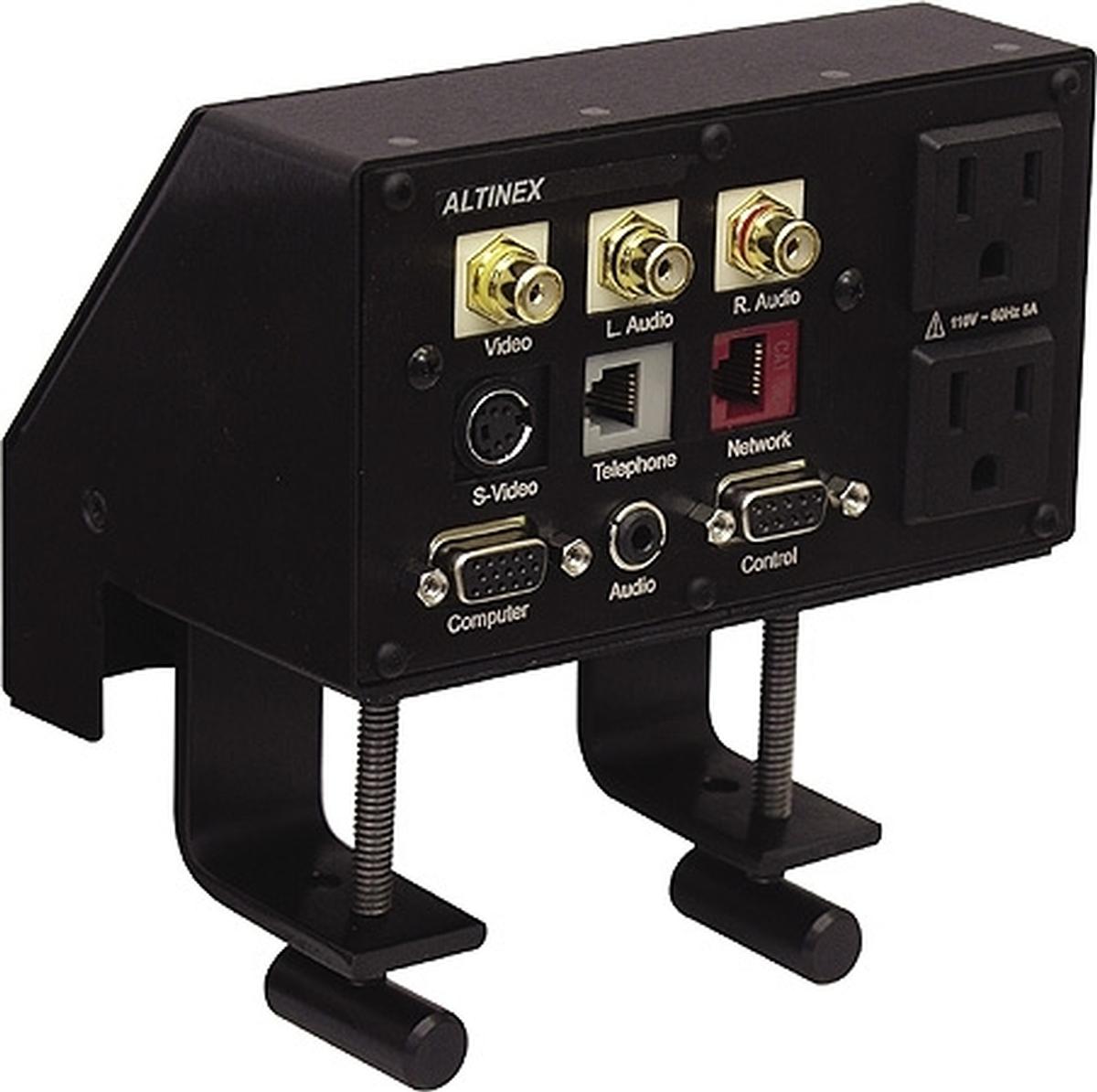

The Altinex TBL102C Table Buddy Tabletop Interconnect Box is designed for temporary or permanent installation to a conference table edge. The TBL102C has the ability to custom configure the connectors on the plate to best fit your application.  The power cable is 9' long while the A/V cables are 6' long allowing the cables to pass underneath the table and be plugged in.

Customization Instruction

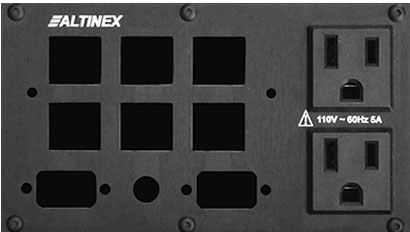

1. In the image of your custom unit (above), the Snap-Ins/Audio & D-Sub connectors that can be configured are shaded.

Example of a customizable snap-in

2. Click on each shaded area to pop up a box with the available options for the individual connector you selected. Click on the option you desire for the unit - it will be displayed on the unit after selection. You may click on a previously selected snap-in/connector to choose a different option. Note that if you want no connection in a slot, please click on the blank connector in the pop up box.

3. Upon completing customization of your product, a dialogue box will pop up informing you that customization is complete and your product is ready to be added to your cart.
