Altinex TNP120
AV Table Box with Power, HDMI, USB-C, Network, & USB-A - Black or Silver
- Color: Black or silver anodized aluminum
- Mounts flush into tabletop
- Connections: Power, HDMI, USB-C, Network, & USB-A
- Opens/closes by pressing on top panel
Description

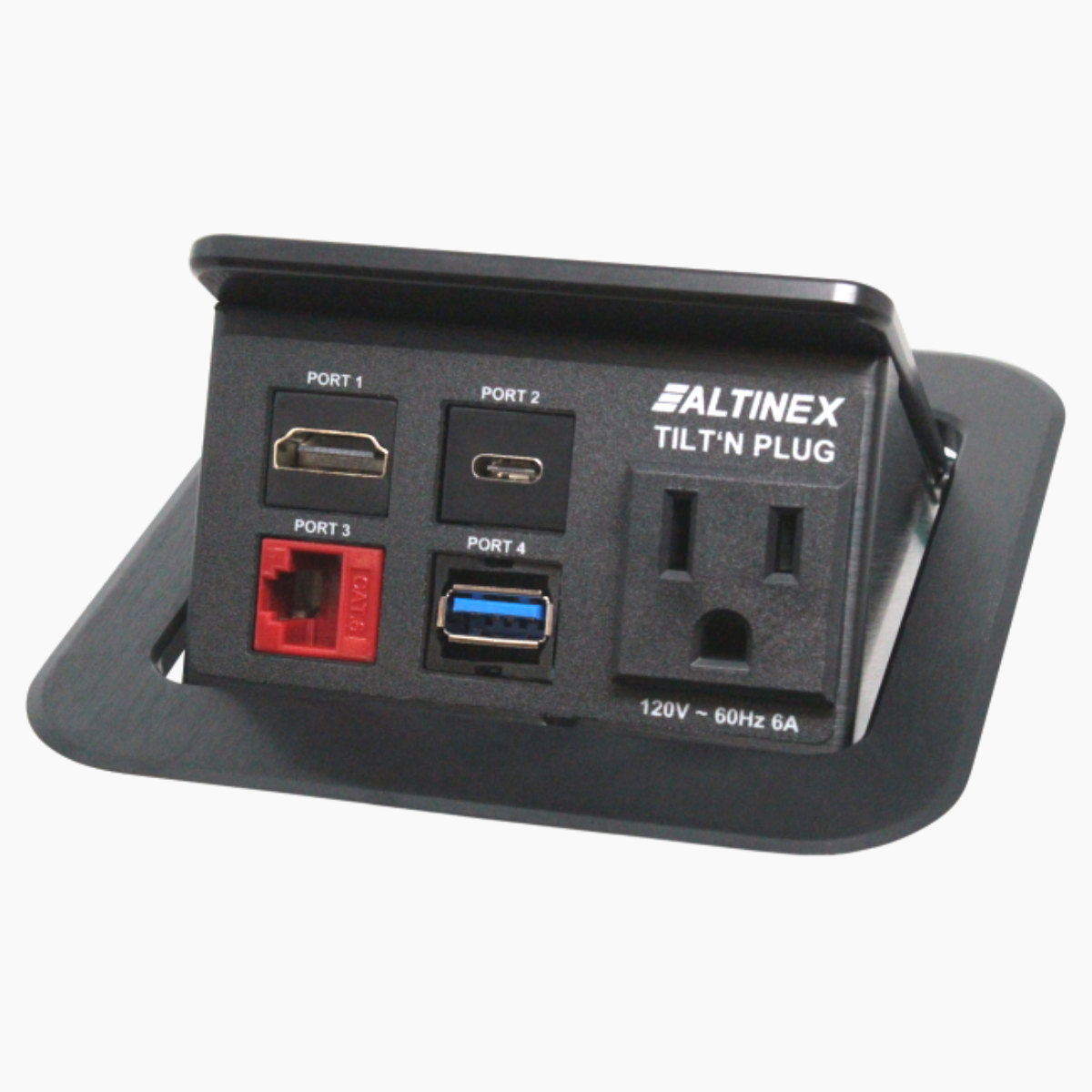

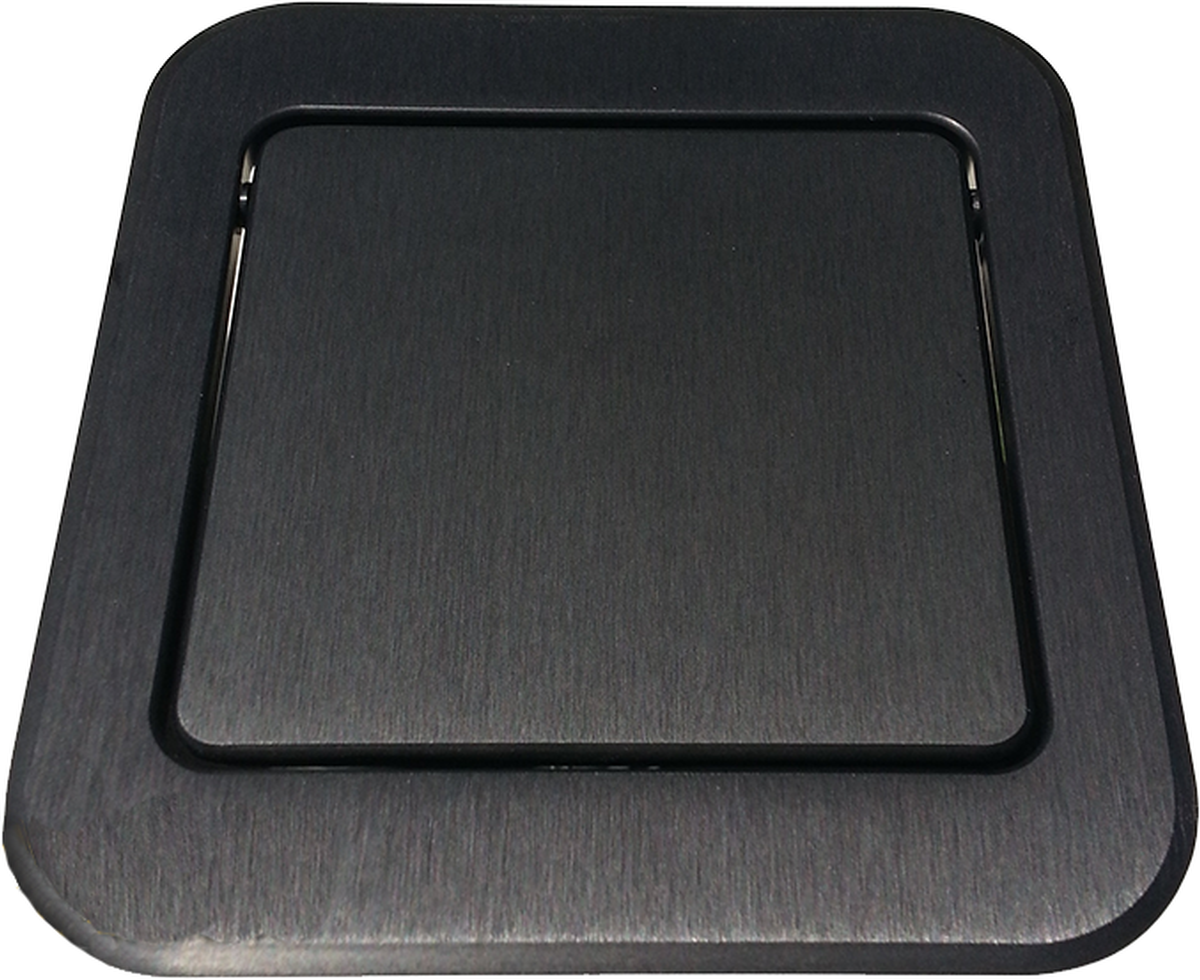

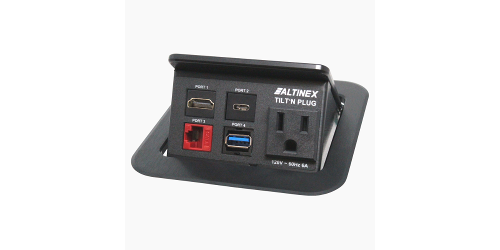

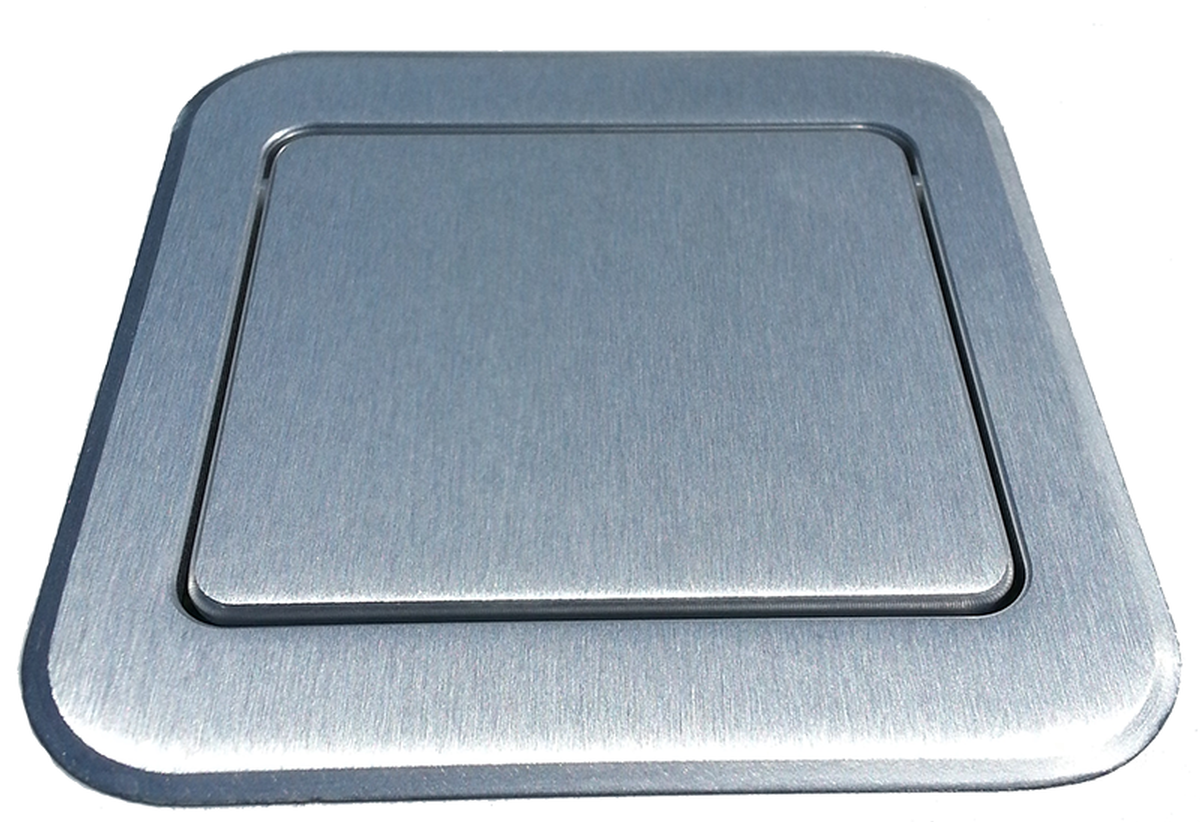

The Altinex TNP120 tabletop interconnect box installs flush in your table, but can be "tilted' open when needed and pushed closed when not needed. The top comes in your choice of black or silver anodized aluminum. It provides a single input plate with the following connections: AC power, HDMI, USB-C, Network, & USB-A. All inputs include a 6' male terminated cable, while the power cord is 9' in length.

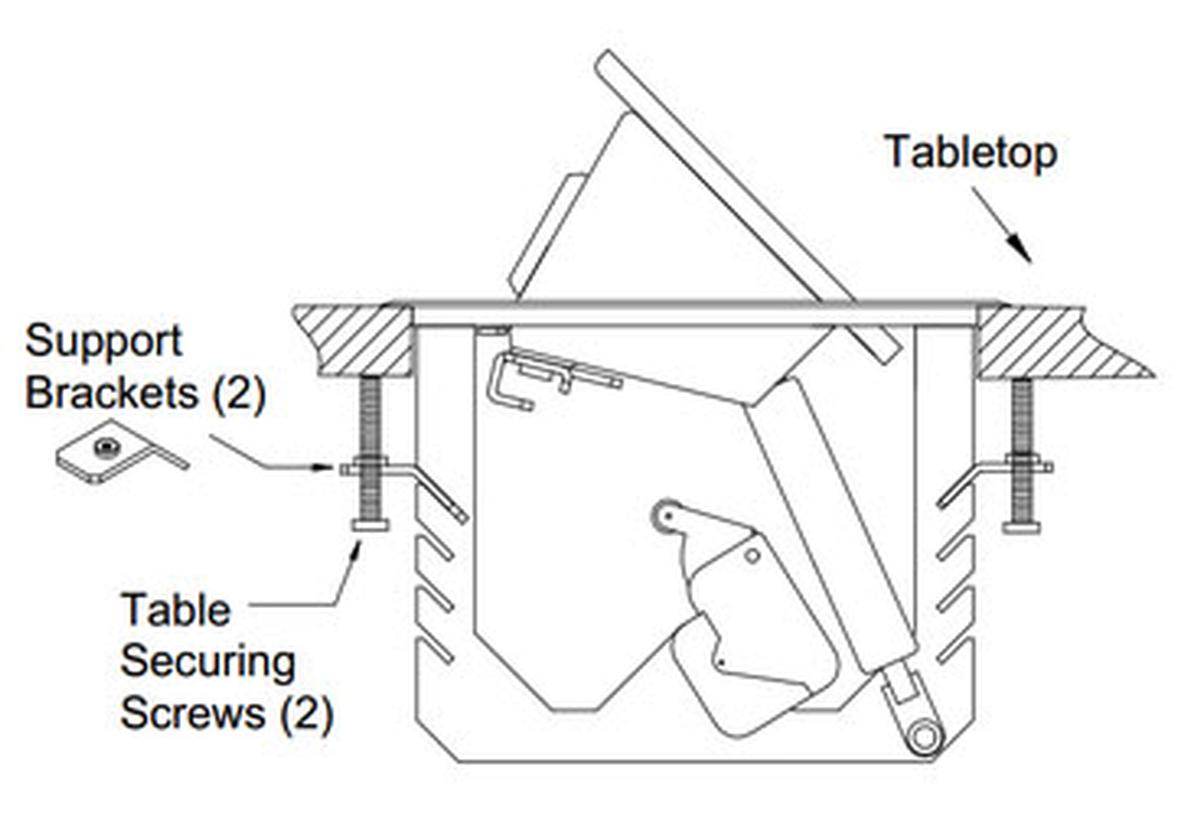

The box mounts flush in the table and the bezel has beveled edges so running paper across it won't snag any papers and will make it look even thinner. To open press the top and the hydraulic gas spring will pop it open, to close press till it latches shut. To install, cut your hole using the cutout template and drop in the hole. It easily is secured to the underside of the table via pressure with thumb screws.
Connections on this unit can be customized. Our factory trained technicians build the unit to your exact requirements and ship it out assembled and ready to install. Customization and testing typically takes 2-3 days before shipping.
Specifications
- All 6' cables pass through to the underside of the table with male terminated ends
- Power cable: 9'
- Bezel dimensions: 4.6" x 4.9"
- Cutout dimensions: 4.2" x 4.5"
- Table thickness: .75" to 2.25"
- Depth under table: 4.9"
- UL listed
- Mounting hardware included
- Warranty - Table box: 10 years, Gas spring: 1 year
