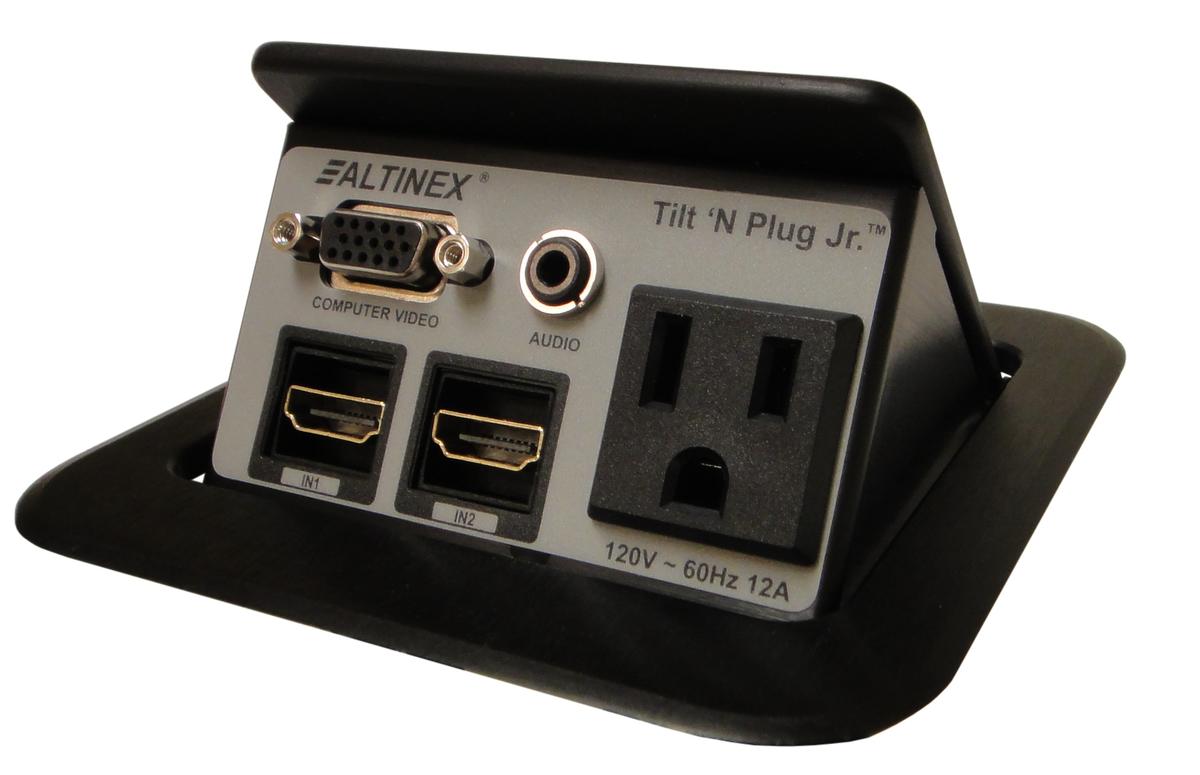

Altinex TNP120C
*Customizable* 1 Power Pop Up AV Conference Tabletop Box

• Customizable connections

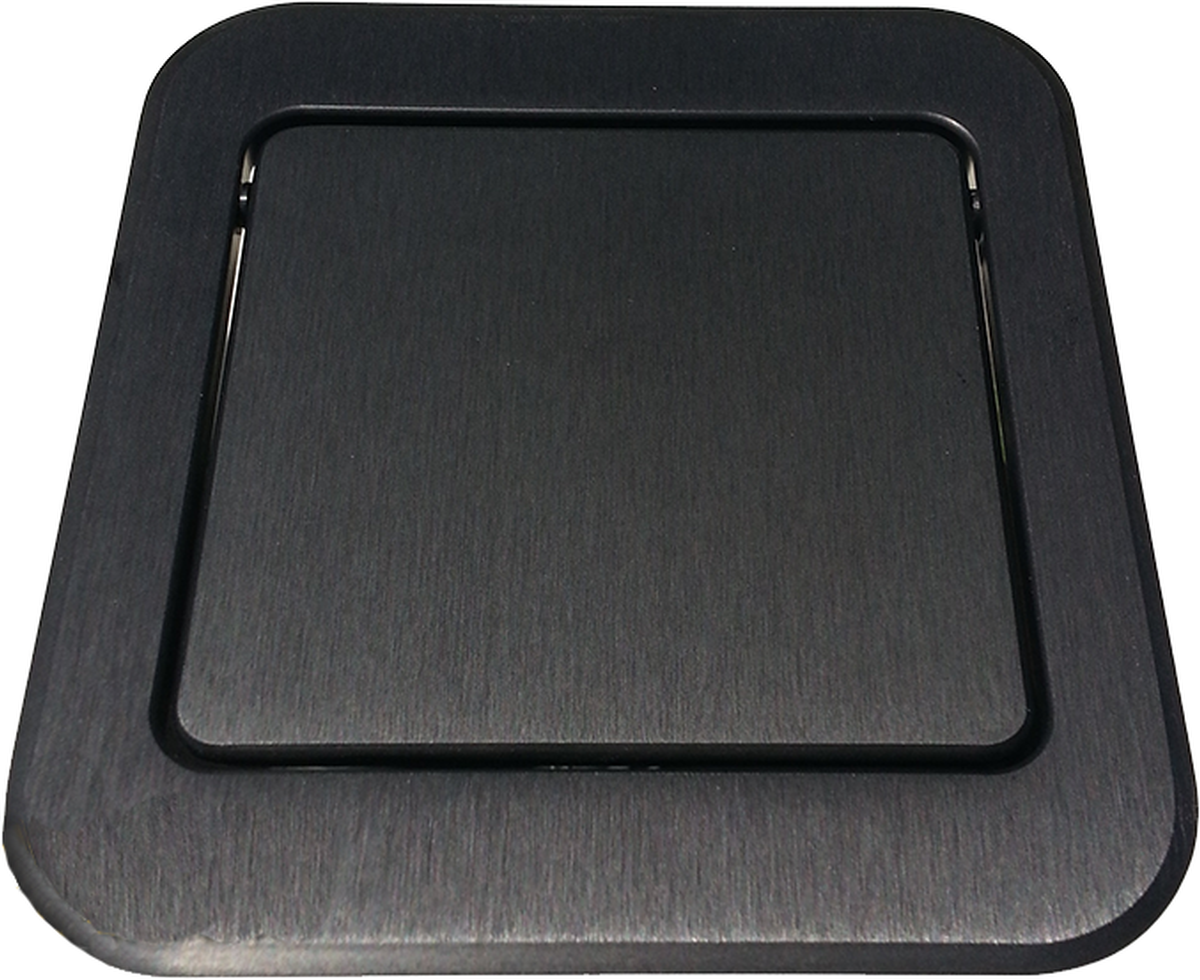

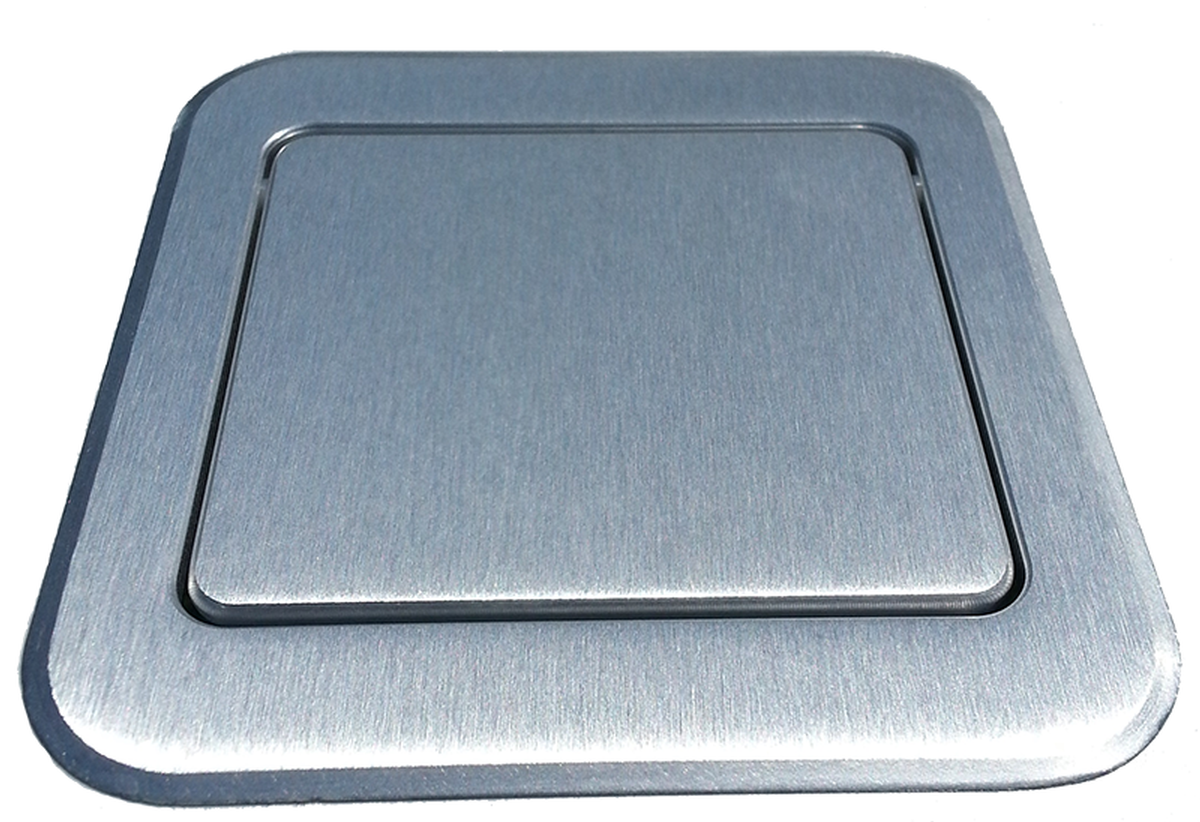

• Color: Black anodized or silver anodized aluminum

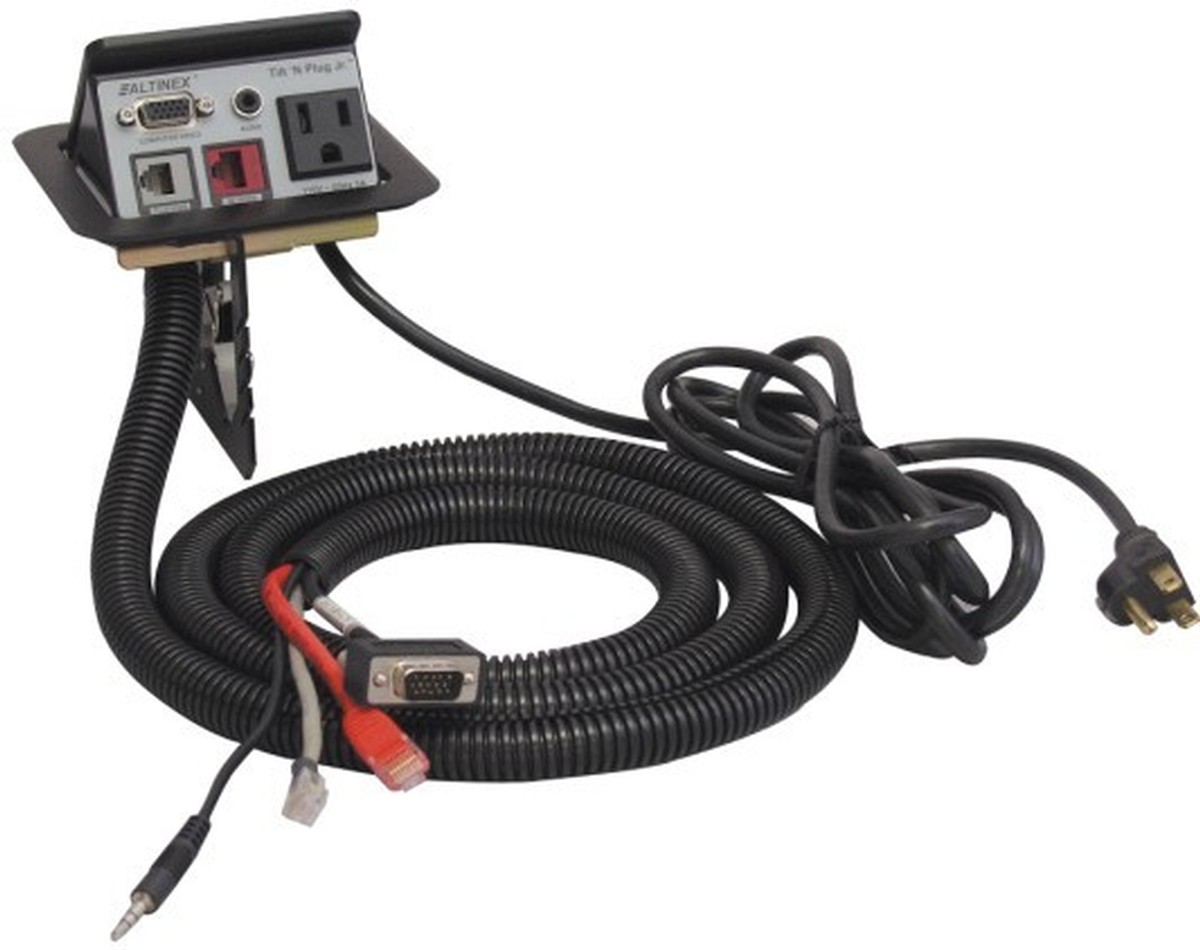

• Gender: Female at the box with 6' male ended AV and data cables under the table
• Power cable: 9'
• UL Listed
• Mounting hardware included
• Bezel dimensions: 4.6" x 4.9"
• Cutout dimensions: 4.2" x 4.5"
• Table thickness: .75" to 2.25"
• Depth under table: 4.9"
• UL listed
• Warranty - Table box: 10 years, Gas spring: 1 year

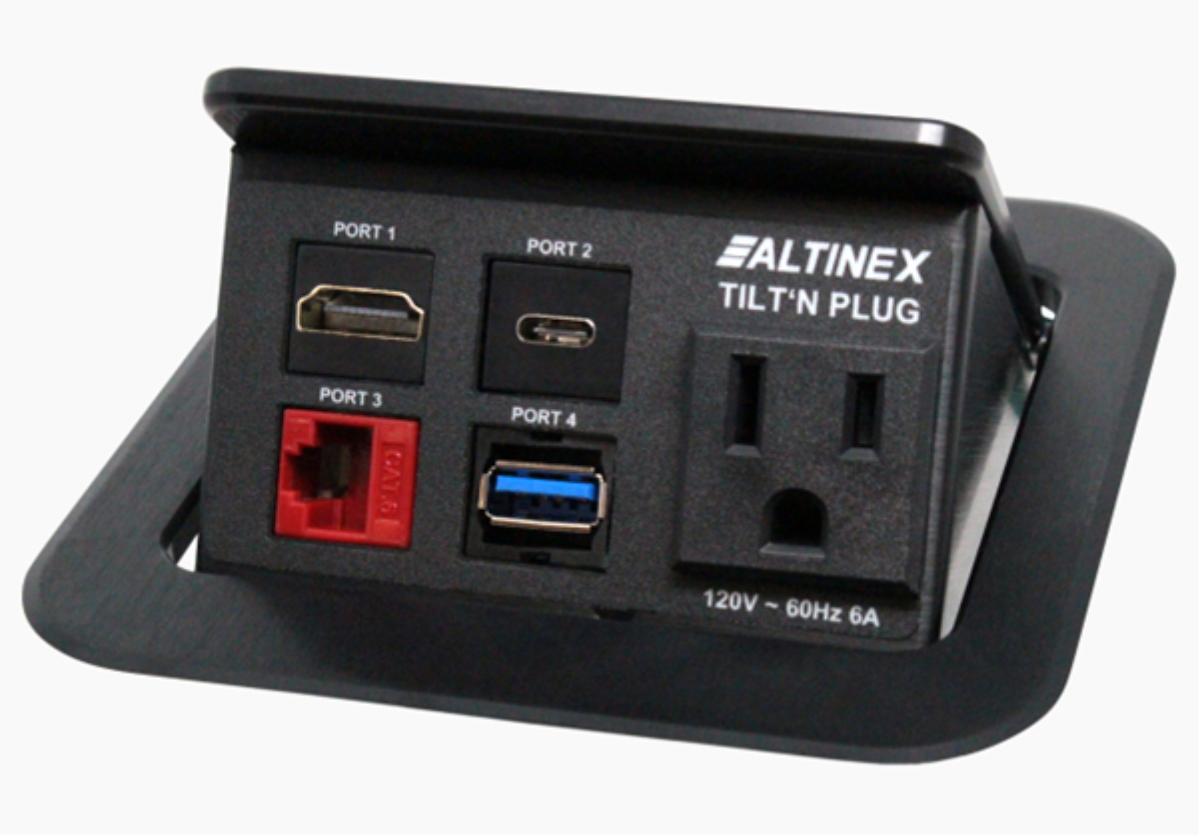

The Altinex TNP120C features 1 power and your choice of 4 other connectors, choose the connections you need. Use our customizer to build your perfect table box, just click on the connections to start. Typical lead time to custom build your box before shipping out takes around 2 to 3 days.  All connections at the box are female, under the table are 6' male terminated cables with the power being 9' long.  Choose from a gorgeous black anodized aluminum or silver anodized aluminum finish to compliment the look of any room.

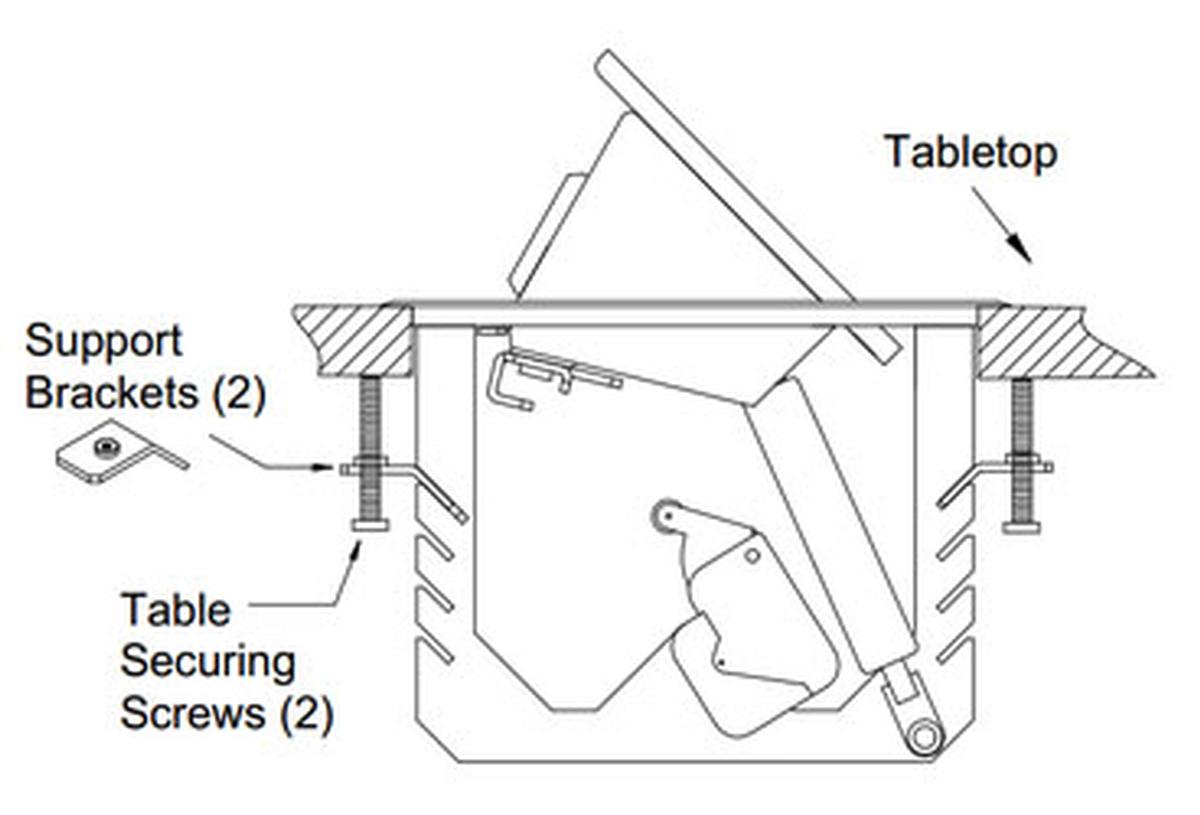

The top tilts up via a gas spring, simply press the top and it smoothly tilts up exposing your connections. When you are done just press the top till it locks flush with the table and it is easily out of the way. Installation is easy, cut your hole using the cutout template and drop the unit in the hole.  Secure to the underside of the table with the included mounting hardware and you are done.

The TNP120C is the part number used to customize the following Tilt N Plug Jr models: TNP121, TNP125, and TNP128.

Customization Instruction

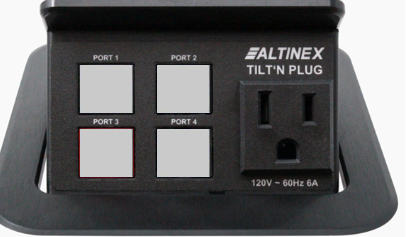

1. In the image of your custom unit (above), the Snap-Ins/Audio & D-Sub connectors that can be configured are shaded.

Example of a customizable snap-in

2. Click on each shaded area to pop up a box with the available options for the individual connector you selected. Click on the option you desire for the unit - it will be displayed on the unit after selection. You may click on a previously selected snap-in/connector to choose a different option. Note that if you want no connection in a slot, please click on the blank connector in the pop up box.

3. This product has multiple colors/finishes - you may select what color you want via the dropdown above the 'add to cart' button displayed on this page, or you will be prompted for what color you want when you have fully customized your product.

4. Upon completing customization of your product, a dialogue box will pop up informing you that customization is complete and your product is ready to be added to your cart.

Downloads:

• Altinex TNP120C Manual (PDF)
• Altinex TNP120C Cutout Template (PDF)
