Altinex TNP125S
Tilt/Pop Up Table Box w/ 1 AC, 1 HDMI, 1 Cat6, 1 USB

Description

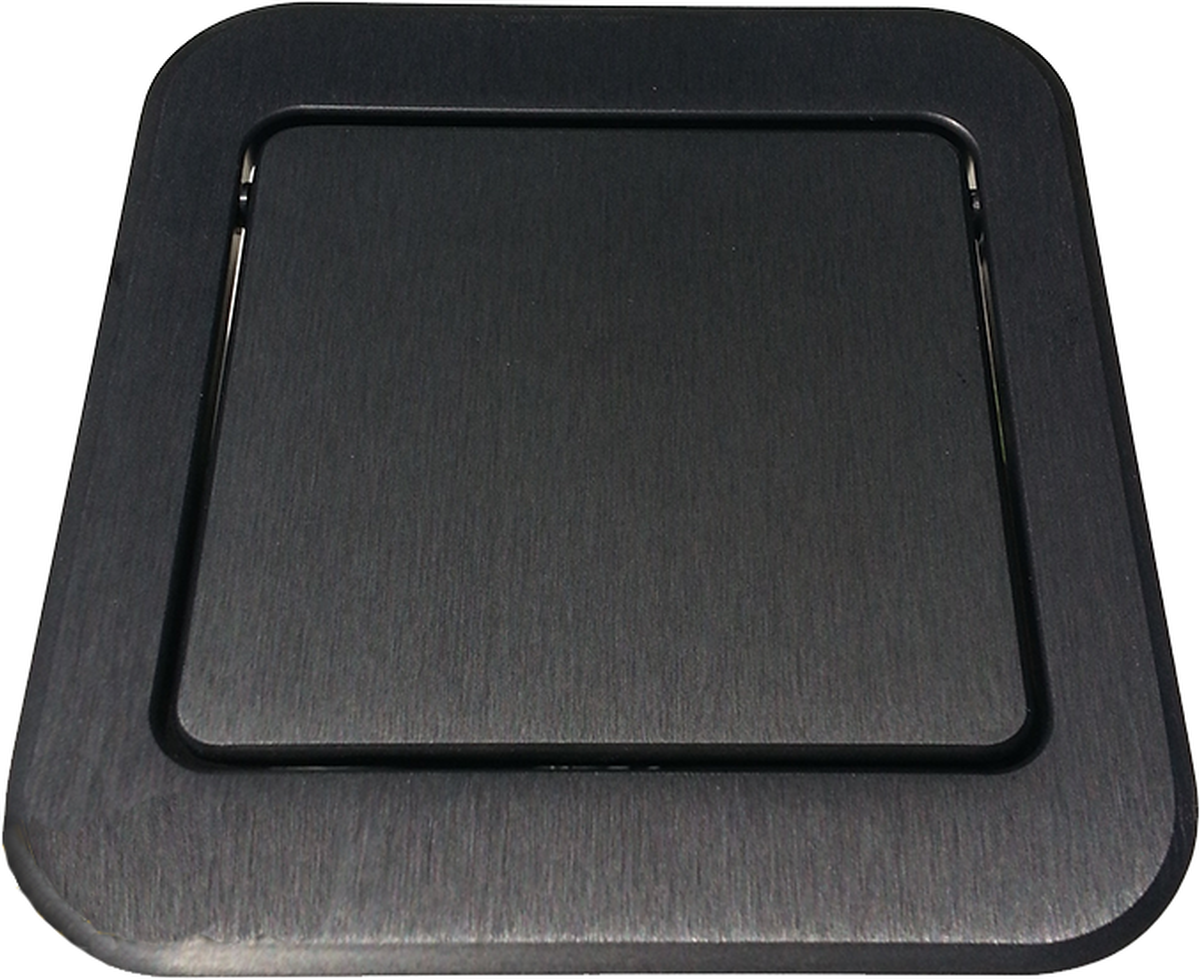

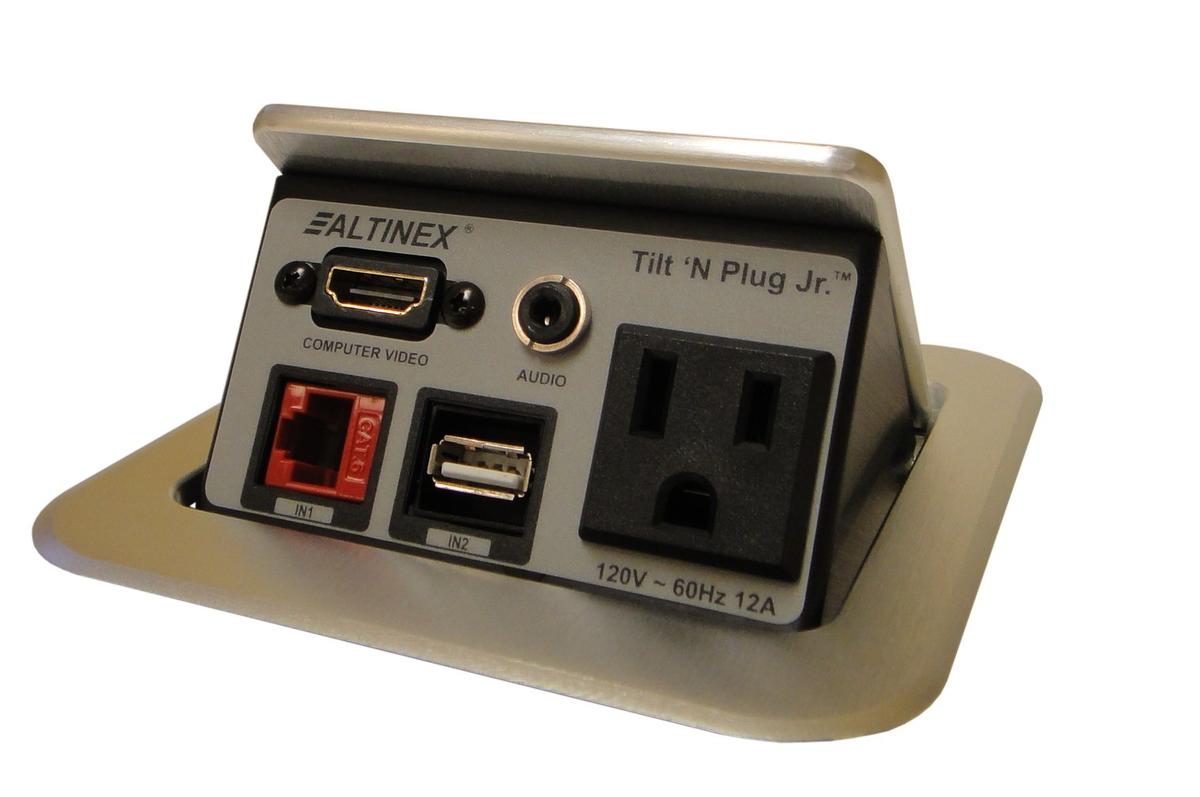

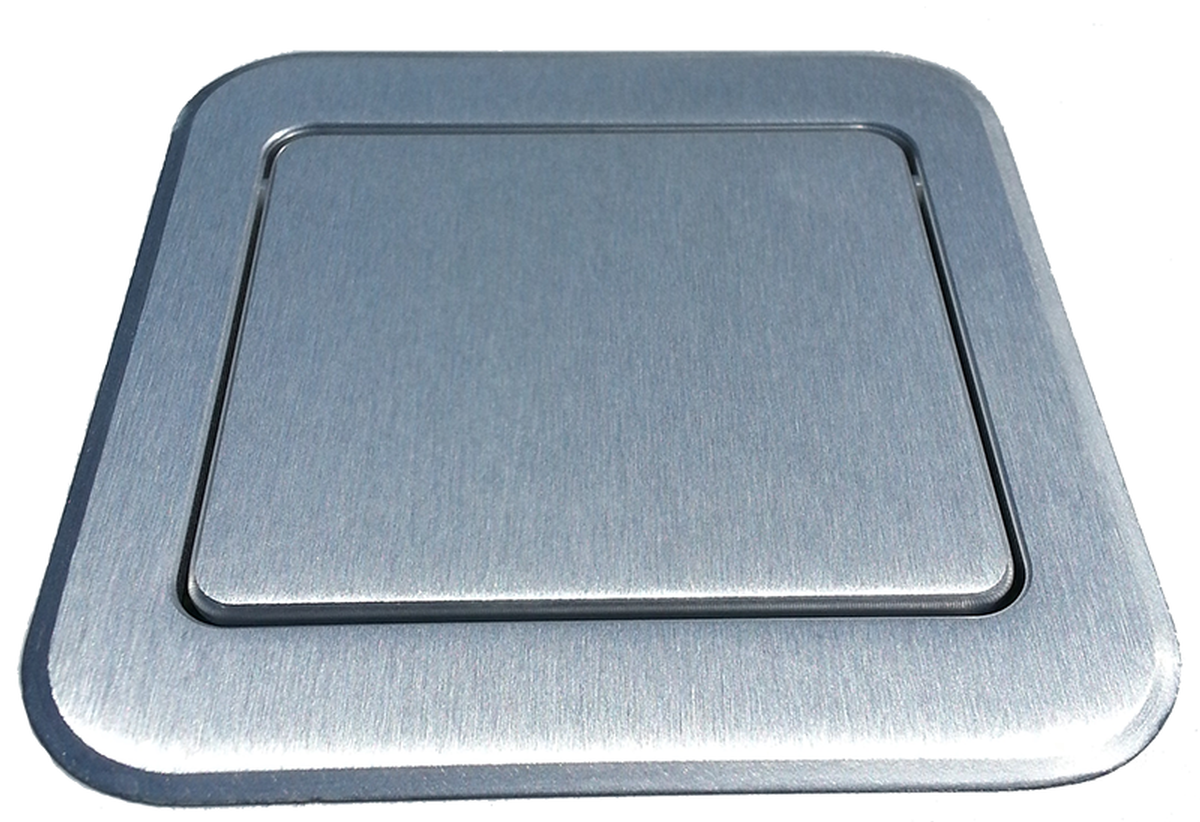

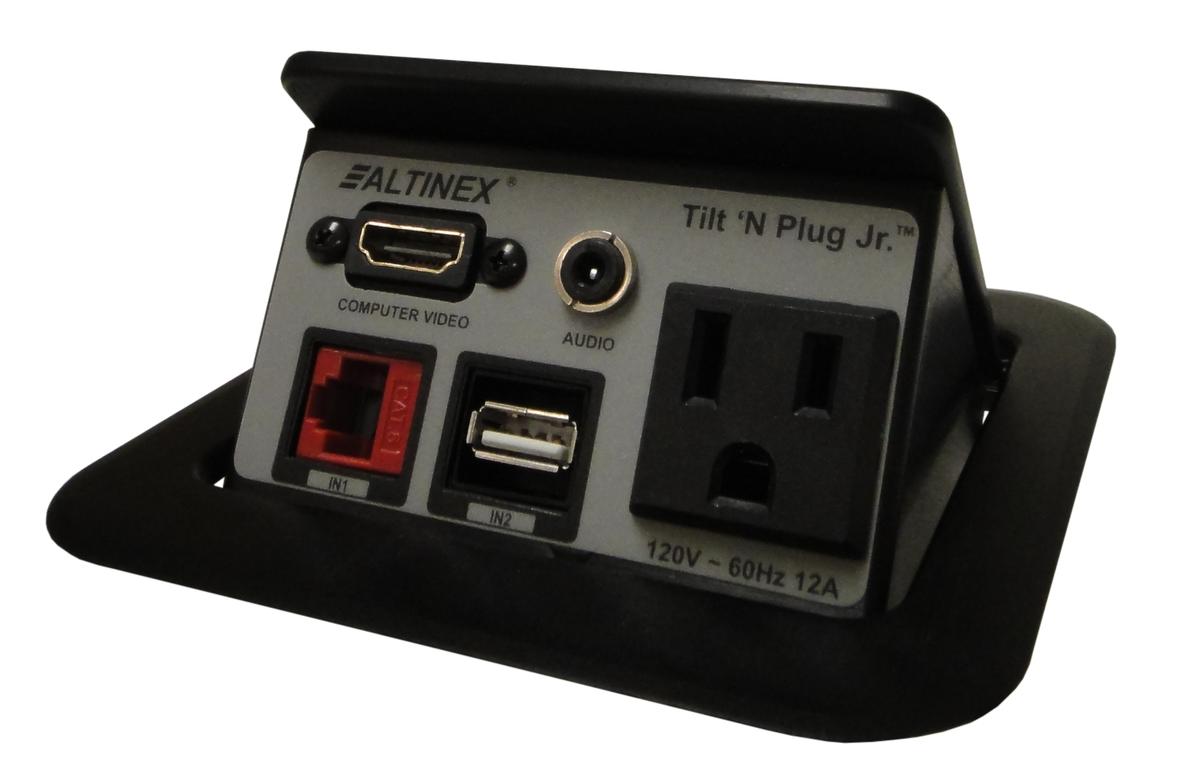

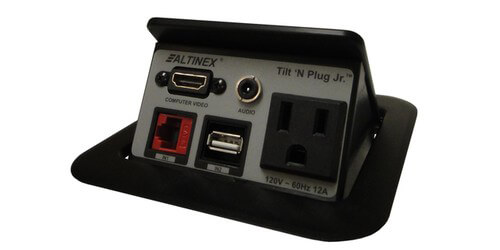

The Altinex TNP125S is a tabletop box that allows you to pass-through an HDMI signal to your HDTV display device. It also provides an AC power connection, USB 3.0 Type A, RJ-45 network, and a 3.5mm F-M audio input.  The unit tilts/pops up via a gas spring and when not needed with a press of a finger can close it shut and flush with the table.  The top metal flange is ultra thin creating a flush surface on your table, choose from black anodized aluminum or silver anodized aluminum.

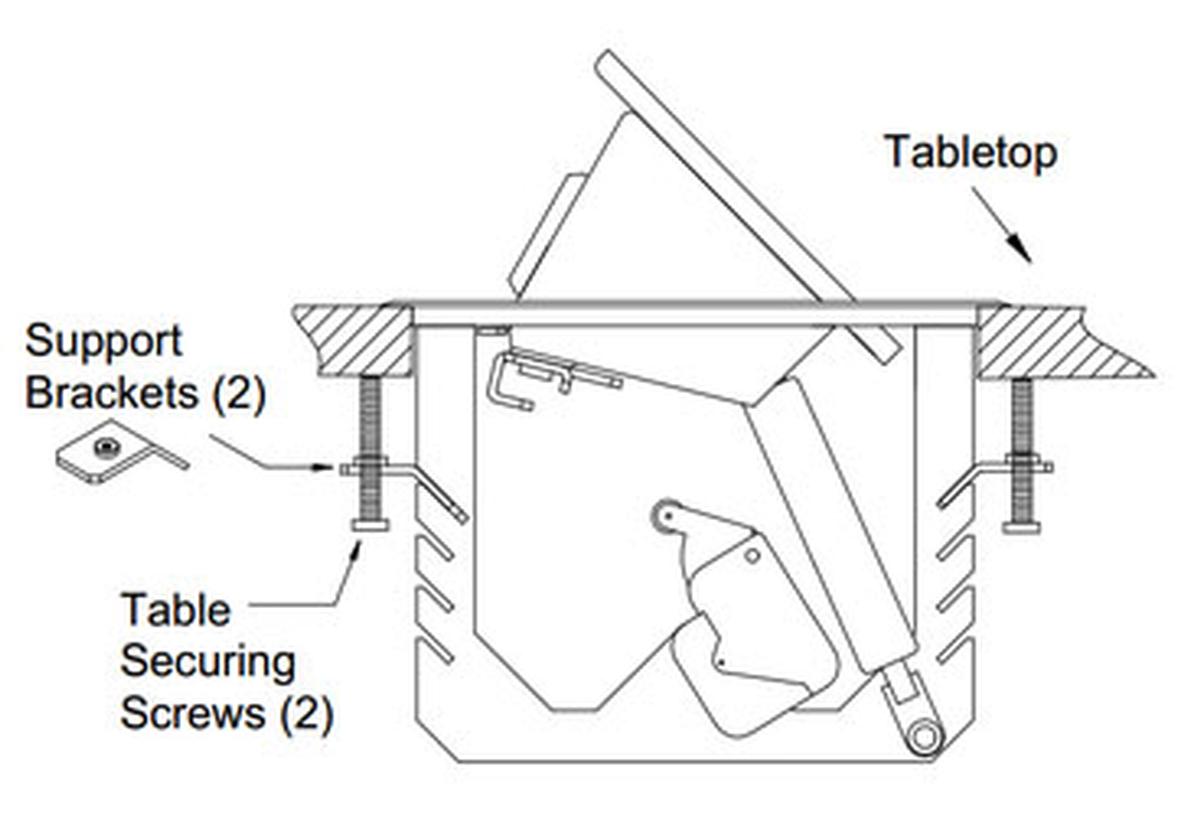

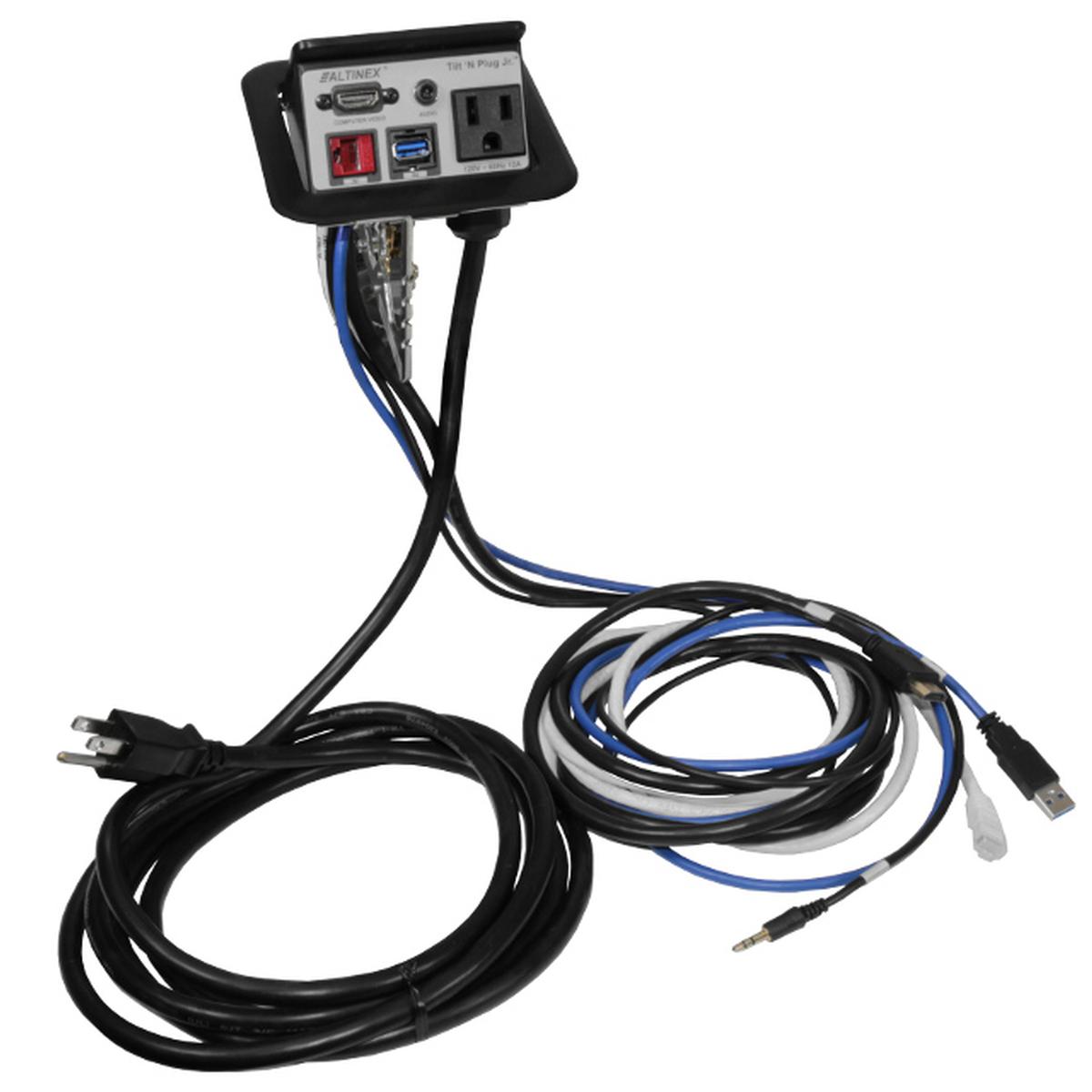

The A/V cables are 6' long with male ends and the power cord is 9' long.  To install use the cutout template and make your hole in the table, drop the unit in, secure with the included clamps under the table, and then plug the male ends in.

Specifications

• Bezel dimensions: 4.6" x 4.9"
• Cutout dimensions: 4.2" x 4.5"
• Table thickness: .75" to 2.25"
• Depth under table: 4.9"
• UL listed
• Mounting hardware included
• Warranty - Table box: 10 years, Gas spring: 1 year

Downloads

• Altinex TNP125S Specifications (PDF)
• Altinex TNP125S Manual (PDF)
• Altinex TNP125 Cutout Template (PDF)
