Altinex TNP128
Tilt N Plug Jr Hybrid Tabletop HDMI & VGA Box
.jpg "Black anodized aluminum finish")
.jpg)
- Connections: 1 VGA, 1 Audio, 1 HDMI, 1 Cat6, and 1 Power

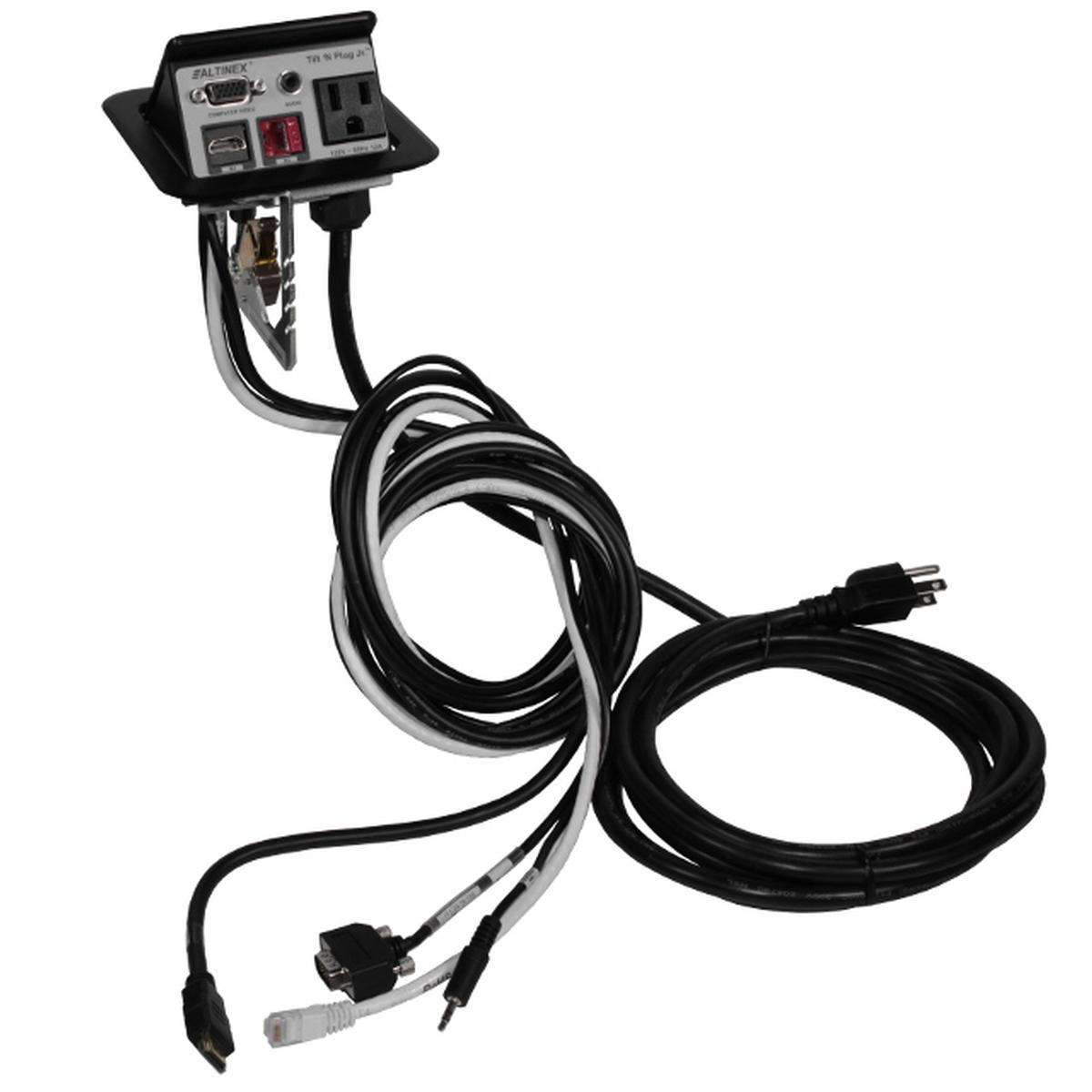

- Gender: Female at the box with 6' male ended AV and data cables under the table
- Power cable: 9'
- UL Listed
-Patrick S.
Description

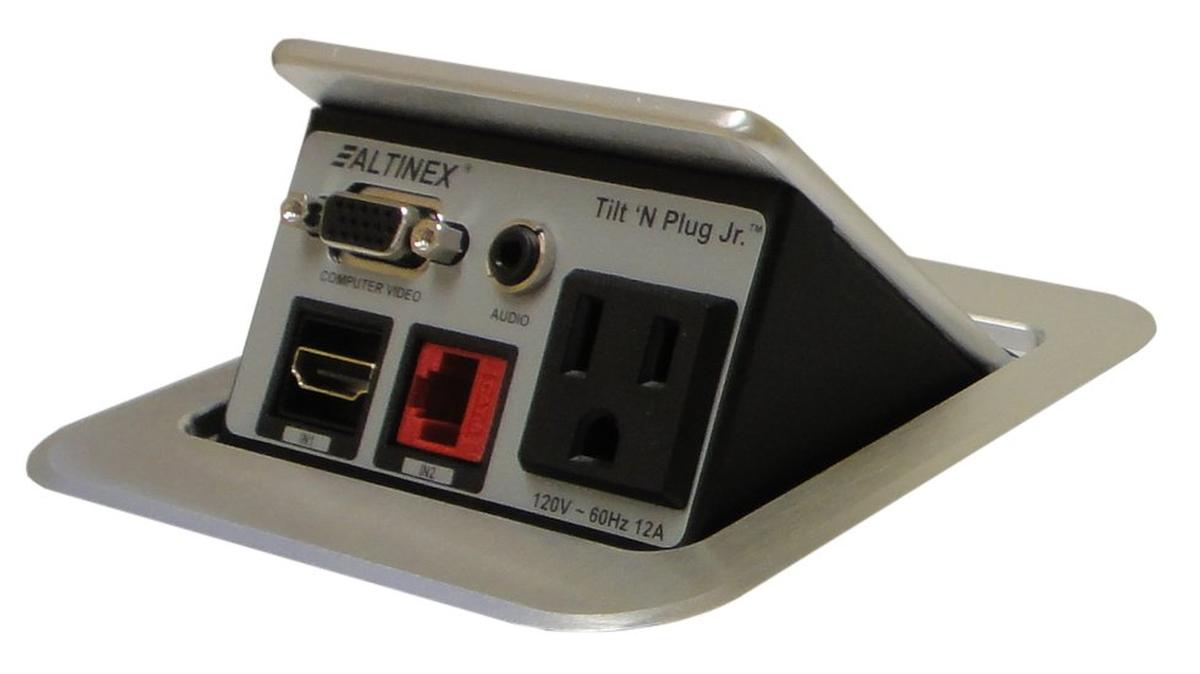

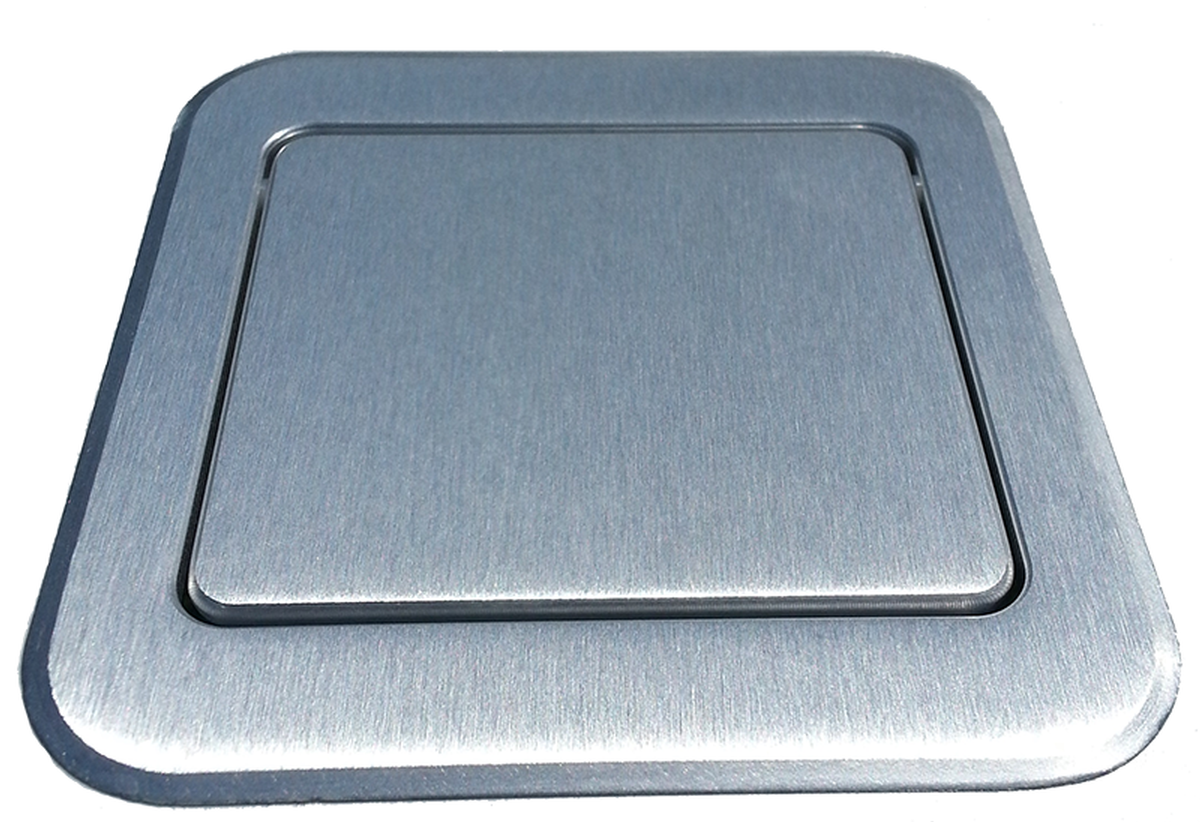

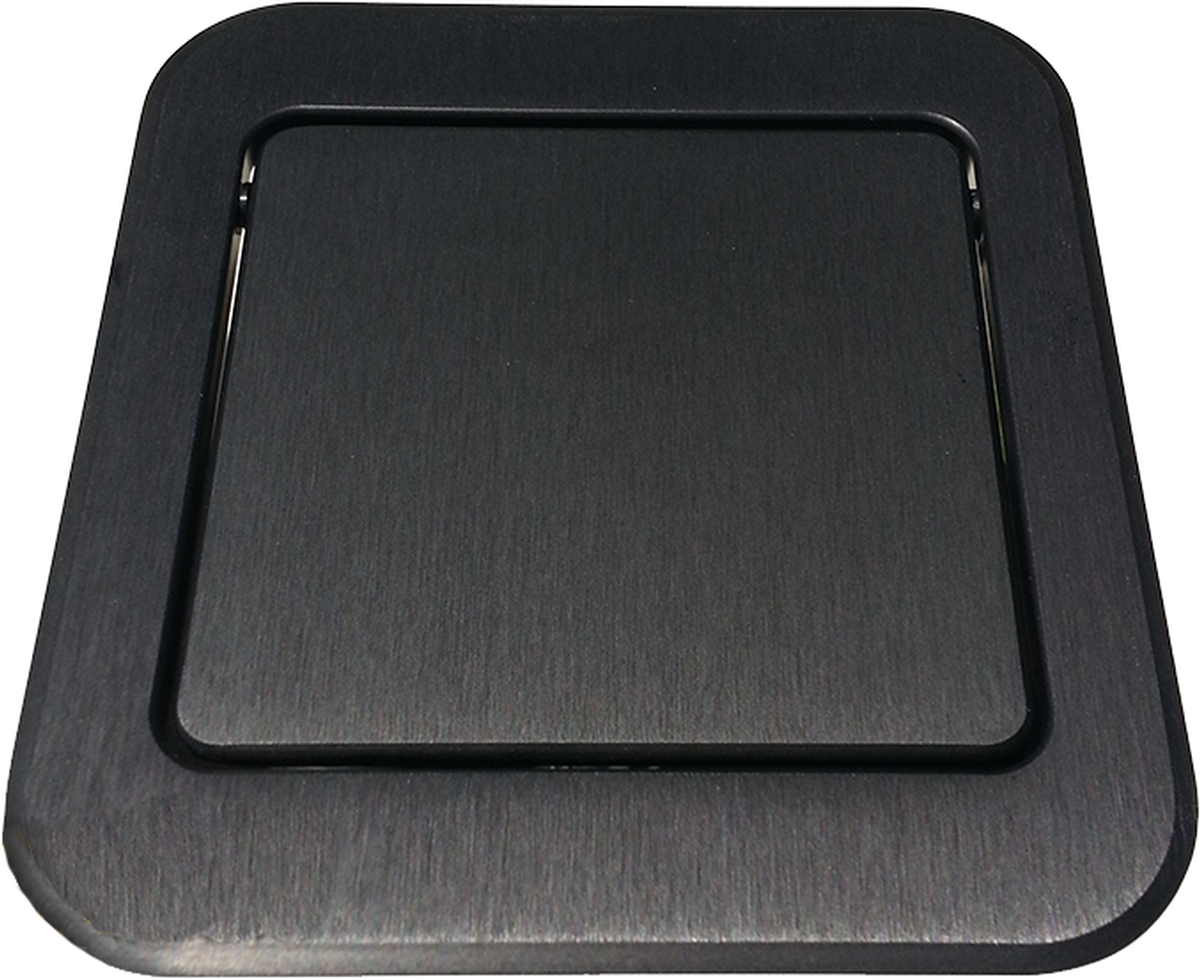

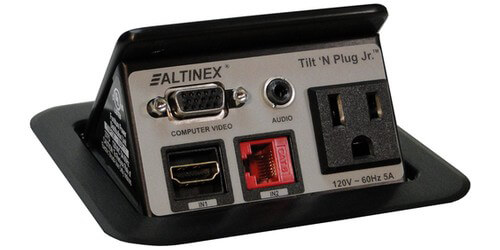

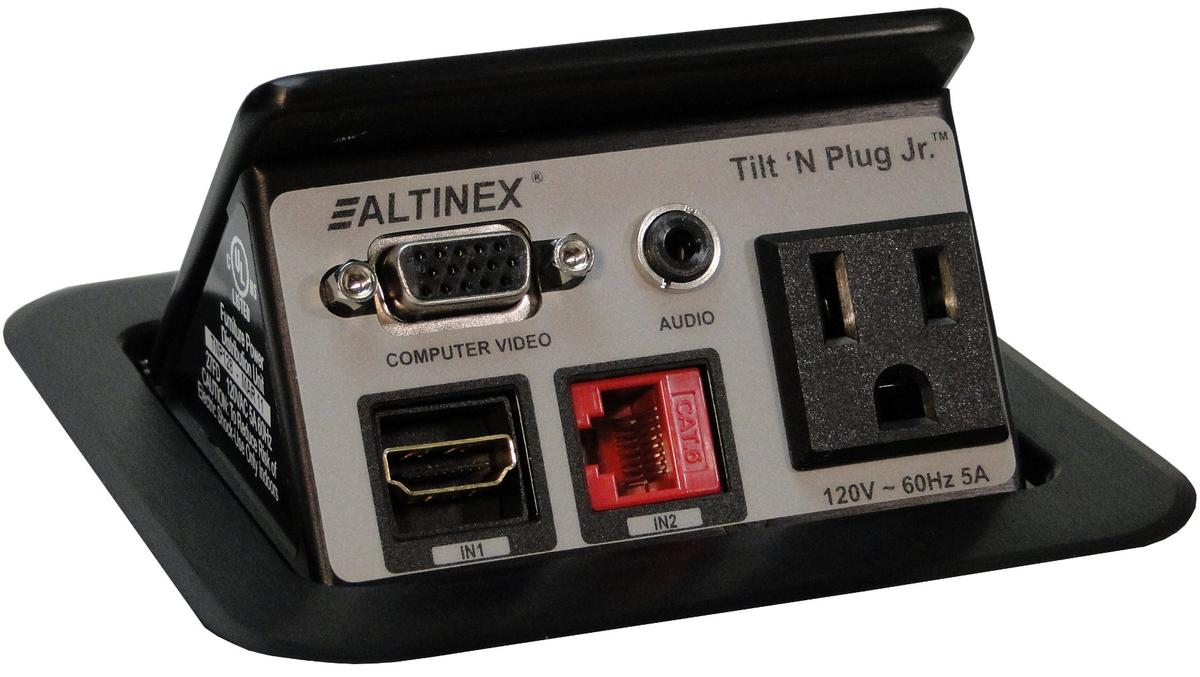

The Altinex TNP128 Tilt N Plug Jr is the #1 selling tilt up tabletop box for HDMI and VGA on the market, offering both analog and digital connections.The inputs are 1 VGA, 1 audio, 1 HDMI, 1 Cat6, and 1 power. All connections at the box are female, under the table are 6' male terminated cables with the power being 9' long. Choose from a gorgeous black anodized aluminum or silver anodized aluminum finish to compliment the look of any room.
The top tilts up via a gas spring, simply press the top and it smoothly tilts up exposing your connections. When you are done just press the top till it locks flush with the table and it is easily out of the way.

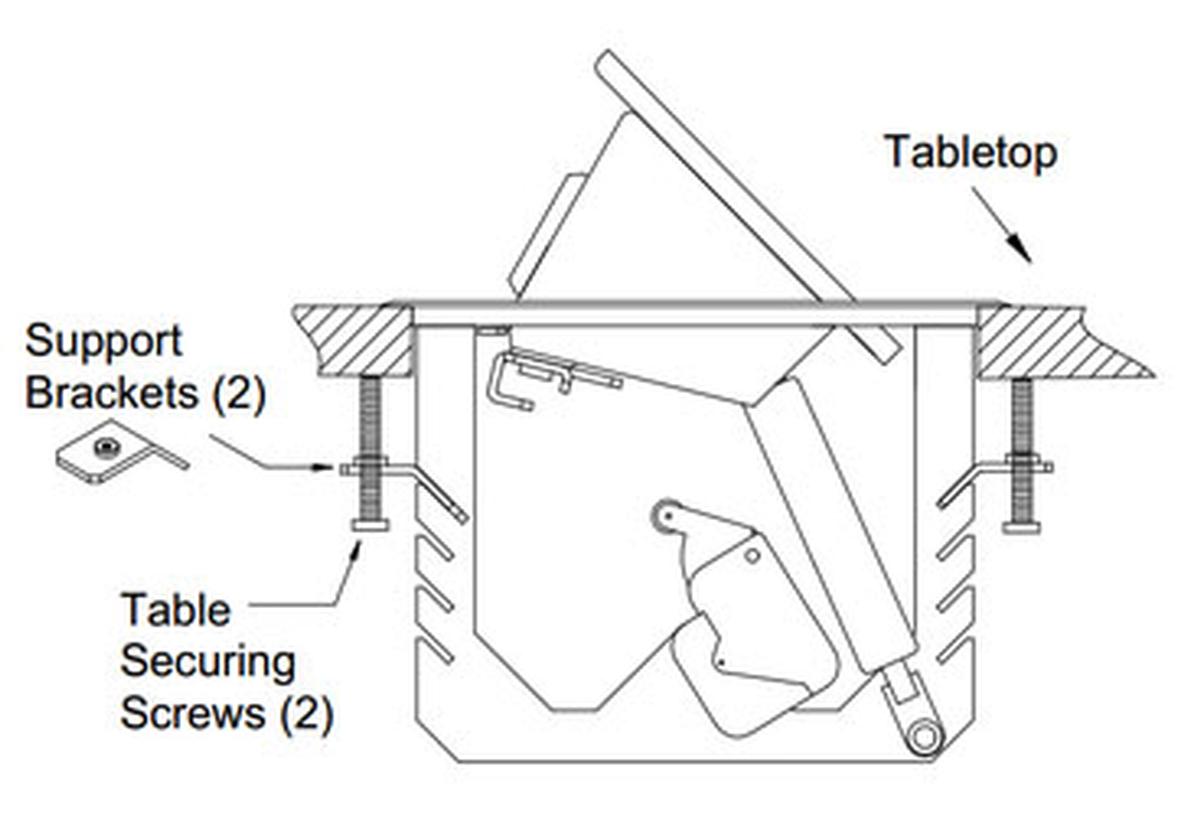

Installation is easy, cut your hole using the cutout template and drop the unit in the hole. Secure to the underside of the table with the included mounting hardware and you are done, you now have an elegant looking yet functional cable management and connectivity solution for you table.
Connections on this unit can be customized. Our factory trained technicians build the unit to your exact requirements and ship it out assembled and ready to install. Customization and testing typically takes 2-3 days before shipping.
Specifications
- Mounting hardware included
- Bezel dimensions: 4.6" x 4.9"
- Cutout dimensions: 4.2" x 4.5"
- Table thickness: .75" to 2.25"
- Depth under table: 4.9"
- UL listed
- Warranty - Table box: 10 years, Gas spring: 1 year
Reviews
| Name: | Larry T. |
| Rating: | |
| Date: | May 11, 2018 |
|
Small footprint for my conference room table! |
|
| Name: | E. |
| Rating: | |
| Date: | July 10, 2017 |
|
fast |
|
| Name: | Chris |
| Rating: | |
| Date: | April 20, 2015 |
|
I purchased this in the black anodized aluminum finish, I must say that it looks really nice in our conference table. |
|
| Name: | Tom |
| Rating: | |
| Date: | July 27, 2012 |
|
I was surprised to see how small it was, even though it's compact it has everything that we need. Shipping was fast, it shipped same day and arrive to us the next day in Vegas. |
|
| Name: | Douglas |
| Rating: | |
| Date: | August 10, 2010 |
|
For the price the quality is phenomenal, it just feels like it was very well made. The metal is heavy duty and has a nice look to it and after 9 months has held up very well. The gas spring does its job as well, it opens at just about the right speed. When in the up position it stays there with no drooping and doesn't move when you need to plug in your connections. When you need to close it just push down and it locks flush with the table and you don't have to worry about it popping open. |
|
