Altinex TNP155S
Pop Up Tabletop Box w/ 2 Power & 2 Charging USB - Black or Silver

Description

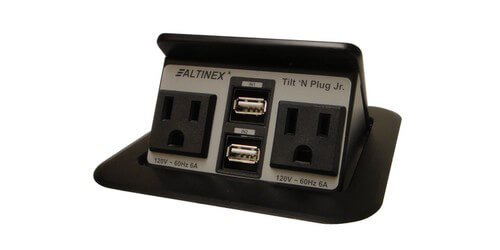

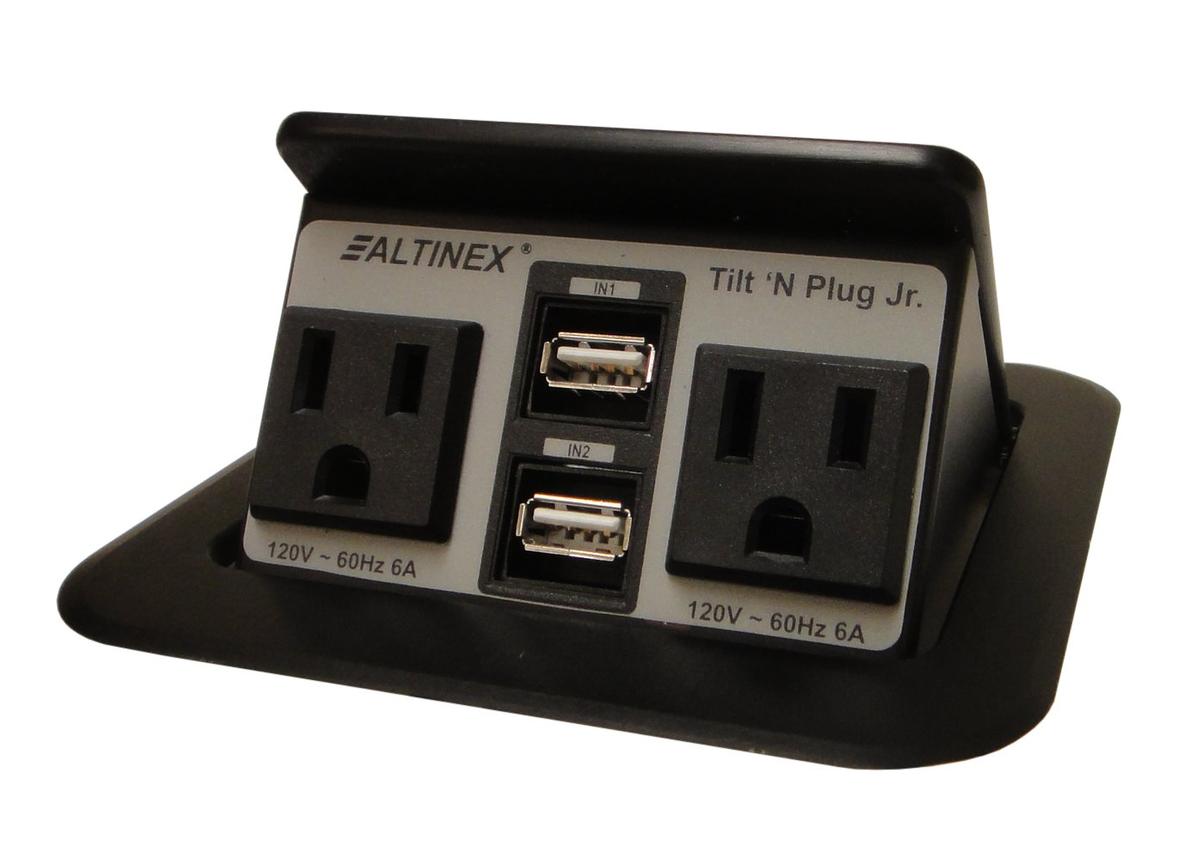

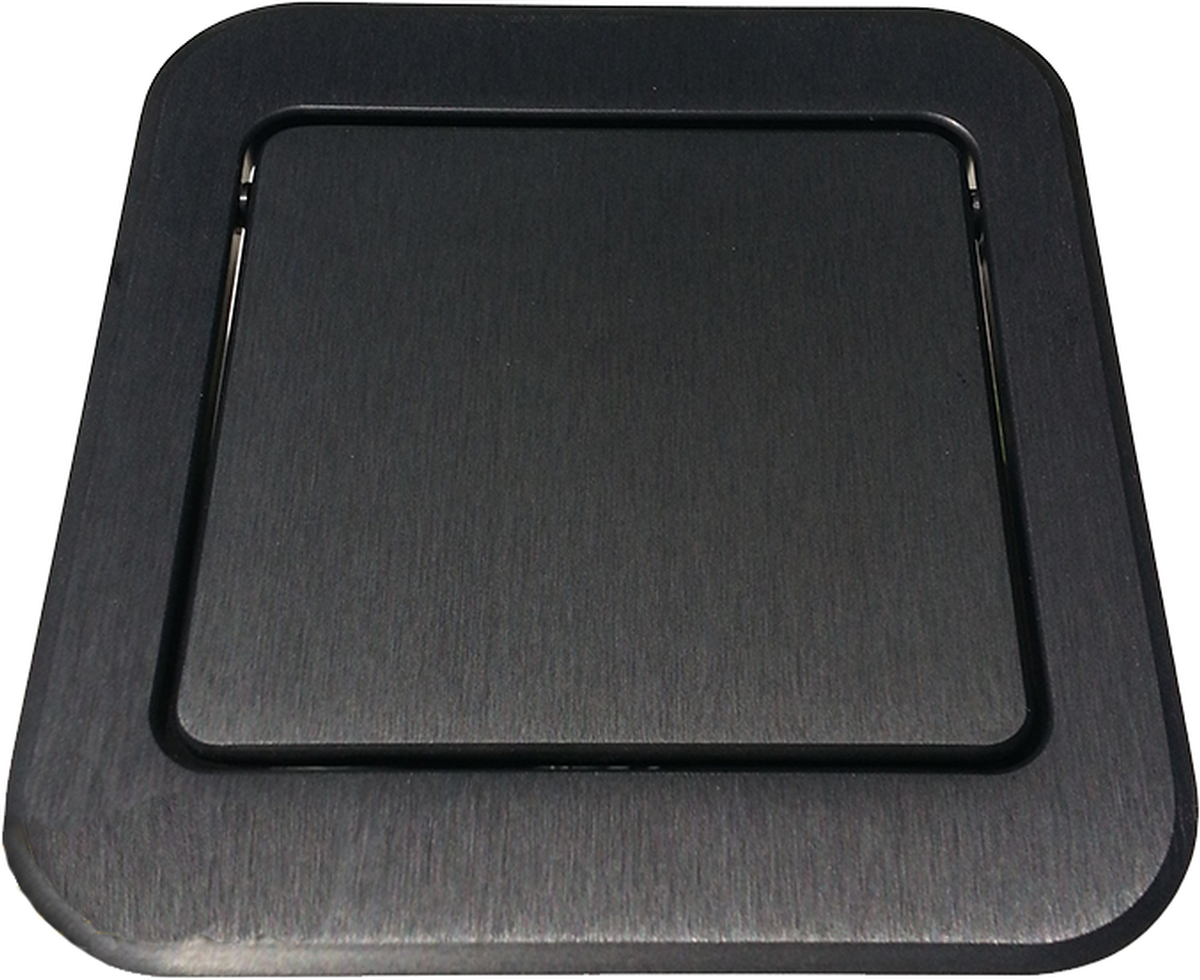

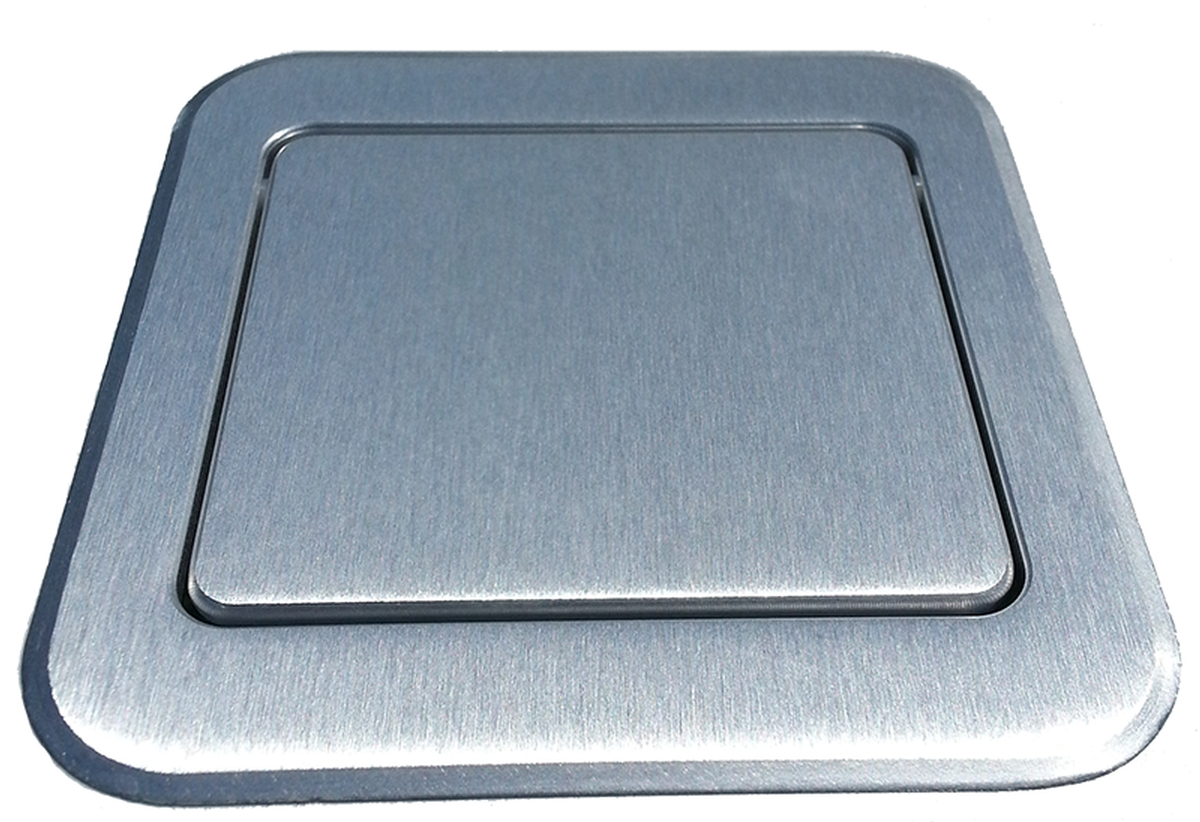

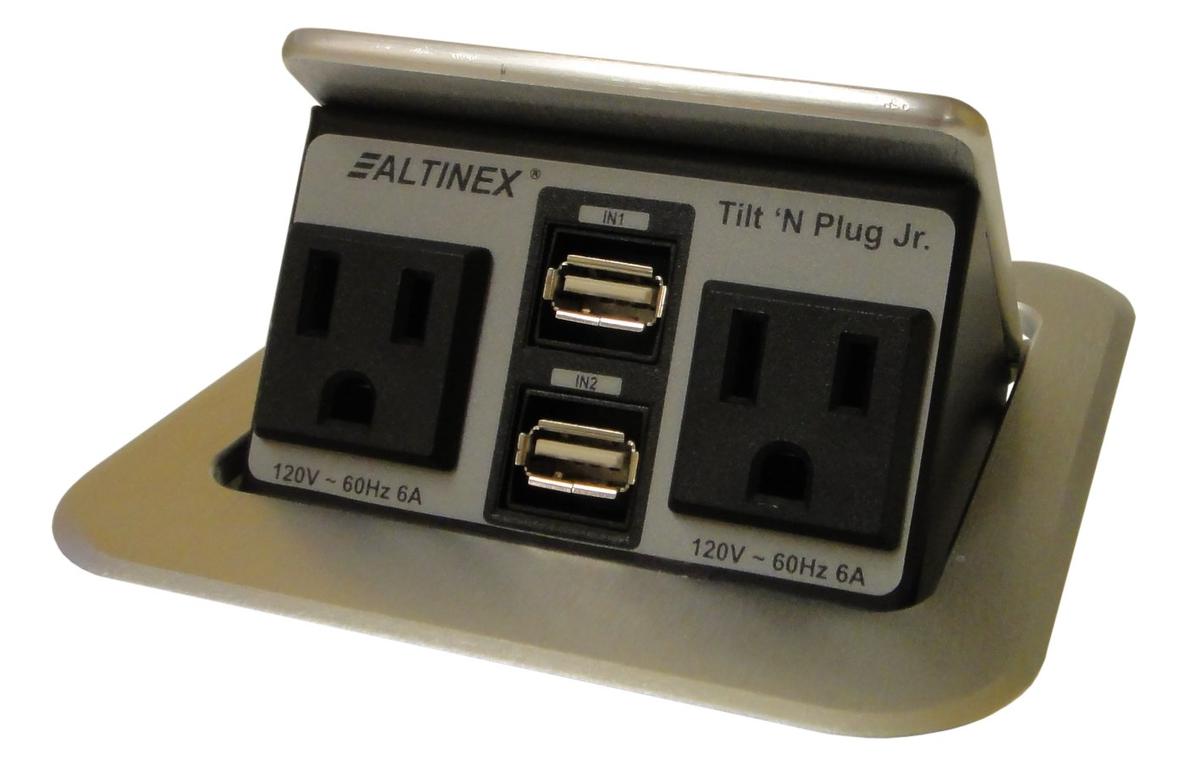

The Altinex Tilt 'N Plug Jr TNP155S installs flush in your table but when pressed tilts and pops open via a gas spring. The TNP155 provides 2 charging USB and 2 AC power connectors.  The charging USB is powered via the included PS5594UB 5-port charging hub, the hub provides integrated smart charging to ensure your devices get the correct amperage and charge as fast as possible.   You can choose from black anodized aluminum or silver anodized aluminum colors to meet the look of your room.

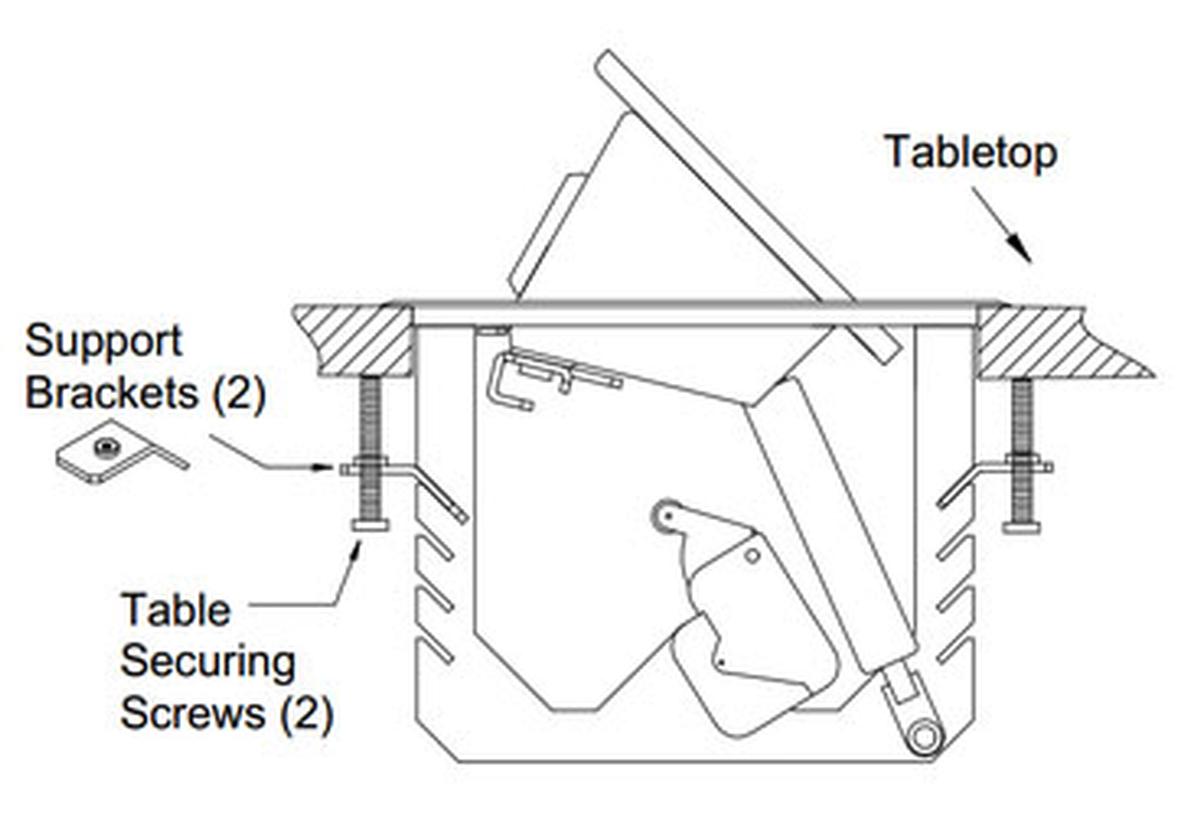

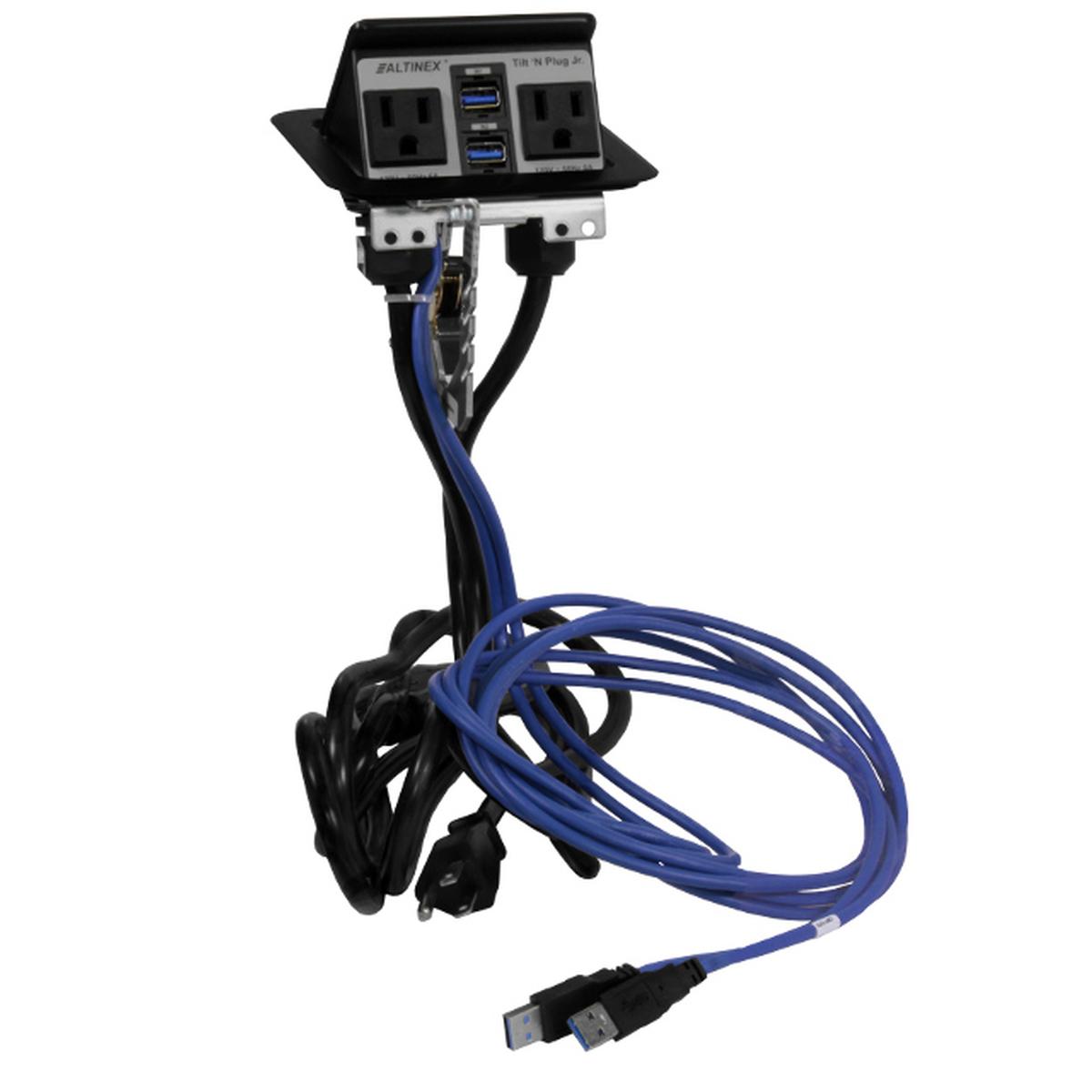

Installation is simple, cut your hole using the cutout template and drop in the box.  Use the included thumb screws on the underside of the table, they use pressure to secure the box so no screws are required.  Then plug the USB cable ends into the included USB charging hub.  The Altinex TNP155 is a high quality table elegant looking table box with a super thin bezel that provides power and USB charging for phones and tablets.

Specifications

• Dual USB charging & AC power connectors
• 1 power cord (9' long)

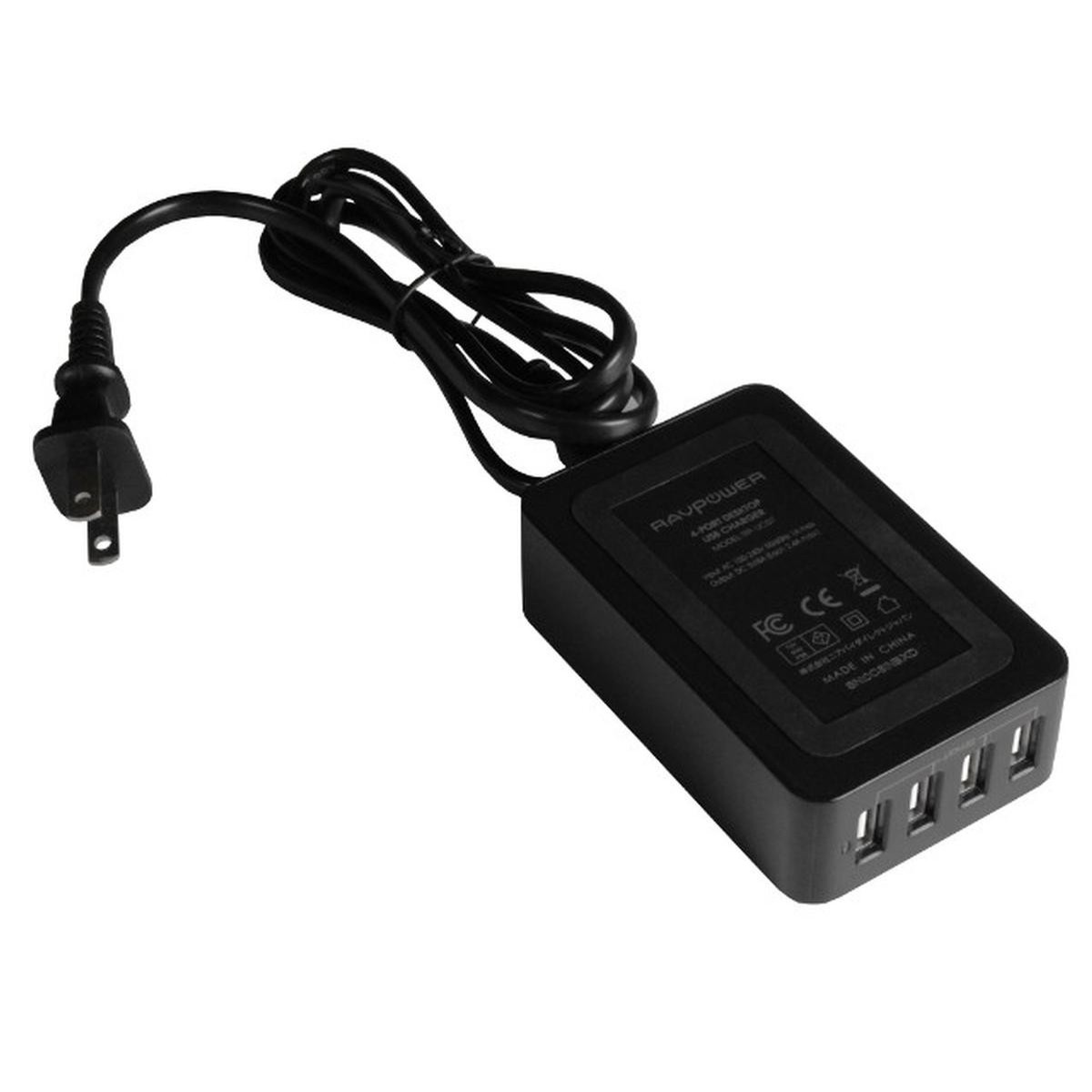

• USB charging is from the included PS5594UB 4 port charging hub
• Bezel dimensions: 4.6" x 4.9"
• Cutout dimensions: 4.2" x 4.5"
• Table thickness: .75" to 2.25"
• Depth under table: 4.9"
• UL listed
• Mounting hardware and charging hub included
• Warranty - Table box: 10 years, Gas spring: 1 year

Downloads

• Altinex TNP155S Manual (PDF)
• Altinex TNP155 Cutout Template (PDF)
