Altinex TNP327
Pop Up Table Box w/ 2 USB 3.0, 2 HDMI, 2 Cat6, 2 Power

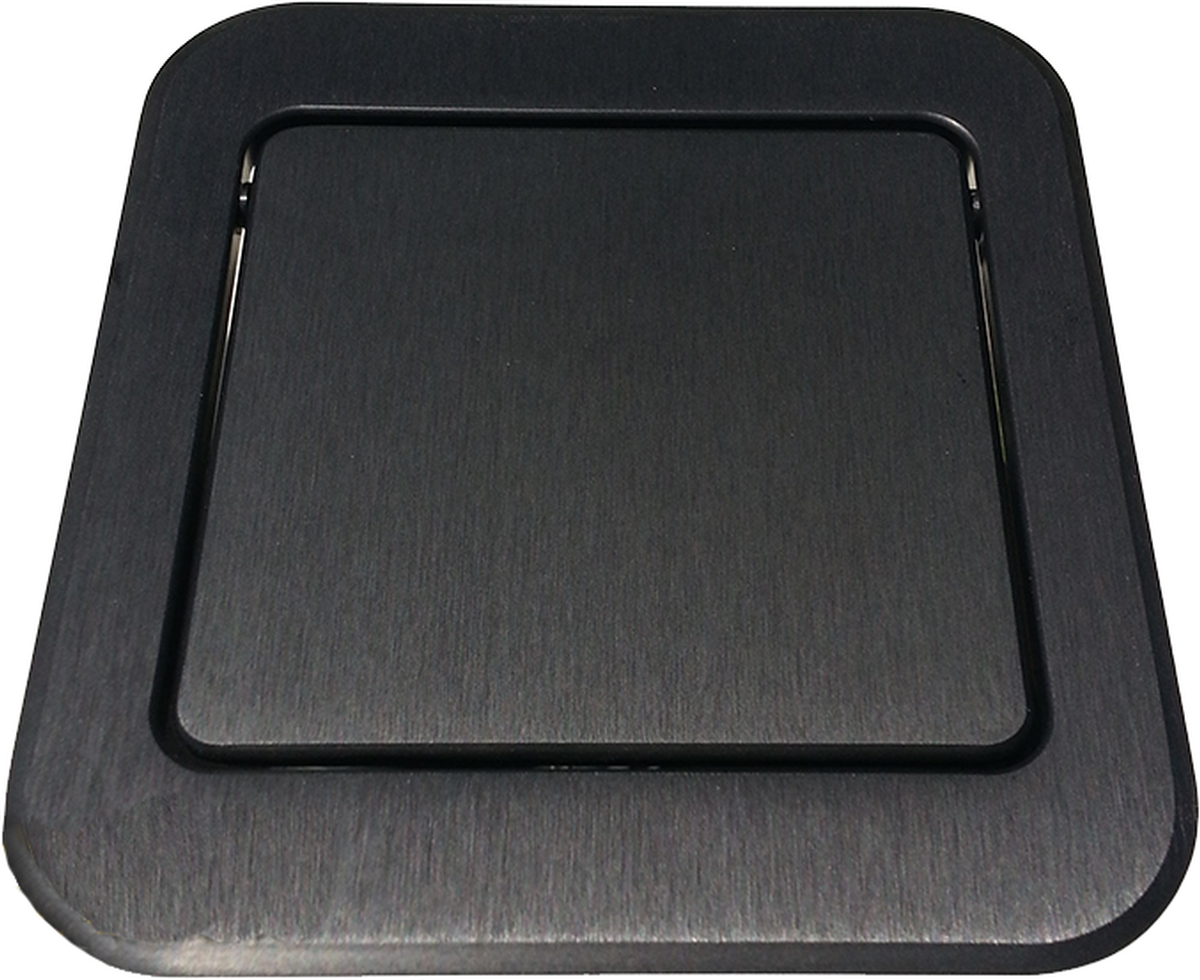

- Black Anodized aluminum bezel
- Connections: 2 HDMI, 2 Cat6, 2 USB 3.0, & 2 power

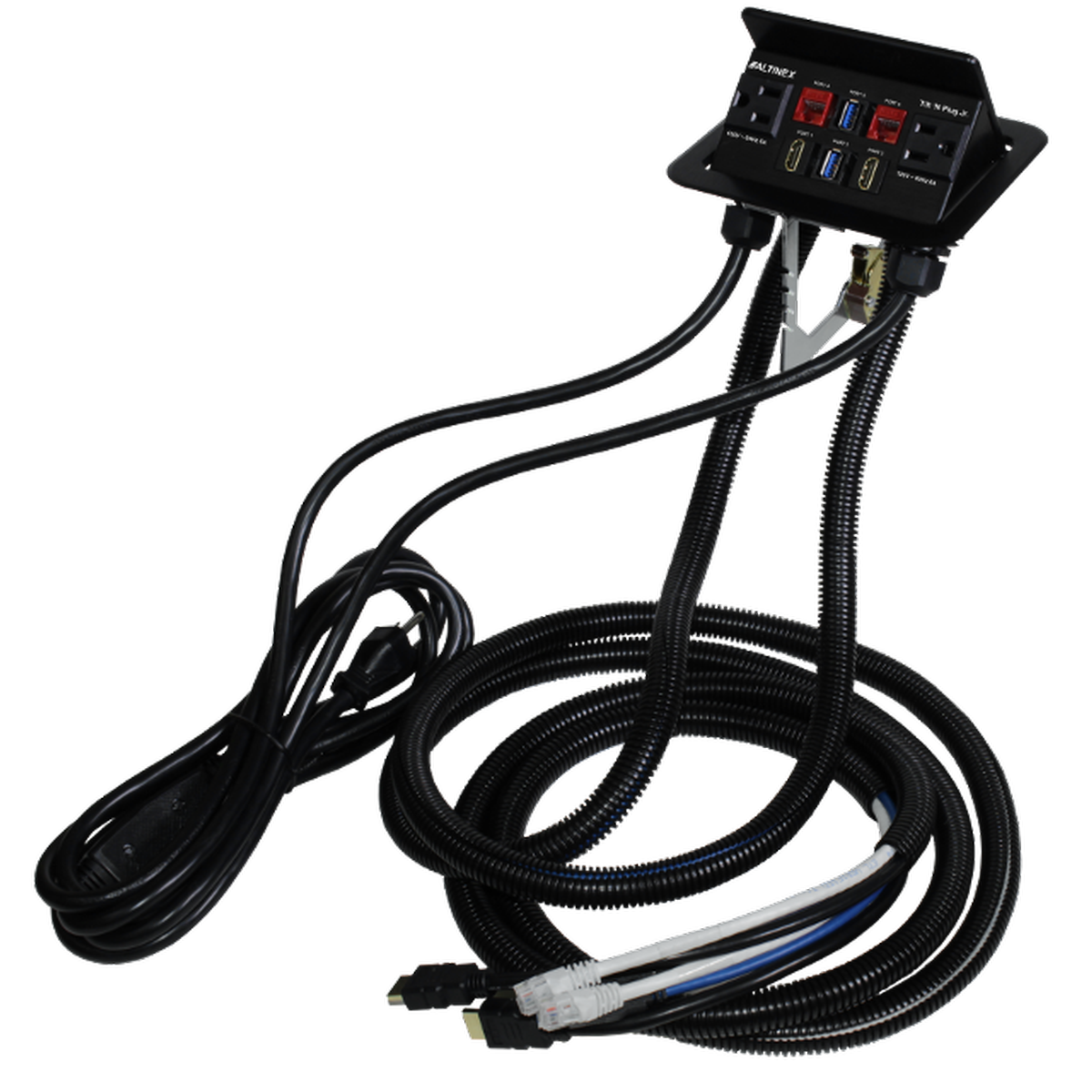

- Cable whip: 6' male ended AV and data cables under the table
- Power: 9' cable & UL Listed
-Lynn Y.
Description

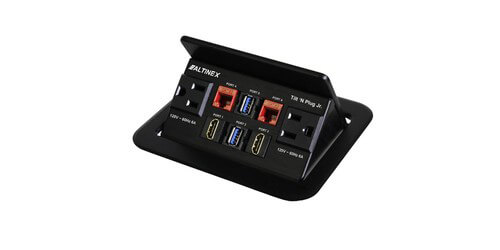

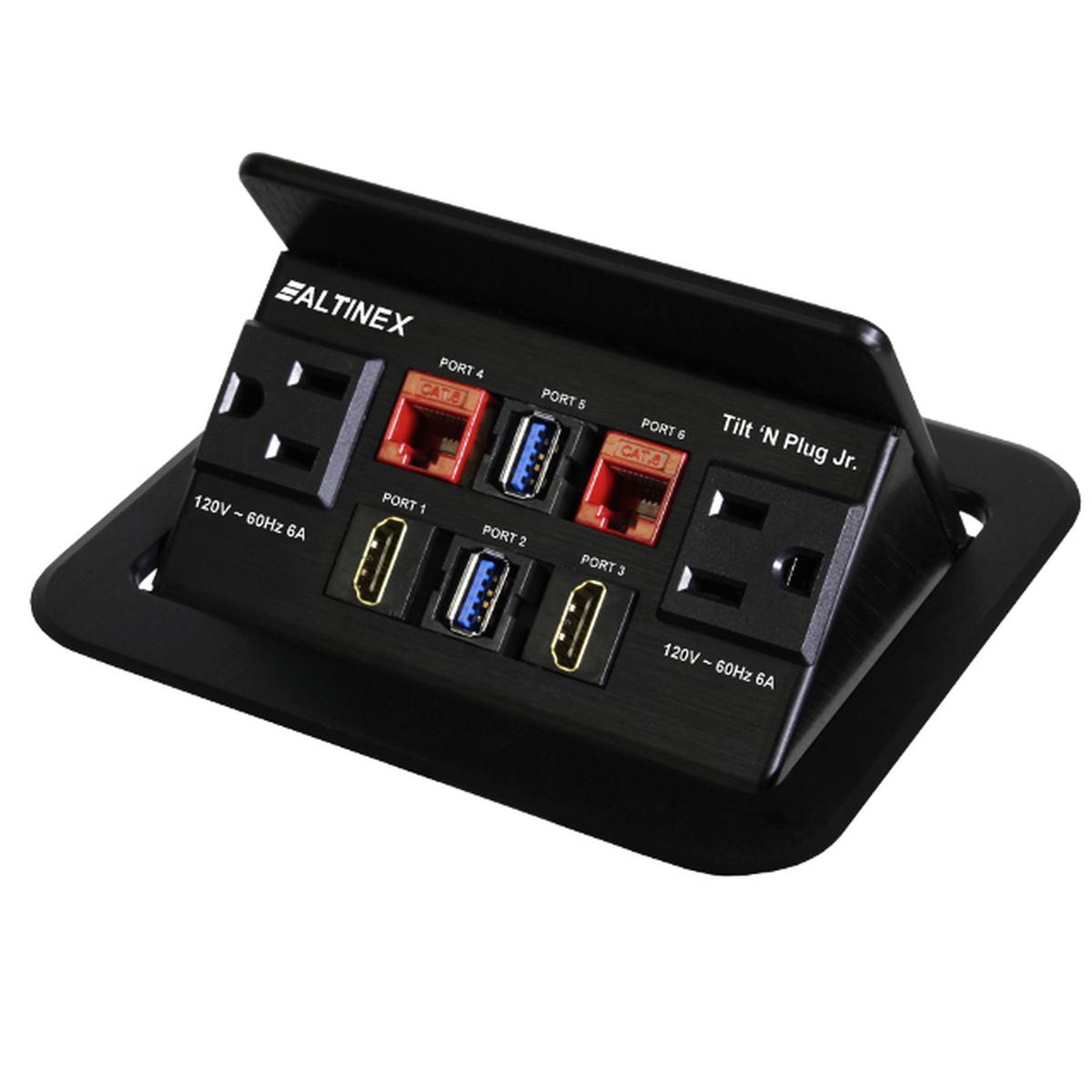

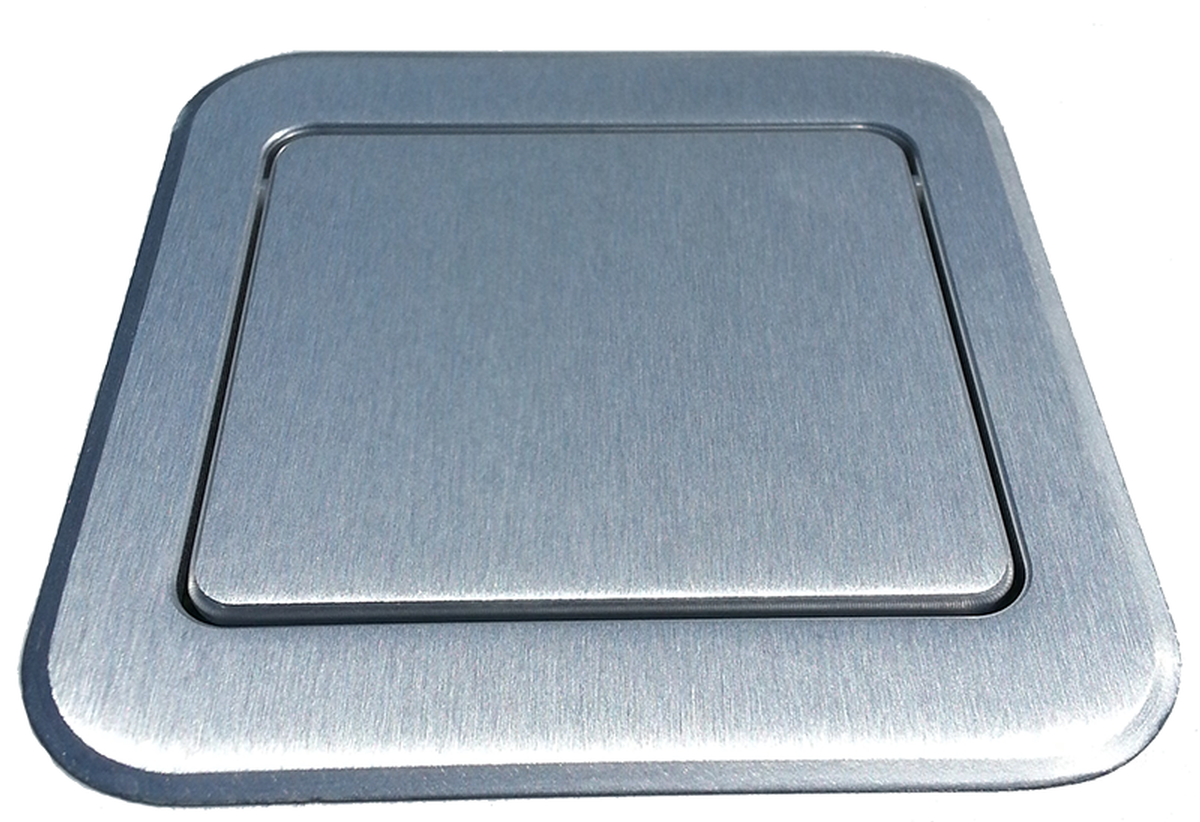

The Altinex TNP327 is a pop up that maximizes the amount of connections that you can get in a small and compact flush mount table box. The connections included are 2 HDMI, 2 Cat6, 2 USB 3.0, and 2 power. All connections at the box are female, under the table are 6' male terminated cables with the power being 9' long. Choose from a gorgeous black anodized aluminum or silver anodized aluminum finish to compliment the look of any room.
Simply press the gas spring-enabled top and the TNP327 tilts/pops up in one smooth motion, giving you access to your connections. When you are done just press the top till it locks flush with the table and looks hidden.

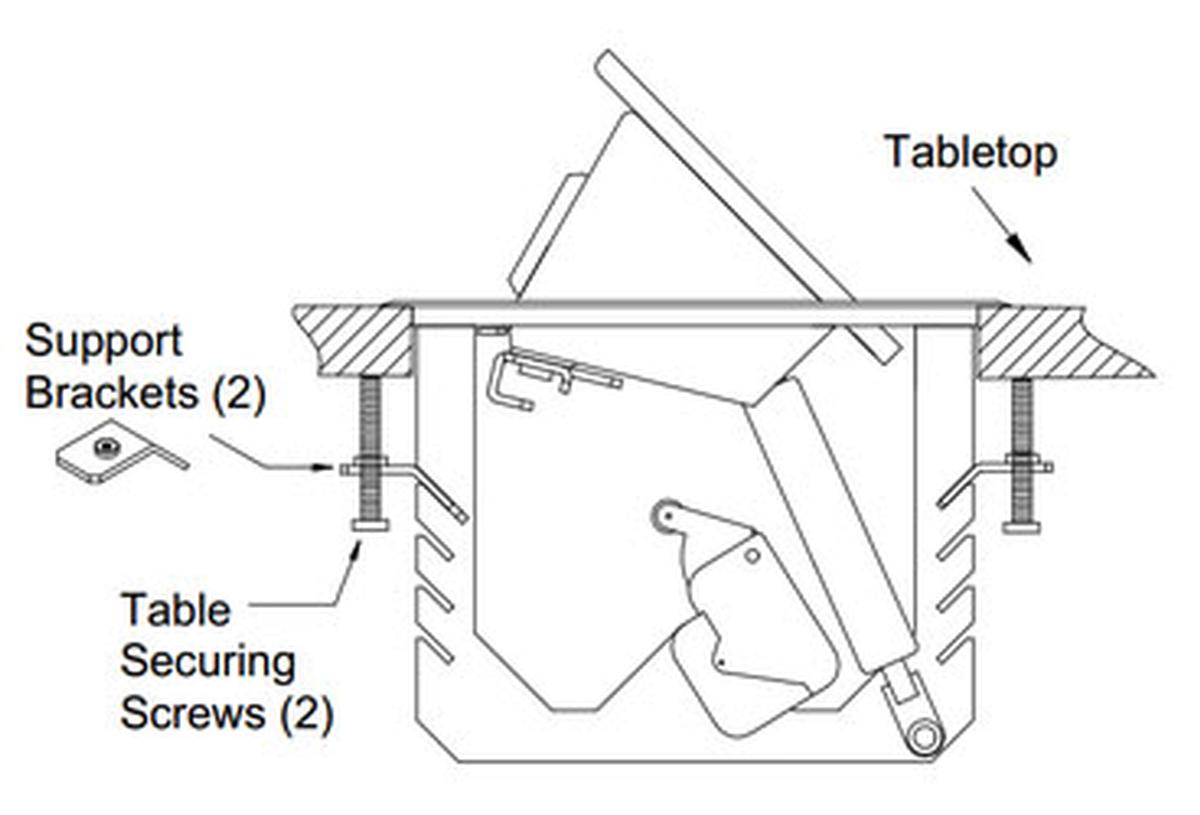

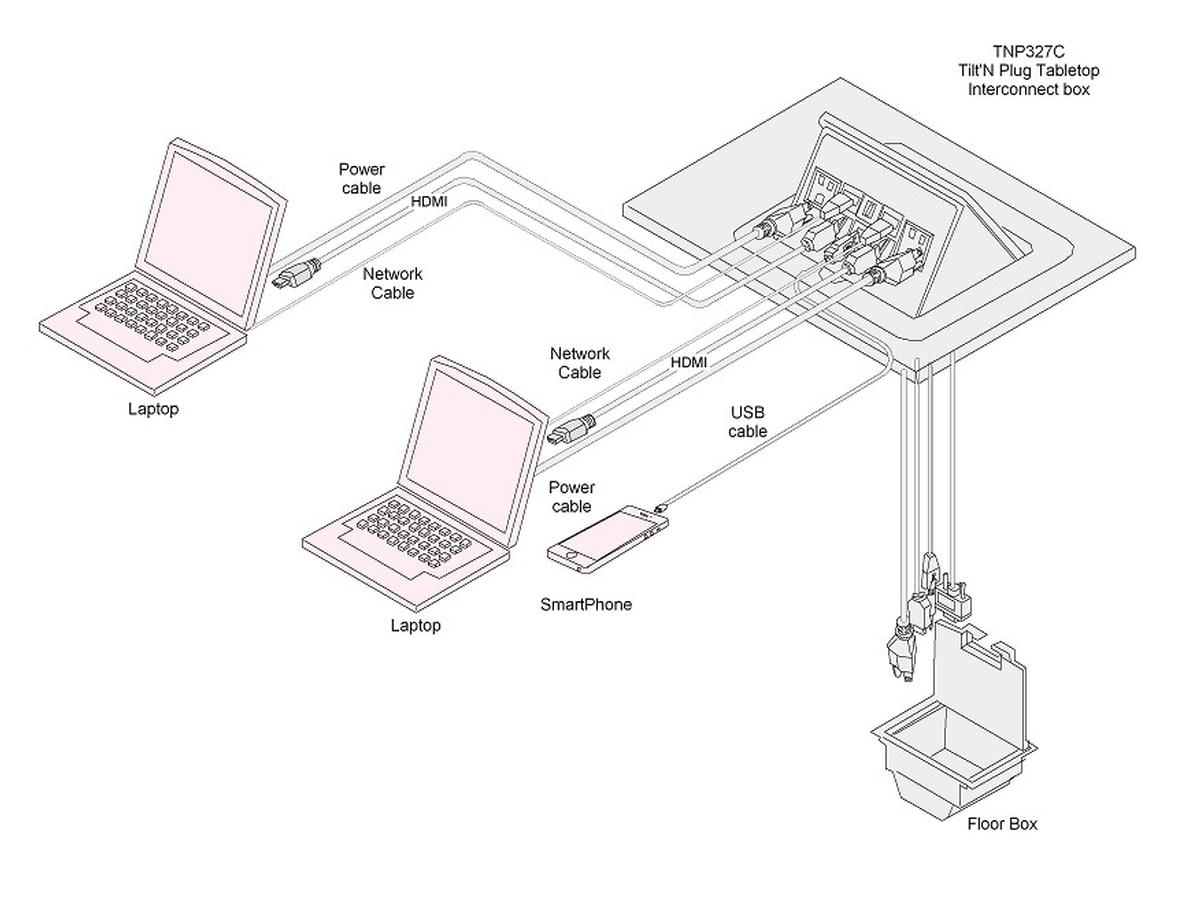

Installation is easy, cut your hole using the cutout template and drop the unit in the hole. Secure to the underside of the table with the included mounting hardware and you are done, you now have an elegant looking yet functional cable management and connectivity solution for you table. The Altinex TNP327 is a multi-format high quality table box designed for your conference room, boardroom, meeting room, training rooms, and lecture rooms.
Connections on this unit can be customized. Our factory trained technicians build the unit to your exact requirements and ship it out assembled and ready to install. Customization and testing typically takes 2-3 days before shipping.
Specifications
- Mounting hardware included
- Bezel dimensions: 5.7" x 5.2"
- Cutout dimensions: 5.3" x 4.8"
- Table thickness: .75" to 2.5"
- Depth under table: 5.2"
- Rate for USA and Canada with UL and c-UL listings
- Warranty - box: 10 years, Gas spring: 1 year
