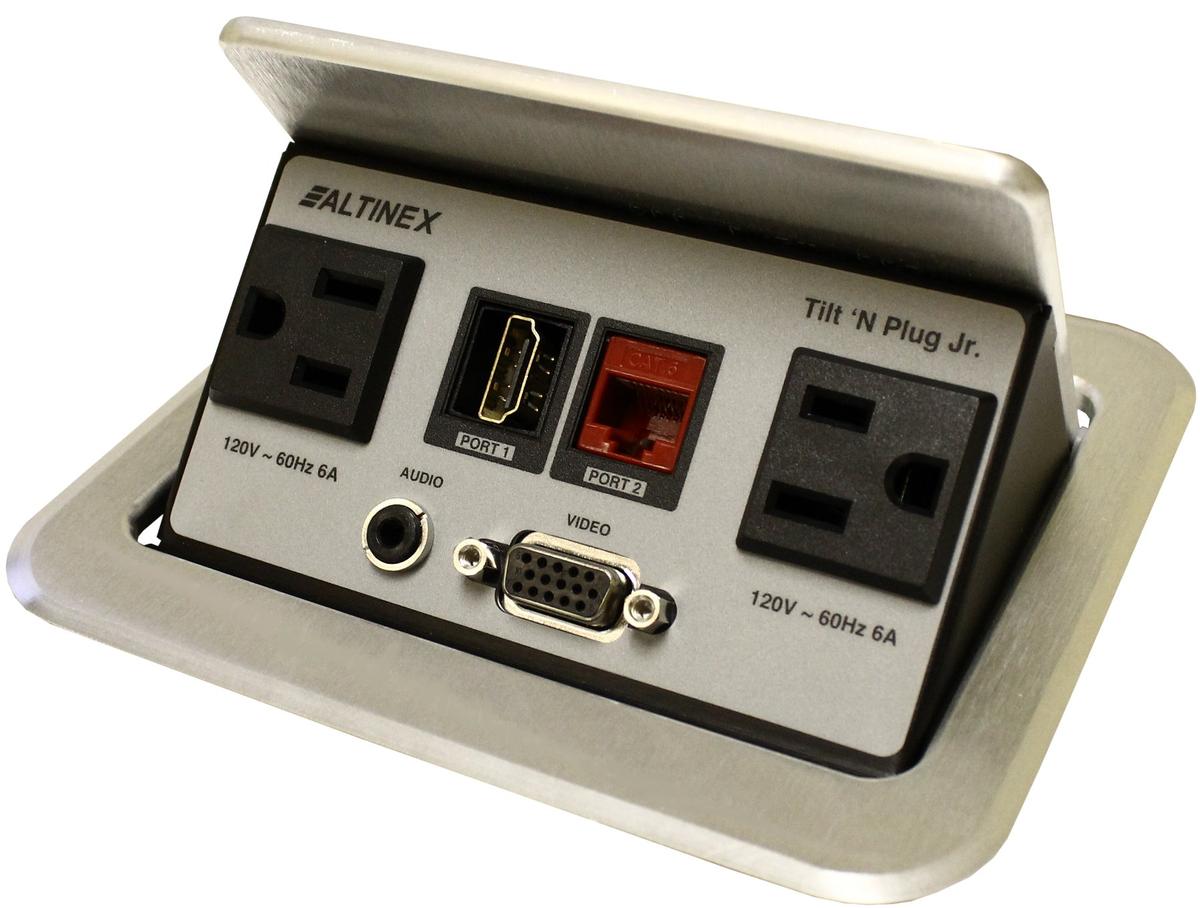

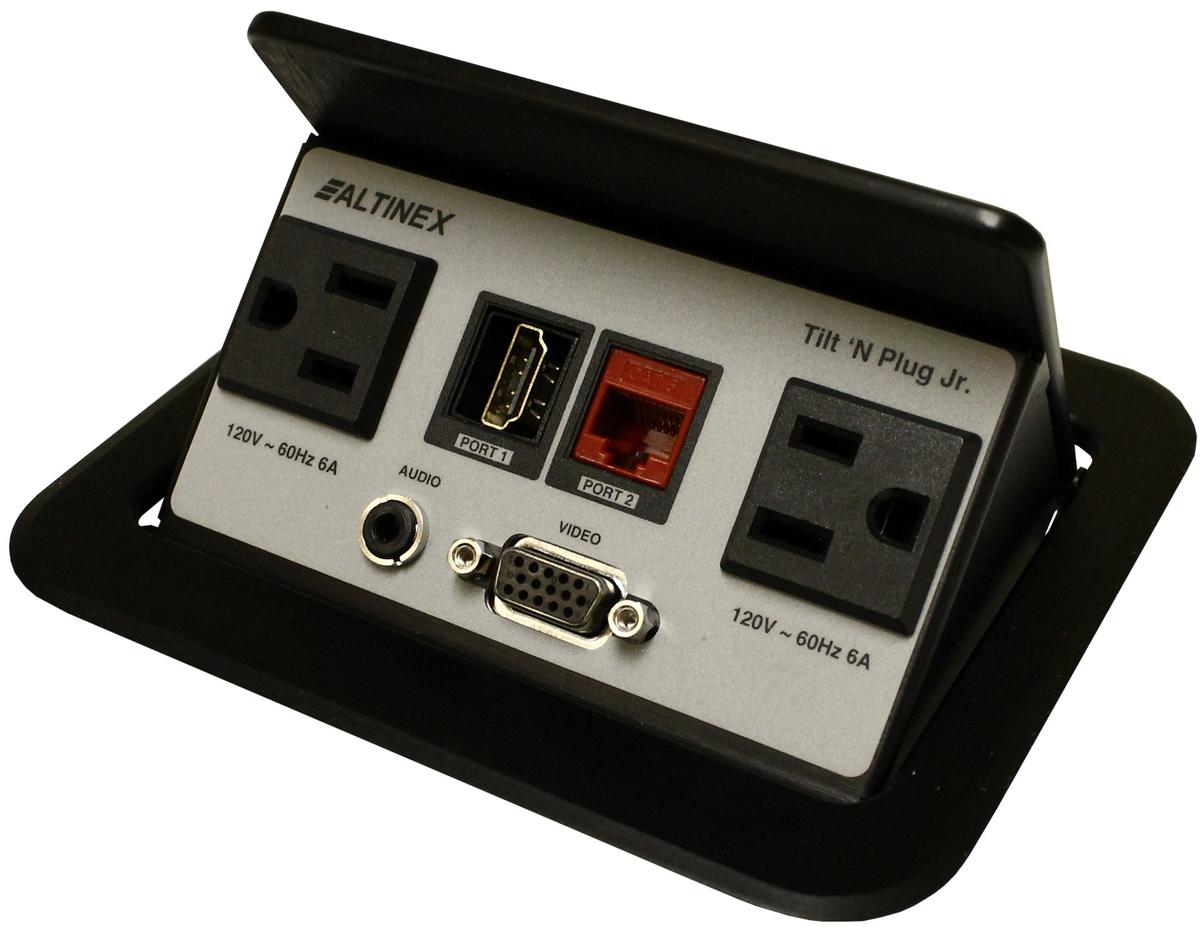

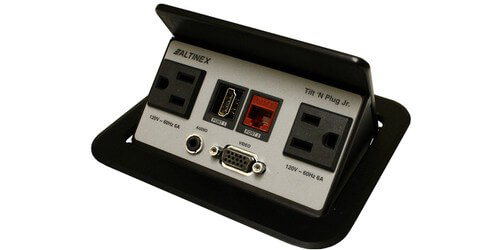

Altinex TNP328
Tilt Up Table Box w/ 1 VGA, 1 HDMI, 1 Cat6, 2 AC - Black or Silver
- Connections: 1 VGA, 1 Audio, 1 HDMI, 1 Cat6, and 2 power

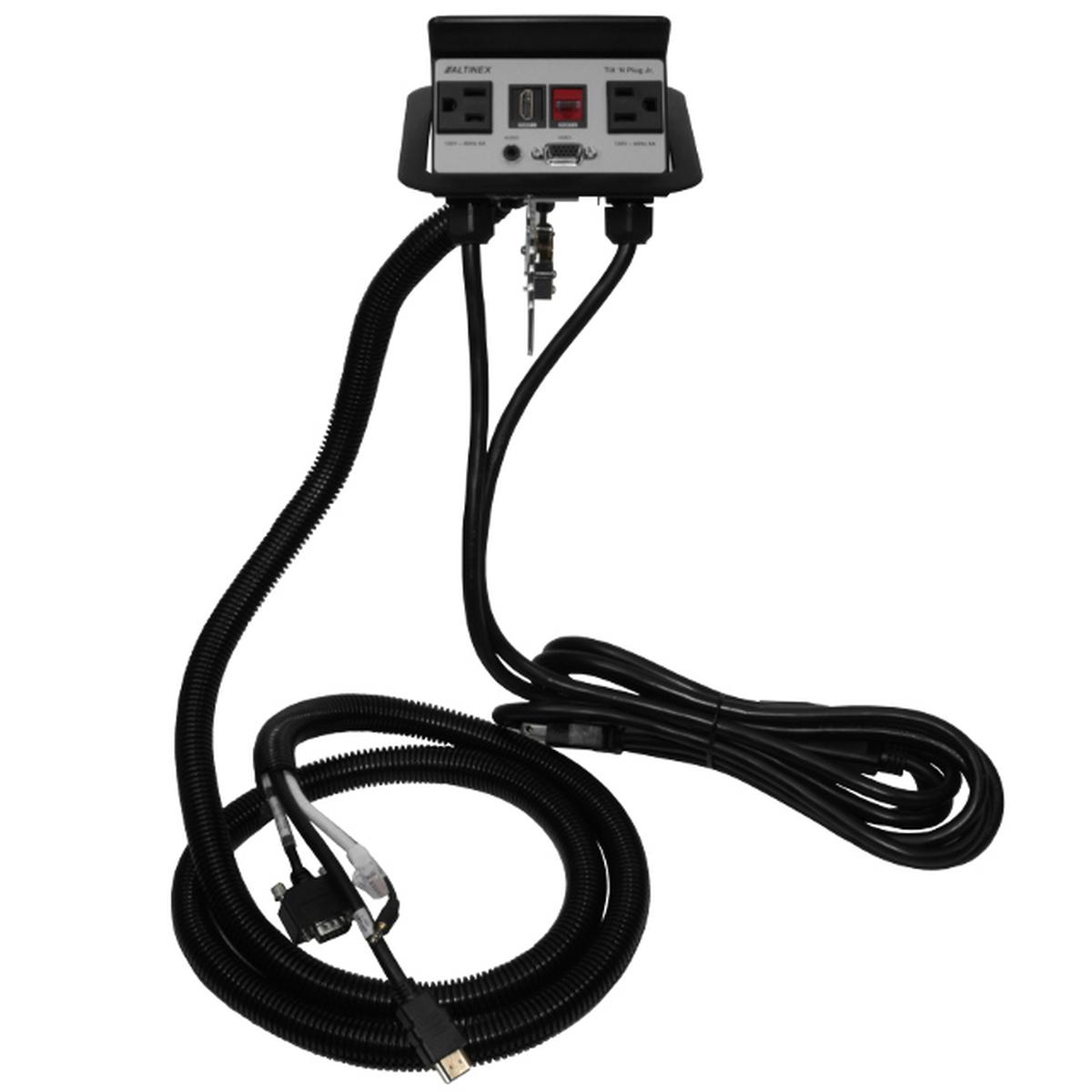

- Gender: Female at the box with 6' male ended AV and data cables under the table
- Power cable: Single 9'
- Mounting hardware included
Description

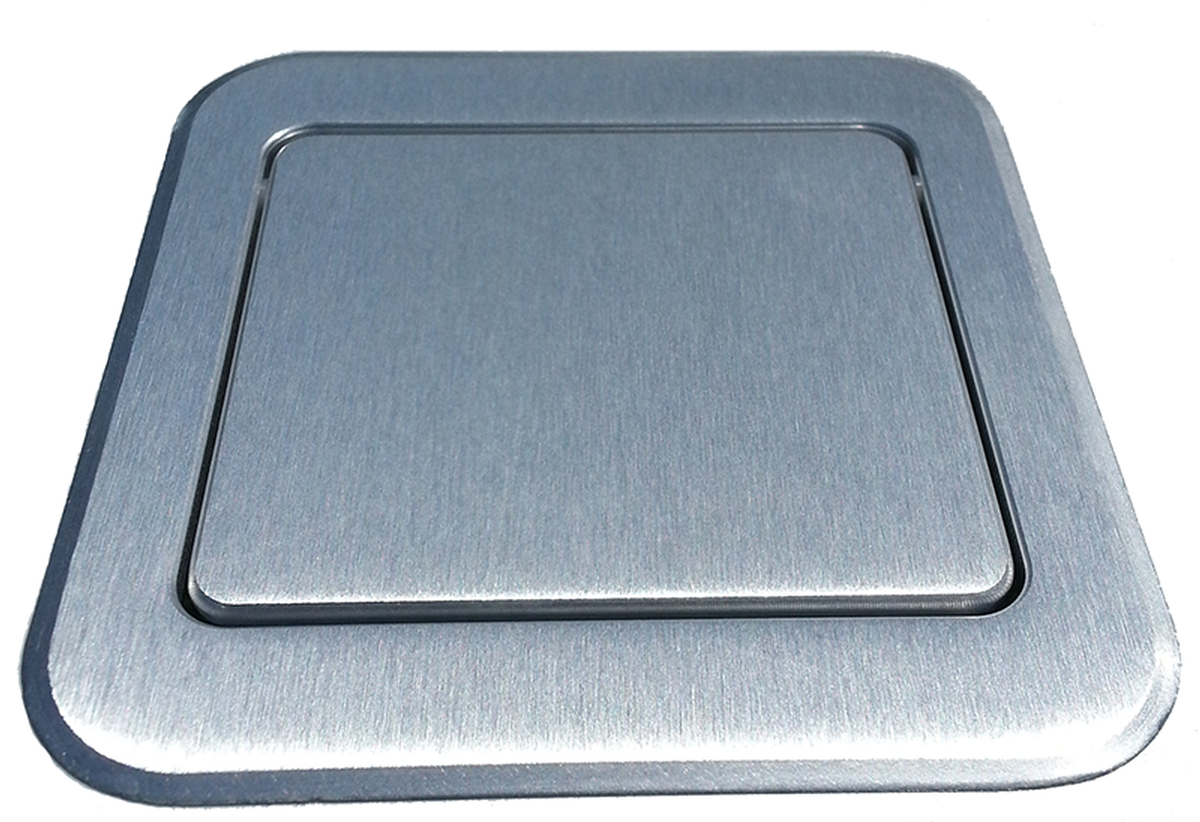

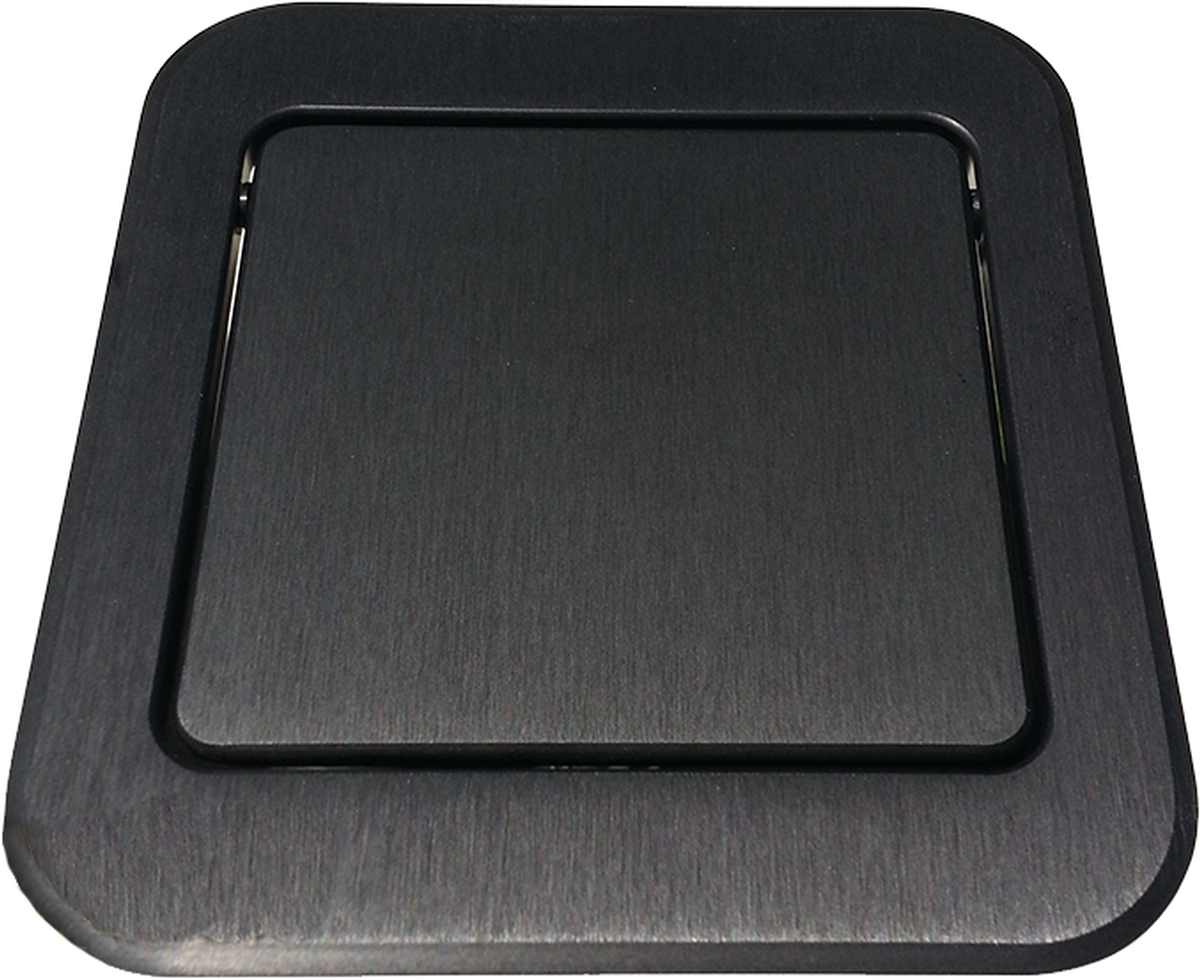

The Altinex TNP328 is a slightly larger version of the TNP128 that features a second power. The connections included are 1 VGA, 1 audio, 1 HDMI, 1 Cat6, and 2 power. All connections at the box are female, under the table are 6' male terminated cables with the power being 9' long. Choose from a gorgeous black anodized aluminum or silver anodized aluminum finish to compliment the look of any room.
The top tilts up via a gas spring, simply press the top and it smoothly tilts/pops up exposing your connections. When you are done just press the top till it locks flush with the table and looks hidden.

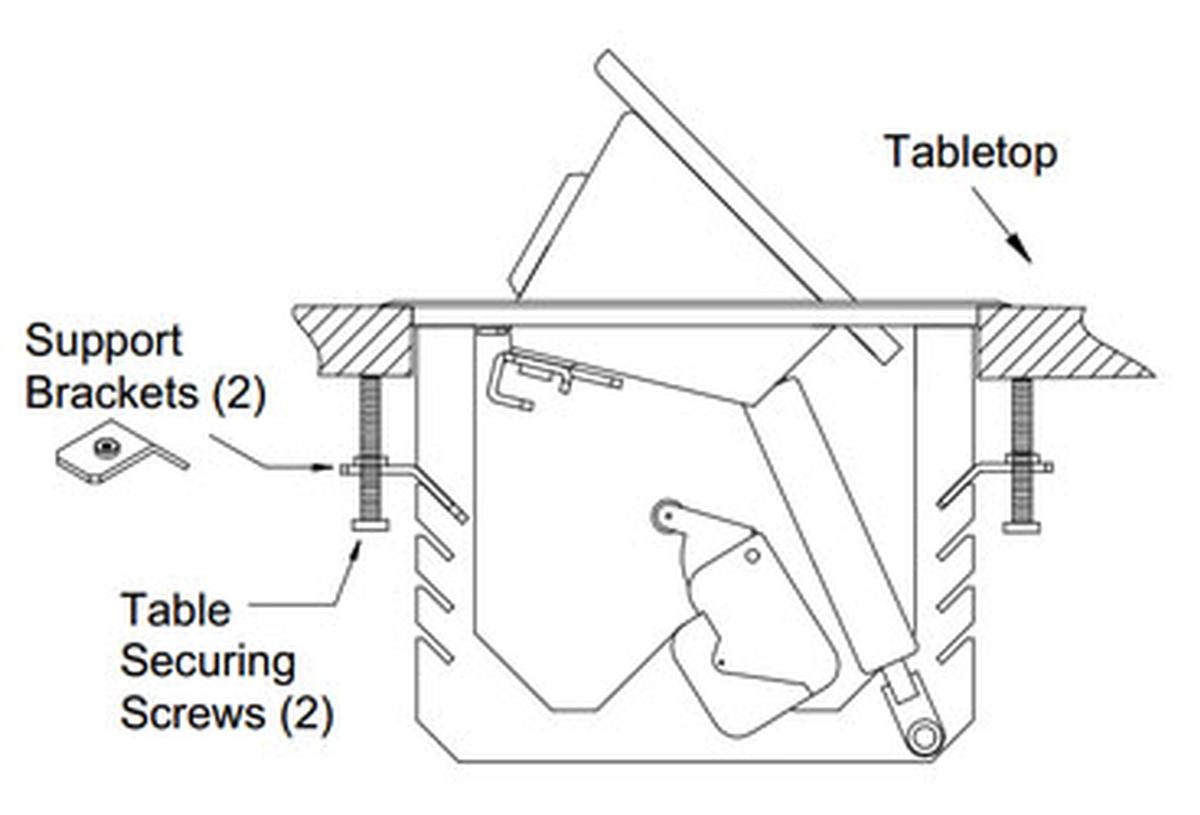

Installation is easy, cut your hole using the cutout template and drop the unit in the hole. Secure to the underside of the table with the included mounting hardware and you are done, you now have an elegant looking yet functional cable management and connectivity solution for you table. The Altinex TNP328 is a multi-format high quality table box designed for your conference room, boardroom, meeting room, training rooms, and lecture rooms.
Connections on this unit can be customized. Our factory trained technicians build the unit to your exact requirements and ship it out assembled and ready to install. Customization and testing typically takes 2-3 days before shipping.
Specifications
- Bezel dimensions: 5.7" x 5.2"
- Cutout dimensions: 5.3" x 4.8"
- Table thickness: .75" to 2.5"
- Depth under table: 5.2"
- UL and c-UL listed
- Warranty - Table box: 10 years, Gas spring: 1 year
