Altinex TNP328C
*Customizable* 4 Connection w/2 Power Tilt Up Box, Black or Silver

• Color: Black anodized aluminum or silver anodized aluminum
• Connections: Customizable
• Gender: Female at the box with 6' male ended AV and data cables under the table
• Power cable: Single 9'
• Mounting hardware included
• Bezel dimensions: 5.7" x 5.2"
• Cutout dimensions: 5.3" x 4.8"
• Table thickness: .75" to 2.5"
• Depth under table: 5.2"
• UL and c-UL listed
• Warranty - Table box: 10 years, Gas spring: 1 year

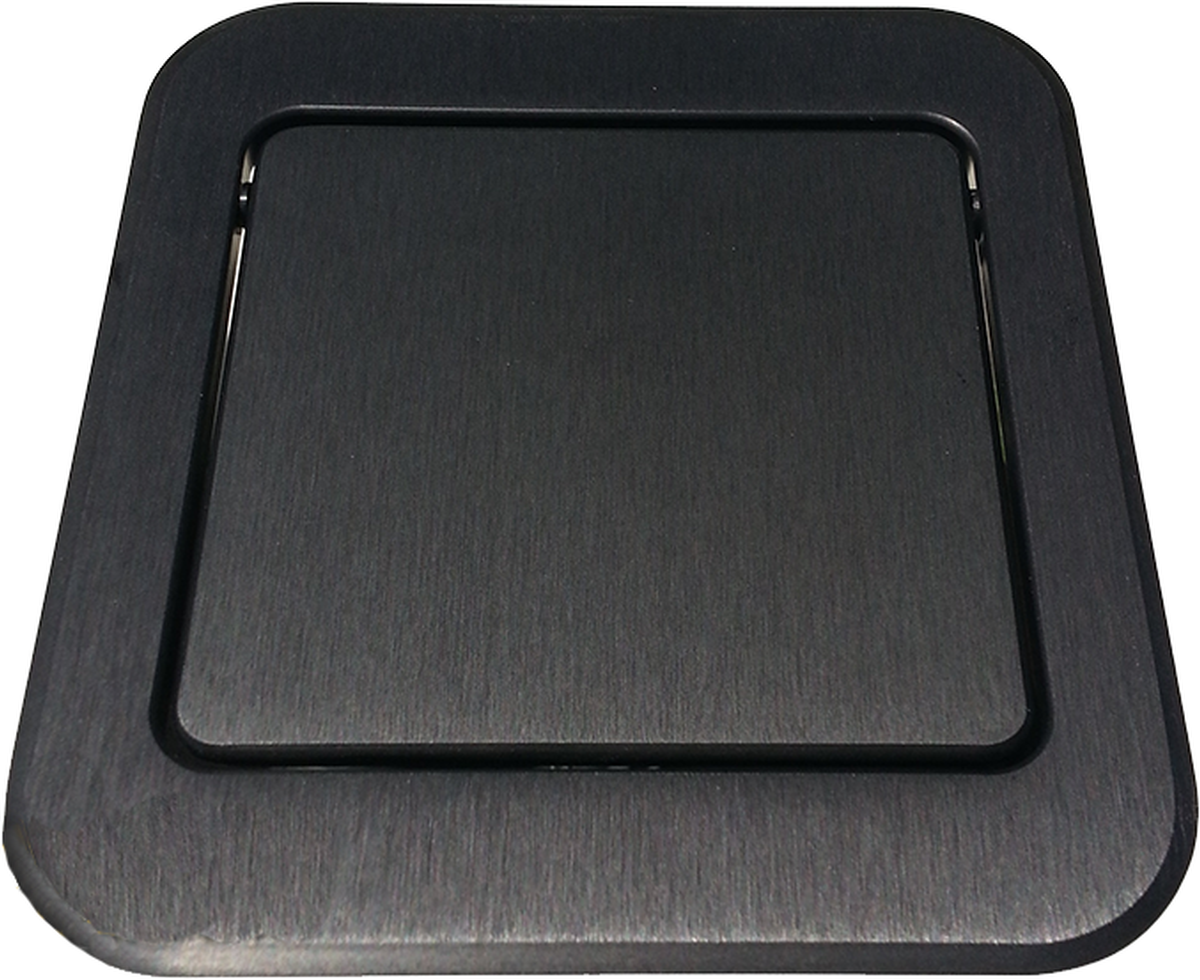

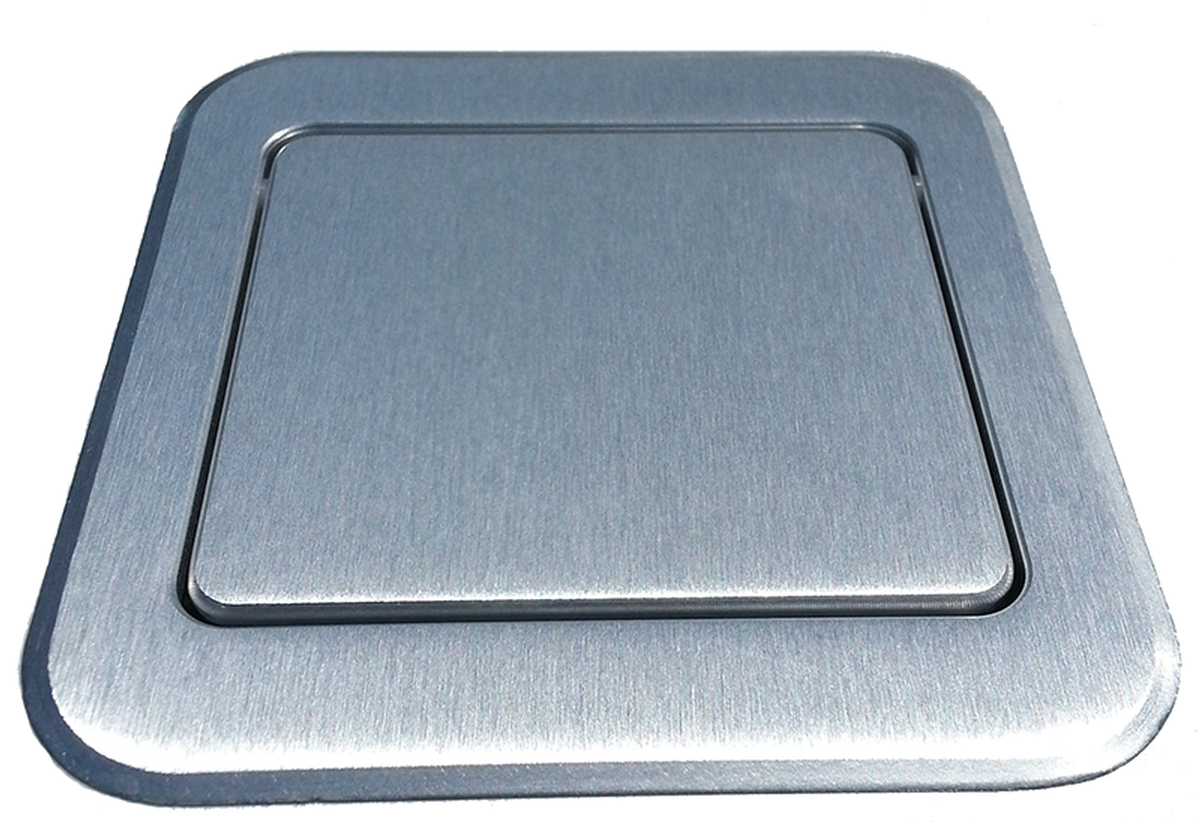

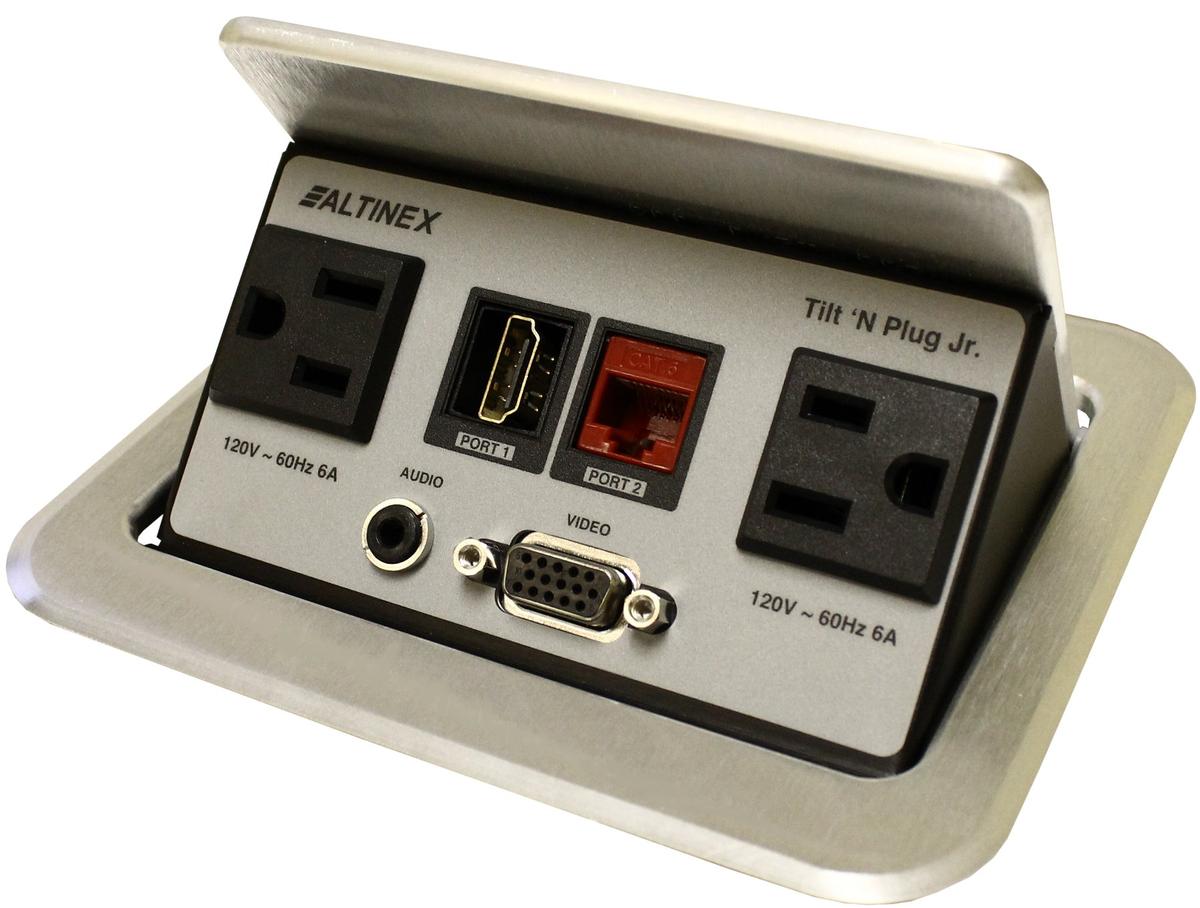

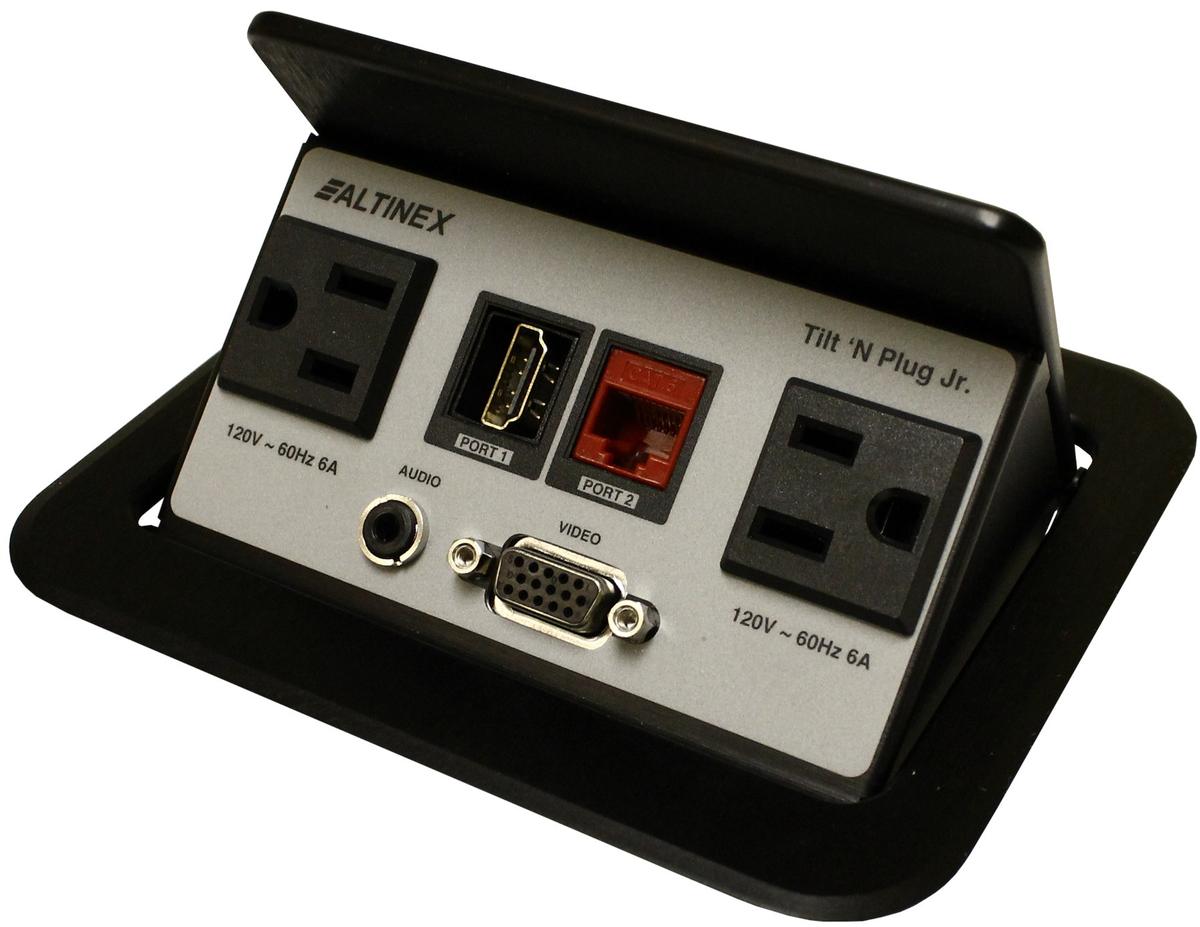

The Altinex TNP328C ships with 2 power and 4 connections that can be customized to your exact needs. Use our customizer to build your perfect table box, it typically takes around 2 to 3 days to build before shipping out.  Choose from a gorgeous black anodized aluminum or silver anodized aluminum finish to compliment the look of any room.

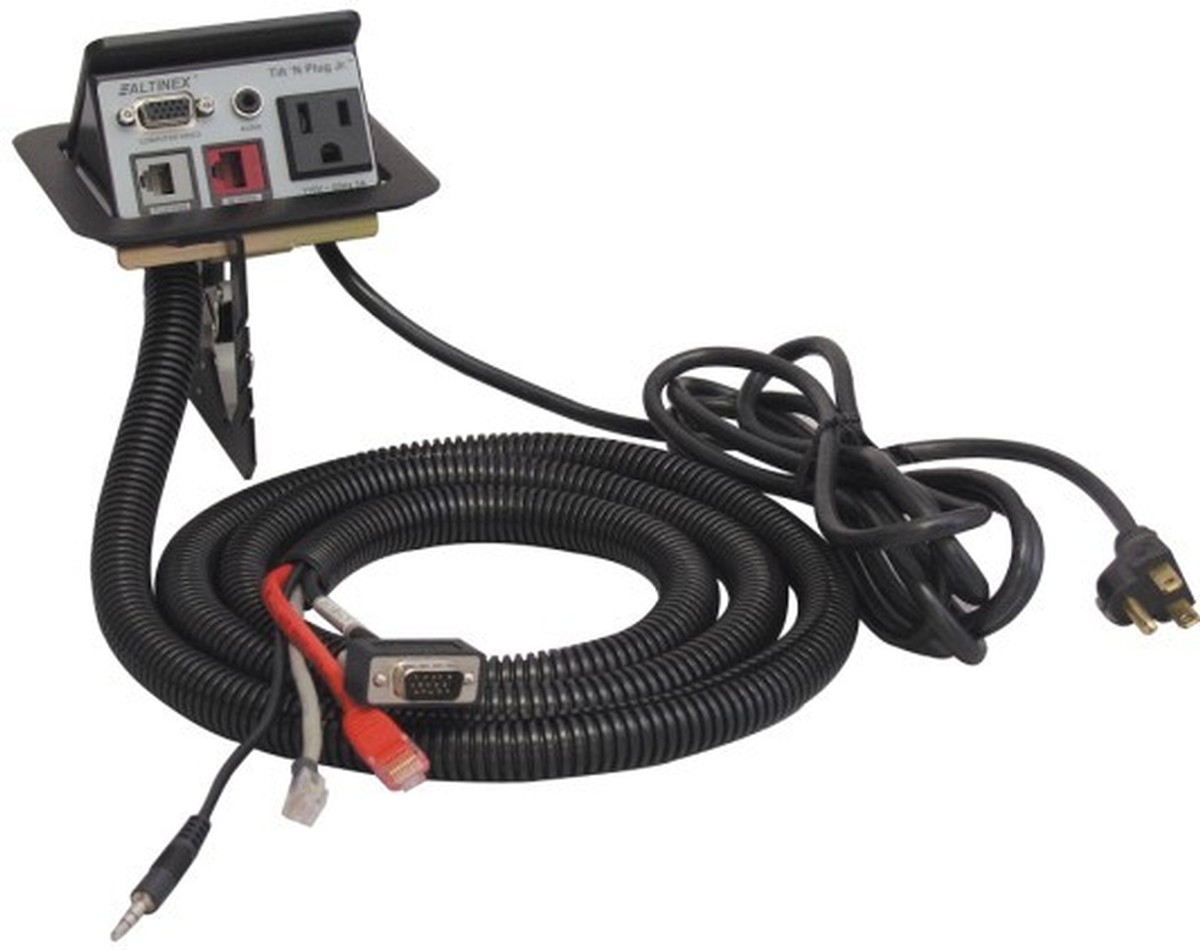

All connections at the box are female, under the table are 6' male terminated cables with the power being 9' long. The top tilts up via a gas spring, simply press the top and it smoothly tilts/pops up exposing your connections. When you are done just press the top till it locks flush with the table and looks hidden.

Installation is easy, cut your hole using the cutout template and drop the unit in the hole.  Secure to the underside of the table with the included mounting hardware and you are done, you now have an elegant looking yet functional cable management and connectivity solution for you table.

Customization Instruction

1. In the image of your custom unit (above), the Snap-Ins/Audio & D-Sub connectors that can be configured are shaded.

Example of a customizable snap-in

2. Click on each shaded area to pop up a box with the available options for the individual connector you selected. Click on the option you desire for the unit - it will be displayed on the unit after selection. You may click on a previously selected snap-in/connector to choose a different option. Note that if you want no connection in a slot, please click on the blank connector in the pop up box.

3. This product has multiple colors/finishes - you may select what color you want via the dropdown above the 'add to cart' button displayed on this page, or you will be prompted for what color you want when you have fully customized your product.

4. Upon completing customization of your product, a dialogue box will pop up informing you that customization is complete and your product is ready to be added to your cart.

Downloads:

• Altinex TNP328C Specifications (PDF)
• Altinex TNP320C Cutout Template (PDF)
