Altinex TNP358C
Pop Up Box w/ 2 Power, 2 Charging USB, 1 HDMI

• Connections: 2 tamper resistant power outlets, 2 charging USB, 1 custom video connector, 1 audio connector (optional)
• USB supplies 3A total

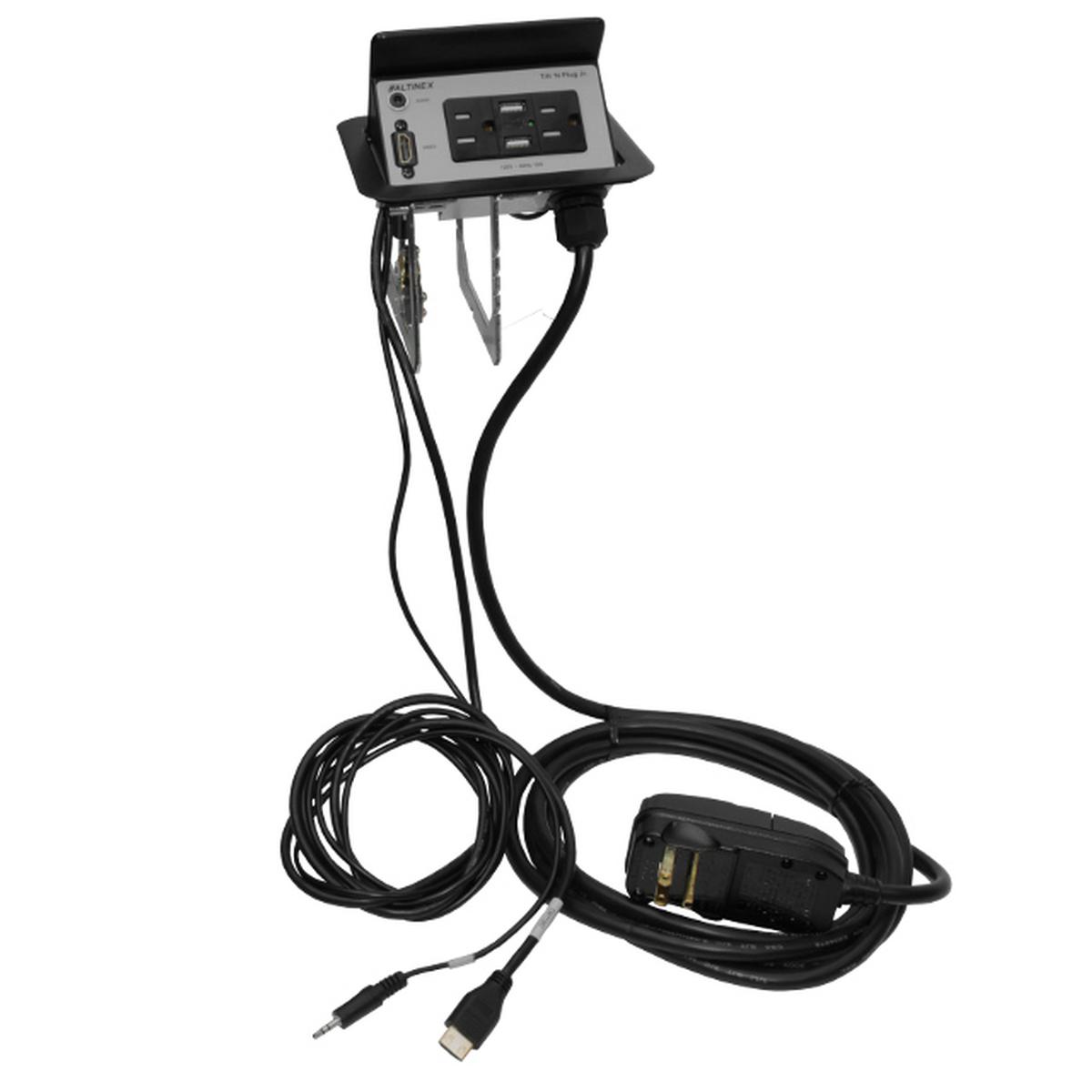

• Power cable: Single 9' with GFCI
• HDMI and audio cable: 6' male to male
• Color: Black anodized aluminum or silver anodized aluminum

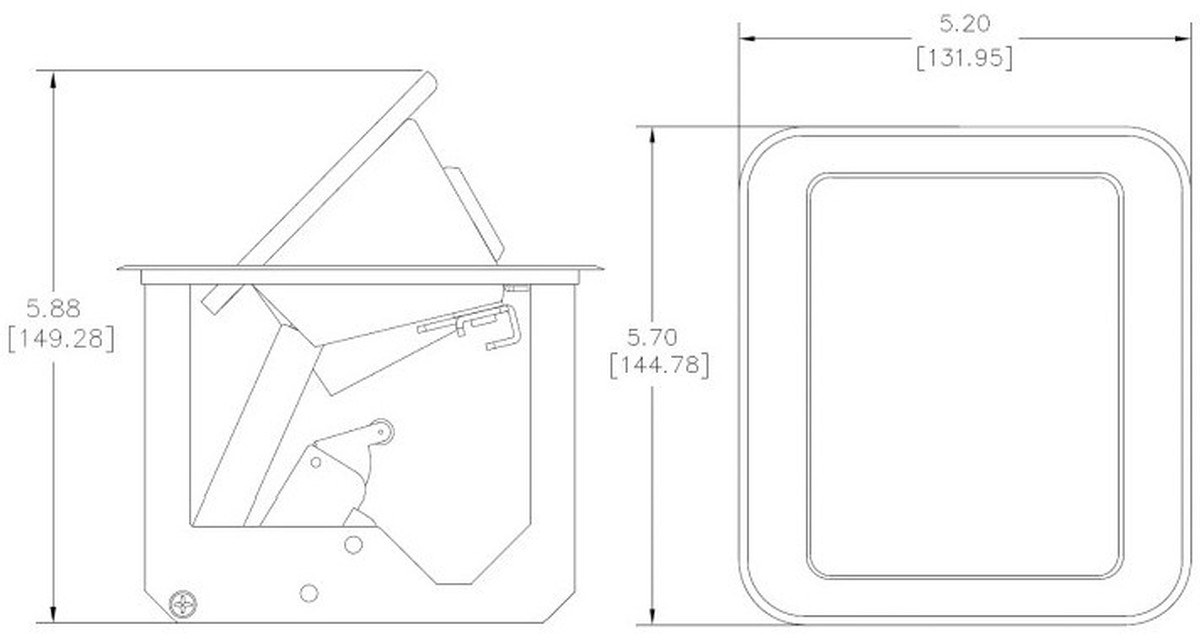

• Bezel dimensions: 5.7" x 5.2"
• Cutout dimensions: 5.3" x 4.8"
• Table thickness: .75" to 2.5"
• Depth under table: 5.2"
• UL Listed
• Mounting hardware included
• Warranty - Table box: 10 years, Gas spring: 1 year

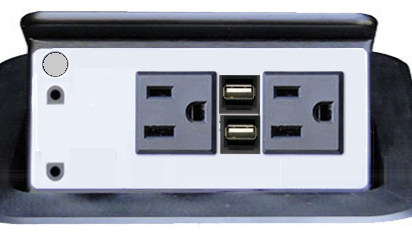

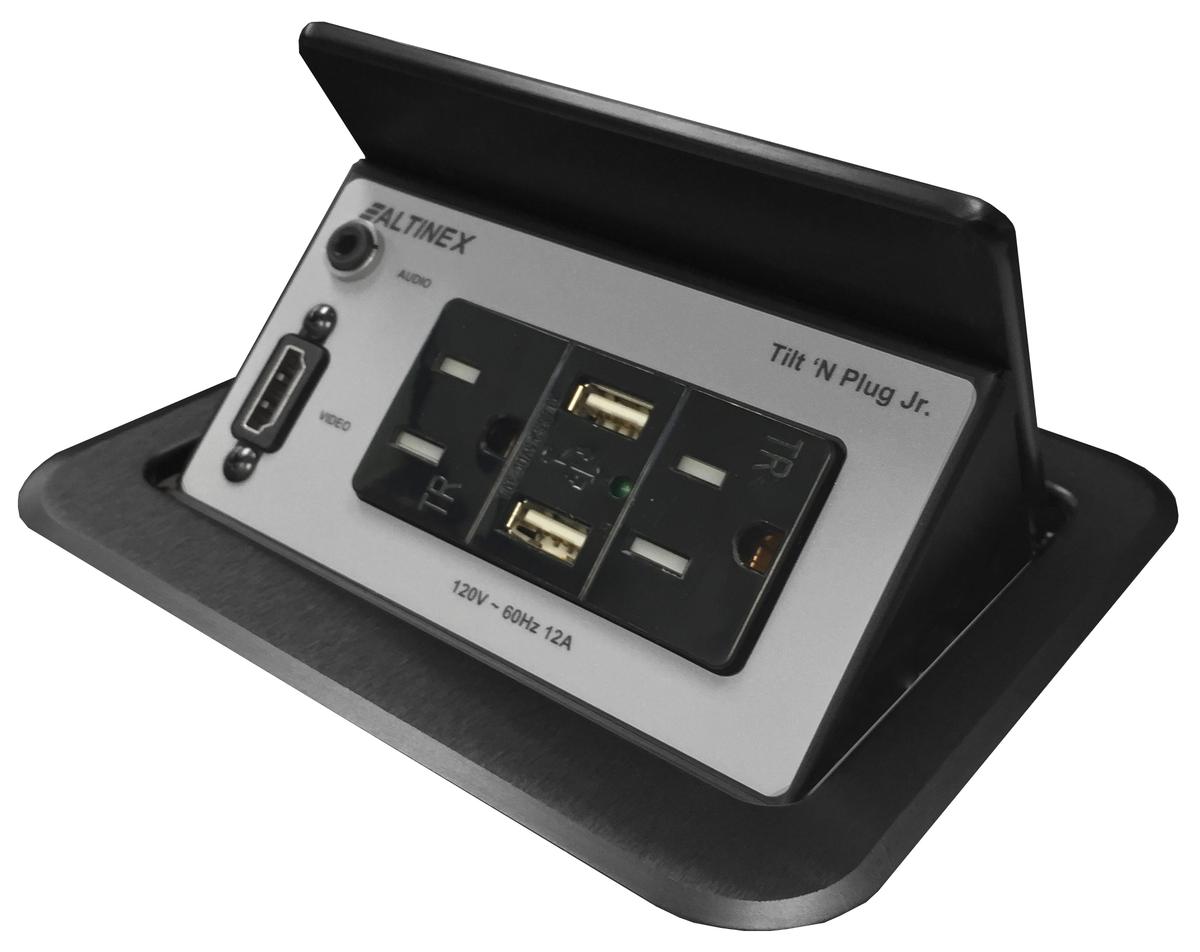

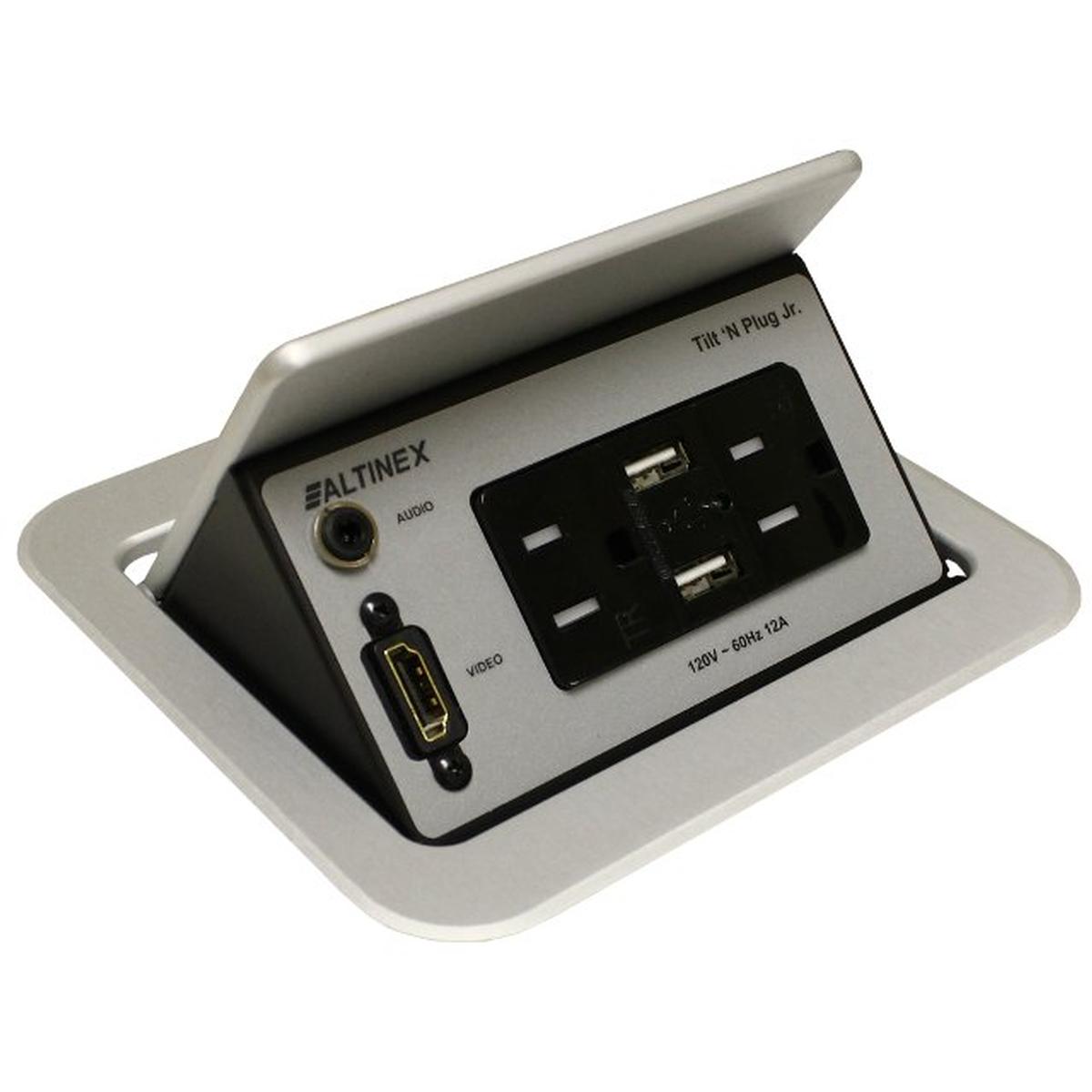

The Altinex TNP358C is a table box that pops up from your table surface, it provides video and USB and AC power charging.  When open it has 2 power and 2 charging USB ports, as well as your choice of video and audio connectors. The charging is supplied by just a single 9' power cord.  The USB supplies up to 3A of total power for your smart phones and tablets.

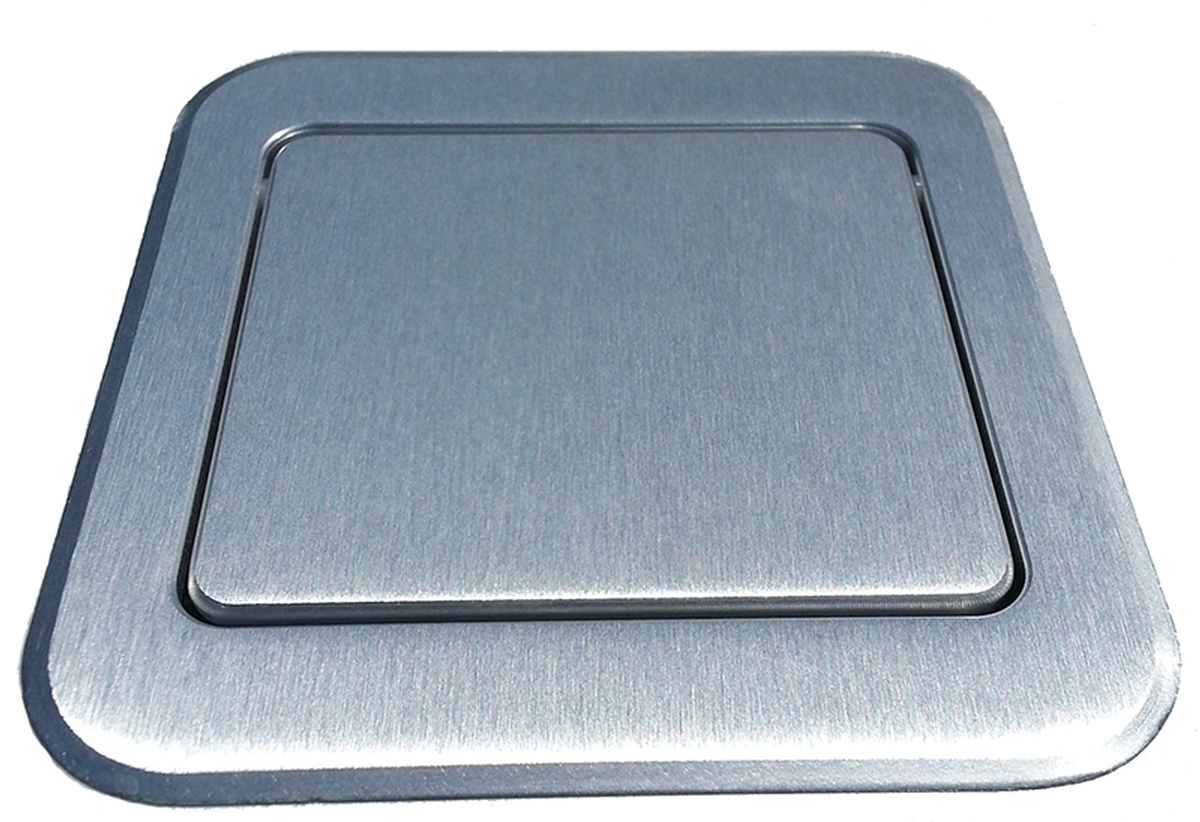

The top tilts up via a gas spring, simply press the top and it smoothly tilts/pops up exposing your connections. When you are done just press the top till it locks flush with the table and looks hidden.

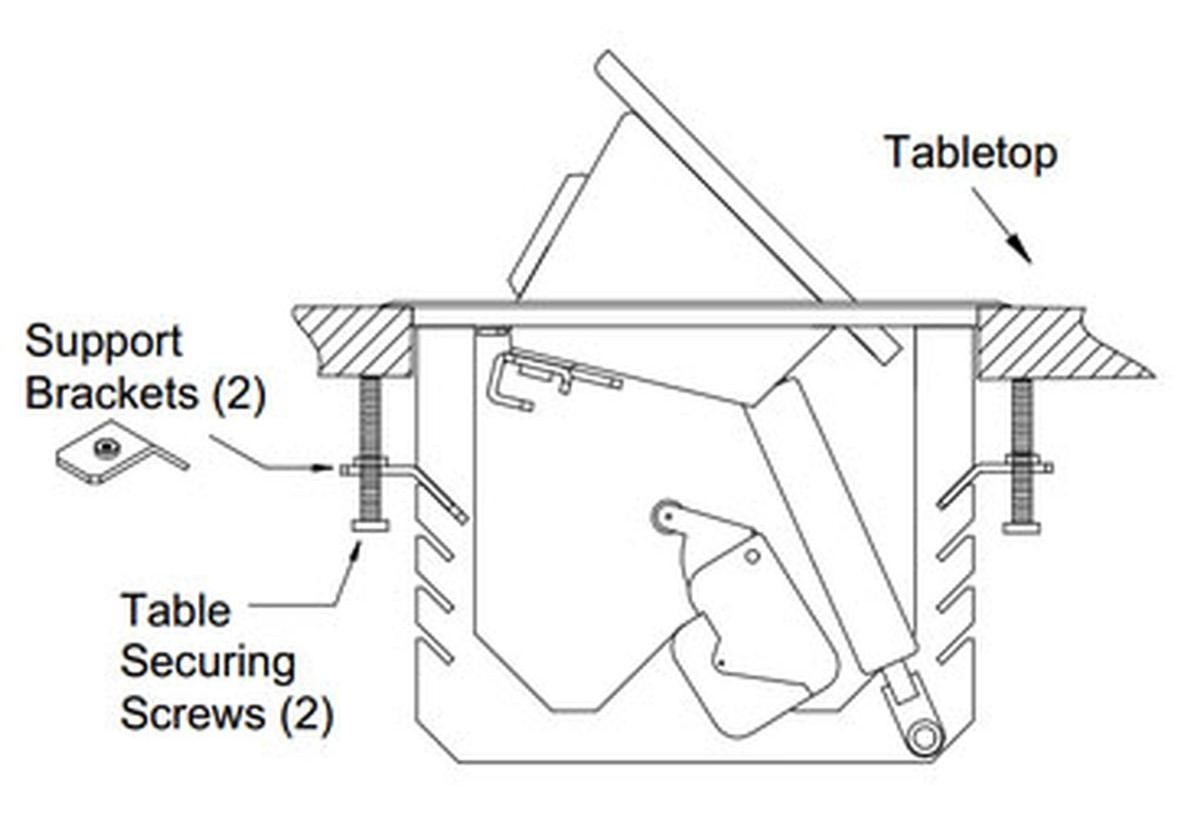

Installation is easy, cut your hole using the cutout template and drop the unit in the hole.  Secure to the underside of the table with the included mounting hardware and you are done, you now have a gorgeous looking yet functional power charging table box.

Customization Instruction

1. In the image of your custom unit (above), the Snap-Ins/Audio & D-Sub connectors that can be configured are shaded.

Example of a customizable snap-in

2. Click on each shaded area to pop up a box with the available options for the individual connector you selected. Click on the option you desire for the unit - it will be displayed on the unit after selection. You may click on a previously selected snap-in/connector to choose a different option. Note that if you want no connection in a slot, please click on the blank connector in the pop up box.

3. Upon completing customization of your product, a dialogue box will pop up informing you that customization is complete and your product is ready to be added to your cart.

Downloads:

• Altinex TNP358C Manual (PDF)
• Altinex TNP358 Cutout Template (PDF)
