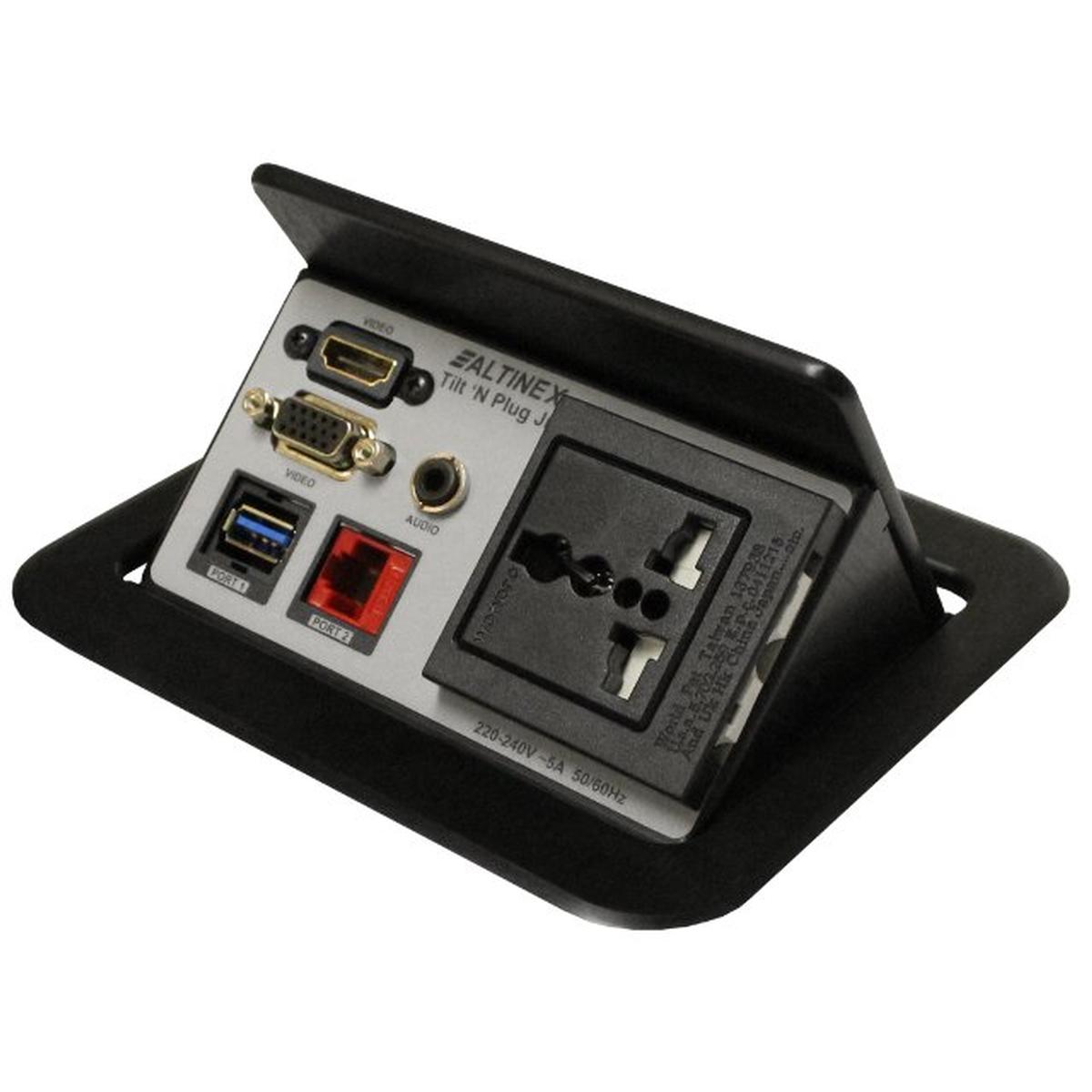

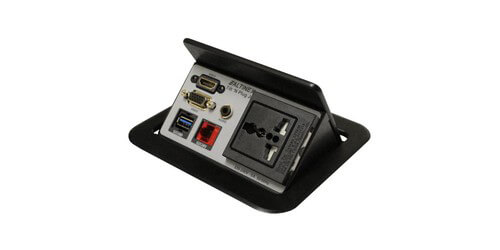

Altinex TNP461
Pop Up HDMI/VGA/Data/USB Table Box with Universal Power
- Color: Black anodized aluminum
- Connections: 1 HDMI, 1 VGA, 1 audio, 1 Cat6, and 1 USB 3.0, all cables are 6' long with male terminated ends
- Power: Universal, the supply side cable is terminated in an IEC60320 C14 connector, with a cable length of 1.5 feet
- Bezel dimensions: 5.7" x 5.2"
-Gregory W.
Description

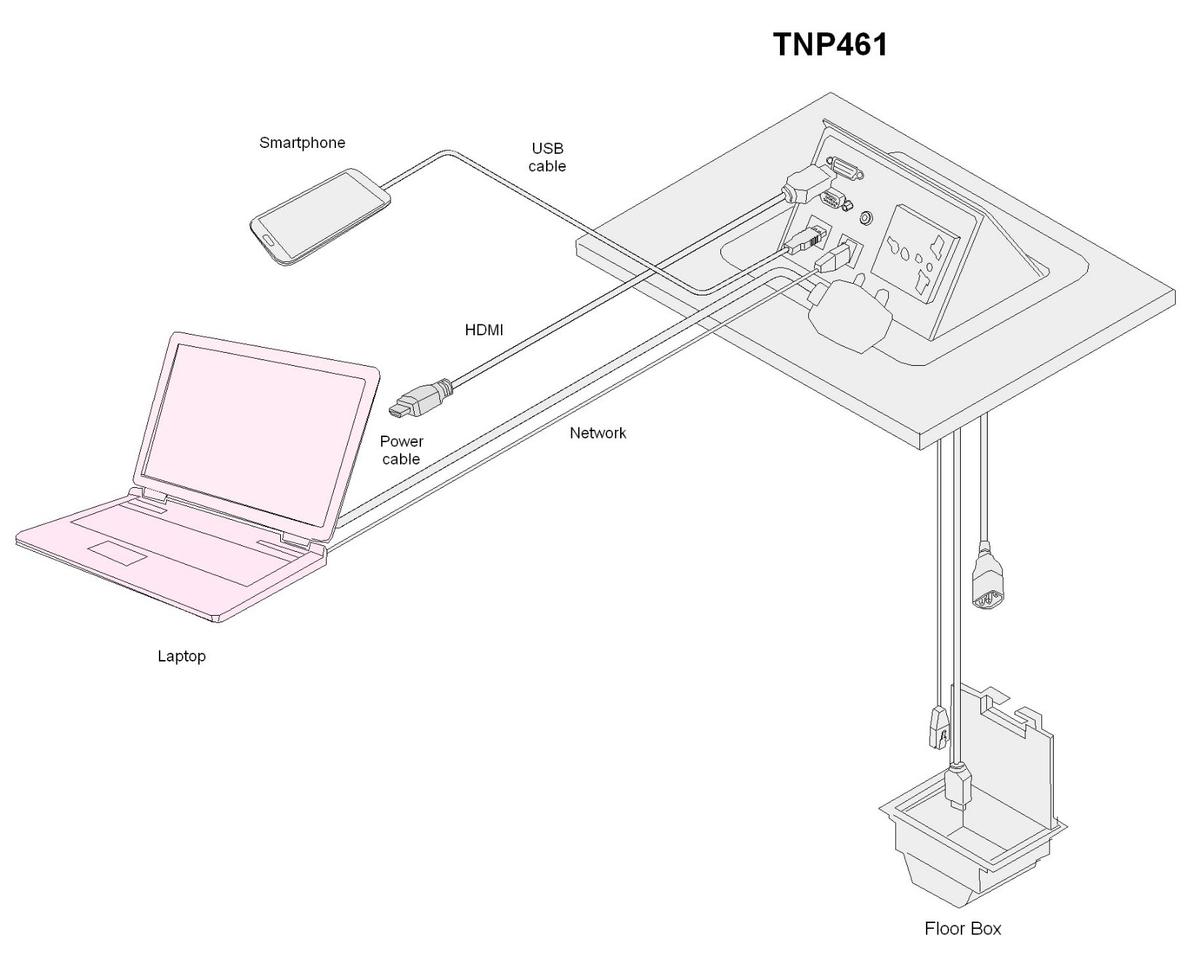

The Altinex TNP461 is a multi-format table box with a single universal power socket designed to accommodate multiple countries. The universal power receptacle is connected to a supply side cable terminated in an IEC60320 C14 connector, with a cable length of 1.5 feet. Other connectors include 1 HDMI, 1 VGA with audio, 1 Cat6, and 1 USB 3.0, all cables pass through the underside of the box and are 6' long with a male terminated end.
The box mounts flush in your table, when you are ready to use just press the top and the gas spring slowly pops up the unit at a 45 degree angle exposing your connections. When you are done just press the top till it closes, you will hear it latch shut. The TNP461 is an ideal choice when you have multiple types of power connectors coming into your conference room, now you can accommodate them.
Connections on this unit can be customized. Our factory trained technicians build the unit to your exact requirements and ship it out assembled and ready to install. Customization and testing typically takes 2-3 days before shipping.
Specifications
- Cutout dimensions: 5.3" x 4.8"
- Max table thickness: 2.25"
- Depth under table: 3.86"
- Warranty: 10 year, gas spring 1 year
