Altinex TNP461C
Customizable Conference Table Pop Up with International Power

• Color: Black anodized aluminum or silver anodized aluminum
• Connections: Customizable, all cables are 6' long with male terminated ends
• Power: Universal, the supply side cable is terminated in an IEC60320 C14 connector, with a cable length of 1.5 feet
• Bezel dimensions: 5.7" x 5.2"
• Cutout dimensions: 5.3" x 4.8"
• Max table thickness: 2.25"
• Depth under table: 3.86"
• Warranty: 10 year, gas spring 1 year

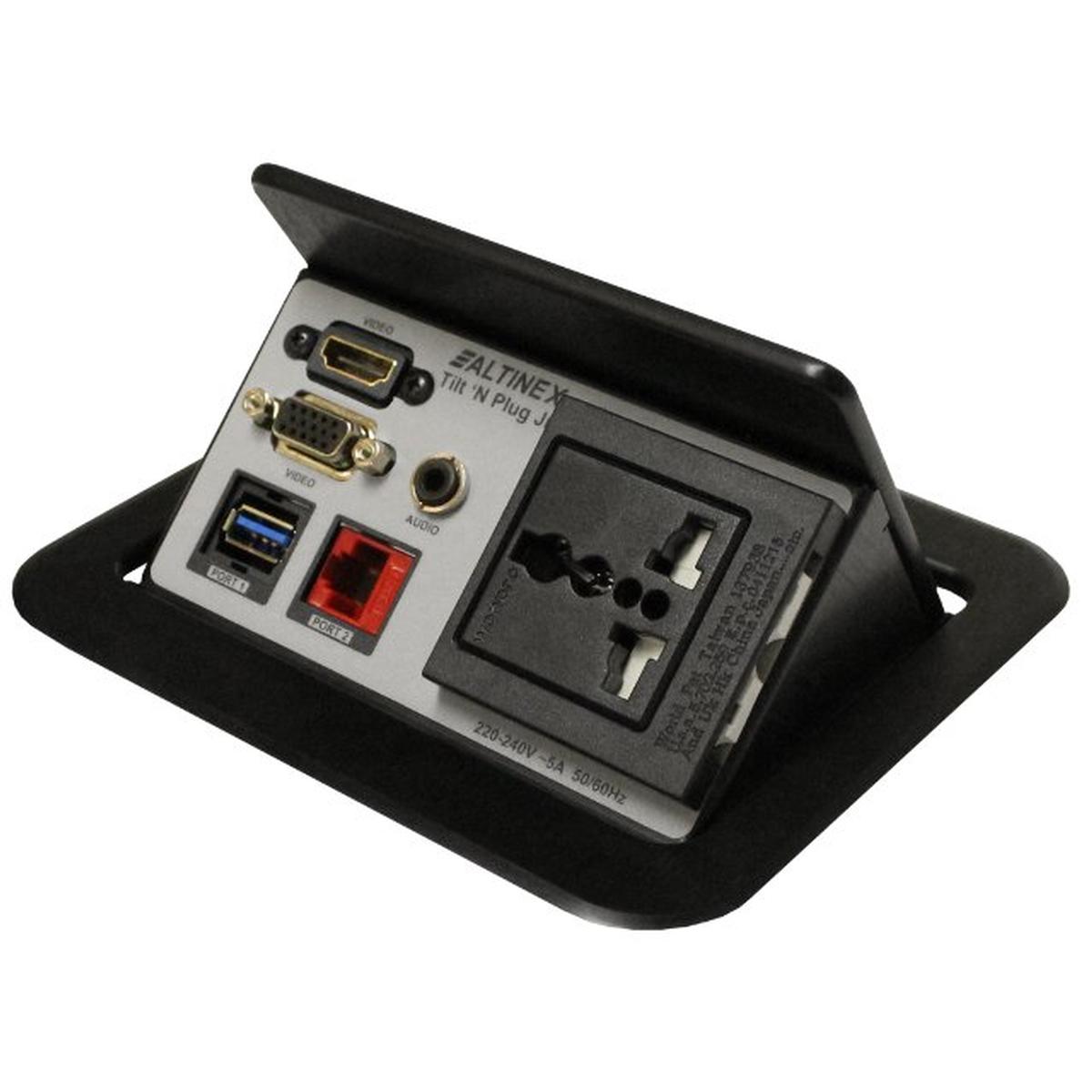

The Altinex TNP461C is a table box with a single universal power socket designed to accommodate multiple countries.  It also features 2 customizable D-Sub connections and 2 customizable snap-in keystone connections.  Choose the connections and colors you want to build your perfect table box.  The universal power receptacle is connected to a supply side cable terminated in an IEC60320 C14 connector, with a cable length of 1.5 feet.  All cables pass through the underside of the box and are 6' long with a male terminated end.

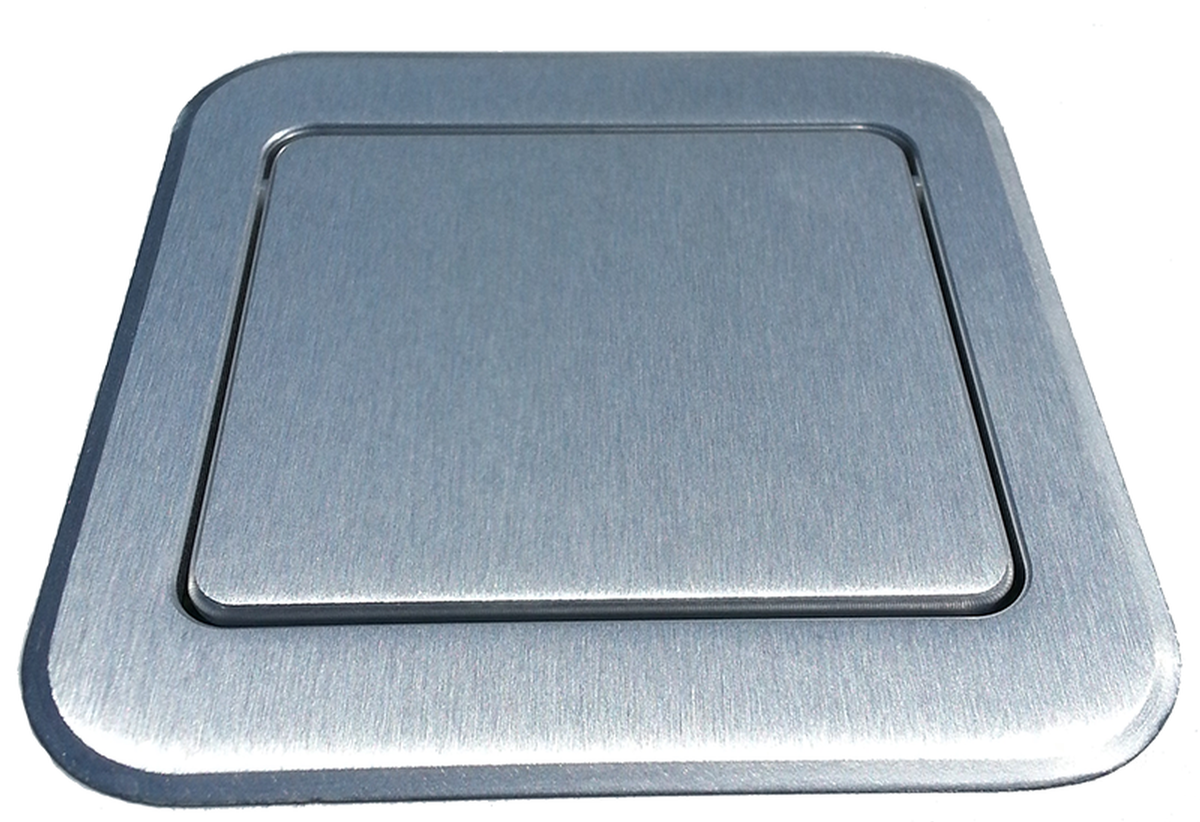

The box mounts flush in your table, when you are ready to use just press the top and the gas spring slowly pops up the unit at a 45 degree angle exposing your connections.  When you are done just press the top till it closes, you will hear it latch shut.  The TNP461C is an ideal choice when you have multiple types of power connectors coming into your conference room, now you can accommodate them.

Customization Instruction

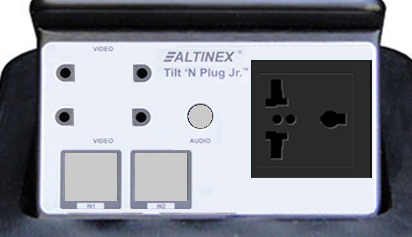

1. In the image of your custom unit (above), the Snap-Ins/Audio & D-Sub connectors that can be configured are shaded.

Example of a customizable snap-in

2. Click on each shaded area to pop up a box with the available options for the individual connector you selected. Click on the option you desire for the unit - it will be displayed on the unit after selection. You may click on a previously selected snap-in/connector to choose a different option. Note that if you want no connection in a slot, please click on the blank connector in the pop up box.

3. This product has multiple colors/finishes - you may select what color you want via the dropdown above the 'add to cart' button displayed on this page, or you will be prompted for what color you want when you have fully customized your product.

4. Upon completing customization of your product, a dialogue box will pop up informing you that customization is complete and your product is ready to be added to your cart.

Downloads:

• Altinex TNP461C Manual (PDF)
• Altinex TNP461C Additional Information (PDF)
