Altinex TNP528
Dual Analog & Digital Tilt Up Table Box - Black or Silver

Part #: TNP528

3 reviews

This product has been discontinued

Suggested Replacement:

Altinex TNP528C

*Customizable* 9 Connections w/ 2 Power Tilt Up Table Box

Top TNP528 Specifications

Color: Black anodized aluminum or silver anodized aluminum
UL/C-UL Listed
Pop-up dampening for smooth operation
A/V cables are 6' in length with male ended matching terminations, the power cable is 9' long

"Online ordering was very easy and the automated emails kept me up to date on status of the order until delivery"

Contact a product specialist!

1-888-999-3759 | Chat | Email

Proudly supporting our customers since 2008

Description
Specifications
Downloads (3)
Customize
Q & A
Reviews (3)
Accessories (4)

Description

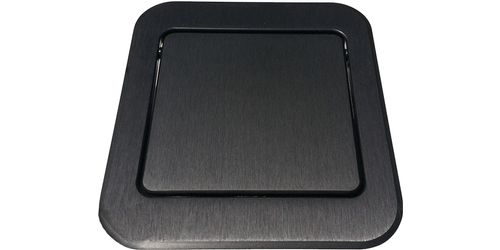

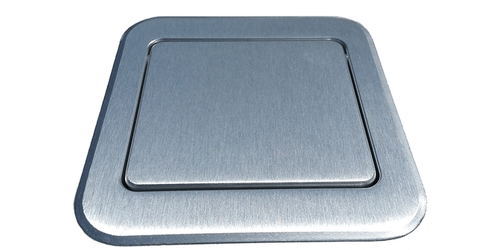

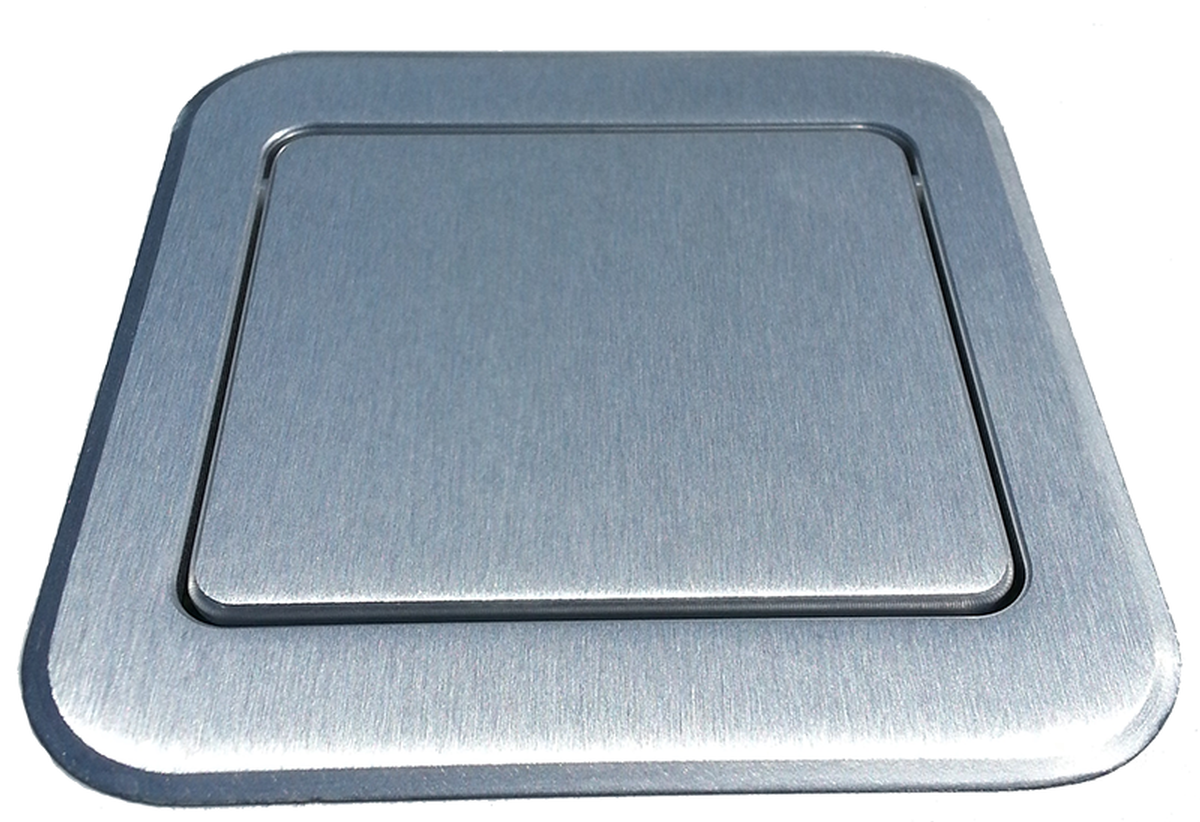

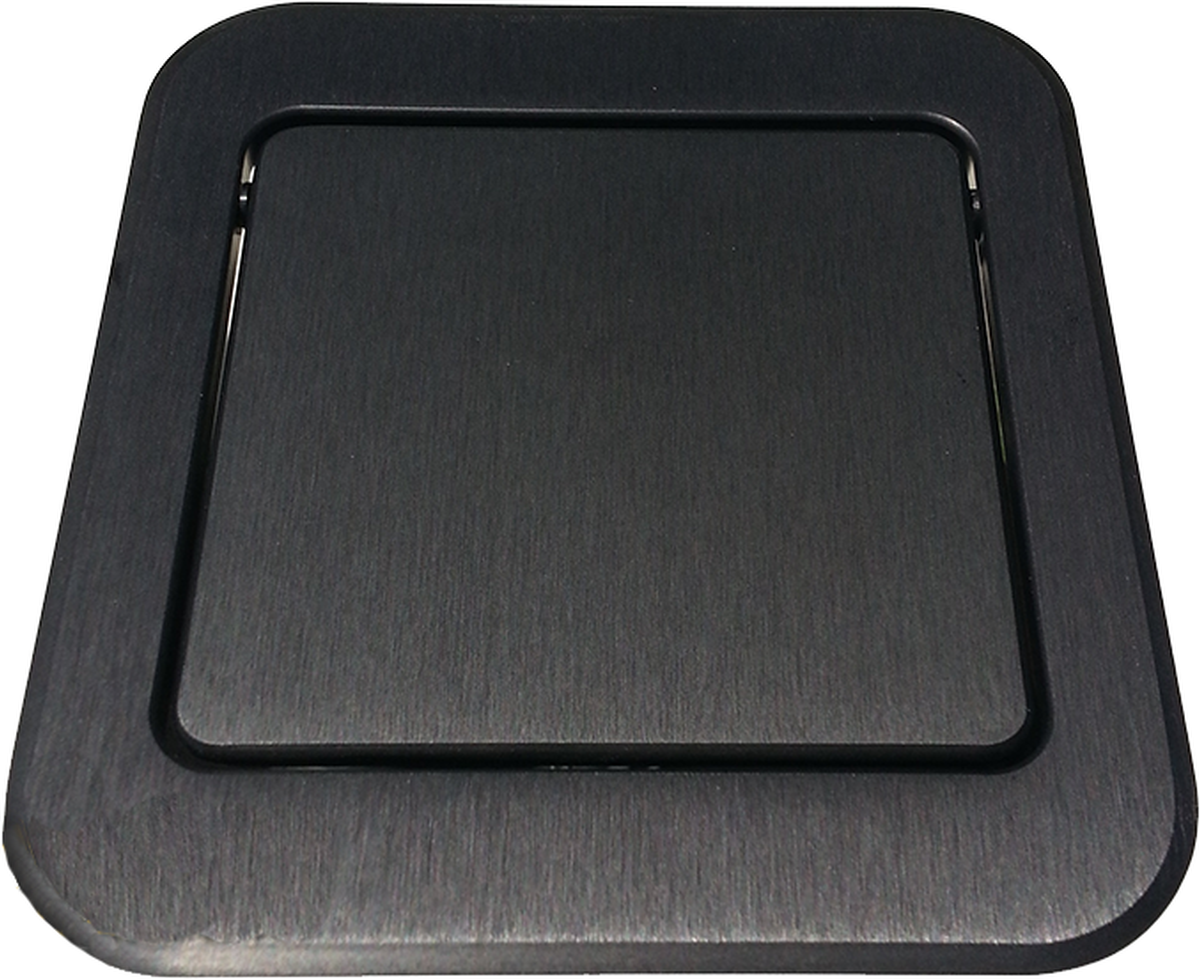

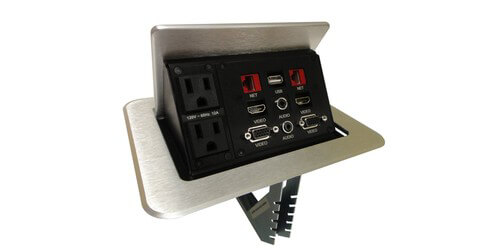

The Altinex TNP528 is a pre-configured Tilt N Plug Interconnect A/V box for your boardroom or conference table. You can choose from a modern black anodized aluminum, or silver anodized aluminum finish. When closed the top provides a sleek and flush finish that looks nice in any room. When you touch the top the hydraulic gas spring slowly tilts open allowing access to all your connectors.

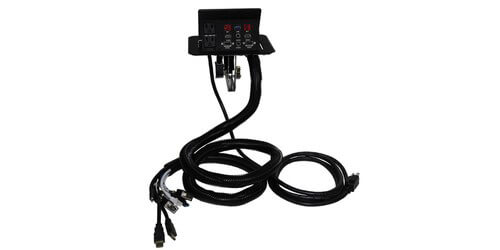

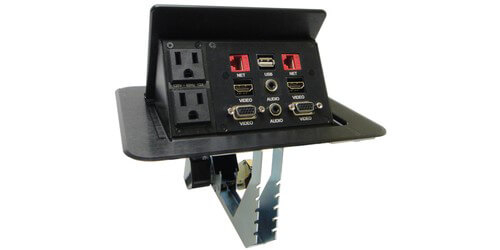

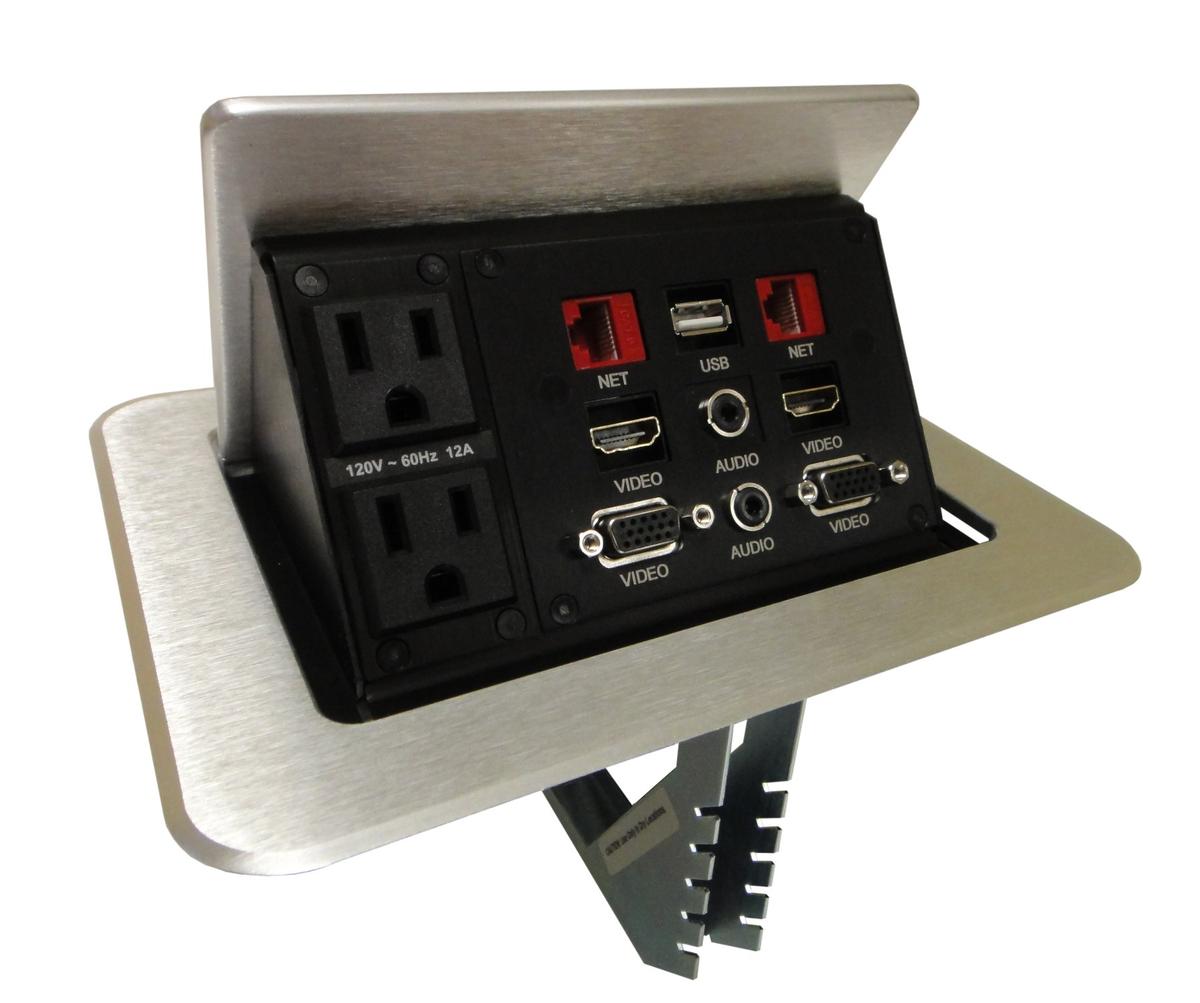

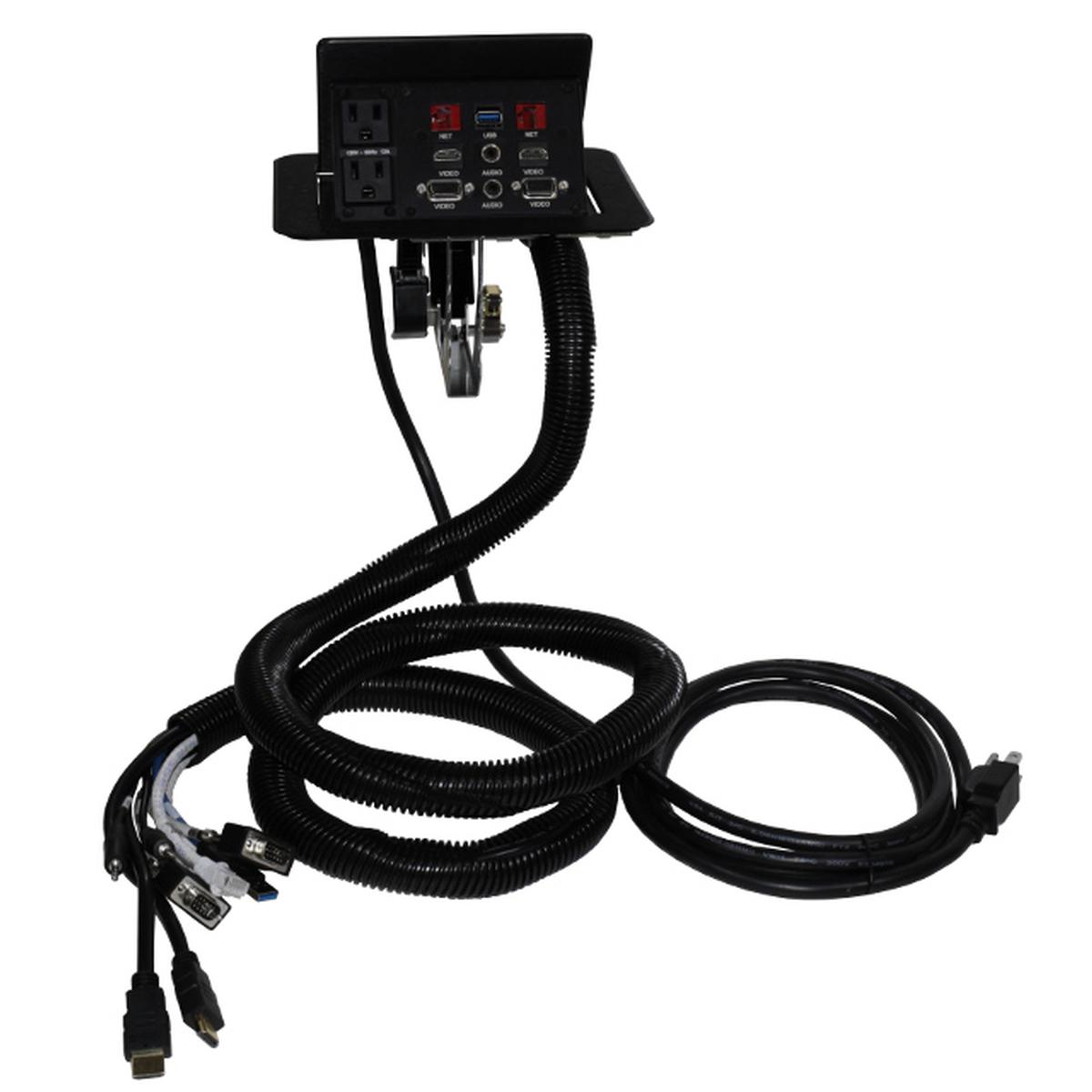

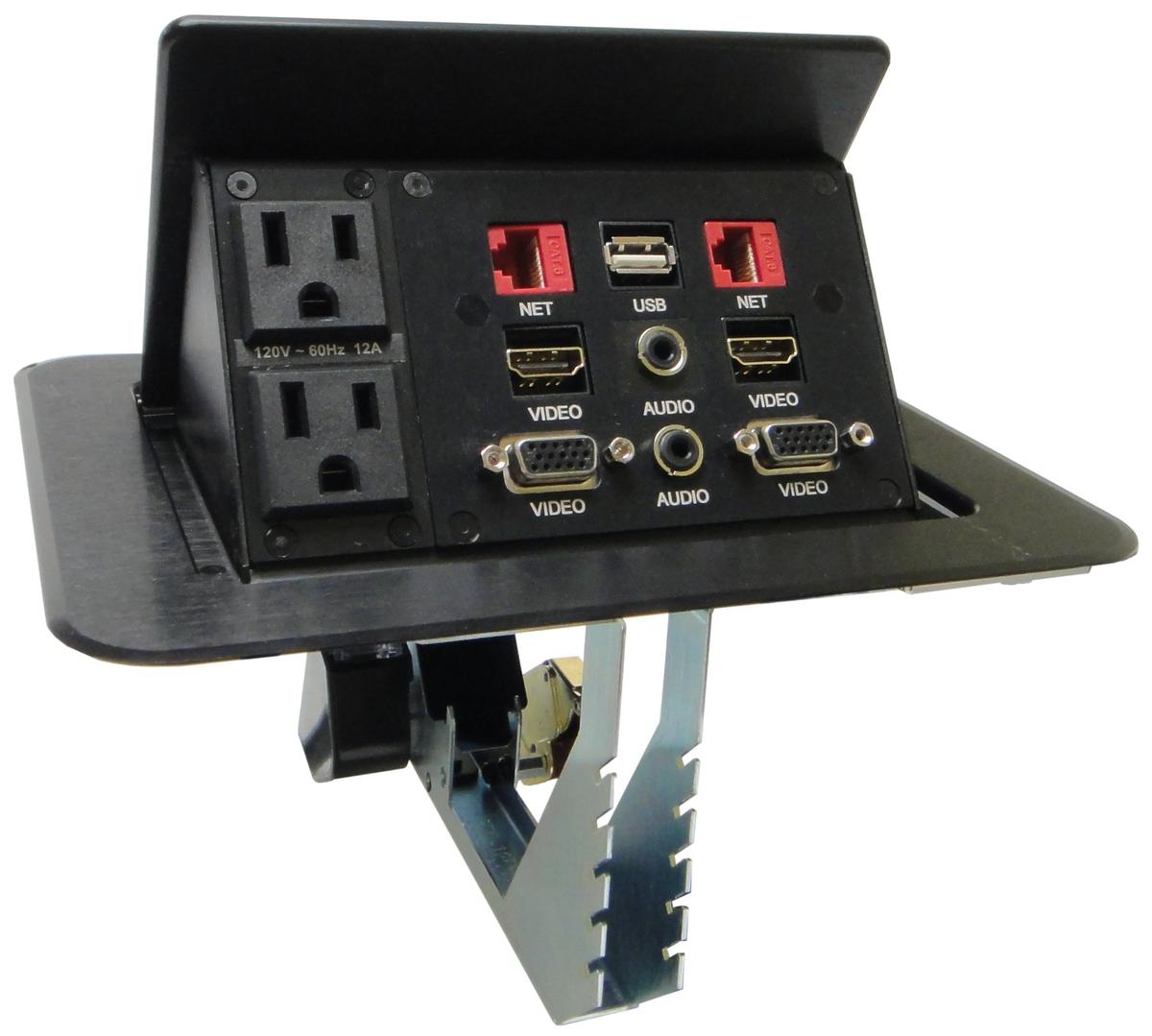

The unit comes with the most popular connections including 2 standard U.S. power receptacles, 2 computer video (15-pin HD) plus 2 stereo audio (3.5 mm), 2 standard HDMI, 2 Cat-6 (RJ-45), and 1 USB (Type A) input connectors. The signals are passed through the to the underside of the table via 6' cables with male connectors on the opposite end, the power cable is 9'.

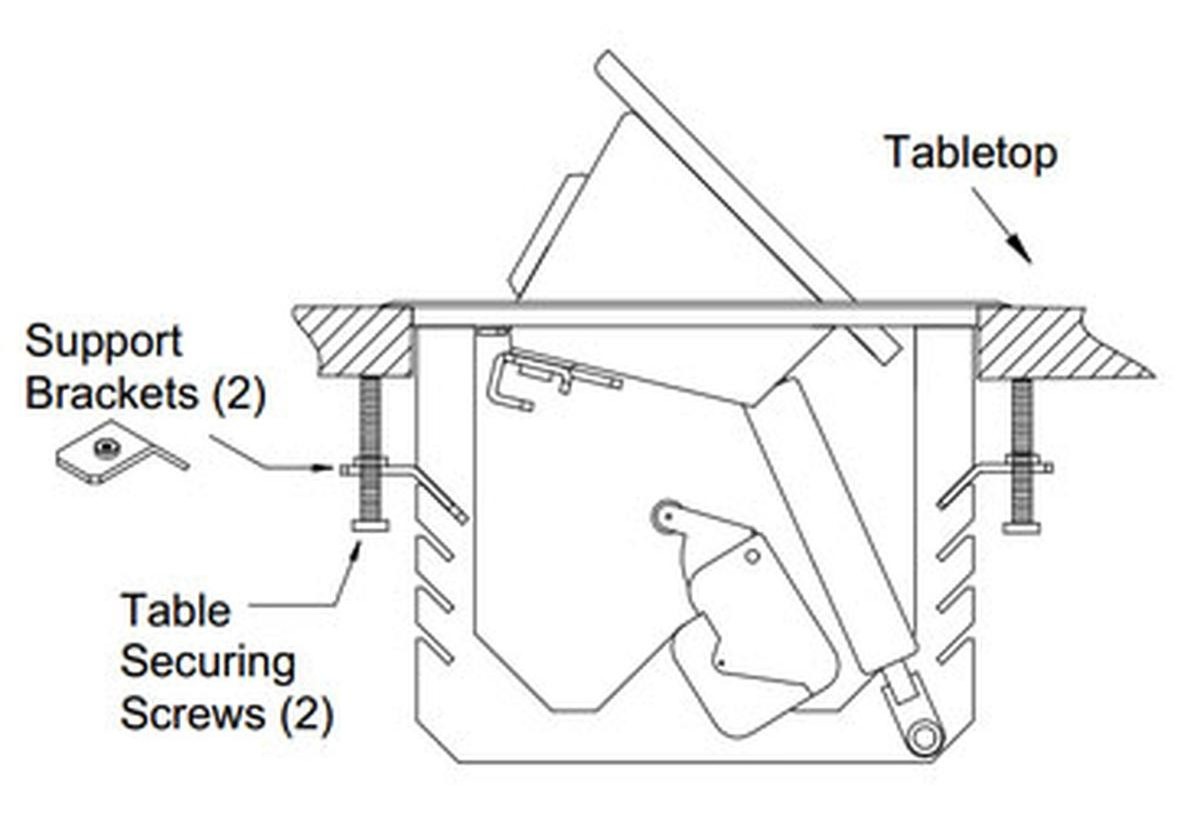

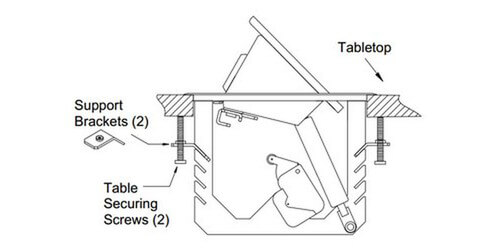

To install simply cut out your hole using the cutout template and drop in, then secure to the underside of the table with the included mounting hardware.

Connections on this unit can be customized. Our factory trained technicians build the unit to your exact requirements and ship it out assembled and ready to install. Customization and testing typically takes 2-3 days before shipping.

Specifications

Bezel dimensions: 7.86" x 6.53"
Cutout size: 7.46" x 6.13"
Depth under table: 6.53"
Table thickness: .75" to 2.5"
Includes: Mounting screws/brackets
Warranty: 10 years

Downloads

Q & A

Ask a Question

This product has no questions - ask one!

Reviews

Write a review

Overall Customer Rating:

Name:	Len B
Rating:	5
Date:	July 11, 2019
looks great in our conference table

Name:	Simon R
Rating:	5
Date:	May 11, 2018
This allowed for all the connections i needed for tilt box.

Name:	Vince
Rating:	5
Date:	September 04, 2012
I needed a box that was bigger than the Jr models and this ended up working really well for us, the item was in stock and I had it in Texas in 3 days.
