Altinex TNP530-2HDMI
Pop Up Box w/ Dual AC, Cat6, USB, & HDMI Retractable Cables
- Connections: 2 power, 2 Cat6, 2 USB, 2 HDMI
- Cables: Power: Single 9', Cat6: 6' female to male, USB: 6' Type A female to male
- Retractable cables: 2 HDMI and are male and pull out 4', the pigtail on the other side is 4' male
- Color: Black anodized aluminum or silver anodized aluminum
-Maciej Z.
Description

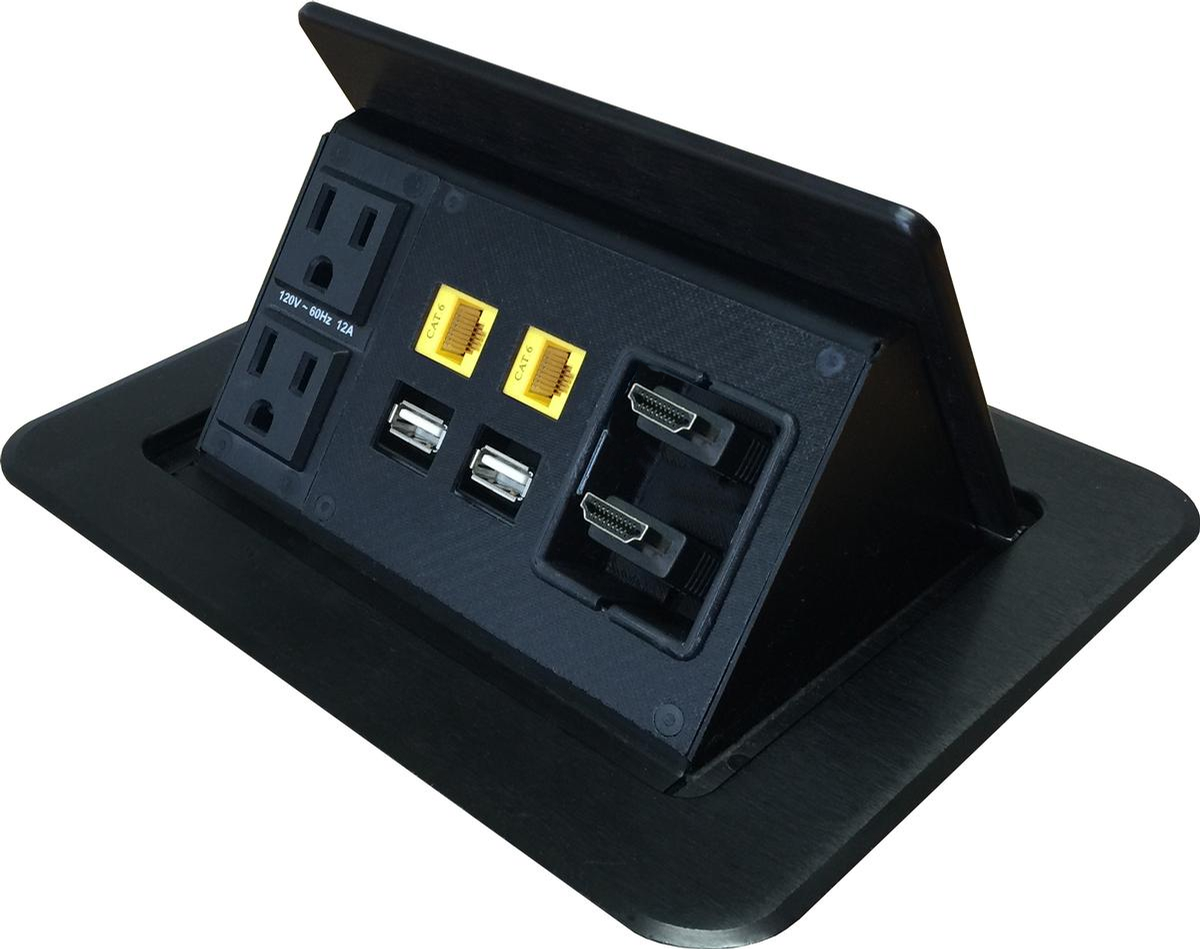

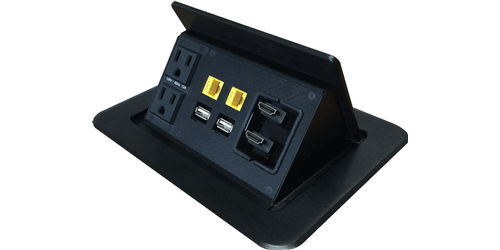

The Altinex TNP530-2HDMI is a tilt up table box that pops up out of your table when pressed exposing your connections consisting of; 2 power, 2 Cat6, 2 USB, and 2 HDMI. The HDMI connections are retractable, this is the worlds first pop up table box to have retractable cables. The HDMI connections pull out up to 4' when needed, when you are finished they retract back into the box and out of the way. You will always have your video connections ready to use and will never have to look for a cable.

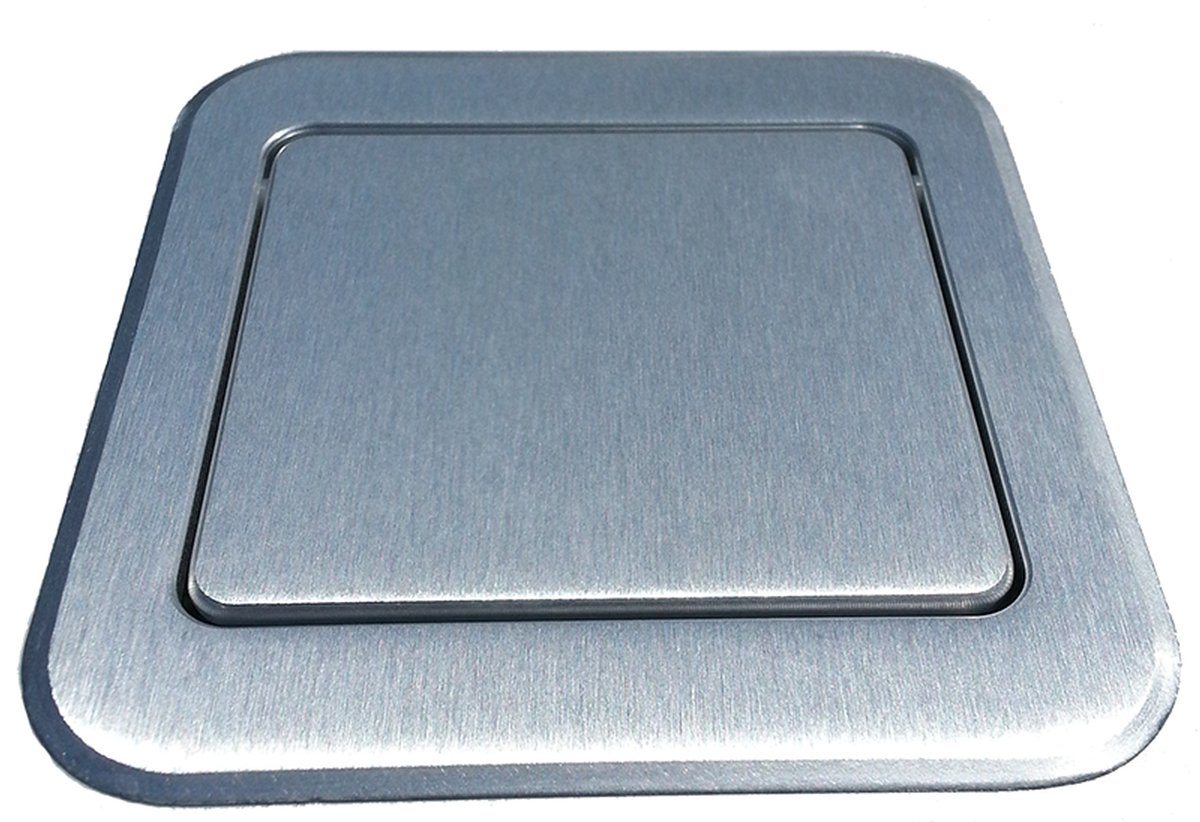

The box is always flush in your table and comes in a beautiful long lasting black anodized aluminum or silver anodized aluminum. To open all you do is press the top and a leaf spring pops the unit up, to close simply press down till it latches.

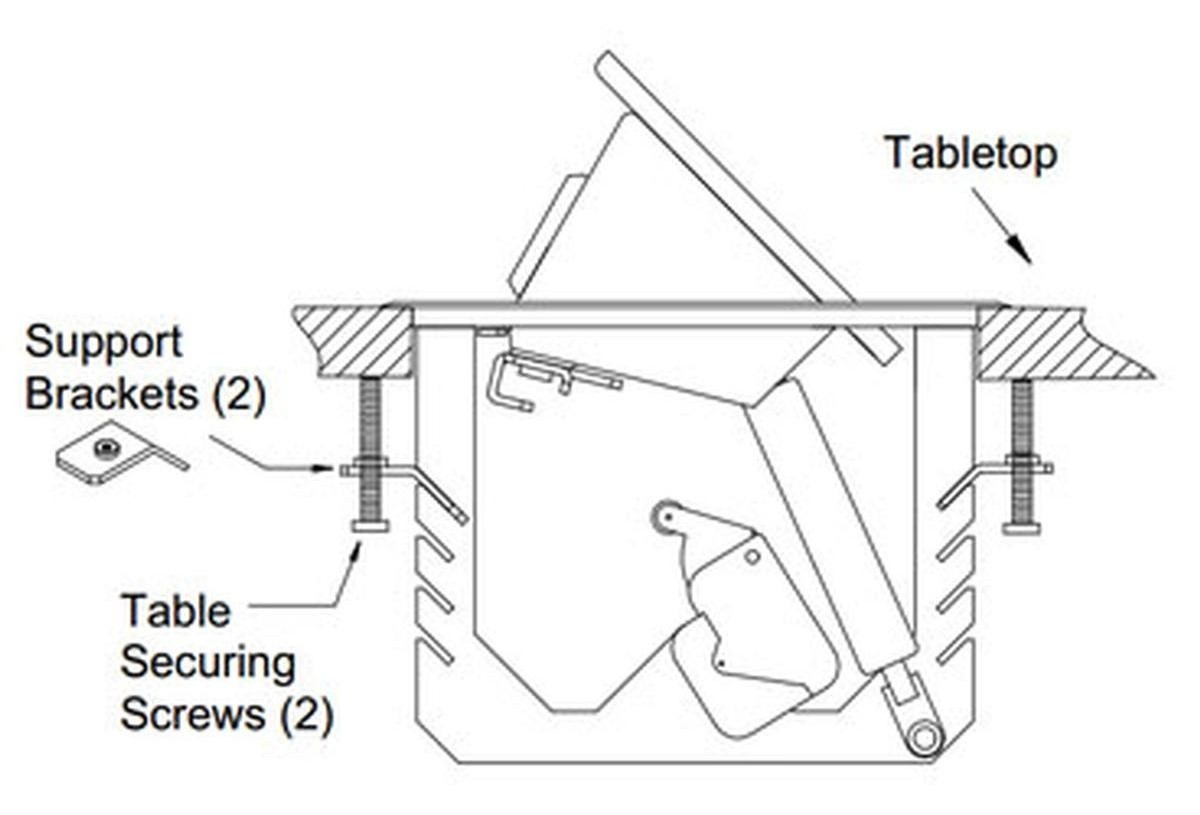

To install cut your hole and drop in, secure to the underside of the table with the included mounting hardware. The Altinex TNP530-2HDMI is the first pop up box to have retractable cables for the ultimate presentation table box.
Not seeing the connections you want? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.
Specifications
- Bezel dimensions: 7.86" x 6.53"
- Cutout dimensions: 7.46" x 6.13"
- Table thickness: .75" to 2.5"
- Depth under table: 11.4" with retractors installed on bottom of unit
- UL and c-UL listed
- Mounting hardware included
- Warranty - Table box: 10 years, retractable cables: 3 years
