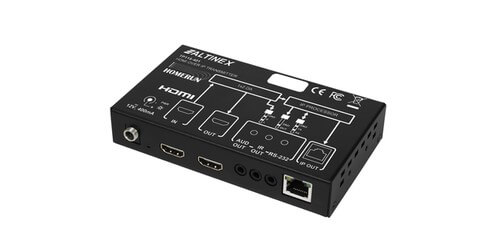

Altinex TP115-401
HDMI Over IP Transmitter, 1080p, HDCP - 390'
- Input: HDMI
- Output: HDMI over IP (RJ-45 F, Shielded)
- Resolution: Up to 1080p
- Streaming Bit Rate: 15 Mbps
Description

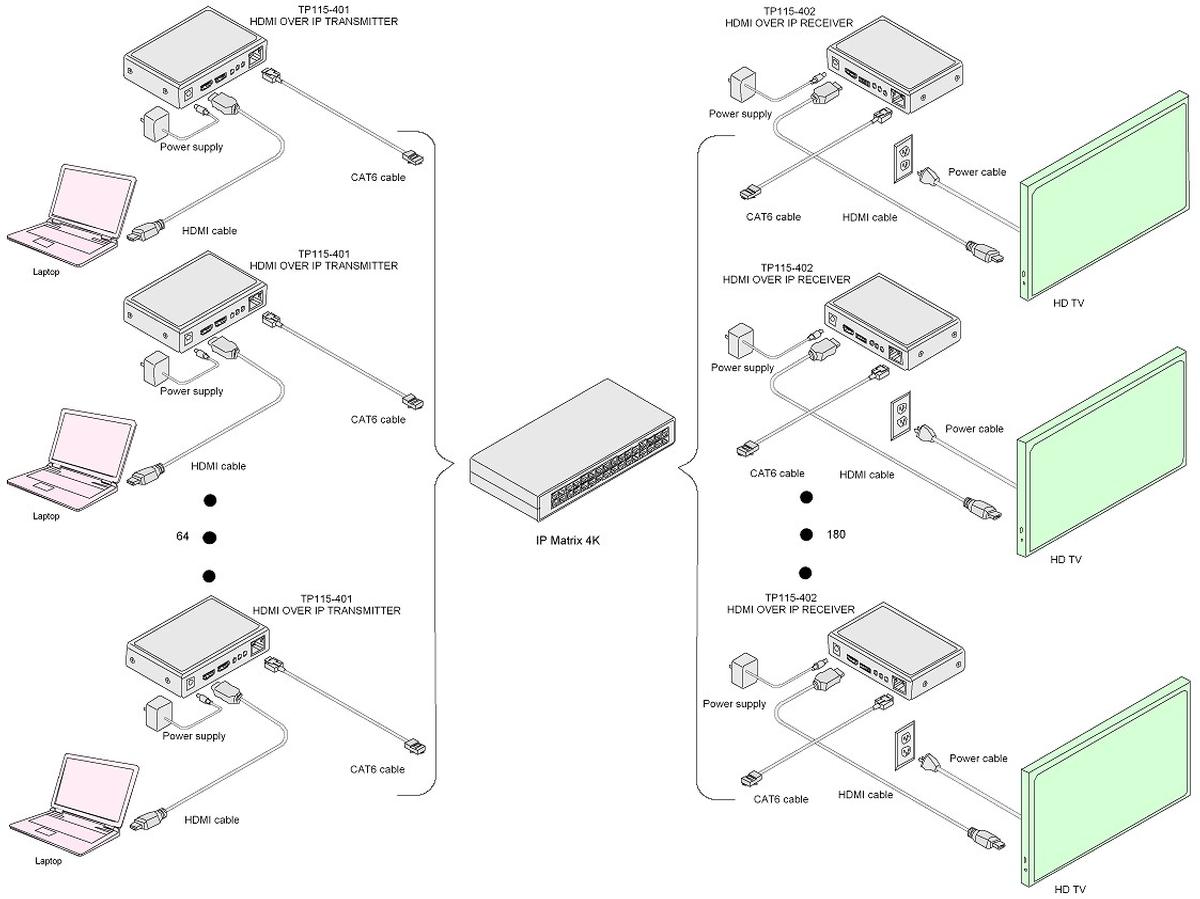

The Altinex TP115-401 HDMI Over IP Transmitter, with high resolution 1080p video, computer resolutions up to 1400 x 1050, HDCP compliance, and a transmission distance of 390 feet. This transmitter can be connected to the TP115-402 receiver (not included) via a single Cat 5e/6 point to point connection using an Ethernet switch as one to many or many to many. The unit is designed to display video to any receiver (sold separately) on the same network and with real-time routing the user can configure one or many receivers to accept video from any transmitter.
The TP115-401 transmitter from Altinex is an ideal solution for a variety of settings including conference rooms, lecture halls, and classrooms. This unit comes backed from Altinex by a three year warranty.
Specifications
- DC Power: 2.5 mm center pin
- Power: 0.35 A, 4.2 W
- Audio (Analog): 3.5 mm stereo
- Analog Audio Output Signal: Line Level
- Digital Video and Audio Output Signal: HDMI over IP
- Control: IR Tx (3.5 mm F), RS-232 (3.5 mm F), Factory Reset (Push Button)
- Material: Aluminum
- Color: Black
- Weight: 0.35 lb.
- Dimensions (HxWxD): 1" x 5.3" x 3.1"
- Included Accessories: Power Supply, IR Transmitter, RS-232 Connector, Mounting Hardware
- Warranty: 3 years
