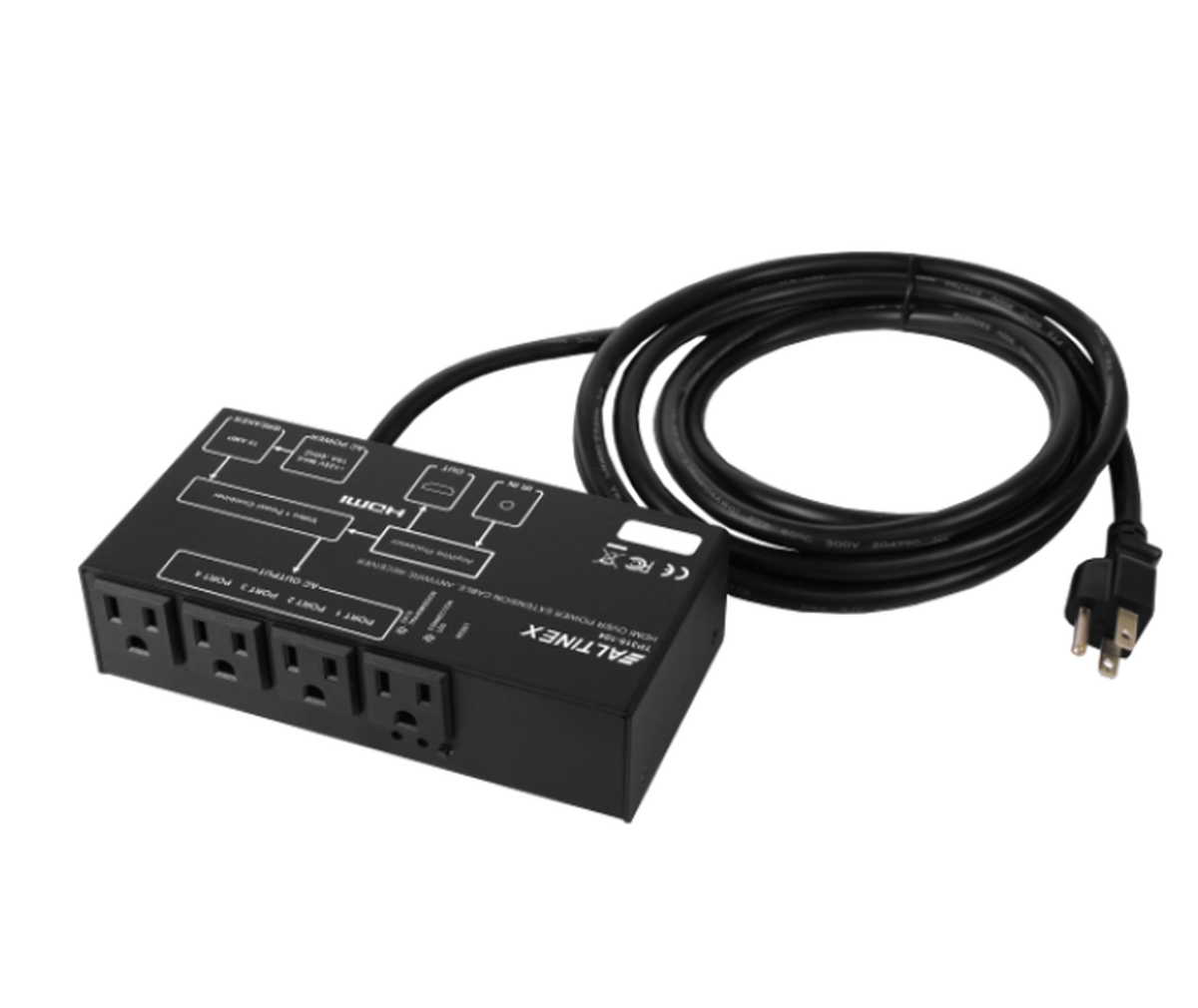

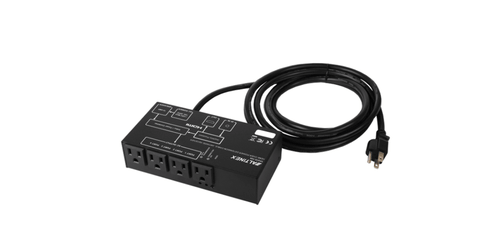

Altinex TP315-104
HDMI over Power Extension Cable, AnyWire Receiver - 100'

Description

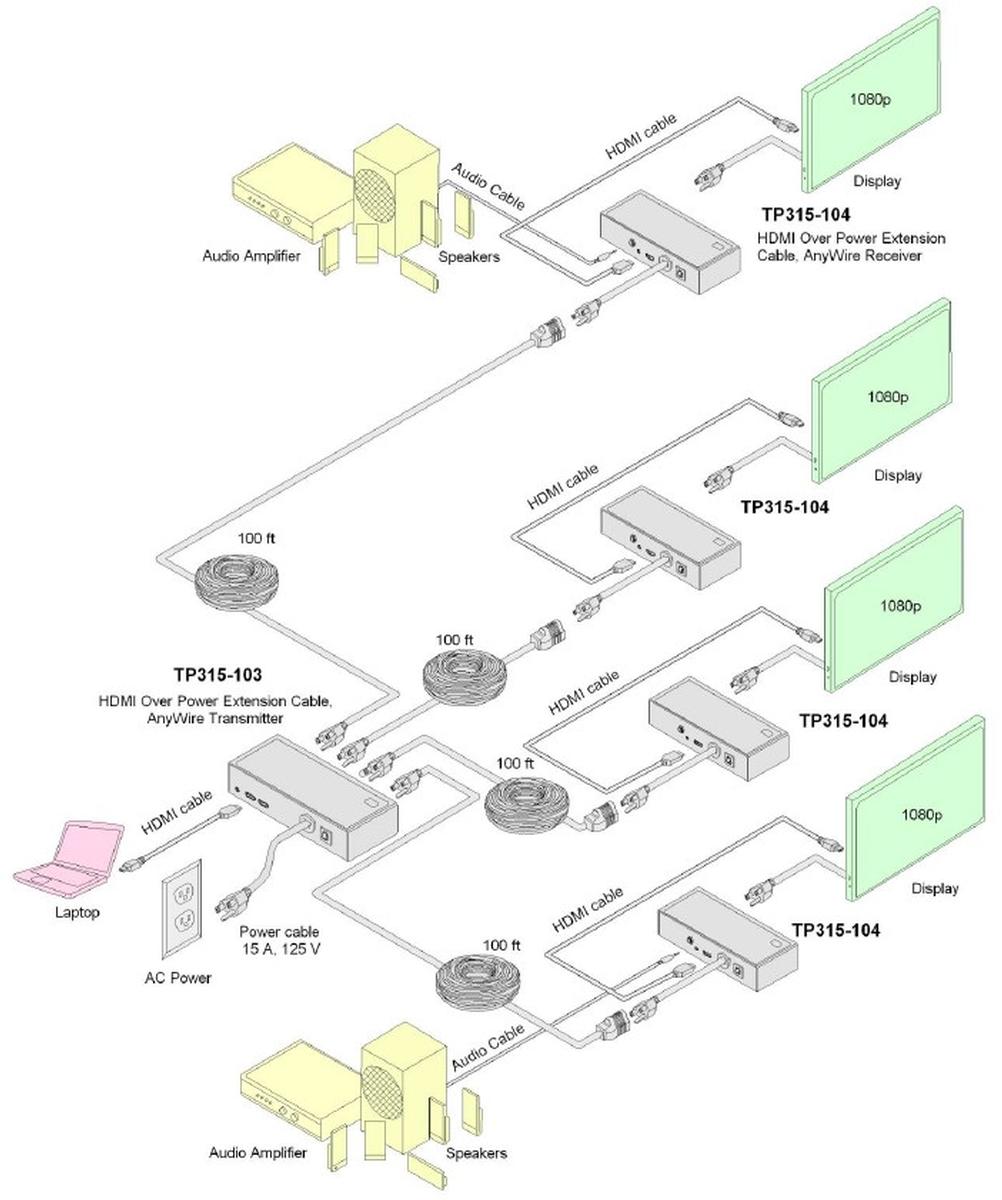

The TP315-104 from Altinex is a HDMI over Power Extension Cable, AnyWire Receiver. This device was designed to receive 1080p HDMI signals from 100' using a simple 3-conductor extension cord. A single transmitter (TP315-103 not included) can drive up to 4 receivers using either 4 individual cords 100' each or by daisy chaining the receivers. It is beneficial to note that extensions cords should not be bundled together from the transmitter to the receiver as cross-talk will occur. The TP315-104 is a ideal, economical solution for many audiovisual installations, including rental and staging or digital signage type applications. The AC extension cord makes installation easy without the need to cut and splice wires and install expensive connectors or purchase costly cables. Simply route the extension cords, connect the AnyWire receiver AC cords to the extension cord, and then plug the TV into the receiver and that is it.

With the unique design of this HDMI over Power Extension Cable AnyWire Receiver, users will benefit from a stable video transmission over greater distances than other straight HDMI cable designed systems. In addition IR pass-through from the receiver side to the transmitter side control, is provided without corrupting the HDMI signal during transmission of IR signals. Operation of this device does not require any user control or interaction, simply connect the HDMI input and the transmitter scans for connected receivers. Once detected it automatically pairs to the receiver and begins video transmission. Furthermore one of the AC receptacles on the transmitter side can be used to power the local monitor if only 3 receivers are being used or if the receivers are daisy-chained at the far end.

Specifications

• Signal Range: up to 100'
• HDMI over AC-extension Cord
• Automatic Input Detection
• IR Pass-Through Control
• Local Monitor Output
• Attached 9' AC input cord
• Enclosure: Black Aluminum
• Power Consumption (AnyWire only): 500 mA (4.5W)
• Dimensions (HxWxD): 1.78 x 6.95 x 3.55"
• Weight: 1.0 lbs
• MTBF: 38,000 Hours
• Warranty: 3 Years

Downloads

• Altinex TP315-104 Manual (PDF)
