Altinex UT100-041
4x1 HDMI Switcher with 4 ShareTime Button Cables

Description

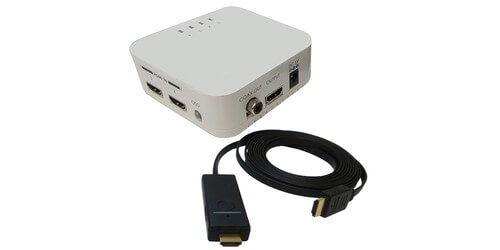

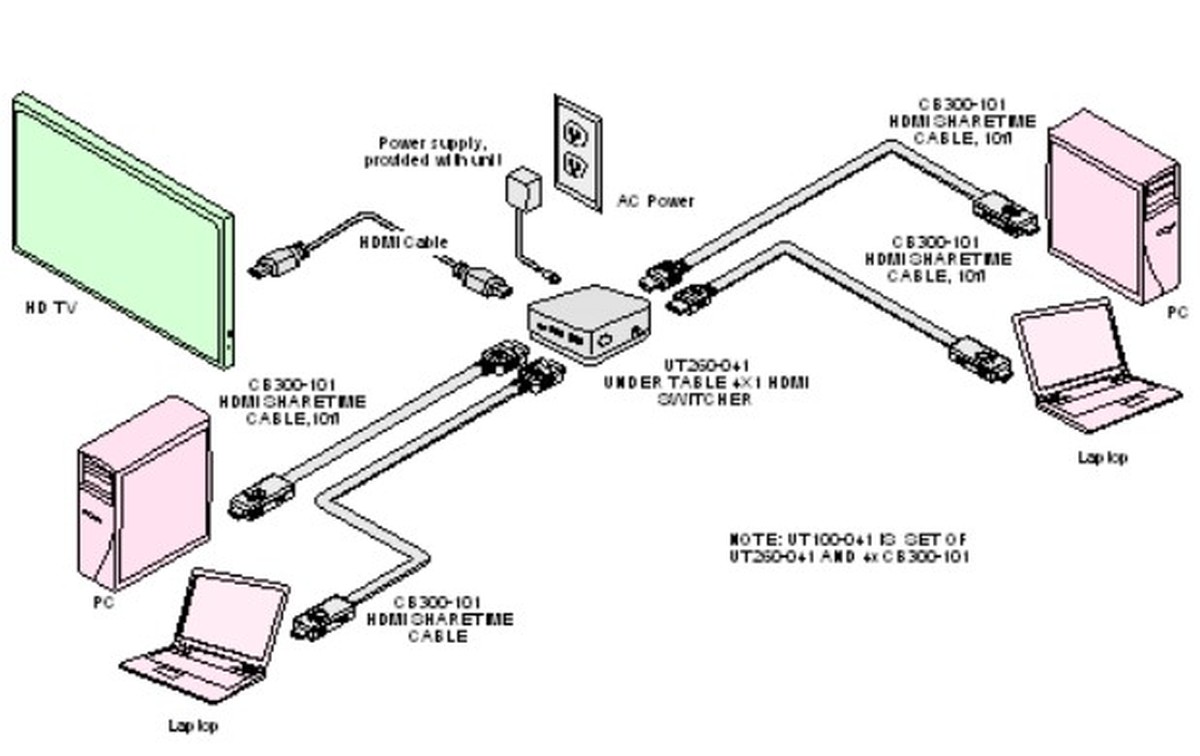

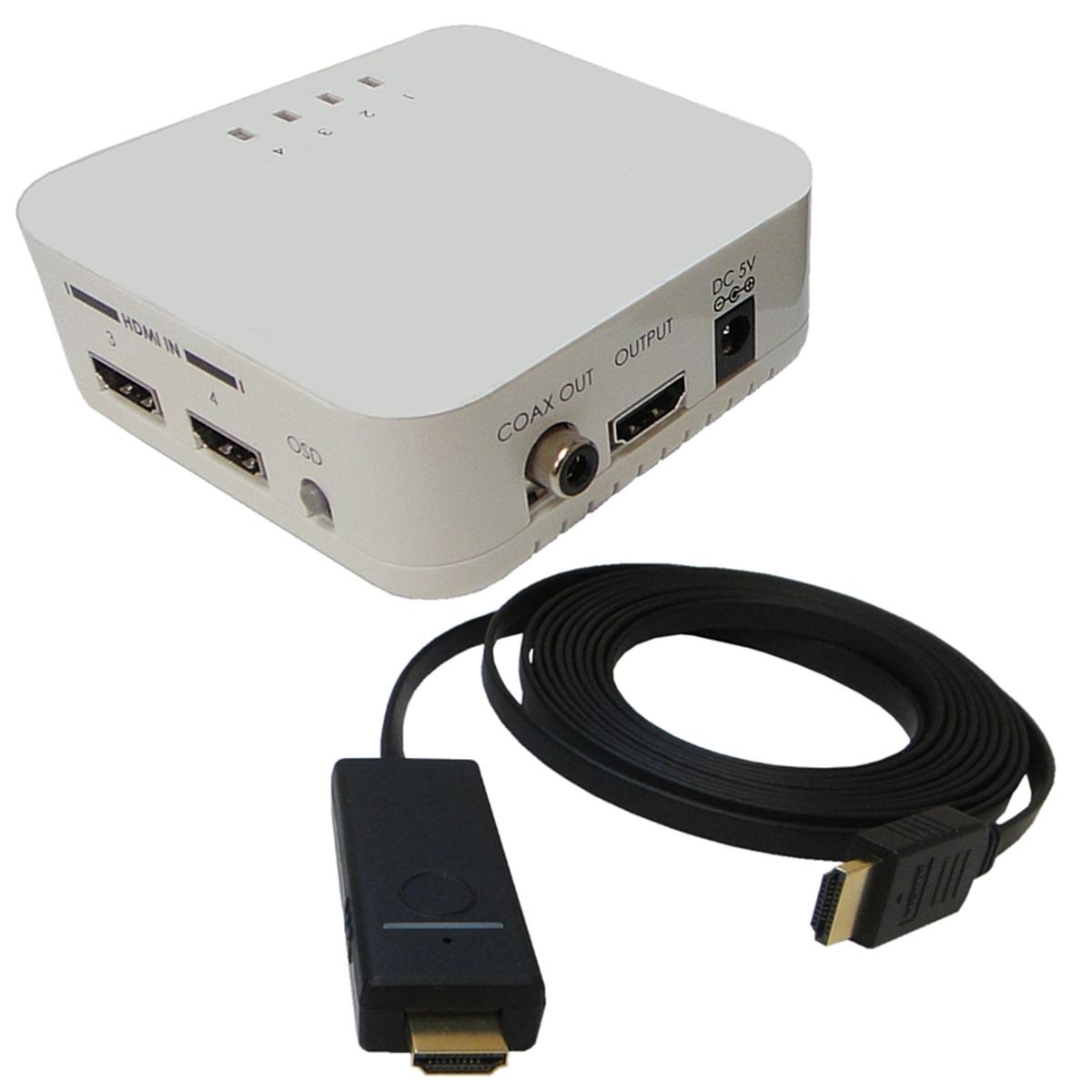

The Altinex UT100-041 is a kit that makes collaborating and switching HDMI laptop inputs at your table easy. The kit consists of a 4x1 HDMI switcher and four 10' ShareTime HDMI button cables. To use plug up to 4 HDMI sources under your table into the switcher.  You can plug the 4 ShareTime button cables directly into the switcher, or use them from the table box.  If you use the ShareTime cables from the table box all you need to do is plug the HDMI outputs from your table box into the switcher.

The switcher outputs a single HDMI cable to your TV, this makes running cables to the TV easy.  At your table users simple plug the ShareTime connector into the HDMI port of their laptop, on the connector is a button.  When it is their turn to present they simply press the button, the switcher recognizes the button press and switches to their screen on the TV quickly.  You can now easily share multiple inputs at your table on a single display at an affordable price, installation is plug and play.

The switcher has CEC enabled control, if your TV has integrated CEC it will also power on and off the TV. When the ShareTime button has been pressed it will turn on the TV if it is in stand-by mode and go directly to that input.  When the last ShareTime cable has been disconnected it will then power off the TV after a pre-configured set time.

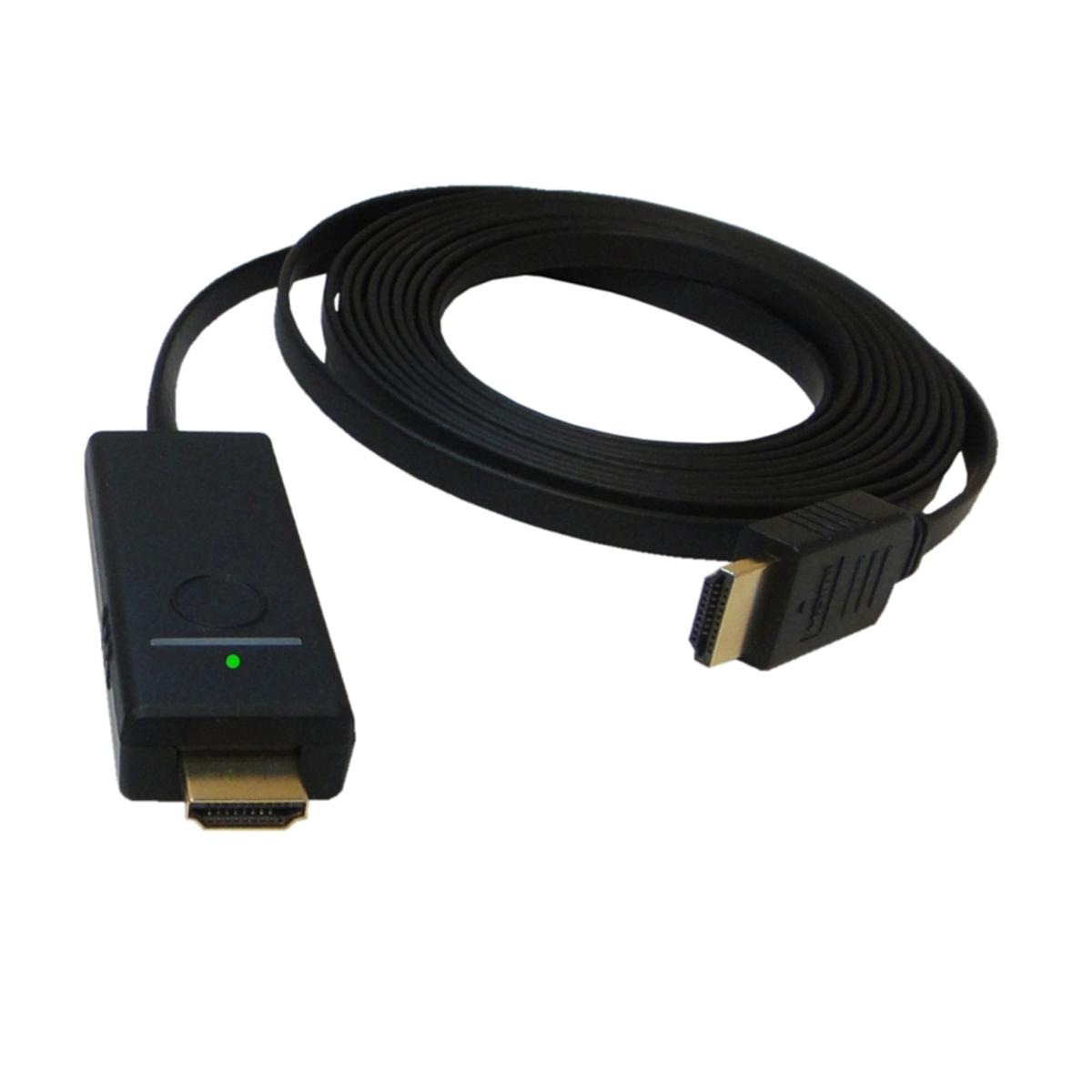

ShareTime is an affordable solution to bring collaboration to your table, now you can press the button when you want to share your screen right from the HDMI connector at your laptop.  The ShareTime button is always right at your finger tips and is easy to use.

Specifications

• HDCP compliant
• CEC enabled control
• Powers on and off CEC displays
• Easy plug and play set up
• Resolution: 1080P at 12-bit Deep Color
• Supports: 3D
• Power: Includes power supply however it can be powered from the USB mini port
• Switching: Can be used with included ShareTime cables, included remote, or the switching button on the switcher itself
• Includes: Switcher, 4 ShareTime cables, power supply, velcro
• Dimensions: 3.35"W x 3.35"D x 1.34"H
• Weight: .2lbs
• Warranty: 3 years

Downloads

• Altinex UT100-041 Manual (PDF)
