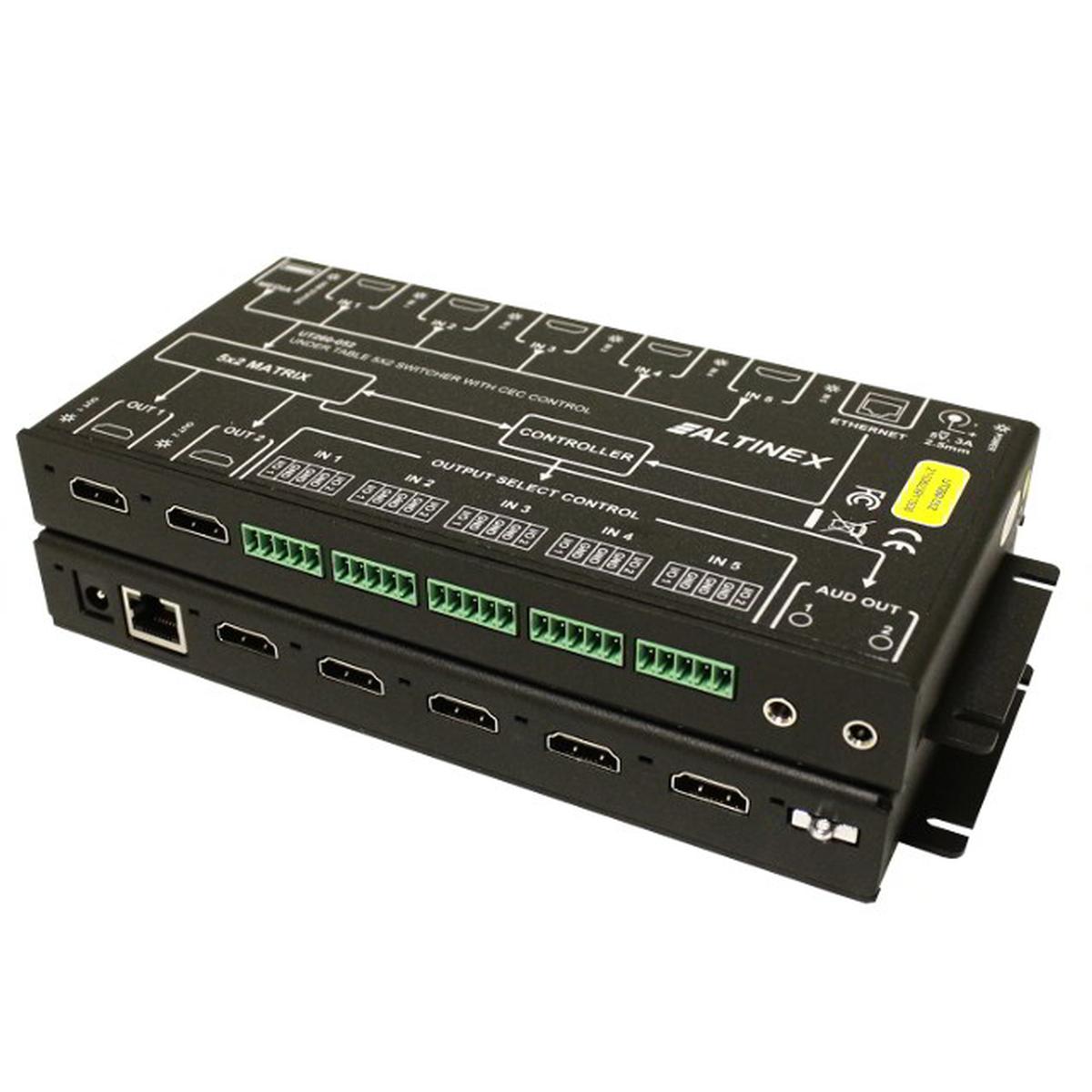

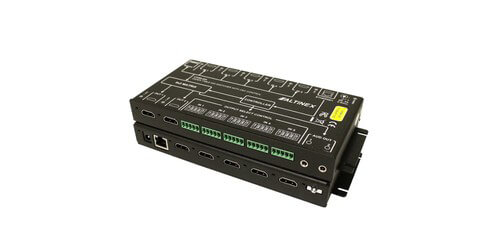

Altinex UT260-052
5x2 HDMI ShareTime CEC Switcher

Description

The Altinex UT260-052 is a 5x2 under table HDMI switcher designed to be used with the Altinex ShareTime solution.  Not only does it have 5 HDMI inputs and 2 HDMI outputs but it also has a sixth internal media player input available to play MPEG files from a USB stick for use as a screensaver or for logo presentation. Each of the five inputs is paired with an LED to indicate the presence of a signal. Input selection is supported through any of the following: ShareTime controllers, TCP/IP commands using a third-party controller, Altinex tabletop units with display select (Show Me) support, and automatic switching to the last input connected.

When used with a compatible CEC display the switcher will turn on the displays and then sets the TV inputs to those connected to the switcher outputs. The entire system is ready to go in only a few seconds; no TV remote controls are necessary.

The Altinex UT260-052 switcher is a perfect solution for any conference room that needs to have easy control on a budget, connect with ShareTime cables or a compatible Altinex table box that has input select buttons.

Specifications

• Media player: USB 2.0
• CEC enabled
• Control: TCP, ShareTime, input select buttons, CEC
• Included mounting screws to secure to underside of table, 4GB flash drive
• Firmware upgradable
• Dimensions: 7.5" x 3.9" x 1.0"
• Weight: .76lbs
• Warranty: 3 years

Downloads

• Altinex UT260-052 Manual (PDF)
