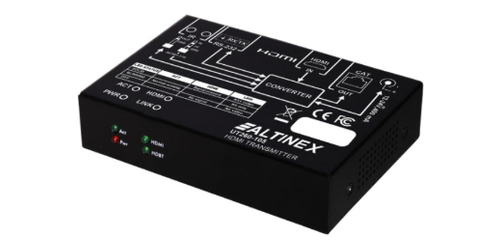

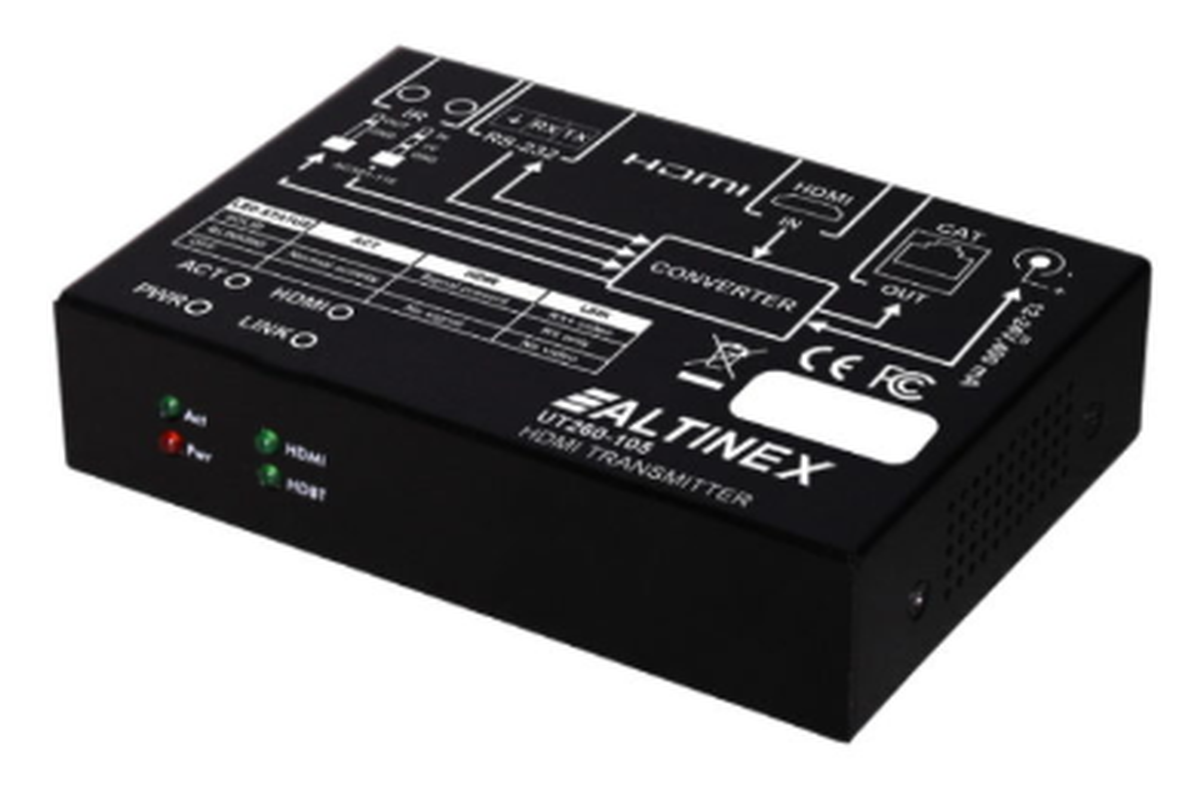

Altinex UT260-105
Under-Table HDMI to HDBaseT Transmitter

Description

Altinex introduces the UT260-105 HDMI to HDBaseT transmitter: the high-performance video/audio transmitter capable of IR and RS232 control from transmitter to receiver. It can extend these signals up to 70 meters when used with Cat6+ cables. The UT260-105 comes with a power supply. The transmitter can also be powered by the corresponding UT260-104 receiver when directly connected to the receiver.

Key features of this product include the following:

• Support HDMI 4k x 2K
• HDCP 1.4 compliant
• IR and RS-232 pass through
• Remote power from HDBT receiver
• Status LED on front

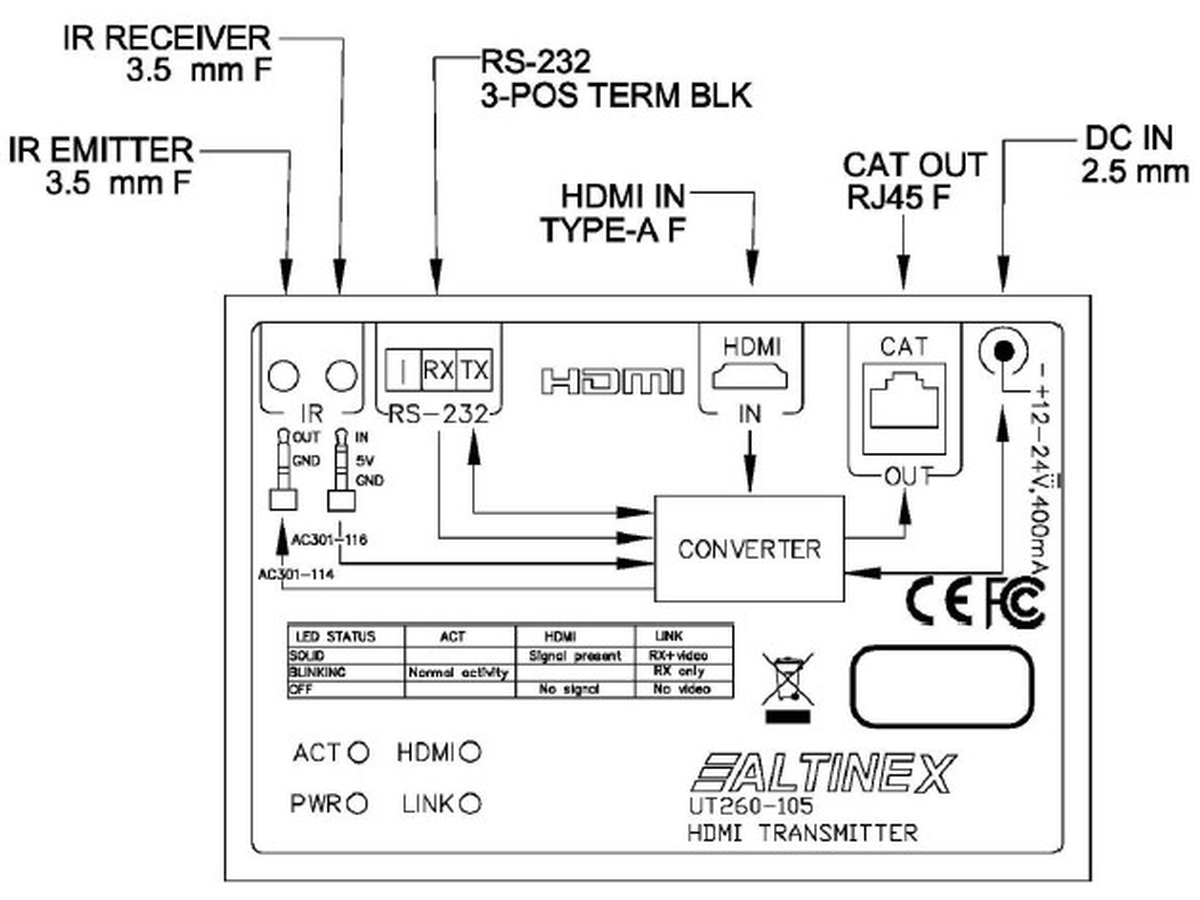

Specifications

• HDMI over CAT: RJ-45 F
• Control
• RS232: Terminal block 3-position
• IR Output to Emitter: 3.5mm F
• IR Input from Sensor: 3.5mm F
• Compatibility
• Digital Signal Types: HDMI 1.4, 3D
• Signal Resolution: Up to 4kx2k
• Included Accessories
• Power Supply: 24V/1A Power Adapter
• Mounting Brackets: 2 Right angle
• Terminal Blocks: 3-position, 3.5mm
• Optional Accessories
• IR Emitter: AC301-114
• IR Receiver AC301-116
• Mechanical
• Material: Steel
• Color: Black
• Height: 0.98 inches
• Width: 2.95 inches
• Length: 4.37 inches
• Weight: 1.3 poundsl MTBF: 38,000 hours
• Electrical
• Video Input Signals - Digital Video and Audio: HDMI Standard
• Output Signals - Digital Video and Audio on HDBT: Altinex Standard
• +24VDC: 500 mA, 24 W

Downloads

• Altinex UT260-105 Manual (PDF)
