AMX DGX1600-ENC
Enova DGX 1600 Enclosure

Description

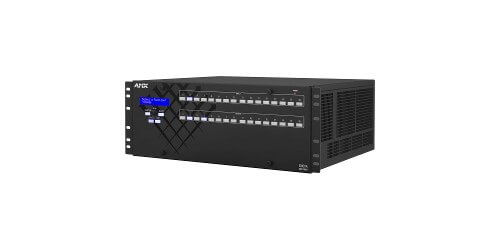

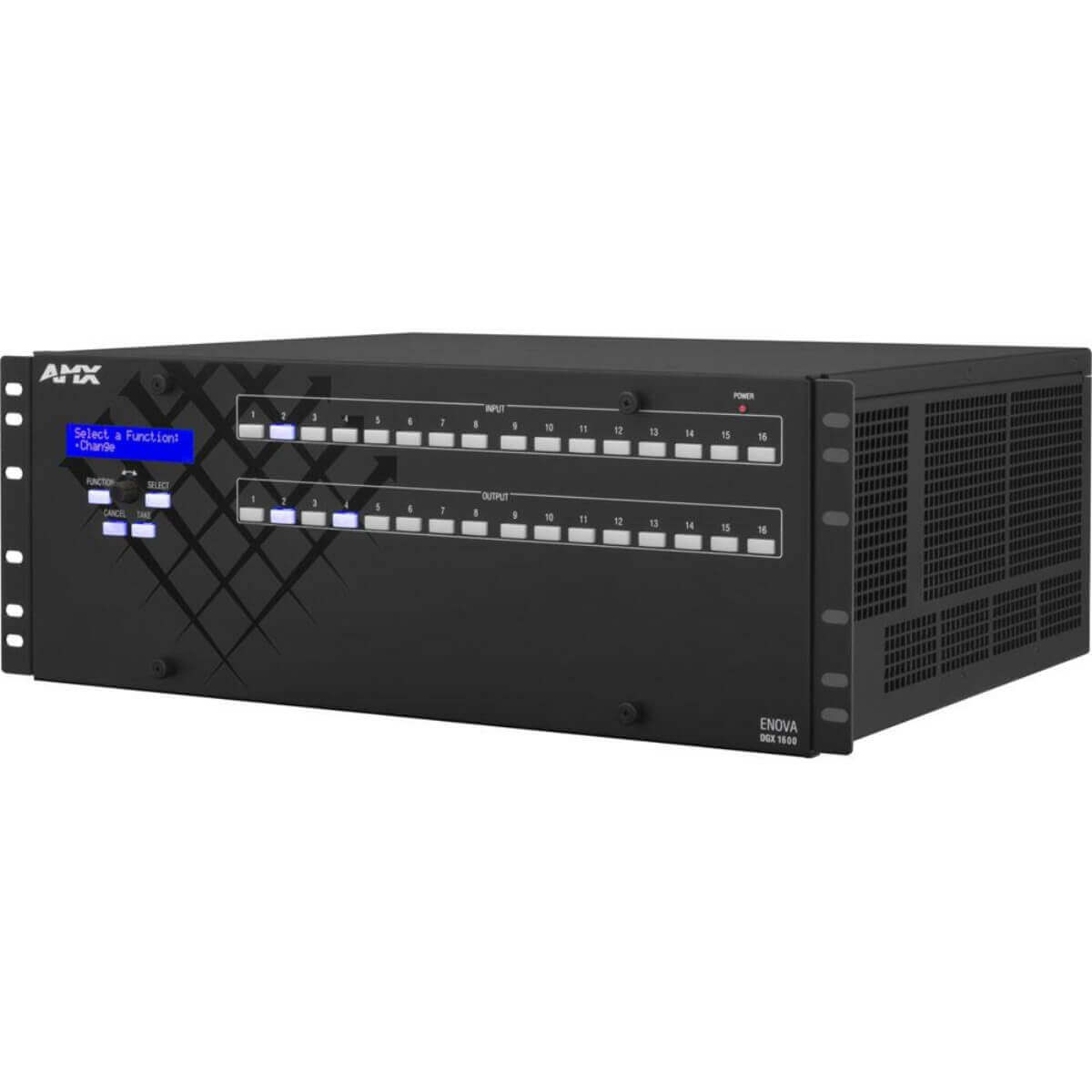

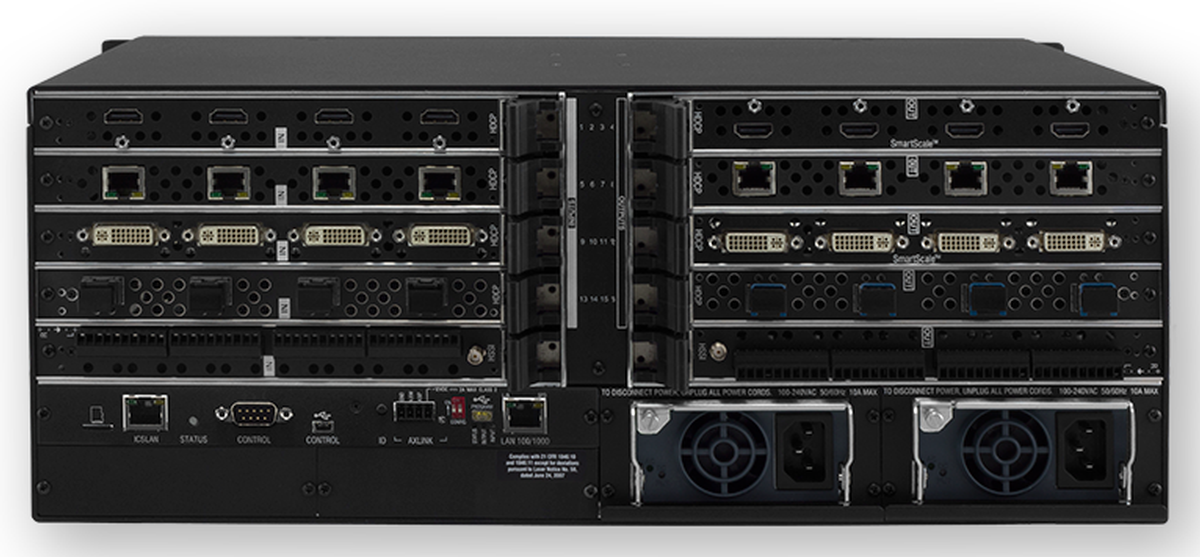

The new Enova DGX 1600 Enclosure (DGX1600-ENC) is a Digital Media Switcher that is ready to support 4K and Ultra High Definition (UHD) content. This robust solution includes a NetLinx® NX Integrated Controller, redundant power supplies and can be populated with Enova DGX video input and output boards in addition to optional audio-switching boards. There are four connections per video board, and each enclosure holds four video input boards and four video output boards for a maximum matrix of 16x16.

Specifications

• simplex or duplex
• AV and Control over Twisted Pair, Fiber or Both - Send audio, video, bi-directional control and Ethernet over twisted pair or fiber cable, or integrate both into the same system
• Embedded NetLinx NX Integrated Control Processor - Allows any connected device to be managed, monitored or controlled
• Integrated Ethernet Switch - Pass Ethernet through the attached DXLink Twisted Pair or Fiber Transmitters and Receivers
• Analog to Digital Video Conversion with Scaled Outputs - Converts any source signal to digital and uses SmartScale Technology to automatically output video that is perfectly scaled for each connected display
• Onboard Web Configuration for all Aspects of the DGX System - Greatly simplifies the setup and configuration of Enova DGX systems including DXLink endpoints drastically reducing installation time
• Automatic Setup of DXLink Endpoints - Simplified installation by auto-discovering DXLink devices when they are connected to an Enova DGX

Downloads

• AMX DGX1600-ENC Specifications (PDF)
• AMX DGX1600-ENC Manual (PDF)
