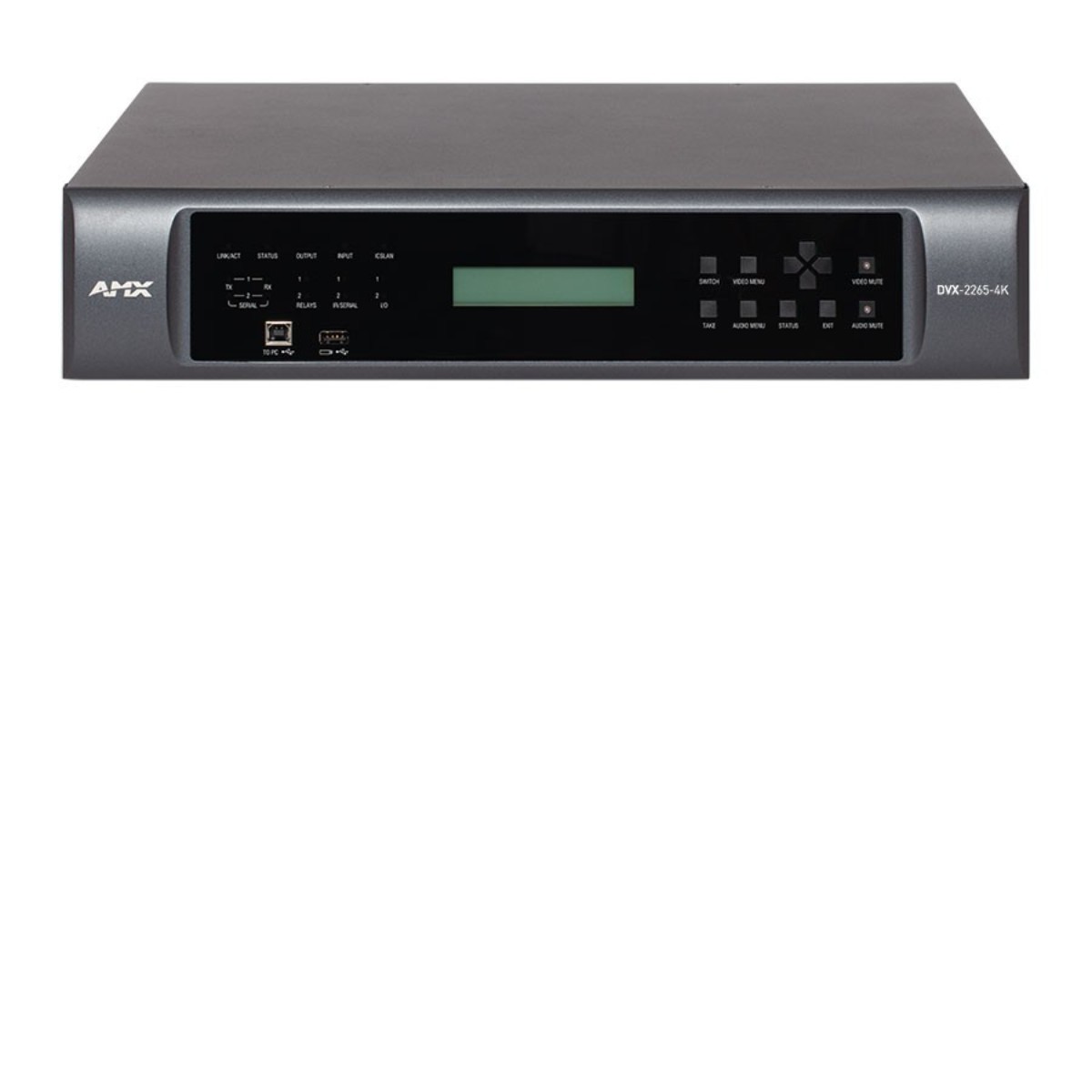

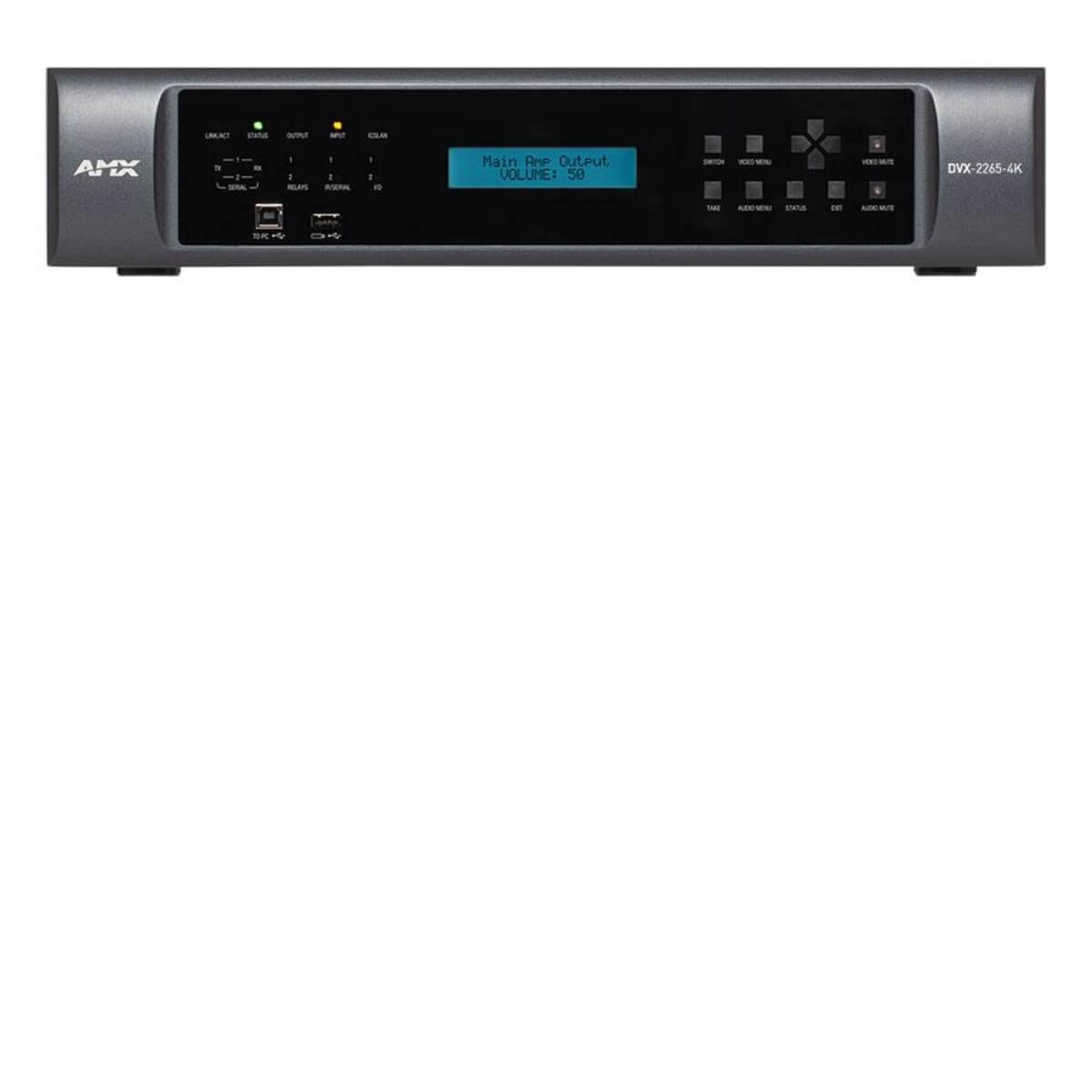

AMX DVX-2265-4K
6x2+1 4K60 4:4:4 All-In-One Presentation Switcher (4 HDMI Inputs, 2 DXLink-4K60 Inputs)

Description

The AMX Enova DVX-2265-4K 6x2+1 All-In-One Presentation Switcher is a unified audio, video, and control device that replaces the need for numerous individual components and eliminates the integration and reliability challenges that accompany them.

Specifications

• Crown DriveCore Amplifier - 120W per channel stereo at 4/8 ohms 120W mono at 70/100 Volt.
• USB 2.0 - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables.
• DXLink Twisted Pair Inputs and Outputs - Send and receive audio, video, USB 2.0, bi-directional control and Ethernet to DXLink HDMI Receivers and Transmitters up to 100m away over one twisted pair cable.
• All-In-One Device - Controller, matrix switcher, video scaler, audio signal processor, amplifier, plus twisted pair distribution - all in a space-saving 2U chassis.
• Simplicity and Reliability - Replaces the need for numerous individual components and equipment, ensuring high reliability and saving on configuring and programming costs.
• Low Total Cost of Ownership - With a consistent platform across a variety of sizes, it is easy to standardize on the DVX and reduce costs for hardware, training, support, troubleshooting and sparing.
• Unrivaled Network Security - With Dual NIC to isolate AMX or third-party AV equipment from the primary network, 802.1X for protected network access, and LDAP integration with unlimited user-defined groups the Enova DVX provides rock-solid security.
• Optimal Video Image Quality Every Time - Exclusive SmartScale Technology automatically scales the image to the best resolution and video parameters for each display—even for displays of different types — without manual setup, eliminating the need for costly external scalers.
• BSS Audio Processing - Includes an integrated digital signal processor with advanced capabilities like independent 10-band parametric EQ, independent input gain adjustments and variable compression, allow precision tuning to match unique source and room attributes.
• dbx AFS2 - Advanced Feedback Suppression
• Audio Breakaway - Embedded audio from any HDMI or DXLink input can be de-embedded from the video, processed through the DSP, and switched to any analog, HDMI, DXLink, or Dante output.
• Audio Matrix Switching - Four independently switched and processed audio paths provide four unique volume, EQ, ducking and mixing configurations for perfectly tuned room audio as well as integration with audio/video conferencing, induction loop systems, voice re-enforcement speakers and audio recording devices.
• Enhanced Microphone Processing - Independent 3-band parametric EQ, compression, gating, auto-ducking, and limiting on each microphone input ensures crystal clear communication.

Downloads

• AMX DVX-2265-4K Specifications (PDF)
