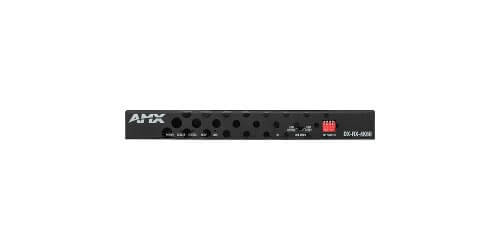

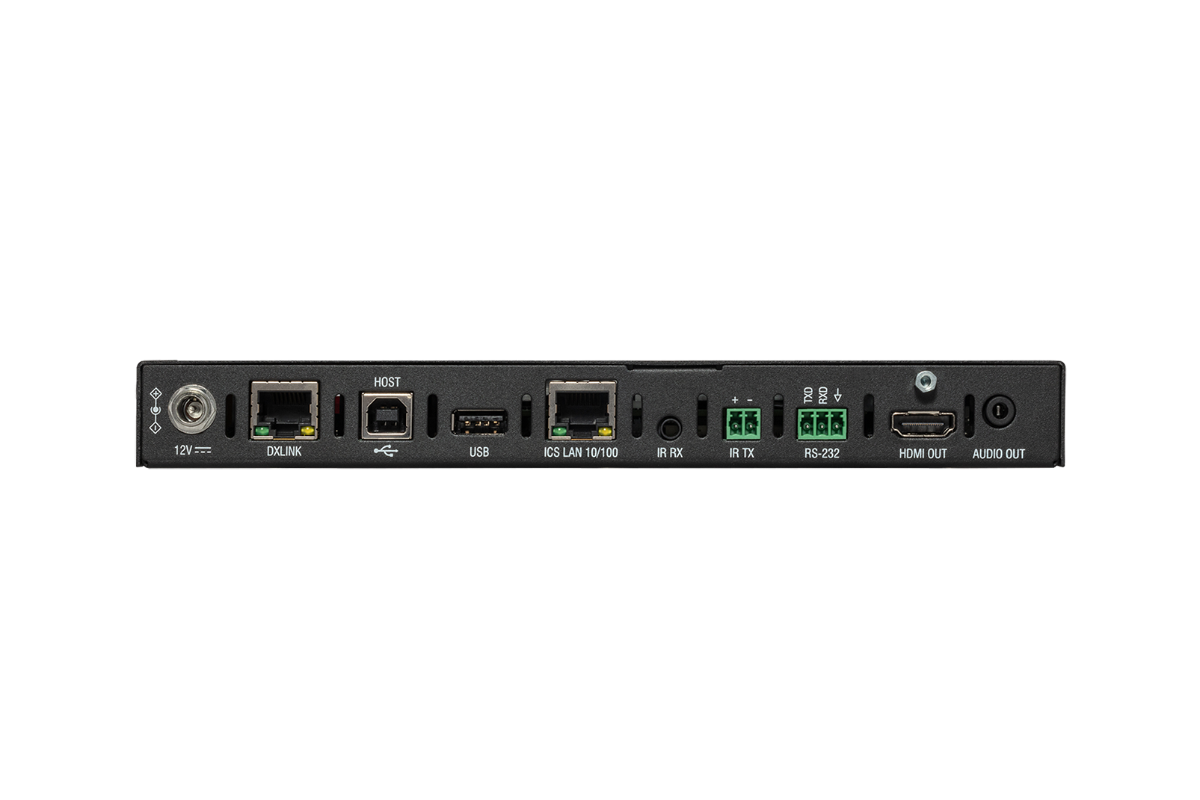

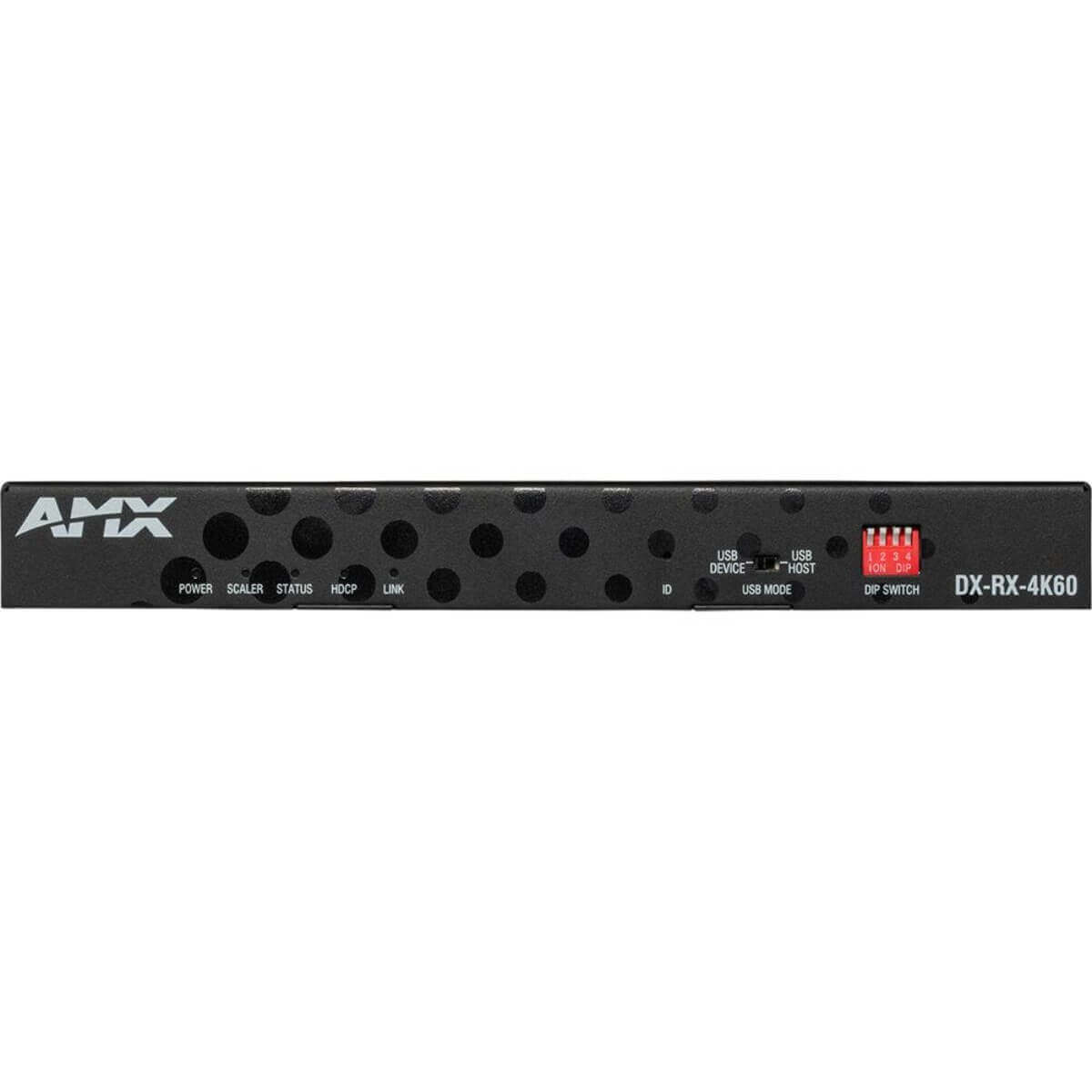

AMX DX-RX-4K60-TAA
DXLink Twisted Pair 4K60 Receiver

Description

DXLink Twisted Pair 4K60 supports improvement in electromagnetic compatibility. The twisted pair is ideal for transmitter modules that are used to send HDMI and control signals over long distances. Twisted pair transmitter modules are apt for conjunction with the Enova DGX DXLink 4K60 Twisted Pair Input boards and DGX-4K all-in-one presentation switchers. DXLink 4K60 HDMI receiver module can extend 4K60 4:4:4 video easily under any circumstances where highest video quality is desired. Thus, it is highly suitable for applications in Universities, Corporation, and at Healthcare centers.

Specifications

• Graphics Modes: 4K UHD
• Maximum Video Resolution: 4096 x 2160
• Network (RJ-45): Yes
• HDMI Out: Yes
• USB: Yes
• Number of Network (RJ-45) Ports: 1
• Number of USB Ports: 2
• Number of HDMI Outputs: 1
• Media Type Supported: Twisted Pair
• Twisted Pair Cable Standard: Category 7
• Receiver Height: 1"
• Receiver Width: 8.66"
• Receiver Depth: 6.30"
• Form Factor: Surface-mountable
• Form Factor: Desktop
• Receiver Weight (Approximate): 2.20 lb
