AMX MCP-108
Massio 8-Button ControlPad with Knob (US, UK, EU)
Manufacturer SKU: FG2102-08-BL
Satisfaction Guaranteed!
Our Price:
$1,133.00
Top MCP-108 Specifications
- DIMENSIONS (HWD): 4 11/16" x 6" x 1" (119 mm x 152.5 mm x 26 mm)
- WEIGHT: Approximately .41 lbs (.19 kg)
- MOUNTING: Mount onto standard 2 gang US, UK, or EU back boxes
- POWER CONSUMPTION: Fully loaded with I/O Port utilized: 11 W (max)
"Great support and help from technical support!"
-Patrick S.
-Patrick S.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
Massio ControlPads are a perfect solution for huddle spaces and small conference rooms. Massio's combination of controller, user interface, and configuration with RPM provides an inexpensive way to add AV control to small spaces.

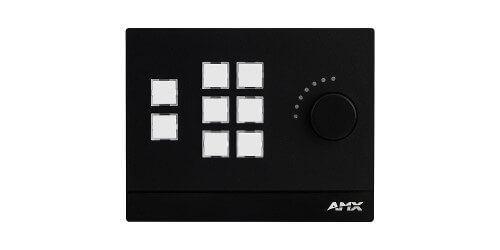

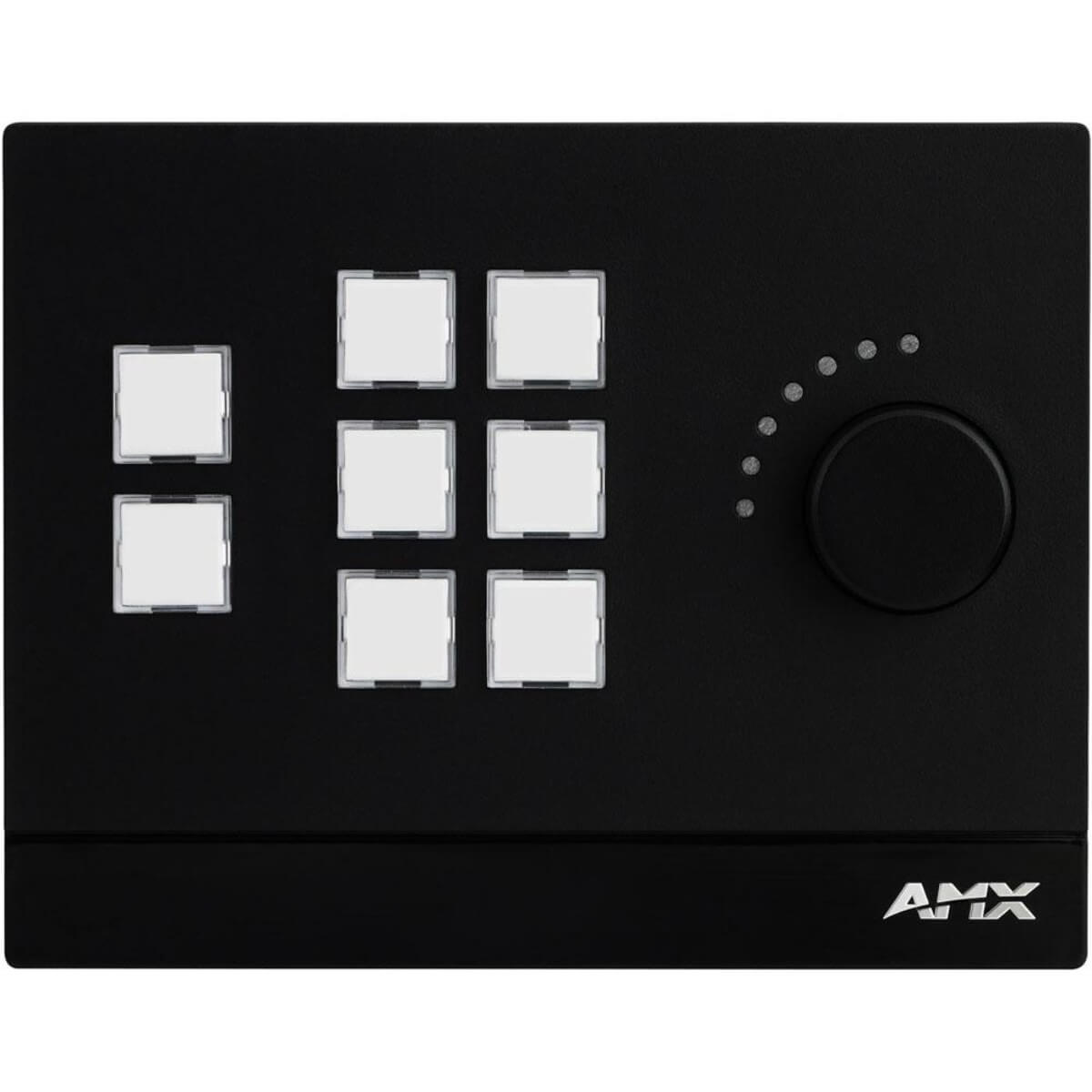

AMX's MCP-108 / 8-Button Massio ControlPad with Knob combines AMX controls and a stylish keypad into a single unit that can be mounted in a standard 2 gang US, UK, or EU back box to provide dedicated room control. Massio ControlPads provide intuitive usability and modern styling. These control pads and are simple to configure using AMX's Rapid Project Maker or custom programmed using NetLinx Studio software. The MCP-108 provides the latest networking and security features along with outstanding processing power.
Specifications
- Typical: 5 W
- Voltage, DC (Typical): PoE (37V-57V)
- Voltage DC Range: 37 V-57 V per 802.3af spec
- Power Connector: (1) RJ-45 Ethernet
- POWER SUPPLY
- External, Required: Any POE injector or switch, conforming to the 802.3af standard including AMX's PS-POE-AF-TC (FG423-83), not included
