AMX MKP-106P-WH
6-Button Massio Keypad
Manufacturer SKU: FG5793-06P-W
Satisfaction Guaranteed!
Our Price:
$569.00
Top MKP-106P-WH Specifications
- Dimensions (HWD)
- Portrait: 4 11/16" x 3 7/16" x 9/16" (119 mm x 87.5 mm x 13.9 mm)
- Landscape: 3 7/16" x 4 11/16" x 9/16" (87.5 mm x 119 mm x 13.9 mm)
- Weight: Approximately .25 lbs (.11 kg)
"Super fast responses, super fast direct support. Quick shipping. Best prices out there when buying in bulk. Thank you!"
-Chad R.
-Chad R.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

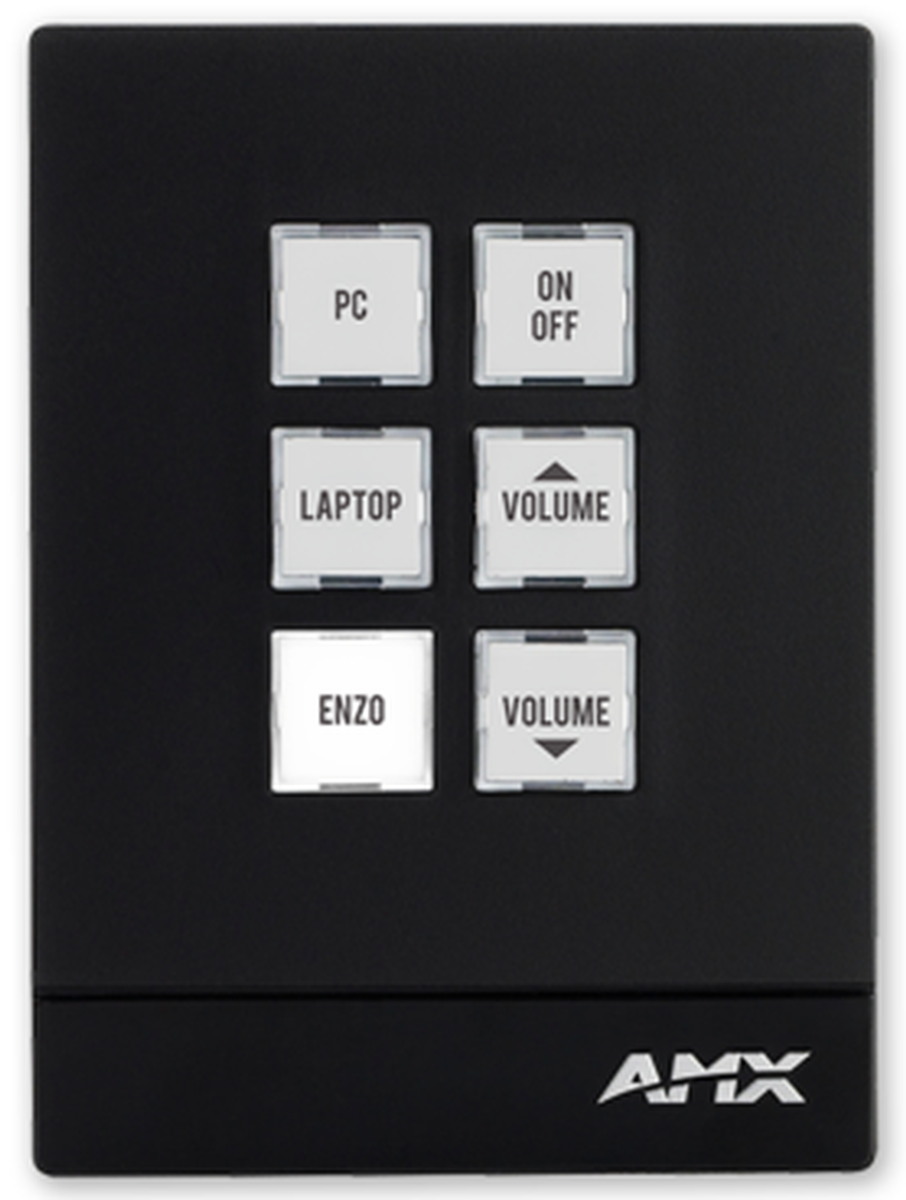

AMX's MKP-106 / 6-Button Massio Keypad is a keypad-only version of the MCP-106 Massio ControlPad. The MKP-106 provides sleek Massio styling in any room, serving as a second user interface or as a primary UI in spaces that already contain a separate controller.
The MKP-106 includes large, easy-to-read buttons in a stylish design that makes it simple for users to manage complex tasks with a single button press during meetings or classes. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.
Specifications
- Mounting: Mount onto standard 1 gang US, UK, or EU back boxes
- Power Consumption
- Typical: 4.5 Watts
- Voltage, DC (Typical): PoE (37V-57V)
- Voltage DC Range: 37 V-57 V per 802.3af spec
- Power Connector: (1) RJ-45 Ethernet
- Memory Flash: 4 GB, Memory Card: 4 GB SD, DDRAM: 256 MB
- Program Port: (1) USB Mini-B, USB
- ID Push Button: Reset factory settings, reset factory image, toggle between DHCP or static IP addressing mode
