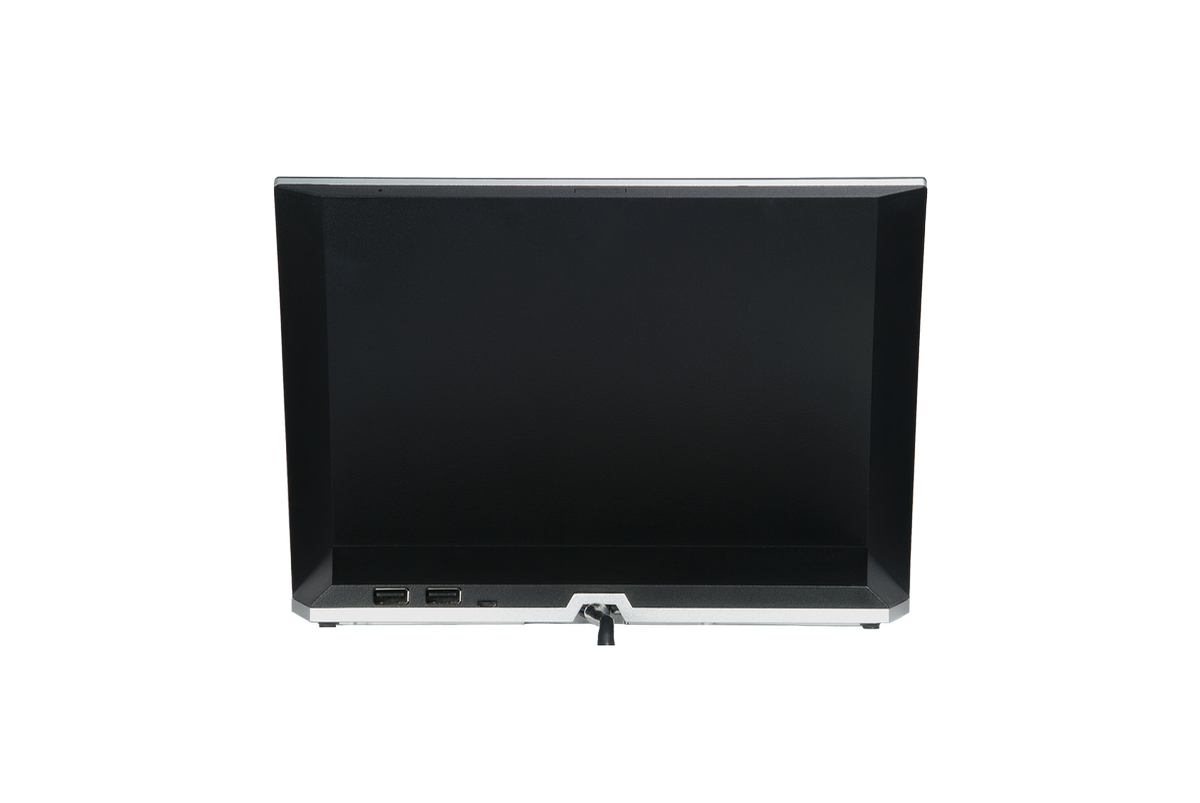

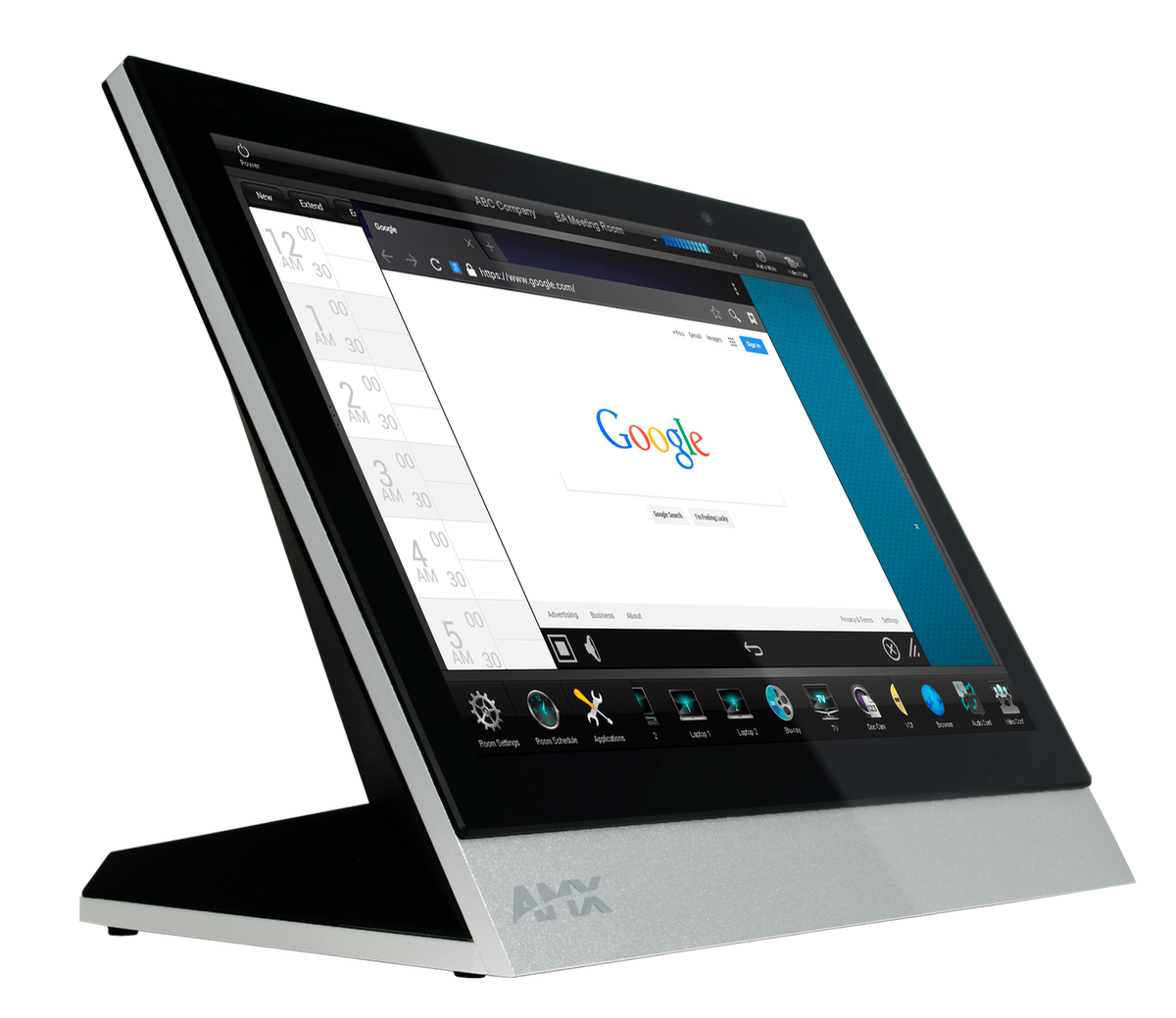

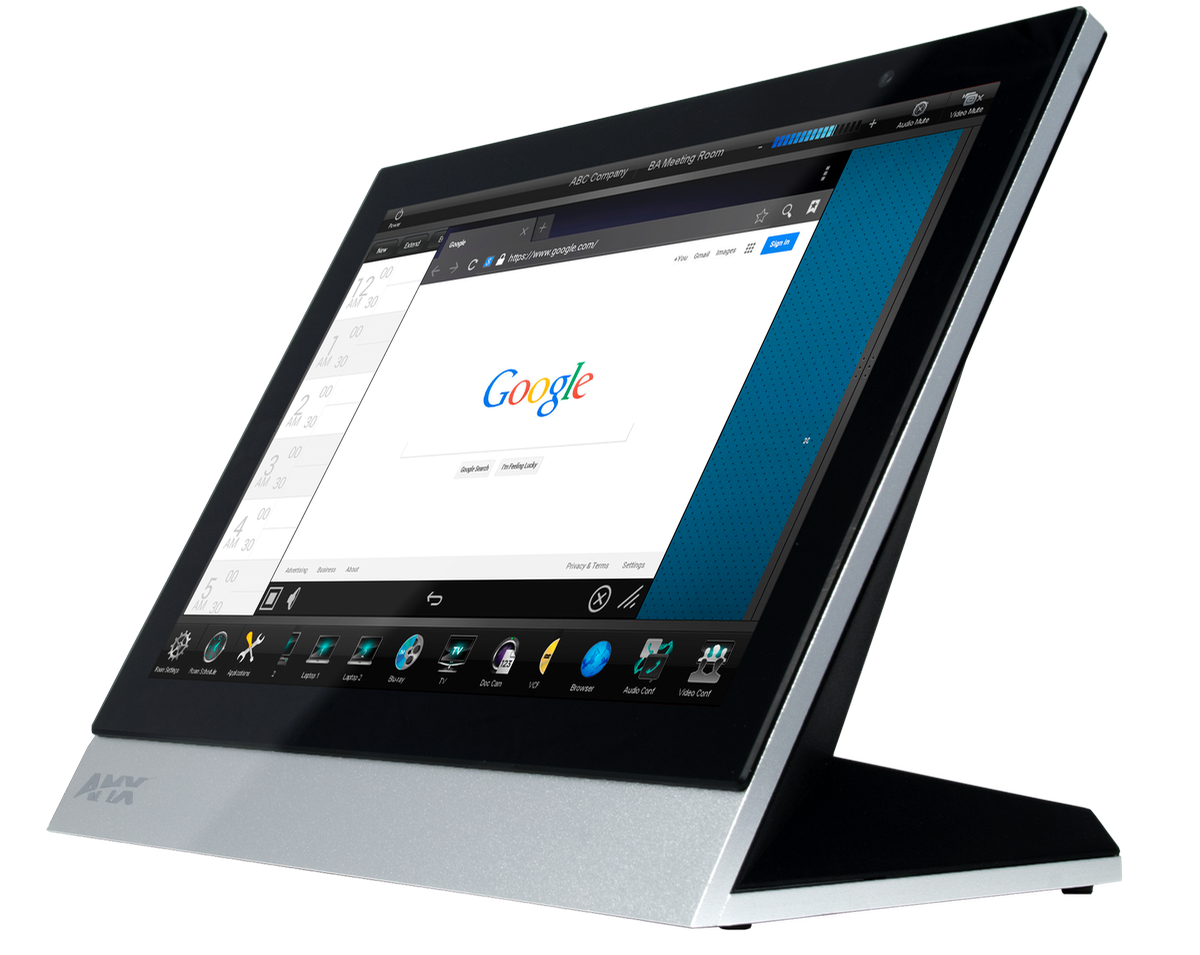

AMX MXT-1001
10.1" Modero X Series G5 Tabletop Touch Panel

Description

The most elegant 10.1" interface designed specifically for dedicated room control has been significantly enhanced to include a new G5 Graphic Engine to provide even faster and smoother animations and transitions as well as a new Quad Core Processor. This new generation of touch panels is built for usability offering edge-to-edge capacitive touch glass with multi-touch capabilities. It features advanced technology empowering users to operate AV equipment seamlessly, while providing the ultimate in audio and video quality. The distinctive appearance will complement even the most sophisticated meeting facilities and homes. With a lightning fast processor, brilliant graphics and enhanced capabilities, the Modero X Series is the control surface that simply delivers more.

The MXT-1001 by AMX is ideal for boardrooms, conference rooms or auditoriums where a control surface is needed to provide access to key functions. In residences, it is perfect for kitchens, home theaters or home offices where it can be used to manage systems throughout the home.

FEATURES G5 Graphics Engine and Quad Core Processing The most powerful processing in the industry delivers smooth gesturing, animations and transitions all at higher speeds for an experience any user will enjoy Simplified Enterprise Touch Panel Updates Deploy and update touch panel files from a network URL for simplified company-wide updates Latest Communication Technologies Supports Near Field Communication (NFC) - short-range wireless technologies that deliver peer-to-peer communication by 'sharing, pairing and transaction' between RF devices like exchanging data/identities Enhanced Usability External phone connections via Bluetooth or USB and HD video streaming Graphic Leaps & Bounds The Modero X Series features intuitive UI functionality including: gesturing, swiping, dynamic reordering and enhanced animation capabilities Perfect From Any Angle Includes In-Plane Switching (IPS), the latest technology in popular tablet/mobile devices that delivers the widest viewing angles and the most accurate color reproduction on the market

Specifications

• Display Size (WH): 9.9" x 6.7" (252 mm x 170 mm), 12.0" diagonal
• Viewable Area (WH): 8.5" x 5.3" , 10.1" (257mm) diagonal
• Resolution (WH): 1280x800
• Aspect Ratio (WH): 16:9
• Brightness: 400 cd/m2
• Contrast Ratio: 700:1
• Color Depth: 16.7M colors
• Illumination: LED
• Touch Overlay: Projected capacitive, multi-touch support, 3 simultaneous max
• VIEWING ANGLE: Vertical: 89, Horizontal: 89
• MEMORY: SDRAM: 2 GB, Flash: 16 GB
• Maximum Project Size: 12 GB flash, available for apps and touch panel files
• Ethernet: 10/100 port, RJ-45 connector. Supported IP and IP-based protocols: UCP, TCP, ICMP, ICSP, IGMP, DHCP, Telnet, FTP, DNS, RFB (for VNC), HTTP
• (2) USB host 2.0, Type A ports (1 with limited physical access requiring right angle connection): Firmware upgrade, touch panel file transfer, JPEG image viewer, HID peripherals, USB audio output for headsets
• Near Field Communication (NFC): Supports standards ISO/IEC 15693, ISO/IEC 14443A, ISO/IEC 14443B
• Unique Identifier (UID), typ range=.25", max = .5"
• Supported Video Codecs: MPEG2-TS: MPEG-2 Main Profile @High Level up to 720p at 25 fps (decode only)
• MPEG-2-TS: H.264 High Profile @Layer 4, AAC-LC up to 720p at 25 fps (encode/decode)
• MJPEG up to 720p at 25 fps (decode only)
• Supported Video Transport Streams: MPEG-TS for MPEG-2 and H.264, HTTP for MJPEG
• Max Number of Active Video Streams: One decode plus one encode
• Video Conferencing: Panel-to-panel and video chat*
• Microphone: -42 dB 3 dB sensitivity FET microphone
• Speakers: 4 ohm, 2 Watt, 300 Hz cutoff frequency
• Supported Audio Codecs: MP2 Layer I and II, MP3 (8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz), AAC-LC (8 kHz, 96 kHz), G.711 with Law (VoIP* encode/decode at 8 kHz)
• Audio Output: USB Audio out USB port (head/hand set support)*
• File Formats: WAV, MP3 (as part of touch panel file only - no USB storage)
• Intercom*: Full Duplex VoIP, SIP v2.0
• Viewer Applications*: PDF, JPEG, BMP, PNG, TIFF, GIF
• Remote Management: VNC Server
• Video Conferencing: Skype
• Audio Conferencing: Audio (Full Duplex Intercom*)
• Light Sensor: Photosensitive light detector for automatic adjustment of the panel brightness
• Camera: HD 720p camera for video conferencing/video chat support
• LED Indicators: Camera active indicator
• Ethernet: 10/100 port, RJ-45 connector through cable extension
• (2) USB host 2.0, Type A ports
• (1) Micro-USB device port (currently not in use)
• Power: PoE (Power over Ethernet), 802.3af, class 3
• INCLUDED ACCESSORIES: MXA-USB-C, USB Port Cover Kit, Modero X/S Series Touch Panel (FG5968-18), 3/4" Mini-Grommet (FG570-01)
