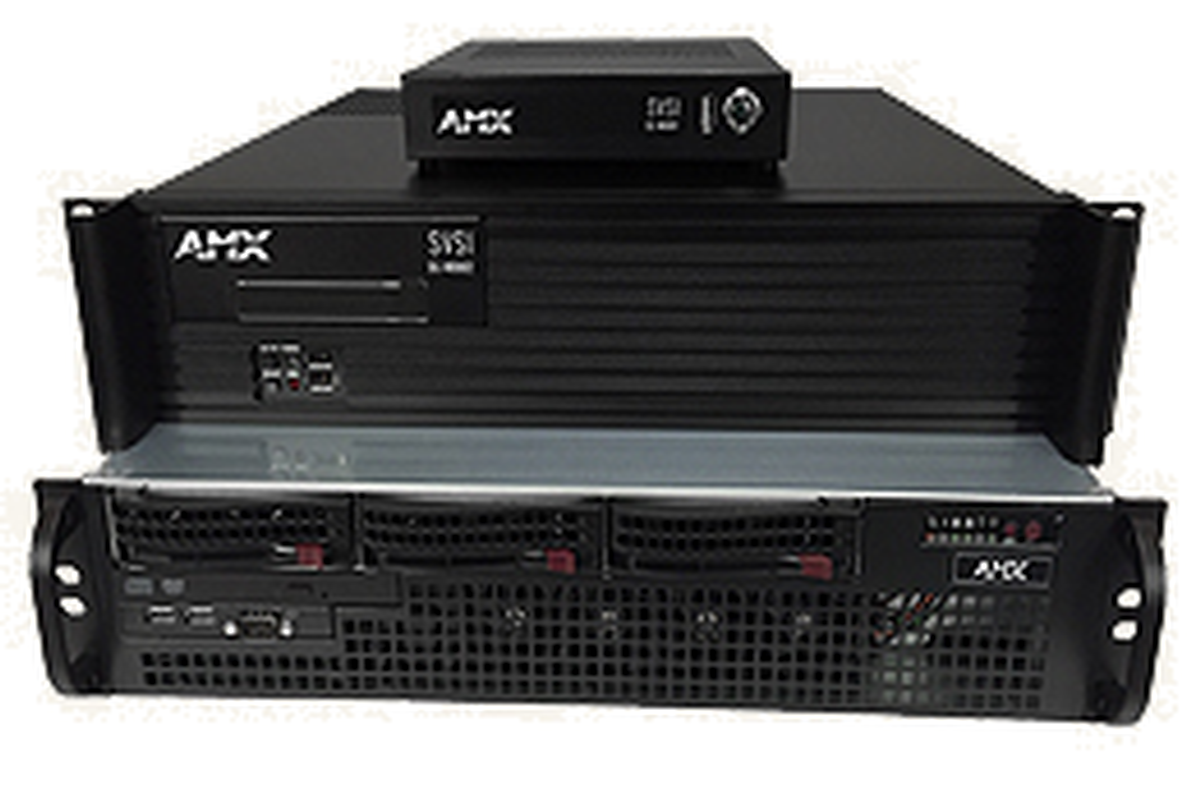

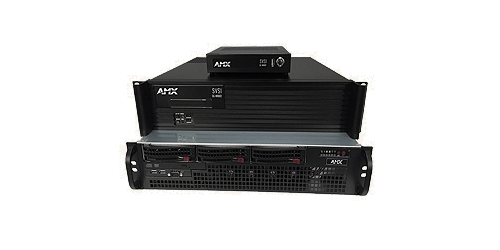

AMX SC-N8012
N-Series Controller for Enterprise

Description

AMX's SC-N8000 N-Command Control Applications provide intuitive and powerful system management of SVSI configuration, as well as task automation, scripting, and wall building. The SC-N8001 offers AV switching for 5 users and 50 devices. N-Command Control Appliances also include a simplified ASCII interface for third-party control via TCP/IP. Featuring a multi-user, web-based graphical matrix display. the SC-N8012 offers easy point-and-click control distributing and switching. Seamlessly switch between live video stream and locally-stored content. Tasks can be scheduled, edited, deleted, or executed immediately for content display. The SC-N8000 includes wall builder, scripting, and panel builder.

Specifications

• Custom Panels: Yes
• Custom Scripts: Yes
• Max Devices: Unlimited
• Group Management: Yes
• Host PC Required: No
• Platform: Dedicated HW
• Users: Unlimited
• Confidence Viewer*: Yes
• Audio Matrix Control: Yes
• Backup and Restore: Yes
• Direct TCP: Yes
• Control 3rd-Party Devices: Yes
• DIMENSIONS (HWD): 3.625" x 17.5" x 17.75"" (9.21 cm x 44.45 cm x 45.8 cm)
• WEIGHT: 28 lbs (12.7 kg)
• ENVIRONMENTAL: Temperature: 32 to 104 F (0 to 40 C)
• Humidity: 10% to 90% RH (non-condensing)
• Heat Dissipation: Up to ~340 BTU/Hr
• REGULATORY COMPLIANCE
• FCC
• CE
• NTRL
