AMX TPC-TPI-PRO
Professional In-Room Presentation Management System
- Maximum number of video inputs Up to 8
- Maximum number of video outputs 1
- Supported source resolutions Determined by the source device or capture interface
- Supported output resolutions *Up to UHD (3840 x 2160)
-Gregory W.
Description

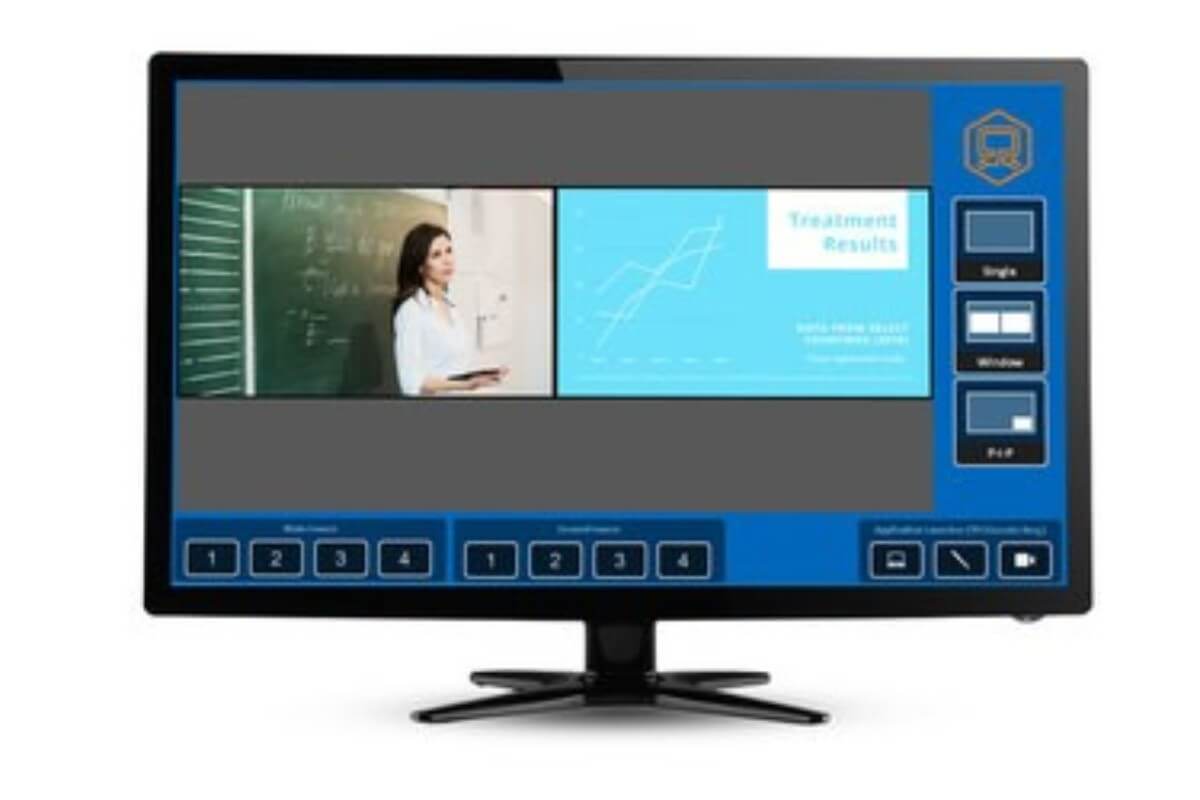

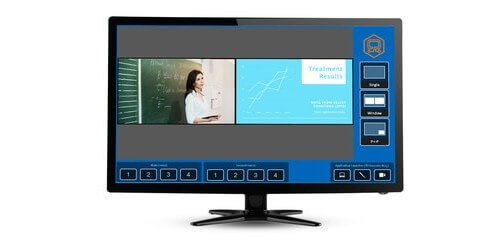

The AMX TPC-TPI-PRO is a solution that enables third-party touch monitors to be used for room and presentation control, display multiple video windows from multiple sources, and switch between the sources in real time. The software runs on any Windows PC 8.1 (or above) and enables all video content, presentation control and environmental control to come together on one central dashboard with live graphics and intuitive interfaces. This allows staff to use content as a tool without becoming distracted by trying to operate a complex and unfamiliar system.
TPC-TPI-PRO creates a presentation canvas, allowing multiple video sources to be input via USB or HDMI-to-USB converter. Sources can be selected and laid out using any configuration and previewed before being sent to the display or projector. As a standard Windows app, the number of input sources that can be processed is dependent on PC processing power and available input ports. When part of a system design that includes an AMX NetLinx NX Central Controller, TPC-TPI-PRO also offers the ability to control and optimize your environment by adjusting lights, blinds, volume levels and more through the TPC-TPI-PRO integrated control interface. TPC-TPI-PRO includes an open source annotation tool however users can import their own annotation application or launch other applications to customize and optimize their presentation capabilities to their specific requirements.
Common Applications
The software is targeted towards specific specialist markets. These include Courtrooms (Legal), Lecture Theatres (University), Operating Theatres (Medical) and Network Operation Centers. It can be leveraged in any presentation environment to compare and annotate content, in medical environments to aid instruction by annotating over live video or digital imaging, in courtrooms to draw on, point to, and highlight content in exhibits, in Network Operation Centers (NOC), and professional event management spaces.
Specifications
- Rendered video window frame rate *30fps
- Touch monitor support Any Windows compatible touch monitor
- AMX G4/G5 compatibility G4 and G5 TPC-TPI-PRO | 3
- Windows 10 (32 bit or 64 bit)
- Windows 8.1 (32 bit or 64 bit)
- CPU Intel i7 or equivalent Intel Atom C2530 or Higher
- Ram 16 GB 4 GB
- Capture interface support **Any Windows compatible capture interface
- USB 2.0 / 3.0 Video support: Yes
- HDCP support: No
