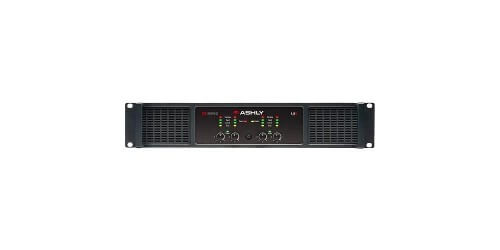

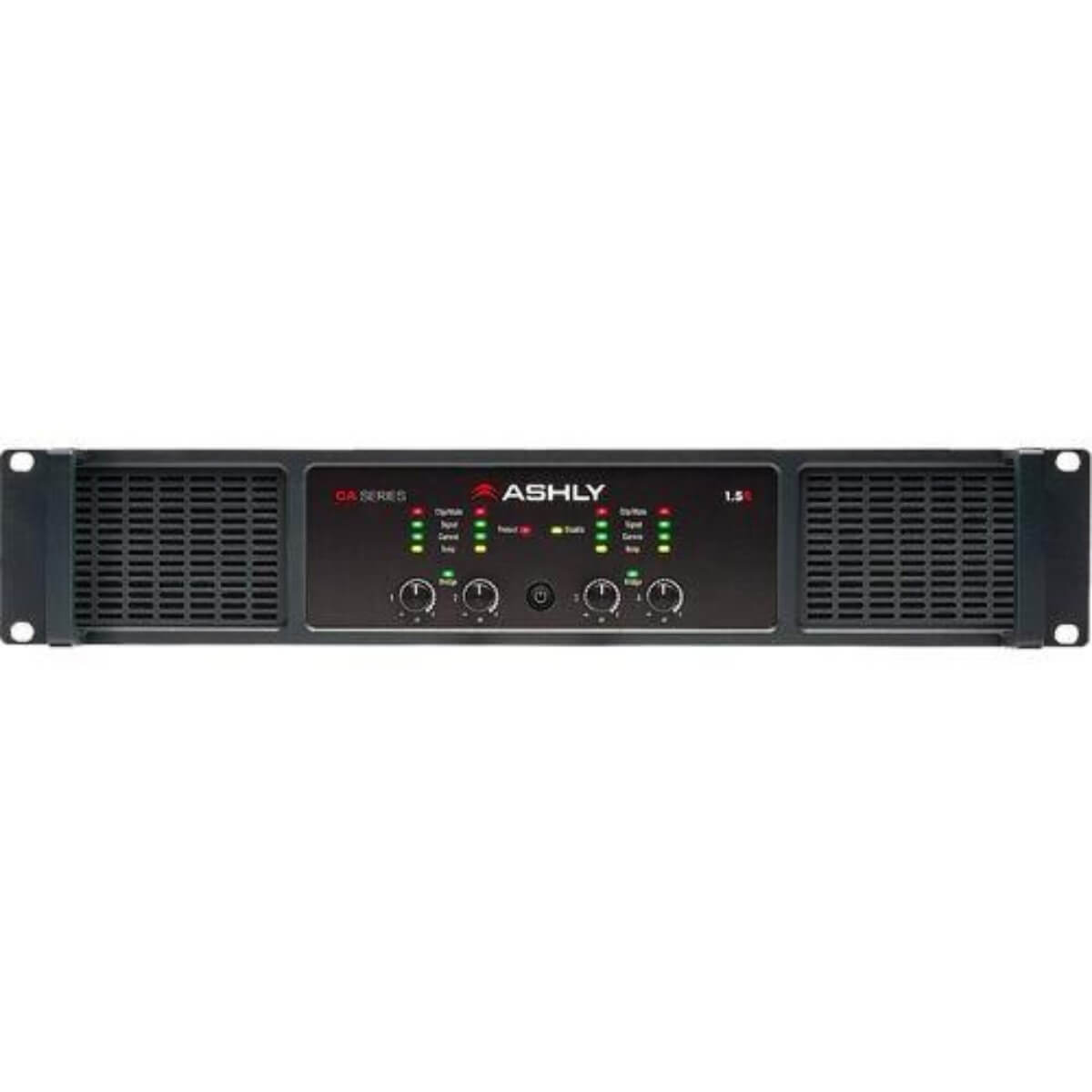

ASHLY CA 1.54
High Efficiency Power Amplifier 4 x 1500W @ 2/4 Ohms or 70V, 750W @ 8
- 4 x 1,500W @ 2/4 Ohms
- Advanced D-Max Class D Technology for Ultra-high efficiency
- Front panel input level Controls with lock out switch
- Switchable 80Hz HPF, Limiter and Amp Gain per channel
-Chad R.
Description
The CA1.54 is a 4 x 1,500W (@2/4 Ohms) Class D power amplifier in a lightweight 2RU fan-cooled chassis. It's unique D-MAX? amplifier technology delivers optimized efficiency and low thermal operation by the use of a new Ashly-developed Dynamic Power Factor Correction, high-speed switching power supply and lossless SiCO2 FET switches which eliminate switch-off noise and reduce wasted power and heat. The result is higher sounds output with lower current draw that most similar amplifiers. Additionally, the CA guarantees cool operation by incorporating a SailFlow directed active air cooling system, which maximizes airflow to the areas where the most heat is generated. The CA1.54 can be used as a typical Low Z amplifier for larger performance install speaker systems, but can also deliver 70/100V output power for use in distributed, constant-voltage sound systems. Channels are each equipped with an 80Hz HPF, Limiter and a VC remote volume control port. All Euroblock connections make installation easy.
Specifications
- Balanced Euroblock and XLR Combo Inputs and Output
- Stable 2 Ohm operation
- Capable of driving 70V and 100V loads
- Cool operation with Sail-Flow active air management
- Remote VC ports for Volume Control per channel
- Remote Standby port with switchable polarity
- Solid metal front panel
