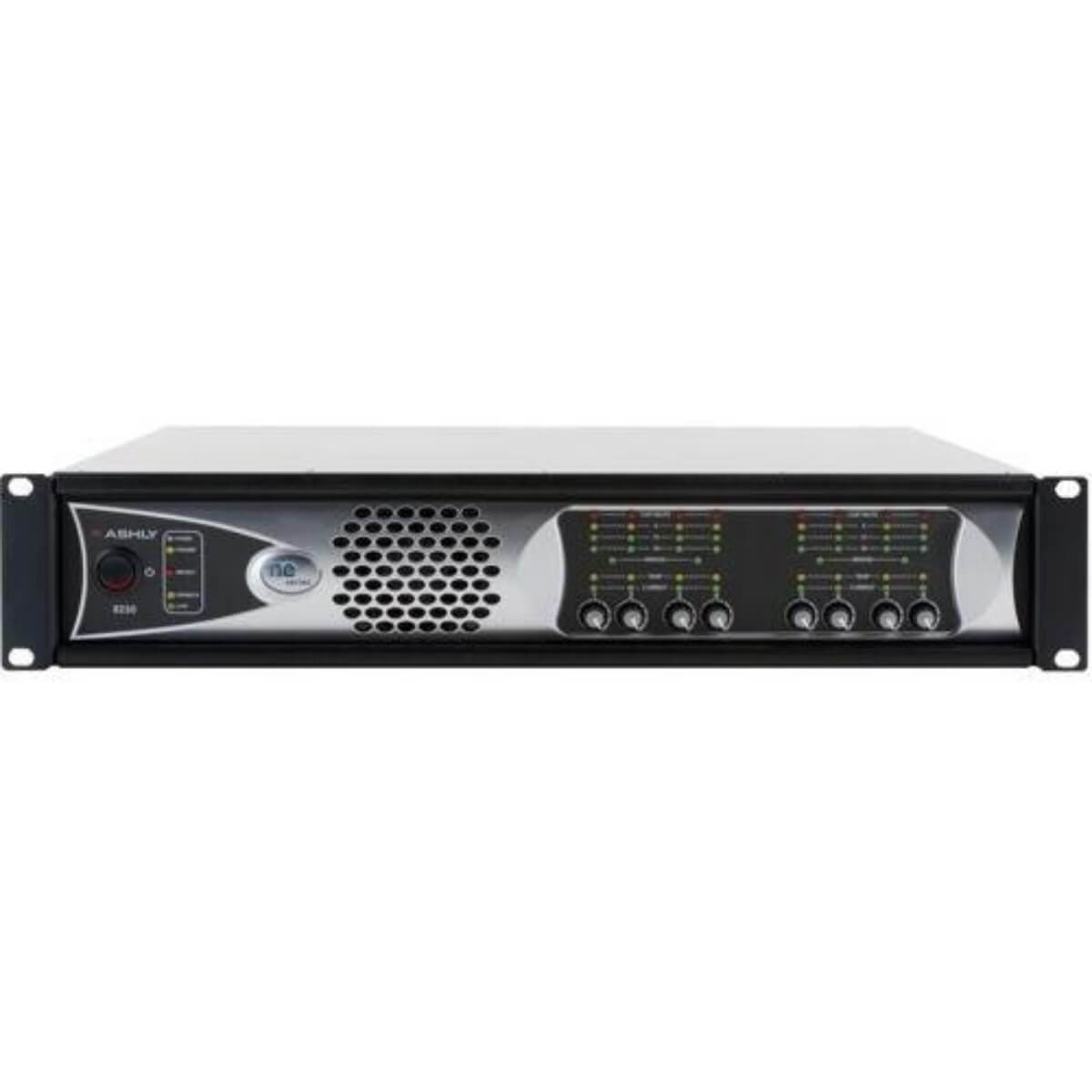

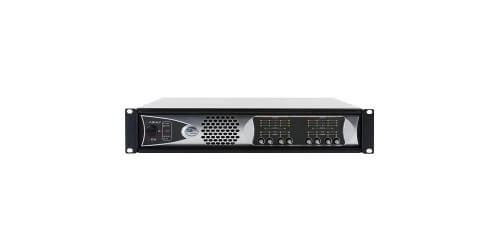

ASHLY NE8250PE
Network Power Amplifier 8 x 250W @ 4 Ohms, 150W @ 8 Ohms with 8x8
- 10/100 Ethernet comes standard
- Prot?a DSP, AES3, CobraNet and Dante options
- FIR Filter capable (pe versions only)
- DC voltage remote gain control
Description
NE Series Amplifiers are uniquely designed around an energy-efficient Class-D platform with a switching power supply.
Connecting and controlling an amplifier for networked systems has now been simplified with Network-Enabled Amplifiers. This line offers ease of use, setup and control using standard 10/100 Ethernet protocol and Protea? ne Software. No special outboard control units are needed. Choose either 4-channel ne4250 or 8-channel ne8250 amplifiers are rated at 250W per channel with separate HI-Z and LO-Z models.
ne Series amplifiers are offered in two separate platforms-the standard network amplifier or a network amplifier with an on-board Protea? DSP Processor. Each can be customized for any installation by adding your choice of AES3 inputs, Dante® or CobraNet® card.
NE Multi-Channel amplifiers are also offered with 240V Line Voltage in either Low-Z or 100V constant voltage output models for International customers.
Specifications
- Ethernet remote control and monitoring
- DSP Processing on inputs and outputs (pe only)
- Switch mode supply, Class-D output
- Stepped, calibrated input attenuators
- Remote turn on/off
- Disable all front panel controls via software
- Temperature-sensitive variable speed fan with side-to-front airflow
- Selectable HPF frequencies on 25V, 70V and 100V models
- 4-stage level meters
- Output current and temp indicators
- Low Impedance, 25V, 70V, 100V models
- Safety/Compliance: TUV, CE, FCC,RoHS
