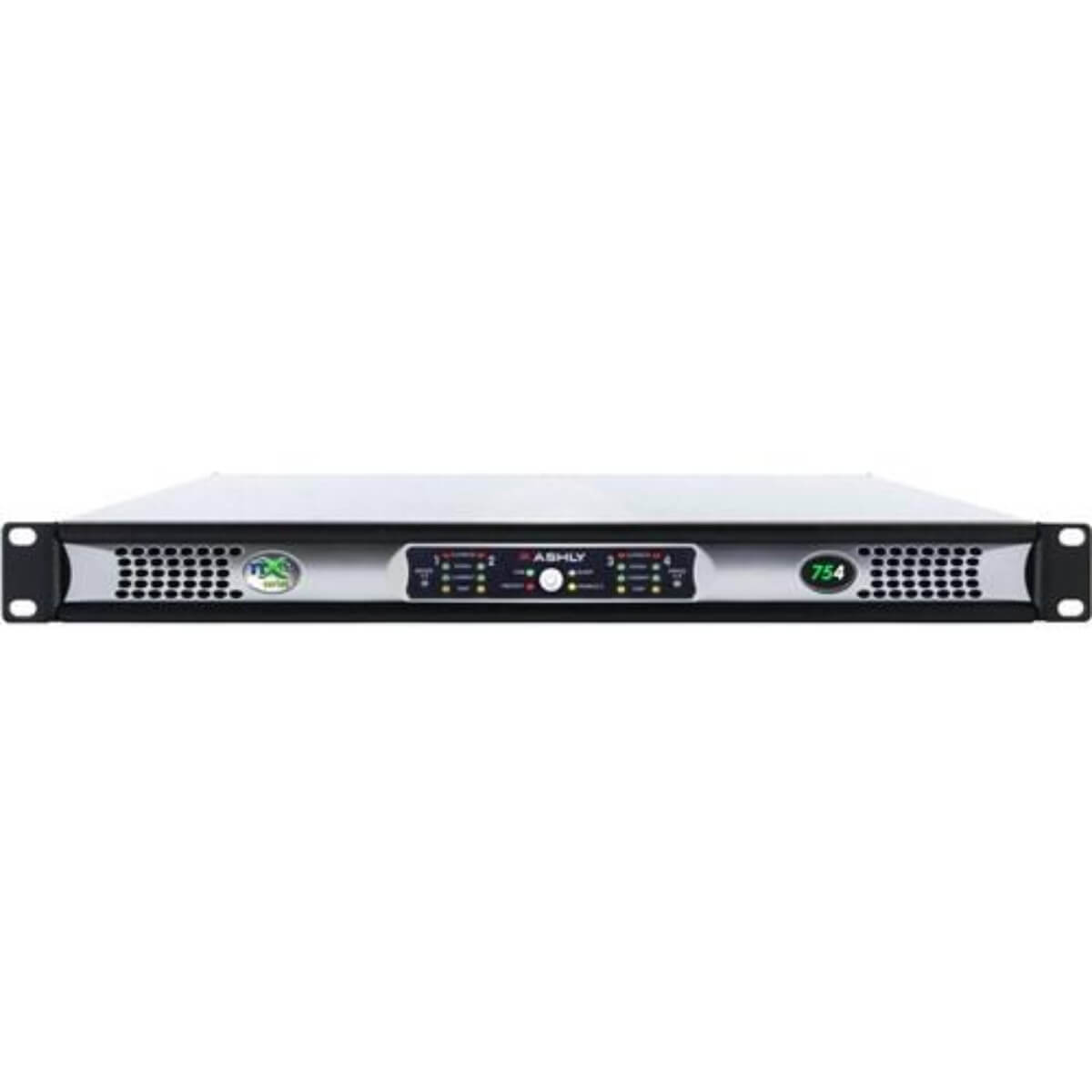

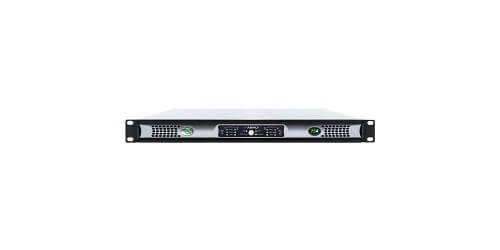

ASHLY NXE754
Network Multi-Mode Power Amplifier 4 x75 Watts at 2/4/8 Ohms or 25V/70V

Description

The Ashly NXE Series 4-Channel Networkable Multi-Mode Power Amplifier is capable of driving 2, 4, and 8 Ohms loads at full power and offers a maximum rated output power of 75W per channel at 25V, 70V, and 100V modes. It comes with additional energy saving features such as Real-Time Clock (RTC), Event Scheduler, and GPIO control.
,br> The multi-mode output capability allows each individual amplifier output channel to be set for Low-Impedance, or Constant Voltage operation using DIP switches. The amplifier features a lightweight 1U design with universal AC input SMPS for improved energy efficiency. Thanks to the Euroblock, and IEC connectivity, the power amplifier safely fulfills the requirements for installed sound applications.

Specifications

• Instant Standby Mode 30% reduction in power consumption with on/off and Preset Recall, both via contact closure, software control, or event scheduler
• Programmable power-on delay
• Aux preamp outputs, and fault condition logic outputs
• Optional Cobranet or Dante and AES3 digital audio input with pass thru
• Rear panel DIP switches select low impedance (2, 4, and 8 Ohm), constant voltage (70V or 100V), high pass filter, limiter and input gain on each channel
• Ashly Energy Management System (EMS) for increased efficiency) automatic <
• 1Wsleep-mode (defeatable)
• Switch mode power supply automatically detects 120V or 240V AC operation
• Extensive protection circuitry
• Continuously variable cooling fans
• Front panel power switch and level controls (can be disabled for security)
• Multiple internal power supplies provide increased channel separation and reliability
• Remote DC level control on each input channel (2 RU models only)
• Genuine Neutrik connectors on 2 RU models for security, safety, and reliability
• Safety / Compliance: cTUVus, CE, FCC, RoHS

Downloads

• ASHLY NXE754 Specifications (PDF)
