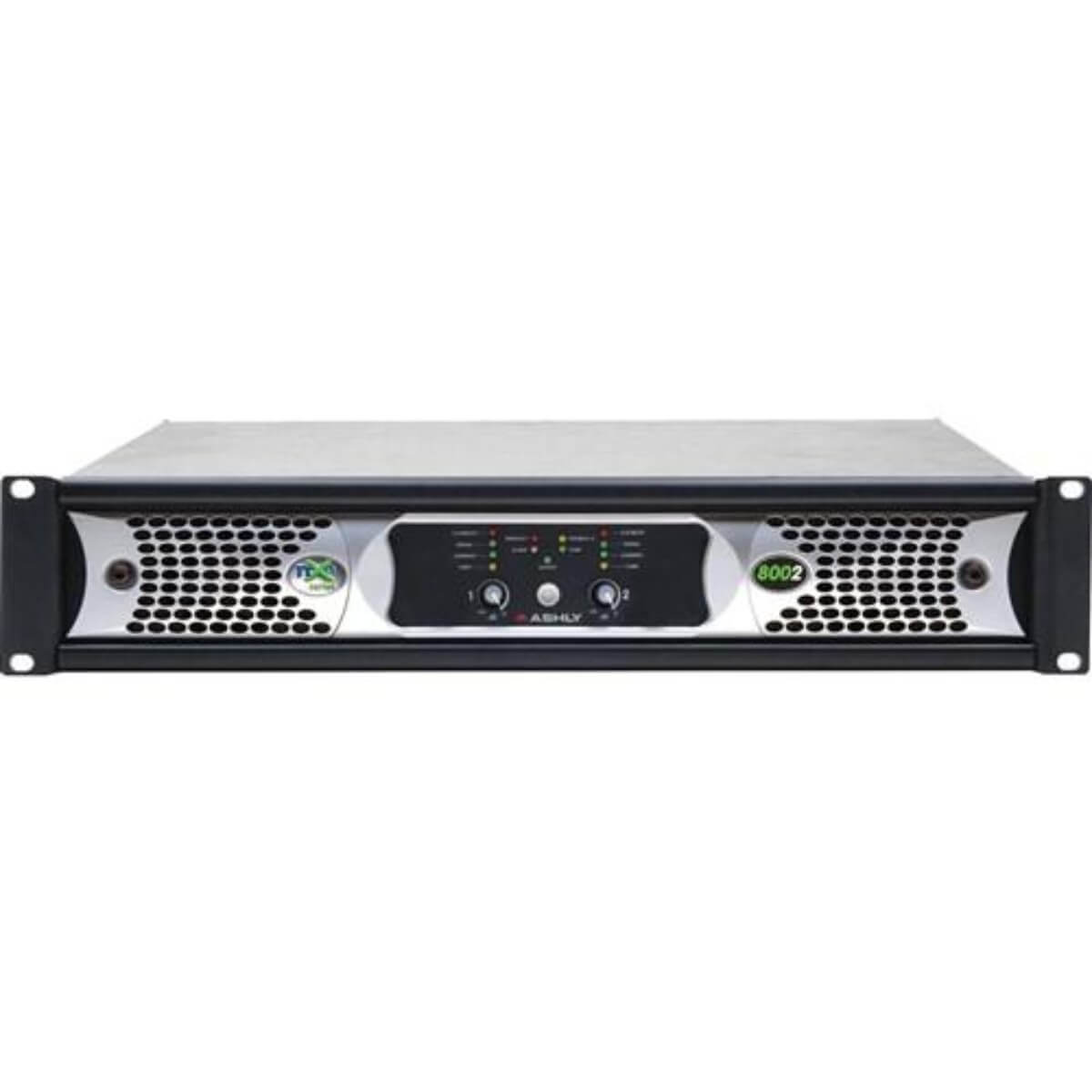

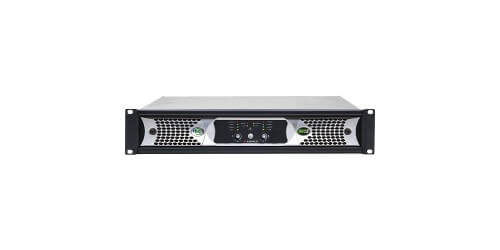

ASHLY NXE8002
Network Multi-Mode Power Amplifier 2x800 Watts at 2/4/8 Ohms or 25V/70V
- Ethernet Control and monitoring of amplifier functions, with front panel COM activity LED
- Serial data port for use with Ashly remote control devices, or optional RS- 232 converter for third party controllers (INA-1)
- Use Prot?a Software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation
- Real-Time Clock with Event Scheduler
Description
The nXe Series NXE8002 2-Channel 800W Power Amplifier with Programmable Outputs & Ethernet Control from Ashly is a Class-D switching amplifier combined with a switch mode power supply. This amplifier meets the requirements of demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces, and convention centers.
The rear panel has DIP switches for programming each channel output for either High-Z or Low-Z operation. This amplifier can be connected to a network with Ethernet control and features serial data control, aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, and optional network audio and digital audio capability, all controlled using the Protea Software Suite (not included).
Specifications
- Instant Standby Mode 30% reduction in power consumption with on/off and Preset Recall, both via contact closure, software control, or event scheduler
- Programmable power-on delay
- Aux preamp outputs, and fault condition logic outputs
- Optional Cobranet or Dante and AES3 digital audio input with pass thru
- Rear panel DIP switches select low impedance (2, 4, and 8 Ohm), constant voltage (70V or 100V), high pass filter, limiter and input gain on each channel
- Ashly Energy Management System (EMS) for increased efficiency) automatic <
- 1Wsleep-mode (defeatable)
- Switch mode power supply automatically detects 120V or 240V AC operation
- Extensive protection circuitry
- Continuously variable cooling fans
- Front panel power switch and level controls (can be disabled for security)
- Multiple internal power supplies provide increased channel separation and reliability
- Remote DC level control on each input channel (2 RU models only)
- Genuine Neutrik connectors on 2 RU models for security, safety, and reliability
- Safety / Compliance: cTUVus, CE, FCC, RoHS
- Made in USA
