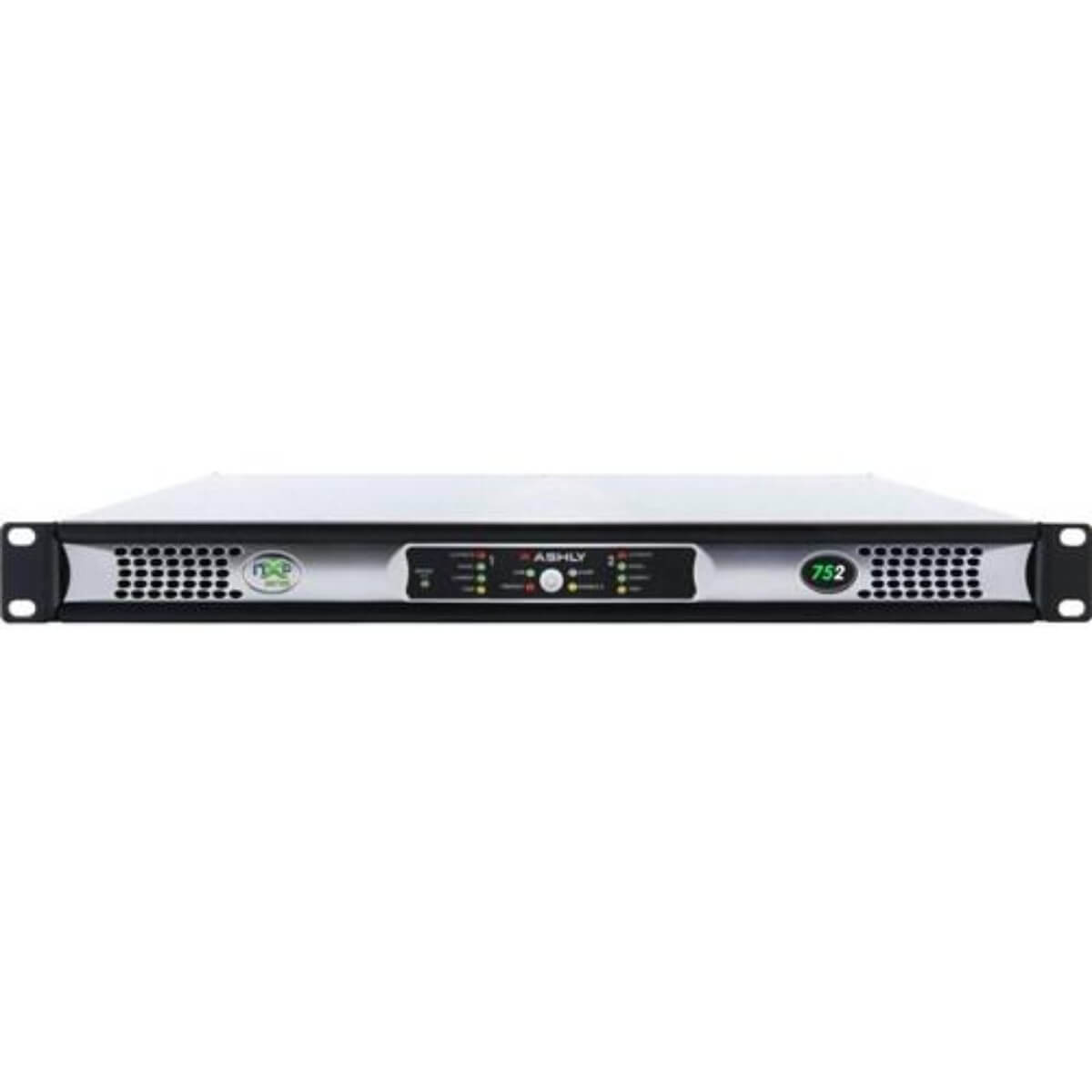

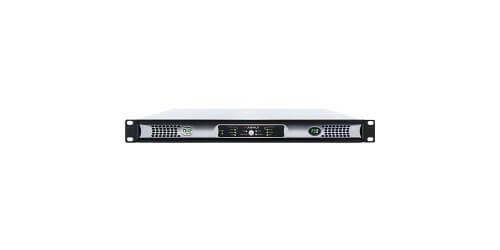

ASHLY NXP752D
NXP752 Multi-Mode Amplifier plus Dante Option Card

Description

The NXP75 2-Channel Multi-Mode Network Power Amplifier from Ashly is capable of driving 2, 4, and 8 Ohms loads at full power and offers a maximum rated output power of 75W per channel at 25V, 70V, and 100V modes. It comes pre-installed with Dante network audio module, enabling access to digital audio networks at low latencies (83.3 microsecond) over Gigabit Ethernet. The amplifier features a lightweight 1U design with universal AC input SMPS for improved energy efficiency. It comes with additional energy saving features such as Real-Time Clock (RTC), Event Scheduler, and GPIO control.

Specifications

• Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
• Instant Standby Mode, 40% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
• Preset recall via contact closure, software control, remote control, or event scheduler
• Programmable power-on delay
• Aux preamp line outputs for driving other amplifiers
• Fault condition logic outputs per channel
• Comprehensive software controlled DSP including dynamics, gain, equalization, matrix mixer, crossover, delay, and metering.
• Additional iPad control of select DSP functions including gain, matrix, A/B source select, PEQ filter level, and meters
• Precision swept load impedance monitoring of individual amplifier channels for remote diagnosis of speaker problems
• Signal generator function for test and noise masking
• Remote gain and zone control with neWR-5 and FR-8/FR-16 programmable networked remotes
• Euroblock input connectors
• Euroblock loudspeaker connectors
• Detachable AC mains line-cord connector
• Safety/Compliance: cTUVus (pending), CE, FCC, RoHS

Downloads

• ASHLY NXP752D Specifications (PDF)
