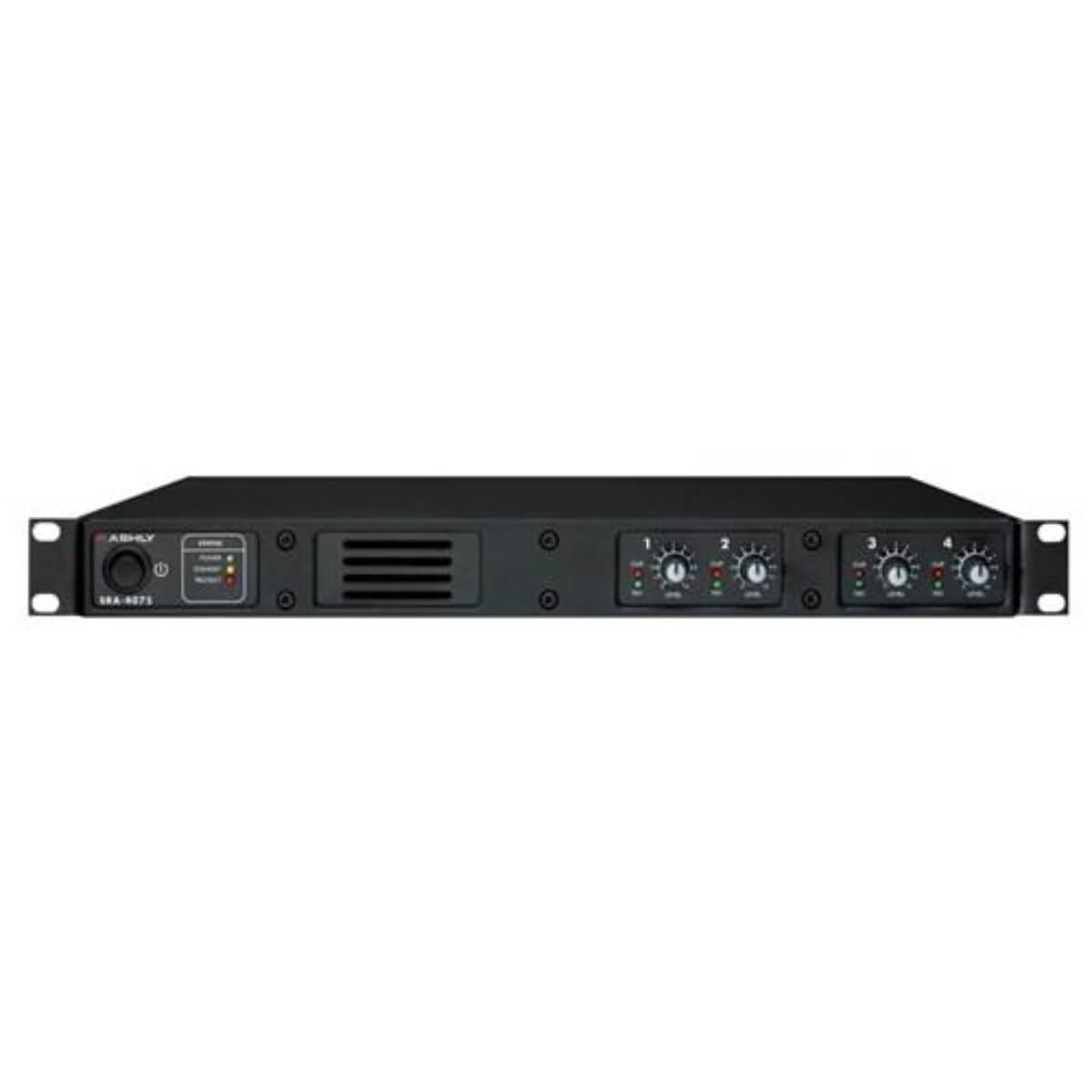

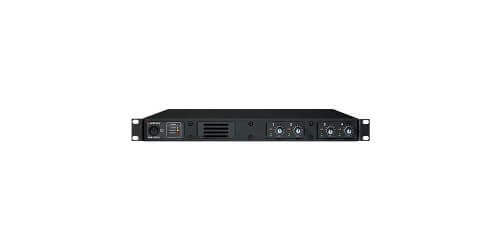

ASHLY SRA-4075
Convection-Cooled 1U Power Amplifier 4x5W 4 Ohms/40W 8 Ohms

Description

SRA Convection-Cooled Amplifiers are advanced, efficient single-space amplifiers perfect for installations with modest power requirements. The SRA Series makes it a snap to get exactly what you need and nothing you don?t. Housed in compact single rack space chassis and weighing only 10 lbs, SRA Convection-Cooled Amplifiers are designed to drive 4 or 8-ohm loads. Choose from 4 models available in 2 and 4-channel configurations with power ratings of 75W and 150W per channel. The 150W models are capable of driving 25V constant voltage lines directly. Switch mode power supplies and Class-D amplifier circuitry provide an extremely power efficient solution.

Specifications

• Rear panel Gain Switch: +36 dB or +26dB input sensitivity
• Euroblock inputs/outputs
• Normal or bridged mode switch on each channel
• Remote power turn ON/OFF with adjustable turn-on delay up to 7.5 seconds
• Stereo or bridged mode switch per channel pair
• Remote stand-by control
• Adjustable turn-on delay up to 8 seconds
• Stereo headphone jack (on 2-chennel models)
• Safety/Compliance: TUV, CE, FCC, RoHS

Downloads

• ASHLY SRA-4075 Specifications (PDF)
