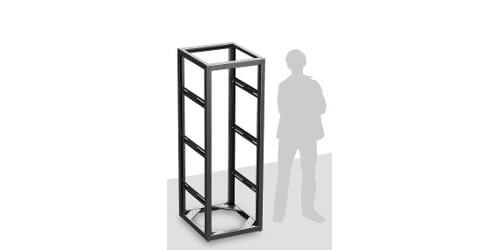

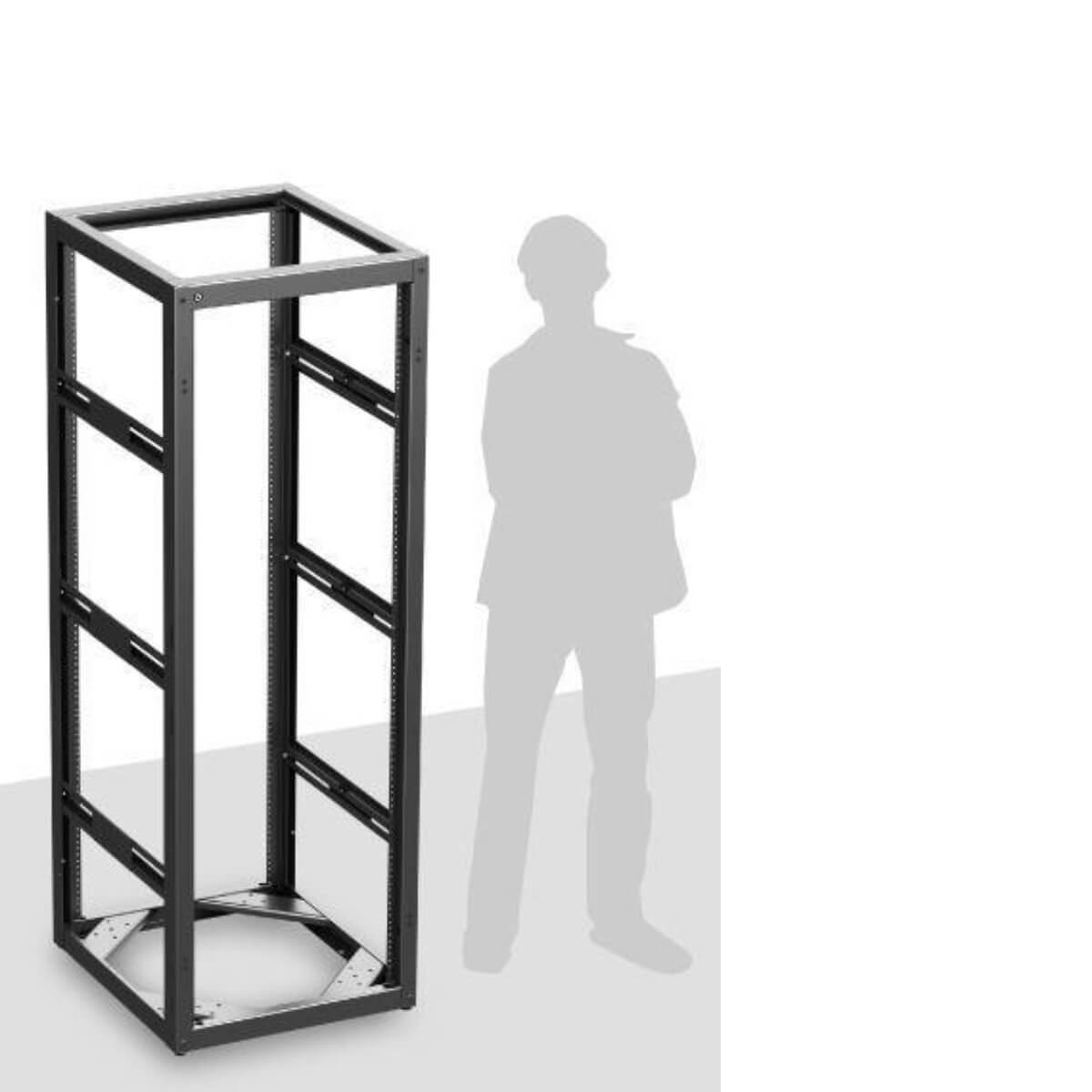

AtlasIED 735-25
Stand Alone or Gangable Rack 25 inch Deep, 35RU
Part #: 735-25
Satisfaction Guaranteed!
MSRP: $1,318.99
Our Price:
$1,055.99
Top 735-25 Specifications
- Rack Units: 35
- Height: 65 1/2" (166.37 cm)
- Width: 22 5/16" (56.67 cm)
- Depth: 25" (63.5 cm)
"Great support and help from technical support!"
-Patrick S.
-Patrick S.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
For single and multiple bay configuration installs requiring additional weight capacity and extended depths, AtlasIED offers the 14-gauge frame construction of the 735-25. The 735-25 is 22 1/2" wide, 25" deep, and has 35 vertical panel spaces. Multi-formed and welded frame members provide superior strength and load bearing capability. Base is constructed of double-formed front and rear sections, MIG welded and reinforced with 11-gauge CRS corner caster gussets. Vertical columns interlock with frame top and base adding double material thickness for superior load bearing capability. Mounting rail channel support members are multi-formed and MIG welded for superior interlocking support. Panel mounting rails are fully adjustable front to rear.
Specifications
- Usable Depth: 23 9/16" (59.77 cm)
- Safety Listed: 1678
Downloads
Reviews
There are currently no reviews for this product.
