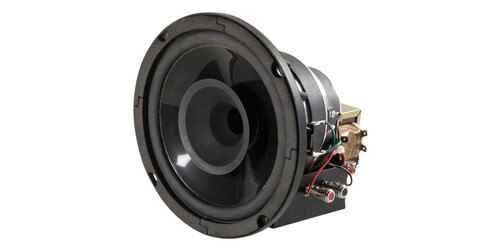

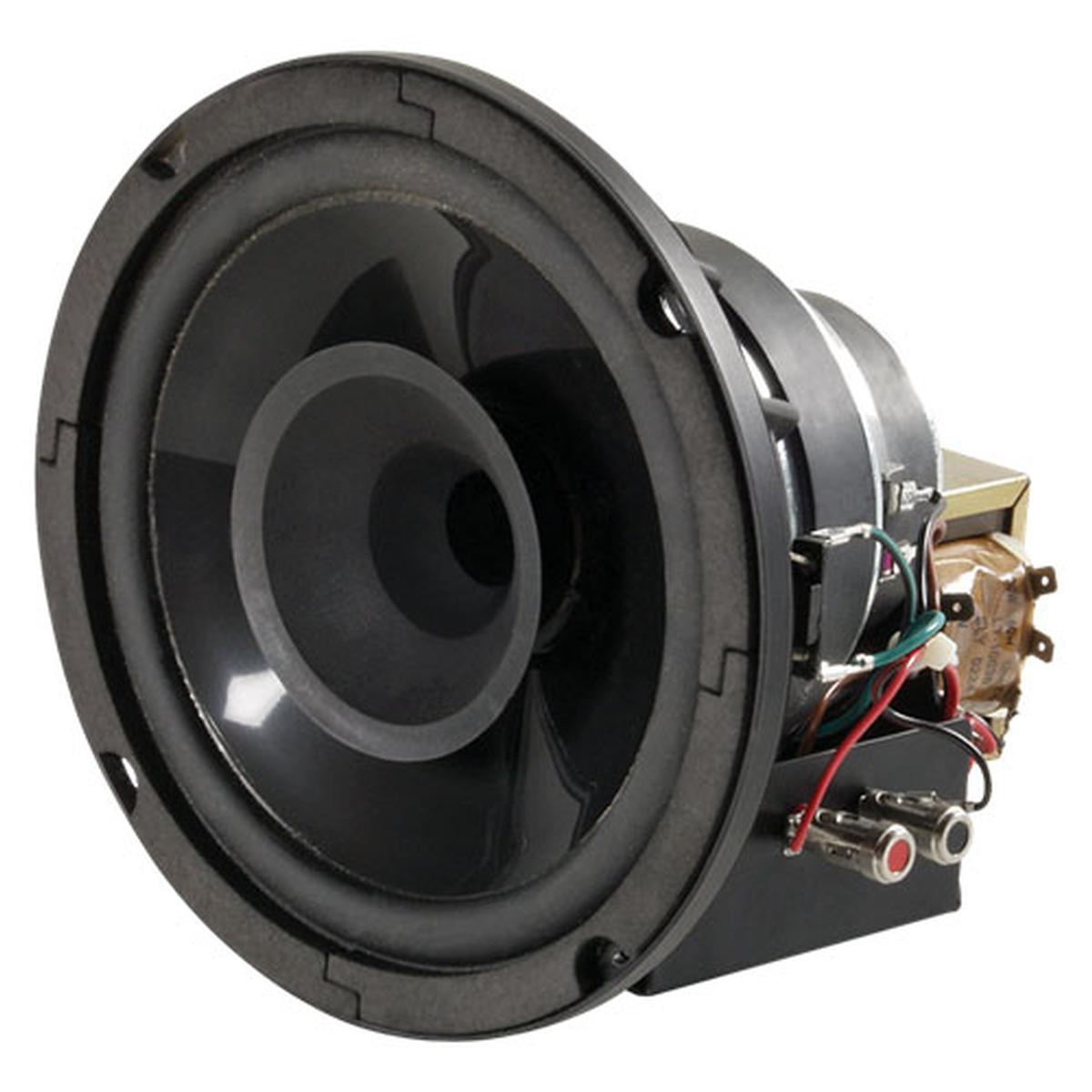

AtlasIED 8CXT60
8" 2-Way True Compression Driver Coaxial Speaker w/ Transformer

Description

8CXT60 8" Coaxial Compression Driver with 70.7V/100V-60W Transformer by Atlas Sound features a curvilinear, polypropylene cone for lower harmonic distortion, and a built-in crossover network for proper frequency transition between the two reproducers. It operates within a frequency response range of 48 Hz to 18 kHz with a sensitivity of 92dB and a dispersion angle of 90 . It also has a factory installed, high efficiency, 60W, 70.7/100V step down line transformer. Power taps are provided at 7.5, 15, 30 and 60 Watts. Compatible Amplifiers are Model CP700,CP700,PA601 ,PA1001G,PA702,PA702-W,PA60G,PA40G

Specifications

• Power Taps 7.5, 15, 30, 60
• Speaker Type Compression Driver Coaxial
• Sensitivity 92dB (at 1W / 1M)

Downloads

• AtlasIED 8CXT60 Specifications (PDF)
