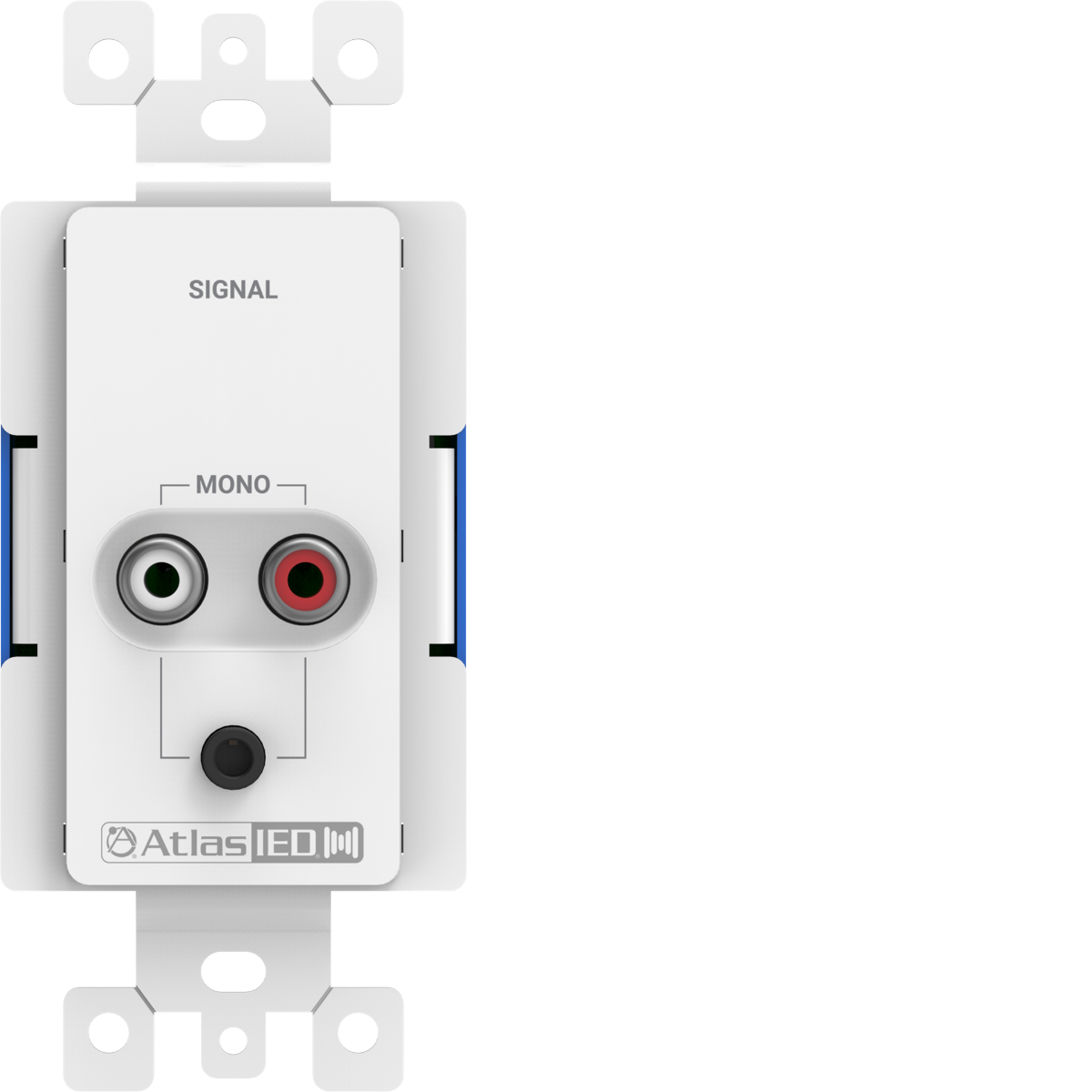

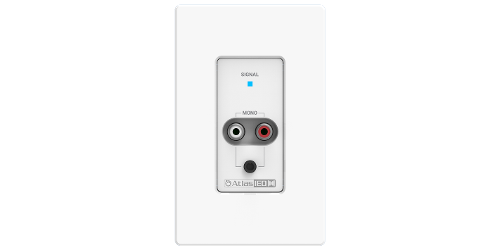

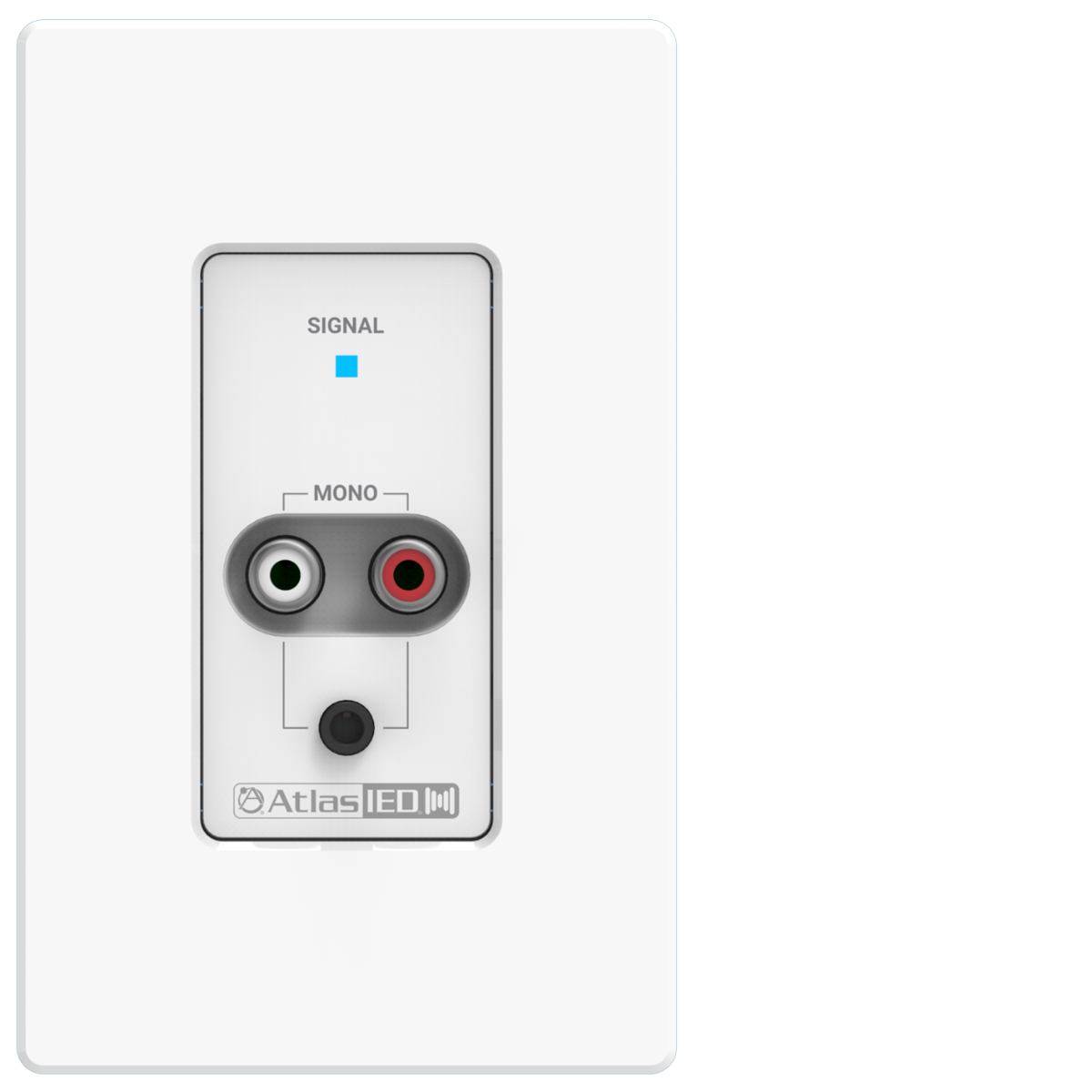

AtlasIED A-RCA
Atmosphere RCA/3.5mm Audio Input Wall Plate
Part #: A-RCA
This product has been discontinued
Suggested Replacement:
Top A-RCA Specifications
- Mono summed RCA pair
- 3.5mm mono summed input
- Digital audio return to host processor
- Works with premium oversized RCA connectors
"Quick and easy to find what I was looking for."
-Brandon K.
-Brandon K.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
The Atlas Sound Atmosphere A-RCA is a remote RCA/3.5mm audio input to an Atmosphere AZM audio processor. This expansion acts identically to the on-board RCA inputs. The AZM will automatically detect the A-RCA and dynamically assign appropriate audio settings, such as makeup gain, EQ, and auto gain control, to that input. The stereo inputs are summed to a mono signal before being sent to the AZM.
Each Atmosphere accessory is a plug-and-play, intelligent device, specifically designed to be approachable and intuitive. The Atmosphere accessory bus allows up to 8 devices to be connected to a single accessory port, reliably sending audio and data over 1000ft per port. Up to 1x audio input accessory can be added to each accessory port.
Specifications
- Signal presence indicator
