AtlasIED AP-30TC
32 Watt 8 Ohm Paging Horn with Transformer, Beige

Our Price: $181.99

Request a Quote

Top AP-30TC Specifications

Description

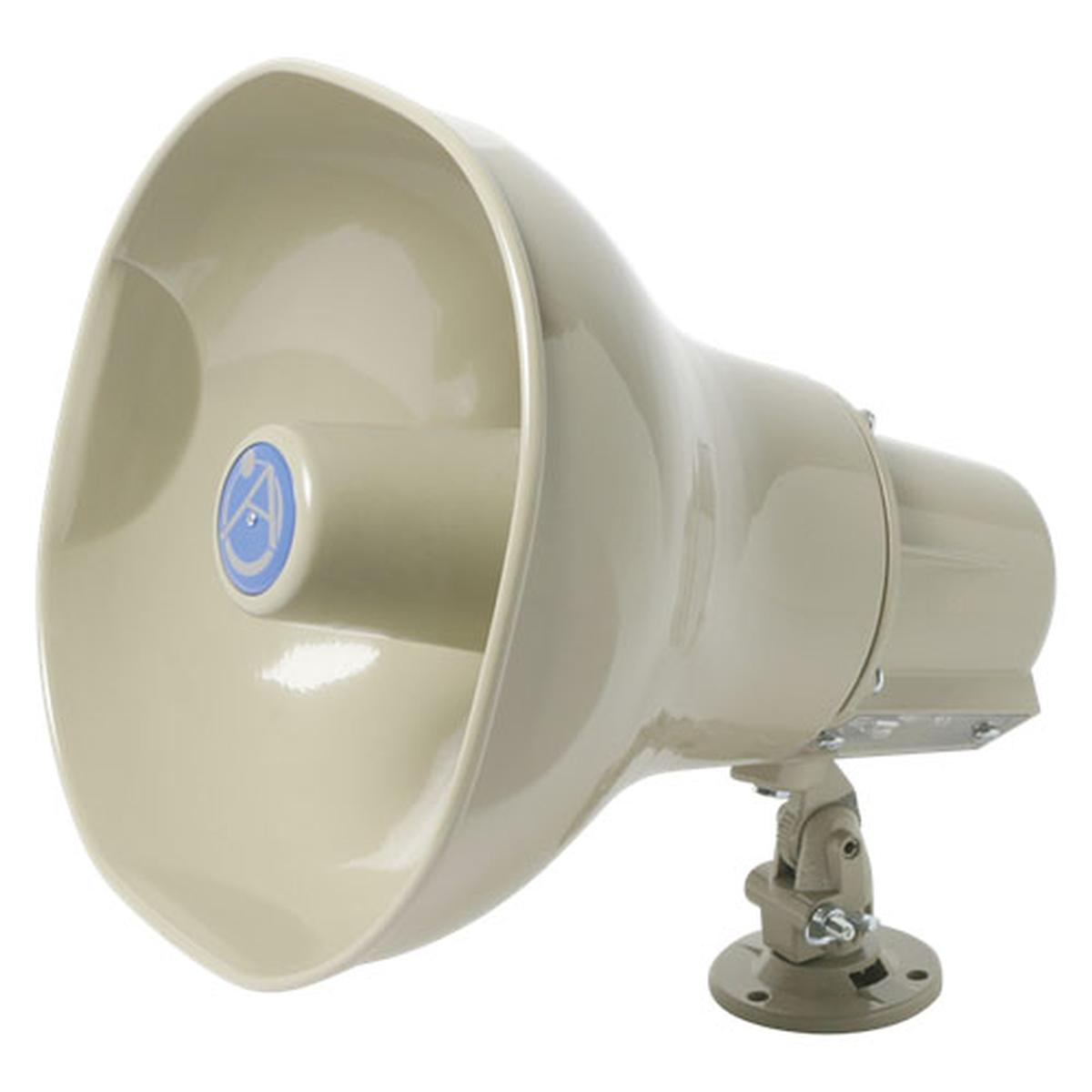

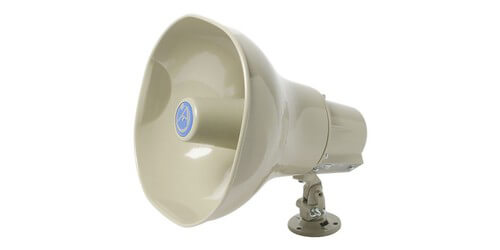

Atlas Sound AP-30TC Horn Loudspeaker with 25V/70.7V/100V-30W Transformer in Beige color is a beautiful design that must be proud of. The 8-ohm and transformer-equipped are double re-entrant loudspeakers which deliver 30 watts of continuous power handling, superior intelligibility and unparalleled audio conversion-efficiency. This Series operates within a nominal frequency range of 300-12,000 Hz and offers a sensitivity of 126dB at rated power to provide clear voice and signal communication.

The AP-30T has a 3-way 25, 70.7, 100V line transformer, while Model AP-30T-25 includes a 25V only line transformer. Transformers are adjustable using Atlas Sound's exclusive Vari-Tap Connect Center which features a 7-position, watts / impedance selection switch.

The labor saving Vari-Tap terminal is screwdriver adjustable and includes a protective cover with built-in strain relief. The trademarked square bell design signifies Atlas Sound quality and reliability.

The Omni-Purpose mounting bracket (included on all models) allows precise positioning in the vertical and horizontal planes with a single adjustment and provides for installation of the loudspeaker on conventional surfaces or by strap-mounting to I-beams or pillars. AP Series loudspeakers are U.S.made to assure a quality service. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy (standard) or beige epoxy if suffixed with (C) where noted.

Specifications

• Frequency Response 300-12,000 Hz
• Impedance 25, 70.7, 100V
• Dispersion 60
• Power Rating 30 Watts
• Sensitivity 108dB
• Operating Range -40 to 70C

Downloads

• AtlasIED AP-30TC Specifications (PDF)

Q & A

Reviews

Image Gallery

Atlas Sound AP-30TC

•
