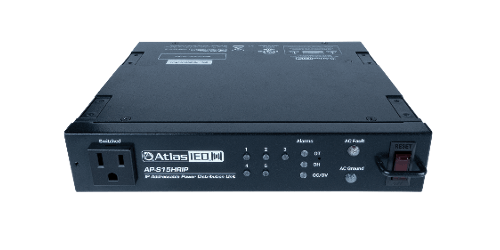

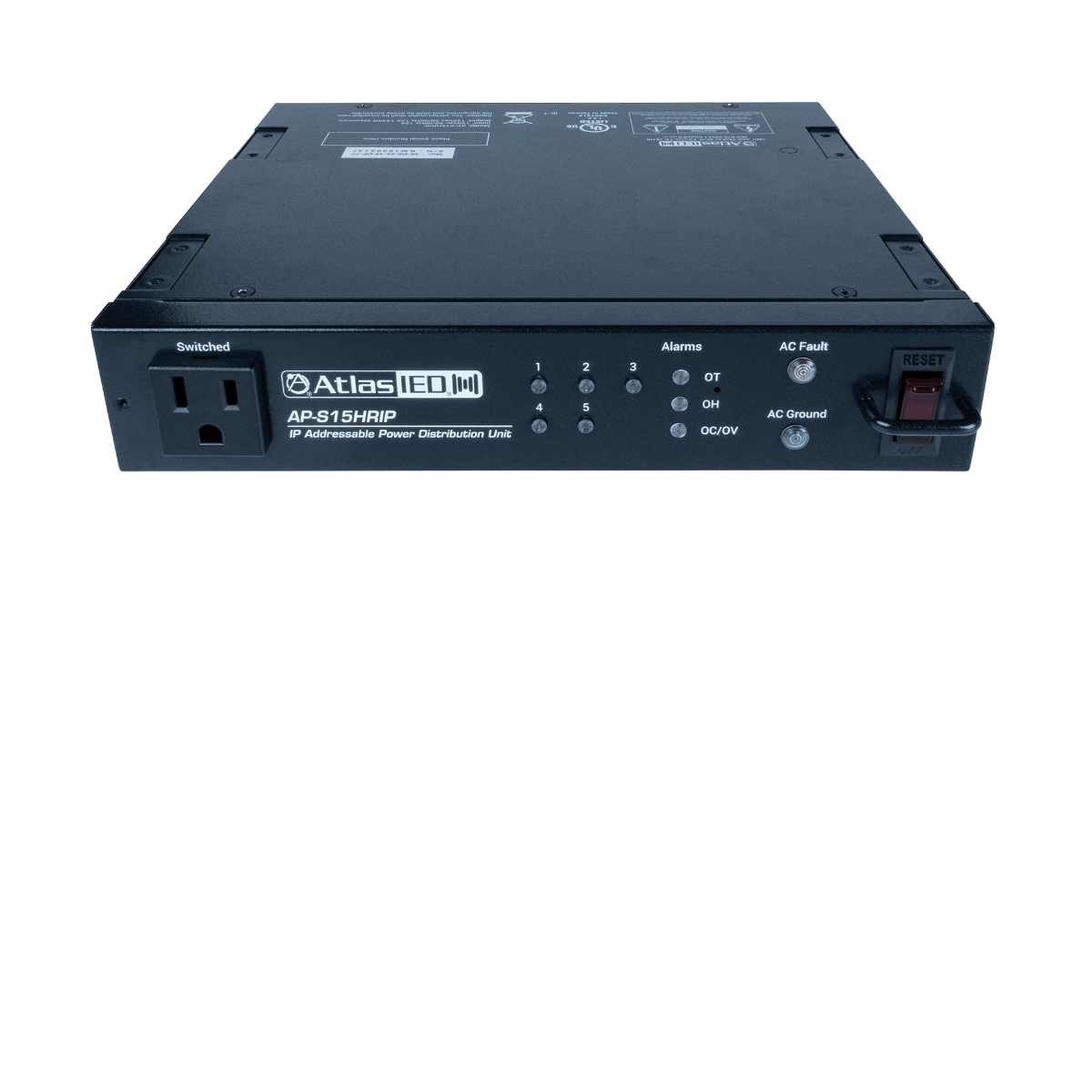

AtlasIED AP-S15HRIP
1/2 rack IP addressable Power Distribution Unit

Description

The AP-S15HRIP half-rack width power conditioner with LAN monitoring & remote control for Power Products management.. The AP-S15HRIP features a web based user interface (UI) that can monitor voltage, current, temperature and humidity. Through the UI, alarms can be set to alert users when a fault condition has occurred via the network UI or fault contacts. The AP-S15HRIP's five rear outlets are programmable and can be scheduled to sequence On / Off individually or in groups on a 24-hour / 7-day schedule. Each AC outlet has a front panel LED status indicator that can also be used to manually turn the outlet On or Off. This feature can be disabled via the UI for increased security. A front panel unswitched AC outlet is also included..

Specifications

• Power Consumption: 8-Watts
• Minimum Spike Clamping Voltage: 460VRMS @ 3,000A
• Maximum Spike Clamping Voltage: 6,000V, 1 nanosecond
• Spike Clamping Voltage @ 100A: 1,250Vp for 20us
• Maximum Surge Current: 6,500A
• Operating Temperature Range: 40º - 105ºF (5º - 40.5ºC)
• Height: 1.75" (44.5mm) 1RU
• Width: 10.5" (266.7mm) 1RU
• Depth: 8.5" (215.9mm)
• Weight: 3.5. (1.6kg)
• Shipping Weight: 5.5. (2.5kg)
• Safety Listed: UL 60950-1
• Country of Origin: Taiwan

Downloads

• AtlasIED AP-S15HRIP Specifications (PDF)
